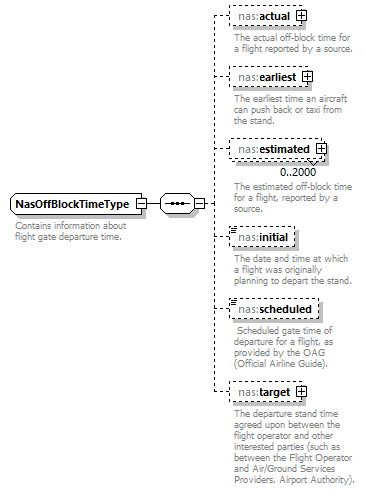

complexType NasOffBlockTimeType
diagram Nas_diagrams/Nas_p201.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:actual nas:earliest nas:estimated nas:initial nas:scheduled nas:target
used by
element NasDepartureType/offBlockTime
annotation
documentation
Contains information about flight gate departure time.
source <xs:complexType name="NasOffBlockTimeType">
  <xs:annotation>
    <xs:documentation>Contains information about flight gate departure time.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="actual" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The actual off-block time for a flight reported by a source.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="earliest" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The earliest time an aircraft can push back or taxi from the stand.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="estimated" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="2000">
      <xs:annotation>
        <xs:documentation>The estimated off-block time for a flight, reported by a source.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="initial" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The date and time at which a flight was originally planning to depart the stand.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="scheduled" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation> Scheduled gate time of departure for a flight, as provided by the OAG (Official Airline Guide).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="target" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The departure stand time agreed upon between the flight operator and other interested parties (such as between the Flight Operator and Air/Ground Services Providers, Airport Authority).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element NasOffBlockTimeType/actual
diagram Nas_diagrams/Nas_p202.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:ReportedTimeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:time
annotation
documentation
The actual off-block time for a flight reported by a source.
source <xs:element name="actual" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The actual off-block time for a flight reported by a source.</xs:documentation>
  </xs:annotation>
</xs:element>

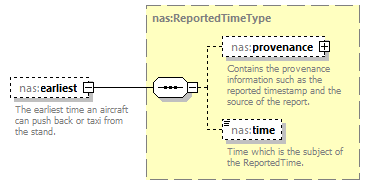

element NasOffBlockTimeType/earliest
diagram Nas_diagrams/Nas_p203.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:ReportedTimeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:time
annotation
documentation
The earliest time an aircraft can push back or taxi from the stand.
source <xs:element name="earliest" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The earliest time an aircraft can push back or taxi from the stand.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasOffBlockTimeType/estimated
diagram Nas_diagrams/Nas_p204.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:ReportedTimeType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
children nas:provenance nas:time
annotation
documentation
The estimated off-block time for a flight, reported by a source.
source <xs:element name="estimated" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="2000">
  <xs:annotation>
    <xs:documentation>The estimated off-block time for a flight, reported by a source.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasOffBlockTimeType/initial
diagram Nas_diagrams/Nas_p205.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
The date and time at which a flight was originally planning to depart the stand.
source <xs:element name="initial" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The date and time at which a flight was originally planning to depart the stand.</xs:documentation>
  </xs:annotation>
</xs:element>

element NasOffBlockTimeType/scheduled
diagram Nas_diagrams/Nas_p206.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
Scheduled gate time of departure for a flight, as provided by the OAG (Official Airline Guide).
source <xs:element name="scheduled" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation> Scheduled gate time of departure for a flight, as provided by the OAG (Official Airline Guide).</xs:documentation>
  </xs:annotation>
</xs:element>

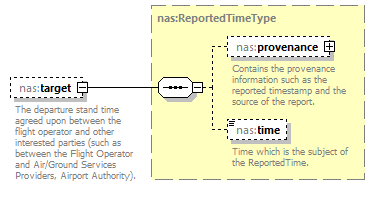

element NasOffBlockTimeType/target
diagram Nas_diagrams/Nas_p207.png
namespace http://www.fixm.aero/ext/nas/4.3
type nas:ReportedTimeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children nas:provenance nas:time
annotation
documentation
The departure stand time agreed upon between the flight operator and other interested parties (such as between the Flight Operator and Air/Ground Services Providers, Airport Authority).
source <xs:element name="target" type="nas:ReportedTimeType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The departure stand time agreed upon between the flight operator and other interested parties (such as between the Flight Operator and Air/Ground Services Providers, Airport Authority).</xs:documentation>
  </xs:annotation>
</xs:element>
