complexType NasNavigationCapabilitiesType

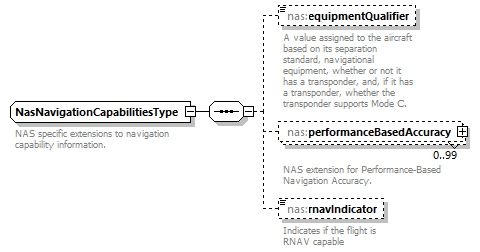

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:NavigationCapabilitiesExtensionType
properties	base  fb:NavigationCapabilitiesExtensionType
children	nas:equipmentQualifier nas:performanceBasedAccuracy nas:rnavIndicator
annotation	documentation NAS specific extensions to navigation capability information.
source	<xs:complexType name="NasNavigationCapabilitiesType">   <xs:annotation>     <xs:documentation>NAS specific extensions to navigation capability information.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:NavigationCapabilitiesExtensionType">       <xs:sequence>         <xs:element name="equipmentQualifier" type="nas:NasAirborneEquipmentQualifierType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>A value assigned to the aircraft based on its separation standard, navigational equipment, whether or not it has a transponder, and, if it has a transponder, whether the transponder supports Mode C.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="performanceBasedAccuracy" type="nas:PerformanceBasedAccuracyType" nillable="true" minOccurs="0" maxOccurs="99">           <xs:annotation>             <xs:documentation>NAS extension for Performance-Based Navigation Accuracy.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="rnavIndicator" type="nas:RnavIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Indicates if the flight is RNAV capable</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element NasNavigationCapabilitiesType/equipmentQualifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:NasAirborneEquipmentQualifierType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  H documentation RVSM / Any navigation / Failed transponder enumeration  O documentation RVSM / Any navigation / Failed Mode C enumeration  W documentation RVSM / No RNAV, No GNSS / Transponder with Mode C enumeration  Z documentation RVSM / RNAV, No GNSS / Transponder with Mode C enumeration  L documentation RVSM / GNSS / Transponder with Mode C enumeration  X documentation Non-RVSM / No DME / No transponder enumeration  T documentation Non-RVSM / No DME / Transponder, no Mode C enumeration  U documentation Non-RVSM / No DME / Transponder with Mode C enumeration  D documentation Non-RVSM / DME / No transponder enumeration  B documentation Non-RVSM / DME / Transponder, no Mode C enumeration  A documentation Non-RVSM / DME / Transponder with Mode C enumeration  M documentation Non-RVSM / TACAN / No transponder enumeration  N documentation Non-RVSM / TACAN / Transponder, no Mode C enumeration  P documentation Non-RVSM / TACAN / Transponder with Mode C enumeration  Y documentation Non-RVSM / RNAV, No GNSS / No transponder enumeration  C documentation Non-RVSM / RNAV, No GNSS / Transponder, no Mode C enumeration  I documentation Non-RVSM / RNAV, No GNSS / Transponder with Mode C enumeration  V documentation Non-RVSM / GNSS / No transponder enumeration  S documentation Non-RVSM / GNSS / Transponder, no Mode C enumeration  G documentation Non-RVSM / GNSS / Transponder with Mode C enumeration  Q documentation Legacy Code - RVSM with Required Navigational Performance (see code R) enumeration  R documentation Legacy Code - Required Navigational Performance. The aircraft meets the RNP type prescribed for the route segment(s), route(s) and/or area concerned.
annotation	documentation A value assigned to the aircraft based on its separation standard, navigational equipment, whether or not it has a transponder, and, if it has a transponder, whether the transponder supports Mode C.
source	<xs:element name="equipmentQualifier" type="nas:NasAirborneEquipmentQualifierType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>A value assigned to the aircraft based on its separation standard, navigational equipment, whether or not it has a transponder, and, if it has a transponder, whether the transponder supports Mode C.</xs:documentation>   </xs:annotation> </xs:element>

element NasNavigationCapabilitiesType/performanceBasedAccuracy

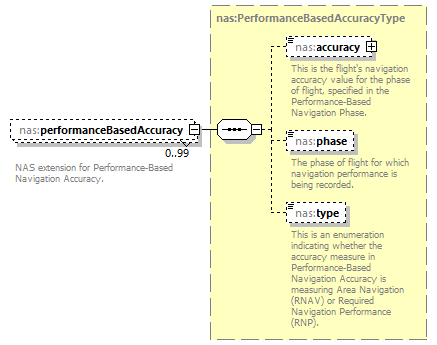

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:PerformanceBasedAccuracyType
properties	minOcc  0 maxOcc  99 content  complex nillable  true
children	nas:accuracy nas:phase nas:type
annotation	documentation NAS extension for Performance-Based Navigation Accuracy.
source	<xs:element name="performanceBasedAccuracy" type="nas:PerformanceBasedAccuracyType" nillable="true" minOccurs="0" maxOccurs="99">   <xs:annotation>     <xs:documentation>NAS extension for Performance-Based Navigation Accuracy.</xs:documentation>   </xs:annotation> </xs:element>

element NasNavigationCapabilitiesType/rnavIndicator

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:RnavIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  RNAV documentation The flight is RNAV capable.
annotation	documentation Indicates if the flight is RNAV capable
source	<xs:element name="rnavIndicator" type="nas:RnavIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates if the flight is RNAV capable</xs:documentation>   </xs:annotation> </xs:element>
