complexType NasDepartureTaxiTimeType

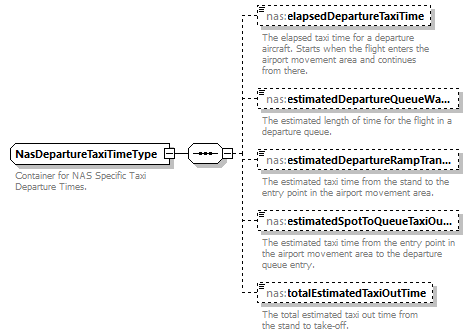

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:elapsedDepartureTaxiTime nas:estimatedDepartureQueueWaitingTime nas:estimatedDepartureRampTransitTime nas:estimatedSpotToQueueTaxiOutTime nas:totalEstimatedTaxiOutTime
used by	element  NasDepartureType/departureTaxiTime
annotation	documentation Container for NAS Specific Taxi Departure Times.
source	<xs:complexType name="NasDepartureTaxiTimeType">   <xs:annotation>     <xs:documentation>Container for NAS Specific Taxi Departure Times.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="elapsedDepartureTaxiTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The elapsed taxi time for a departure aircraft. Starts when the flight enters the airport movement area and continues from there.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="estimatedDepartureQueueWaitingTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated length of time for the flight in a departure queue.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="estimatedDepartureRampTransitTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated taxi time from the stand to the entry point in the airport movement area.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="estimatedSpotToQueueTaxiOutTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The estimated taxi time from the entry point in the airport movement area to the departure queue entry.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="totalEstimatedTaxiOutTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The total estimated taxi out time from the stand to take-off.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasDepartureTaxiTimeType/elapsedDepartureTaxiTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The elapsed taxi time for a departure aircraft. Starts when the flight enters the airport movement area and continues from there.
source	<xs:element name="elapsedDepartureTaxiTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The elapsed taxi time for a departure aircraft. Starts when the flight enters the airport movement area and continues from there.</xs:documentation>   </xs:annotation> </xs:element>

element NasDepartureTaxiTimeType/estimatedDepartureQueueWaitingTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The estimated length of time for the flight in a departure queue.
source	<xs:element name="estimatedDepartureQueueWaitingTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated length of time for the flight in a departure queue.</xs:documentation>   </xs:annotation> </xs:element>

element NasDepartureTaxiTimeType/estimatedDepartureRampTransitTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The estimated taxi time from the stand to the entry point in the airport movement area.
source	<xs:element name="estimatedDepartureRampTransitTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated taxi time from the stand to the entry point in the airport movement area.</xs:documentation>   </xs:annotation> </xs:element>

element NasDepartureTaxiTimeType/estimatedSpotToQueueTaxiOutTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The estimated taxi time from the entry point in the airport movement area to the departure queue entry.
source	<xs:element name="estimatedSpotToQueueTaxiOutTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The estimated taxi time from the entry point in the airport movement area to the departure queue entry.</xs:documentation>   </xs:annotation> </xs:element>

element NasDepartureTaxiTimeType/totalEstimatedTaxiOutTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The total estimated taxi out time from the stand to take-off.
source	<xs:element name="totalEstimatedTaxiOutTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The total estimated taxi out time from the stand to take-off.</xs:documentation>   </xs:annotation> </xs:element>
