complexType NasAtcUnitReferenceExtensionType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:AtcUnitReferenceExtensionType
properties	base  fb:AtcUnitReferenceExtensionType
children	nas:finalControllingSector
annotation	documentation Extension of core AtcUnitReference to include additional NAS information.
source	<xs:complexType name="NasAtcUnitReferenceExtensionType">   <xs:annotation>     <xs:documentation>Extension of core AtcUnitReference to include additional NAS information.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:AtcUnitReferenceExtensionType">       <xs:sequence>         <xs:element name="finalControllingSector" type="fb:AirspaceDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The last controlling sector this flight is expected to pass through in the current center.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element NasAtcUnitReferenceExtensionType/finalControllingSector

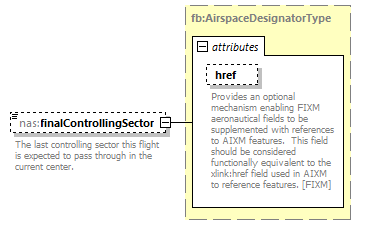

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:AirspaceDesignatorType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
facets	Kind  Value  Annotation minLength  1 maxLength  10 pattern  ([A-Z]|[0-9]|[, !"&#$%'\(\)\*\+\-\./:;<=>\?@\[\\\]\^_\|\{\}])*
attributes	Name   Type   Use   Default   Fixed   Annotation href   fb:HypertextReferenceType   optional         documentation Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation	documentation The last controlling sector this flight is expected to pass through in the current center.
source	<xs:element name="finalControllingSector" type="fb:AirspaceDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The last controlling sector this flight is expected to pass through in the current center.</xs:documentation>   </xs:annotation> </xs:element>
