complexType NasAirspeedChoiceType

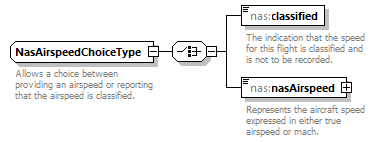

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:classified nas:nasAirspeed
used by	element  NasRouteInformationType/requestedAirspeed
annotation	documentation Allows a choice between providing an airspeed or reporting that the airspeed is classified.
source	<xs:complexType name="NasAirspeedChoiceType">   <xs:annotation>     <xs:documentation>Allows a choice between providing an airspeed or reporting that the airspeed is classified.</xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="classified" type="nas:ClassifiedSpeedIndicatorType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>The indication that the speed for this flight is classified and is not to be recorded. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="nasAirspeed" type="fb:TrueAirspeedType" minOccurs="1" maxOccurs="1">       <xs:annotation>         <xs:documentation>Represents the aircraft speed expressed in either true airspeed or mach.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:choice> </xs:complexType>

element NasAirspeedChoiceType/classified

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:ClassifiedSpeedIndicatorType
properties	content  simple
facets	Kind  Value  Annotation enumeration  CLASSIFIED documentation Indicates that a given flights speed is classified, usually reserved for military or VIP flights.
annotation	documentation The indication that the speed for this flight is classified and is not to be recorded.
source	<xs:element name="classified" type="nas:ClassifiedSpeedIndicatorType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>The indication that the speed for this flight is classified and is not to be recorded. </xs:documentation>   </xs:annotation> </xs:element>

element NasAirspeedChoiceType/nasAirspeed

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TrueAirspeedType
properties	content  complex
facets	Kind  Value  Annotation minInclusive  0
attributes	Name   Type   Use   Default   Fixed   Annotation uom   fb:UomAirspeedType   required         documentation Unit of measure
annotation	documentation Represents the aircraft speed expressed in either true airspeed or mach.
source	<xs:element name="nasAirspeed" type="fb:TrueAirspeedType" minOccurs="1" maxOccurs="1">   <xs:annotation>     <xs:documentation>Represents the aircraft speed expressed in either true airspeed or mach.</xs:documentation>   </xs:annotation> </xs:element>
