complexType NasAircraftType

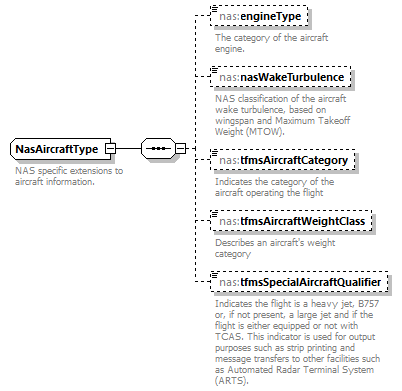

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	extension of fb:AircraftExtensionType
properties	base  fb:AircraftExtensionType
children	nas:engineType nas:nasWakeTurbulence nas:tfmsAircraftCategory nas:tfmsAircraftWeightClass nas:tfmsSpecialAircraftQualifier
annotation	documentation NAS specific extensions to aircraft information.
source	<xs:complexType name="NasAircraftType">   <xs:annotation>     <xs:documentation>NAS specific extensions to aircraft information.             </xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="fb:AircraftExtensionType">       <xs:sequence>         <xs:element name="engineType" type="nas:EngineTypeType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>The category of the aircraft  engine.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="nasWakeTurbulence" type="nas:WakeTurbulenceCategoryExtendedType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>NAS classification of the aircraft wake turbulence, based on wingspan and Maximum Takeoff Weight (MTOW).</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfmsAircraftCategory" type="nas:TfmsAircraftCategoryType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Indicates the category of the aircraft operating the flight</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfmsAircraftWeightClass" type="nas:TfmsAircraftWeightClassType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Describes an aircraft's weight category</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="tfmsSpecialAircraftQualifier" type="nas:TfmsSpecialAircraftQualifierType" nillable="true" minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>Indicates the flight is a heavy jet, B757 or, if not present, a large jet and if the flight is either equipped or not with TCAS. This indicator is used for output purposes such as strip printing and message transfers to other facilities such as Automated Radar Terminal System (ARTS). </xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element NasAircraftType/engineType

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:EngineTypeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  PISTON documentation Piston enumeration  JET documentation Jet enumeration  TURBO documentation Turbo enumeration  OTHER documentation Other aircraft engine type
annotation	documentation The category of the aircraft  engine.
source	<xs:element name="engineType" type="nas:EngineTypeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The category of the aircraft  engine.</xs:documentation>   </xs:annotation> </xs:element>

element NasAircraftType/nasWakeTurbulence

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:WakeTurbulenceCategoryExtendedType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  A documentation Aircraft capable of Maximum Certificated Takeoff Weight (MTOW) of 300,000 pounds or more and a wingspan greater than 245 feet. enumeration  B documentation Aircraft capable of Maximum Certificated Takeoff Weight (MTOW) of 300,000 pounds or more and a wingspan greater than 175 feet and less than or equal to 245 feet. enumeration  C documentation Aircraft capable of a Maximum Certificated Takeoff Weight (MTOW) of 300,000 pounds or more and a wingspan greater than 125 feet and less than or equal to 175 feet. enumeration  D documentation Aircraft capable of a Maximum Certificated Takeoff Weight (MTOW) of less than 300,000 pounds and a wingspan greater than 125 feet and less than or equal to 175 feet, or aircraft with a wingspan greater than 90 feet and less than or equal to 125 feet. enumeration  E documentation Aircraft capable of a Maximum Certificated Takeoff Weight (MTOW) greater than 41,000 pounds with a wingspan greater than 65 feet and less than or equal to 90 feet. enumeration  F documentation Aircraft capable of a Maximum Certificated Takeoff Weight (MTOW) of less than 41,000 pounds and a wingspan less than or equal to 125 feet, or aircraft capable of a MTOW less than 15,500 pounds regardless of wingspan, or a powered sailplane.
annotation	documentation NAS classification of the aircraft wake turbulence, based on wingspan and Maximum Takeoff Weight (MTOW).
source	<xs:element name="nasWakeTurbulence" type="nas:WakeTurbulenceCategoryExtendedType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>NAS classification of the aircraft wake turbulence, based on wingspan and Maximum Takeoff Weight (MTOW).</xs:documentation>   </xs:annotation> </xs:element>

element NasAircraftType/tfmsAircraftCategory

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TfmsAircraftCategoryType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  SINGLE_PISTON_PROP documentation Single piston prop enumeration  MULTI_PISTON_PROP documentation Multi-piston prop enumeration  SINGLE_TURBO_PROP documentation Single turbo prop enumeration  MULTI_TURBO_PROP documentation Multi-turbo prop enumeration  CIVILIAN_JET documentation Civilian jet enumeration  MILITARY_FIGHTER_JET documentation Military fighter jet enumeration  MILITARY_LARGE_JET documentation Military large jet enumeration  SPECIAL_TURBO_JET documentation Special turbo jet enumeration  HELICOPTER documentation Helicopter
annotation	documentation Indicates the category of the aircraft operating the flight
source	<xs:element name="tfmsAircraftCategory" type="nas:TfmsAircraftCategoryType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates the category of the aircraft operating the flight</xs:documentation>   </xs:annotation> </xs:element>

element NasAircraftType/tfmsAircraftWeightClass

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TfmsAircraftWeightClassType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  SMALL documentation Maximum take-off mass of 7,000 kilograms (~15,000 lbs) or less. enumeration  LARGE documentation Maximum take-off mass of greater than 7,000 kilograms (~15,000 lbs) but less than 136,000 kilograms (~300,000 lbs). enumeration  HEAVY documentation Maximum take-off mass of 136,000 kilograms (~300,000 lbs) or greater.
annotation	documentation Describes an aircraft's weight category
source	<xs:element name="tfmsAircraftWeightClass" type="nas:TfmsAircraftWeightClassType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Describes an aircraft's weight category</xs:documentation>   </xs:annotation> </xs:element>

element NasAircraftType/tfmsSpecialAircraftQualifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:TfmsSpecialAircraftQualifierType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  HEAVY_JET documentation Capable of takeoff weights of 300,000 pounds or more enumeration  TCAS documentation Traffic collision avoidance system or traffic alert and collision avoidance system enumeration  B757 documentation Controllers are required to apply the special wake turbulence separation criteria for the Boeing 757. enumeration  B757_TCAS documentation Boeing 757 with traffic collision avoidance system enumeration  HEAVY_JET_AND_TCAS documentation Capable of takeoff weights of 300,000 pounds or more and traffic collision avoidance system. enumeration  WAKE_TURBULENCE documentation Wake turbulence qualifier enumeration  OTHER documentation Other aircraft qualifier
annotation	documentation Indicates the flight is a heavy jet, B757 or, if not present, a large jet and if the flight is either equipped or not with TCAS. This indicator is used for output purposes such as strip printing and message transfers to other facilities such as Automated Radar Terminal System (ARTS).
source	<xs:element name="tfmsSpecialAircraftQualifier" type="nas:TfmsSpecialAircraftQualifierType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Indicates the flight is a heavy jet, B757 or, if not present, a large jet and if the flight is either equipped or not with TCAS. This indicator is used for output purposes such as strip printing and message transfers to other facilities such as Automated Radar Terminal System (ARTS). </xs:documentation>   </xs:annotation> </xs:element>
