complexType NasAdaptedRouteType

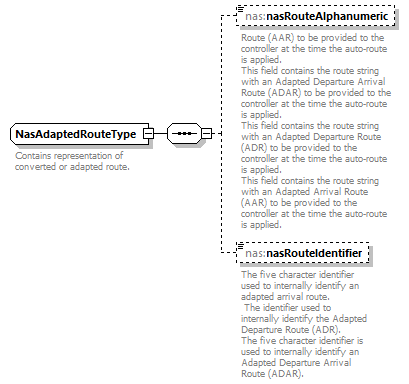

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:nasRouteAlphanumeric nas:nasRouteIdentifier
used by	elements  NasRouteInformationType/adaptedDepartureArrivalRoute NasRouteInformationType/adaptedDepartureRoute complexType  NasAdaptedArrivalRouteType
annotation	documentation Contains representation of converted or adapted route.
source	<xs:complexType name="NasAdaptedRouteType">   <xs:annotation>     <xs:documentation>Contains representation of converted or adapted route.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="nasRouteAlphanumeric" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Route (AAR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Departure Arrival Route (ADAR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Departure Route (ADR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Arrival Route (AAR) to be provided to the controller at the time the auto-route is applied.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="nasRouteIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The five character identifier used to internally identify an adapted arrival route. The identifier used to internally identify the Adapted Departure Route (ADR). The five character identifier is used to internally identify an Adapted Departure Arrival Route (ADAR).</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NasAdaptedRouteType/nasRouteAlphanumeric

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Route (AAR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Departure Arrival Route (ADAR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Departure Route (ADR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Arrival Route (AAR) to be provided to the controller at the time the auto-route is applied.
source	<xs:element name="nasRouteAlphanumeric" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Route (AAR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Departure Arrival Route (ADAR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Departure Route (ADR) to be provided to the controller at the time the auto-route is applied. This field contains the route string with an Adapted Arrival Route (AAR) to be provided to the controller at the time the auto-route is applied.</xs:documentation>   </xs:annotation> </xs:element>

element NasAdaptedRouteType/nasRouteIdentifier

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The five character identifier used to internally identify an adapted arrival route. The identifier used to internally identify the Adapted Departure Route (ADR). The five character identifier is used to internally identify an Adapted Departure Arrival Route (ADAR).
source	<xs:element name="nasRouteIdentifier" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The five character identifier used to internally identify an adapted arrival route. The identifier used to internally identify the Adapted Departure Route (ADR). The five character identifier is used to internally identify an Adapted Departure Arrival Route (ADAR).</xs:documentation>   </xs:annotation> </xs:element>
