complexType NameValuePairType

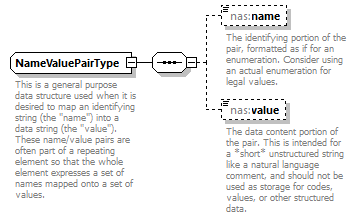

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:name nas:value
used by	element  NameValueListType/nameValue
annotation	documentation This is a general purpose data structure used when it is desired to map an identifying string (the "name") into a data string (the "value"). These name/value pairs are often part of a repeating element so that the whole element expresses a set of names mapped onto a set of values.
source	<xs:complexType name="NameValuePairType">   <xs:annotation>     <xs:documentation>This is a general purpose data structure used when it is desired to map an identifying string (the "name") into a data string (the "value"). These name/value pairs are often part of a repeating element so that the whole element expresses a set of names mapped onto a set of values.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="name" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The identifying portion of the pair, formatted as if for an enumeration. Consider using an actual enumeration for legal values.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="value" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The data content portion of the pair. This is intended for a *short* unstructured string like a natural language comment, and should not be used as storage for codes, values, or other structured data.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NameValuePairType/name

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The identifying portion of the pair, formatted as if for an enumeration. Consider using an actual enumeration for legal values.
source	<xs:element name="name" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The identifying portion of the pair, formatted as if for an enumeration. Consider using an actual enumeration for legal values.</xs:documentation>   </xs:annotation> </xs:element>

element NameValuePairType/value

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The data content portion of the pair. This is intended for a *short* unstructured string like a natural language comment, and should not be used as storage for codes, values, or other structured data.
source	<xs:element name="value" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The data content portion of the pair. This is intended for a *short* unstructured string like a natural language comment, and should not be used as storage for codes, values, or other structured data.</xs:documentation>   </xs:annotation> </xs:element>
