complexType MessageProvenanceType

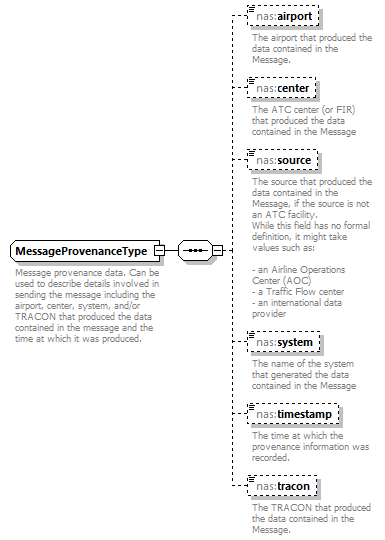

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:airport nas:center nas:source nas:system nas:timestamp nas:tracon
used by	element  MessageMetadataType/provenance
annotation	documentation Message provenance data. Can be used to describe details involved in sending the message including the airport, center, system, and/or TRACON that produced the data contained in the message and the time at which it was produced.
source	<xs:complexType name="MessageProvenanceType">   <xs:annotation>     <xs:documentation>Message provenance data. Can be used to describe details involved in sending the message including the airport, center, system, and/or TRACON that produced the data contained in the message and the time at which it was produced.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="airport" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The airport that produced the data contained in the Message.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="center" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The ATC center (or FIR) that produced the data contained in the Message</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="source" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The source that produced the data contained in the Message, if the source is not an ATC facility. While this field has no formal definition, it might take values such as: - an Airline Operations Center (AOC) - a Traffic Flow center  - an international data provider  </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="system" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The name of the system that generated the data contained in the Message</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="timestamp" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The time at which the provenance information was recorded.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="tracon" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The TRACON that produced the data contained in the Message.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element MessageProvenanceType/airport

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The airport that produced the data contained in the Message.
source	<xs:element name="airport" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The airport that produced the data contained in the Message.</xs:documentation>   </xs:annotation> </xs:element>

element MessageProvenanceType/center

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The ATC center (or FIR) that produced the data contained in the Message
source	<xs:element name="center" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The ATC center (or FIR) that produced the data contained in the Message</xs:documentation>   </xs:annotation> </xs:element>

element MessageProvenanceType/source

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The source that produced the data contained in the Message, if the source is not an ATC facility. While this field has no formal definition, it might take values such as: - an Airline Operations Center (AOC) - a Traffic Flow center  - an international data provider
source	<xs:element name="source" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The source that produced the data contained in the Message, if the source is not an ATC facility. While this field has no formal definition, it might take values such as: - an Airline Operations Center (AOC) - a Traffic Flow center  - an international data provider  </xs:documentation>   </xs:annotation> </xs:element>

element MessageProvenanceType/system

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The name of the system that generated the data contained in the Message
source	<xs:element name="system" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The name of the system that generated the data contained in the Message</xs:documentation>   </xs:annotation> </xs:element>

element MessageProvenanceType/timestamp

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:TimeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation pattern  -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation	documentation The time at which the provenance information was recorded.
source	<xs:element name="timestamp" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The time at which the provenance information was recorded.</xs:documentation>   </xs:annotation> </xs:element>

element MessageProvenanceType/tracon

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The TRACON that produced the data contained in the Message.
source	<xs:element name="tracon" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The TRACON that produced the data contained in the Message.</xs:documentation>   </xs:annotation> </xs:element>
