complexType FlightIdentificationType

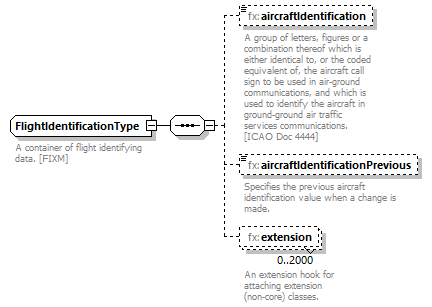

diagram Nas_diagrams/Nas_p970.png
namespace http://www.fixm.aero/flight/4.2
children fx:aircraftIdentification fx:aircraftIdentificationPrevious fx:extension
used by
element FlightType/flightIdentification
annotation
documentation
A container of flight identifying data. [FIXM]
source <xs:complexType name="FlightIdentificationType">

<xs:annotation>

<xs:documentation>A container of flight identifying data. [FIXM]</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="aircraftIdentification" type="fb:AircraftIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A group of letters, figures or a combination thereof which is either identical to, or the coded equivalent of, the aircraft call sign to be used in air-ground communications, and which is used to identify the aircraft in ground-ground air traffic services communications. [ICAO Doc 4444]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="aircraftIdentificationPrevious" type="fb:AircraftIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies the previous aircraft identification value when a change is made.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:FlightIdentificationExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element FlightIdentificationType/aircraftIdentification
diagram Nas_diagrams/Nas_p971.png
namespace http://www.fixm.aero/flight/4.2
type fb:AircraftIdentificationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Z0-9]{2,7}
annotation
documentation
A group of letters, figures or a combination thereof which is either identical to, or the coded equivalent of, the aircraft call sign to be used in air-ground communications, and which is used to identify the aircraft in ground-ground air traffic services communications. [ICAO Doc 4444]
source <xs:element name="aircraftIdentification" type="fb:AircraftIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A group of letters, figures or a combination thereof which is either identical to, or the coded equivalent of, the aircraft call sign to be used in air-ground communications, and which is used to identify the aircraft in ground-ground air traffic services communications. [ICAO Doc 4444]</xs:documentation>

</xs:annotation>
</xs:element>

element FlightIdentificationType/aircraftIdentificationPrevious
diagram Nas_diagrams/Nas_p972.png
namespace http://www.fixm.aero/flight/4.2
type fb:AircraftIdentificationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Z0-9]{2,7}
annotation
documentation
Specifies the previous aircraft identification value when a change is made.
source <xs:element name="aircraftIdentificationPrevious" type="fb:AircraftIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies the previous aircraft identification value when a change is made.</xs:documentation>

</xs:annotation>
</xs:element>

element FlightIdentificationType/extension
diagram Nas_diagrams/Nas_p973.png
namespace http://www.fixm.aero/flight/4.2
type fb:FlightIdentificationExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:FlightIdentificationExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>
