complexType EramWarningResponseType

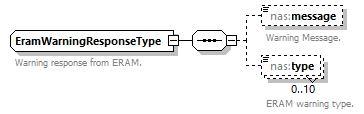

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:message nas:type
used by	element  EramResponseChoiceType/warningResponse
annotation	documentation Warning response from ERAM.
source	<xs:complexType name="EramWarningResponseType">   <xs:annotation>     <xs:documentation>Warning response from ERAM.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="message" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Warning Message.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="type" type="nas:EramWarningTypeType" nillable="true" minOccurs="0" maxOccurs="10">       <xs:annotation>         <xs:documentation>ERAM warning type.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element EramWarningResponseType/message

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation Warning Message.
source	<xs:element name="message" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Warning Message.</xs:documentation>   </xs:annotation> </xs:element>

element EramWarningResponseType/type

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	nas:EramWarningTypeType
properties	minOcc  0 maxOcc  10 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  AMD_FREQUENCY documentation This enumerated value indicates a violation of the cool-down period before sending another amendment request. enumeration  MERGE_ANGLE documentation This enumerated value indicates a merge angle warning. enumeration  MODIFIED_FLT_DATA documentation This enumerated value indicates a warning the flight contains modified data that has not been displayed yet. enumeration  DATA_COMM documentation This enumerated value indicates a warning the flight contains DataComm warnings.
annotation	documentation ERAM warning type.
source	<xs:element name="type" type="nas:EramWarningTypeType" nillable="true" minOccurs="0" maxOccurs="10">   <xs:annotation>     <xs:documentation>ERAM warning type.</xs:documentation>   </xs:annotation> </xs:element>
