complexType DesignatedPointType

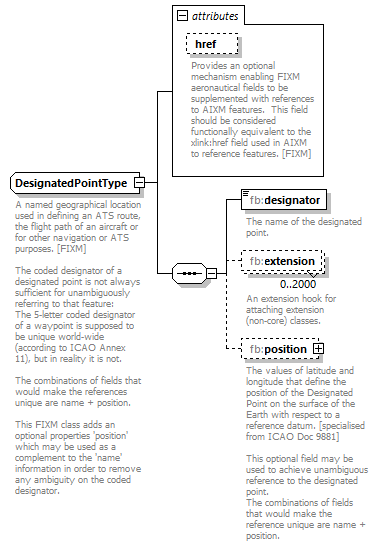

diagram Nas_diagrams/Nas_p690.png
namespace http://www.fixm.aero/base/4.2
children fb:designator fb:extension fb:position
used by
element SignificantPointChoiceType/designatedPoint
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
A named geographical location used in defining an ATS route, the flight path of an aircraft or for other navigation or ATS purposes. [FIXM]

The coded designator of a designated point is not always sufficient for unambiguously referring to that feature:
The 5-letter coded designator of a waypoint is supposed to be unique world-wide (according to ICAO Annex 11), but in reality it is not.

The combinations of fields that would make the references unique are name + position.

This FIXM class adds an optional properties 'position' which may be used as a complement to the 'name' information in order to remove any ambiguity on the coded designator.
source <xs:complexType name="DesignatedPointType">

<xs:annotation>

<xs:documentation>A named geographical location used in defining an ATS route, the flight path of an aircraft or for other navigation or ATS purposes. [FIXM]

The coded designator of a designated point is not always sufficient for unambiguously referring to that feature:
The 5-letter coded designator of a waypoint is supposed to be unique world-wide (according to ICAO Annex 11), but in reality it is not.

The combinations of fields that would make the references unique are name + position.

This FIXM class adds an optional properties 'position' which may be used as a complement to the 'name' information in order to remove any ambiguity on the coded designator.
</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="designator" type="fb:DesignatedPointDesignatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>The name of the designated point.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:DesignatedPointExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The values of latitude and longitude that define the position of the Designated Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881]

This optional field may be used to achieve unambiguous reference to the designated point.
The combinations of fields that would make the reference unique are name + position.
</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>

<xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">

<xs:annotation>

<xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>

</xs:annotation>

</xs:attribute>
</xs:complexType>

attribute DesignatedPointType/@href
type fb:HypertextReferenceType
properties
use optional
annotation
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
source <xs:attribute name="href" type="fb:HypertextReferenceType" use="optional">

<xs:annotation>

<xs:documentation>Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]</xs:documentation>

</xs:annotation>
</xs:attribute>

element DesignatedPointType/designator
diagram Nas_diagrams/Nas_p691.png
namespace http://www.fixm.aero/base/4.2
type fb:DesignatedPointDesignatorType
properties
content simple
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Z0-9]{1,5}
annotation
documentation
The name of the designated point.
source <xs:element name="designator" type="fb:DesignatedPointDesignatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>The name of the designated point.</xs:documentation>

</xs:annotation>
</xs:element>

element DesignatedPointType/extension
diagram Nas_diagrams/Nas_p692.png
namespace http://www.fixm.aero/base/4.2
type fb:DesignatedPointExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:DesignatedPointExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element DesignatedPointType/position

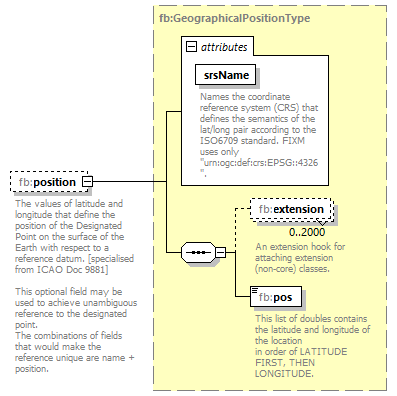

diagram Nas_diagrams/Nas_p693.png
namespace http://www.fixm.aero/base/4.2
type fb:GeographicalPositionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:pos
attributes
Name  Type  Use  Default  Fixed  Annotation
srsName  xs:string  required    urn:ogc:def:crs:EPSG::4326
documentation
Names the coordinate reference system (CRS) that defines the semantics of the lat/long pair according to the ISO6709 standard. FIXM uses only "urn:ogc:def:crs:EPSG::4326".
annotation
documentation
The values of latitude and longitude that define the position of the Designated Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881]

This optional field may be used to achieve unambiguous reference to the designated point.
The combinations of fields that would make the reference unique are name + position.
source <xs:element name="position" type="fb:GeographicalPositionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The values of latitude and longitude that define the position of the Designated Point on the surface of the Earth with respect to a reference datum. [specialised from ICAO Doc 9881]

This optional field may be used to achieve unambiguous reference to the designated point.
The combinations of fields that would make the reference unique are name + position.
</xs:documentation>

</xs:annotation>
</xs:element>
