complexType AsdexConfidenceType

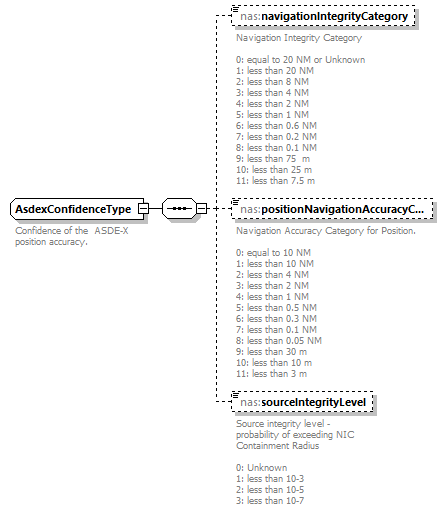

diagram Nas_diagrams/Nas_p313.png
namespace http://www.fixm.aero/ext/nas/4.3
children nas:navigationIntegrityCategory nas:positionNavigationAccuracyCategory nas:sourceIntegrityLevel
used by
element MessageMetadataType/asdexConfidence
annotation
documentation
Confidence of the  ASDE-X position accuracy.
source <xs:complexType name="AsdexConfidenceType">
  <xs:annotation>
    <xs:documentation>Confidence of the  ASDE-X position accuracy. </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="navigationIntegrityCategory" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Navigation Integrity Category

0: equal to 20 NM or Unknown
1: less than 20 NM
2: less than 8 NM
3: less than 4 NM
4: less than 2 NM
5: less than 1 NM
6: less than 0.6 NM
7: less than 0.2 NM
8: less than 0.1 NM
9: less than 75  m
10: less than 25 m
11: less than 7.5 m</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="positionNavigationAccuracyCategory" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Navigation Accuracy Category for Position.

0: equal to 10 NM
1: less than 10 NM
2: less than 4 NM
3: less than 2 NM
4: less than 1 NM
5: less than 0.5 NM
6: less than 0.3 NM
7: less than 0.1 NM
8: less than 0.05 NM
9: less than 30 m
10: less than 10 m
11: less than 3 m</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sourceIntegrityLevel" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Source integrity level - probability of exceeding NIC Containment Radius

0: Unknown
1: less than 10-3
2: less than 10-5
3: less than 10-7</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element AsdexConfidenceType/navigationIntegrityCategory
diagram Nas_diagrams/Nas_p314.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CountType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minInclusive 0
annotation
documentation
Navigation Integrity Category

0: equal to 20 NM or Unknown
1: less than 20 NM
2: less than 8 NM
3: less than 4 NM
4: less than 2 NM
5: less than 1 NM
6: less than 0.6 NM
7: less than 0.2 NM
8: less than 0.1 NM
9: less than 75  m
10: less than 25 m
11: less than 7.5 m
source <xs:element name="navigationIntegrityCategory" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Navigation Integrity Category

0: equal to 20 NM or Unknown
1: less than 20 NM
2: less than 8 NM
3: less than 4 NM
4: less than 2 NM
5: less than 1 NM
6: less than 0.6 NM
7: less than 0.2 NM
8: less than 0.1 NM
9: less than 75  m
10: less than 25 m
11: less than 7.5 m</xs:documentation>
  </xs:annotation>
</xs:element>

element AsdexConfidenceType/positionNavigationAccuracyCategory
diagram Nas_diagrams/Nas_p315.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CountType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minInclusive 0
annotation
documentation
Navigation Accuracy Category for Position.

0: equal to 10 NM
1: less than 10 NM
2: less than 4 NM
3: less than 2 NM
4: less than 1 NM
5: less than 0.5 NM
6: less than 0.3 NM
7: less than 0.1 NM
8: less than 0.05 NM
9: less than 30 m
10: less than 10 m
11: less than 3 m
source <xs:element name="positionNavigationAccuracyCategory" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Navigation Accuracy Category for Position.

0: equal to 10 NM
1: less than 10 NM
2: less than 4 NM
3: less than 2 NM
4: less than 1 NM
5: less than 0.5 NM
6: less than 0.3 NM
7: less than 0.1 NM
8: less than 0.05 NM
9: less than 30 m
10: less than 10 m
11: less than 3 m</xs:documentation>
  </xs:annotation>
</xs:element>

element AsdexConfidenceType/sourceIntegrityLevel
diagram Nas_diagrams/Nas_p316.png
namespace http://www.fixm.aero/ext/nas/4.3
type fb:CountType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minInclusive 0
annotation
documentation
Source integrity level - probability of exceeding NIC Containment Radius

0: Unknown
1: less than 10-3
2: less than 10-5
3: less than 10-7
source <xs:element name="sourceIntegrityLevel" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Source integrity level - probability of exceeding NIC Containment Radius

0: Unknown
1: less than 10-3
2: less than 10-5
3: less than 10-7</xs:documentation>
  </xs:annotation>
</xs:element>
