complexType AccuracyOfPredictedTimesType

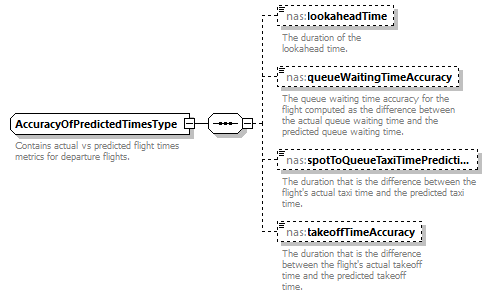

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
children	nas:lookaheadTime nas:queueWaitingTimeAccuracy nas:spotToQueueTaxiTimePredictionAccuracy nas:takeoffTimeAccuracy
used by	element  ActualVersusPredictedFlightTimesType/accuracyOfPredictedTimes
annotation	documentation Contains actual vs predicted flight times metrics for departure flights.
source	<xs:complexType name="AccuracyOfPredictedTimesType">   <xs:annotation>     <xs:documentation>Contains actual vs predicted flight times metrics for departure flights.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="lookaheadTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration of the lookahead time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="queueWaitingTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The queue waiting time accuracy for the flight computed as the difference between the actual queue waiting time and the predicted queue waiting time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="spotToQueueTaxiTimePredictionAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration that is the difference between the flight's actual taxi time and the predicted taxi time.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="takeoffTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The duration that is the difference between the flight's actual takeoff time and the predicted takeoff time.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element AccuracyOfPredictedTimesType/lookaheadTime

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The duration of the lookahead time.
source	<xs:element name="lookaheadTime" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration of the lookahead time.</xs:documentation>   </xs:annotation> </xs:element>

element AccuracyOfPredictedTimesType/queueWaitingTimeAccuracy

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The queue waiting time accuracy for the flight computed as the difference between the actual queue waiting time and the predicted queue waiting time.
source	<xs:element name="queueWaitingTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The queue waiting time accuracy for the flight computed as the difference between the actual queue waiting time and the predicted queue waiting time.</xs:documentation>   </xs:annotation> </xs:element>

element AccuracyOfPredictedTimesType/spotToQueueTaxiTimePredictionAccuracy

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The duration that is the difference between the flight's actual taxi time and the predicted taxi time.
source	<xs:element name="spotToQueueTaxiTimePredictionAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration that is the difference between the flight's actual taxi time and the predicted taxi time.</xs:documentation>   </xs:annotation> </xs:element>

element AccuracyOfPredictedTimesType/takeoffTimeAccuracy

diagram
namespace	http://www.fixm.aero/ext/nas/4.3
type	fb:DurationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The duration that is the difference between the flight's actual takeoff time and the predicted takeoff time.
source	<xs:element name="takeoffTimeAccuracy" type="fb:DurationType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The duration that is the difference between the flight's actual takeoff time and the predicted takeoff time.</xs:documentation>   </xs:annotation> </xs:element>
