Contains the definition of Flight Plan, which is a specifically preserved in the
NAS extension of FIXM.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.2.0
Element nas:NasFlightPlan
Namespace http://www.faa.aero/nas/4.2
Diagram

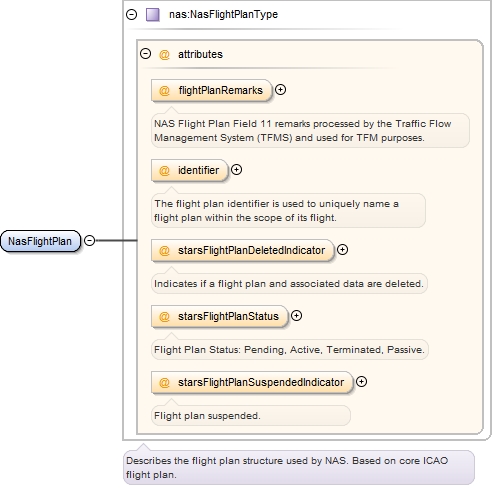

Diagram NasFlightPlan_xsd.tmp#NasFlightPlanType_flightPlanRemarks NasFlightPlan_xsd.tmp#NasFlightPlanType_identifier NasFlightPlan_xsd.tmp#NasFlightPlanType_starsFlightPlanDeletedIndicator NasFlightPlan_xsd.tmp#NasFlightPlanType_starsFlightPlanStatus NasFlightPlan_xsd.tmp#NasFlightPlanType_starsFlightPlanSuspendedIndicator NasFlightPlan_xsd.tmp#NasFlightPlanType
Type nas:NasFlightPlanType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
flightPlanRemarks fb:CharacterStringType optional
NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System
(TFMS) and used for TFM purposes.
identifier fb:CharacterStringType optional
The flight plan identifier is used to uniquely name a flight plan within the scope
of its flight.
starsFlightPlanDeletedIndicator nas:StarsFlightPlanDeletedIndicatorType optional
Indicates if a flight plan and associated data are deleted.
starsFlightPlanStatus nas:StarsFlightPlanStatusType optional
Flight Plan Status: Pending, Active, Terminated, Passive.
starsFlightPlanSuspendedIndicator nas:StarsFlightPlanSuspendedIndicatorType optional
Flight plan suspended.
Source

<element name="NasFlightPlan" type="nas:NasFlightPlanType"/>
Complex Type nas:NasFlightPlanType
Namespace http://www.faa.aero/nas/4.2
Annotations

Describes the flight plan structure used by NAS. Based on core ICAO flight plan.
Diagram

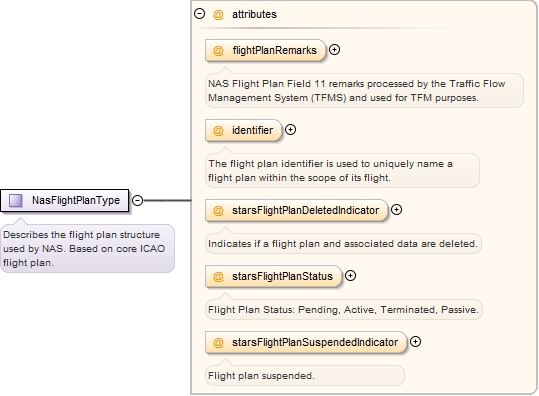

Diagram NasFlightPlan_xsd.tmp#NasFlightPlanType_flightPlanRemarks NasFlightPlan_xsd.tmp#NasFlightPlanType_identifier NasFlightPlan_xsd.tmp#NasFlightPlanType_starsFlightPlanDeletedIndicator NasFlightPlan_xsd.tmp#NasFlightPlanType_starsFlightPlanStatus NasFlightPlan_xsd.tmp#NasFlightPlanType_starsFlightPlanSuspendedIndicator
Used by
Attributes
QName Type Fixed Default Use Annotation
flightPlanRemarks fb:CharacterStringType optional
NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System
(TFMS) and used for TFM purposes.
identifier fb:CharacterStringType optional
The flight plan identifier is used to uniquely name a flight plan within the scope
of its flight.
starsFlightPlanDeletedIndicator nas:StarsFlightPlanDeletedIndicatorType optional
Indicates if a flight plan and associated data are deleted.
starsFlightPlanStatus nas:StarsFlightPlanStatusType optional
Flight Plan Status: Pending, Active, Terminated, Passive.
starsFlightPlanSuspendedIndicator nas:StarsFlightPlanSuspendedIndicatorType optional
Flight plan suspended.
Source

<complexType name="NasFlightPlanType">
  <annotation>
    <documentation>Describes the flight plan structure used by NAS. Based on core ICAO flight plan.</documentation>
  </annotation>
  <attribute name="flightPlanRemarks" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System (TFMS) and used for TFM purposes.</documentation>
    </annotation>
  </attribute>
  <attribute name="identifier" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The flight plan identifier is used to uniquely name a flight plan within the scope of its flight.</documentation>
    </annotation>
  </attribute>
  <attribute name="starsFlightPlanDeletedIndicator" type="nas:StarsFlightPlanDeletedIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates if a flight plan and associated data are deleted.</documentation>
    </annotation>
  </attribute>
  <attribute name="starsFlightPlanStatus" type="nas:StarsFlightPlanStatusType" use="optional">
    <annotation>
      <documentation>Flight Plan Status: Pending, Active, Terminated, Passive.</documentation>
    </annotation>
  </attribute>
  <attribute name="starsFlightPlanSuspendedIndicator" type="nas:StarsFlightPlanSuspendedIndicatorType" use="optional">
    <annotation>
      <documentation>Flight plan suspended.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type nas:StarsFlightPlanDeletedIndicatorType
Namespace http://www.faa.aero/nas/4.2
Annotations

Indicates if a flight plan and associated data are deleted.
Diagram
Diagram
Type restriction of string
Facets
enumeration DELETED
Used by
Source

<simpleType name="StarsFlightPlanDeletedIndicatorType">
  <annotation>
    <documentation>Indicates if a flight plan and associated data are deleted.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="DELETED"/>
  </restriction>
</simpleType>
Simple Type nas:StarsFlightPlanStatusType
Namespace http://www.faa.aero/nas/4.2
Annotations

Flight Plan Status: Pending, Active, Terminated, Passive.
Diagram
Diagram
Type restriction of string
Facets
enumeration PENDING
enumeration ACTIVE
enumeration TERMINATED
enumeration PASSIVE
Used by
Source

<simpleType name="StarsFlightPlanStatusType">
  <annotation>
    <documentation>Flight Plan Status: Pending, Active, Terminated, Passive.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="PENDING"/>
    <enumeration value="ACTIVE"/>
    <enumeration value="TERMINATED"/>
    <enumeration value="PASSIVE"/>
  </restriction>
</simpleType>
Simple Type nas:StarsFlightPlanSuspendedIndicatorType
Namespace http://www.faa.aero/nas/4.2
Annotations

Flight plan suspended.
Diagram
Diagram
Type restriction of string
Facets
enumeration SUSPENDED
Used by
Source

<simpleType name="StarsFlightPlanSuspendedIndicatorType">
  <annotation>
    <documentation>Flight plan suspended.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SUSPENDED"/>
  </restriction>
</simpleType>
Attribute nas:NasFlightPlanType / @flightPlanRemarks
Namespace No namespace
Annotations

NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System
(TFMS) and used for TFM purposes.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type nas:NasFlightPlanType
Source

<attribute name="flightPlanRemarks" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>NAS Flight Plan Field 11 remarks processed by the Traffic Flow Management System (TFMS) and used for TFM purposes.</documentation>
  </annotation>
</attribute>
Attribute nas:NasFlightPlanType / @identifier
Namespace No namespace
Annotations

The flight plan identifier is used to uniquely name a flight plan within the scope
of its flight.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type nas:NasFlightPlanType
Source

<attribute name="identifier" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The flight plan identifier is used to uniquely name a flight plan within the scope of its flight.</documentation>
  </annotation>
</attribute>
Attribute nas:NasFlightPlanType / @starsFlightPlanDeletedIndicator
Namespace No namespace
Annotations

Indicates if a flight plan and associated data are deleted.
Type nas:StarsFlightPlanDeletedIndicatorType
Properties
use: optional
Facets
enumeration DELETED
Used by
Complex Type nas:NasFlightPlanType
Source

<attribute name="starsFlightPlanDeletedIndicator" type="nas:StarsFlightPlanDeletedIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates if a flight plan and associated data are deleted.</documentation>
  </annotation>
</attribute>
Attribute nas:NasFlightPlanType / @starsFlightPlanStatus
Namespace No namespace
Annotations

Flight Plan Status: Pending, Active, Terminated, Passive.
Type nas:StarsFlightPlanStatusType
Properties
use: optional
Facets
enumeration PENDING
enumeration ACTIVE
enumeration TERMINATED
enumeration PASSIVE
Used by
Complex Type nas:NasFlightPlanType
Source

<attribute name="starsFlightPlanStatus" type="nas:StarsFlightPlanStatusType" use="optional">
  <annotation>
    <documentation>Flight Plan Status: Pending, Active, Terminated, Passive.</documentation>
  </annotation>
</attribute>
Attribute nas:NasFlightPlanType / @starsFlightPlanSuspendedIndicator
Namespace No namespace
Annotations

Flight plan suspended.
Type nas:StarsFlightPlanSuspendedIndicatorType
Properties
use: optional
Facets
enumeration SUSPENDED
Used by
Complex Type nas:NasFlightPlanType
Source

<attribute name="starsFlightPlanSuspendedIndicator" type="nas:StarsFlightPlanSuspendedIndicatorType" use="optional">
  <annotation>
    <documentation>Flight plan suspended.</documentation>
  </annotation>
</attribute>
