The Arrival package contains al information about the actual departure of the flight
at an airport.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0
Element fx:DepartureType / fx:aerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

The aerodrome from which the flight departs. [FIXM]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

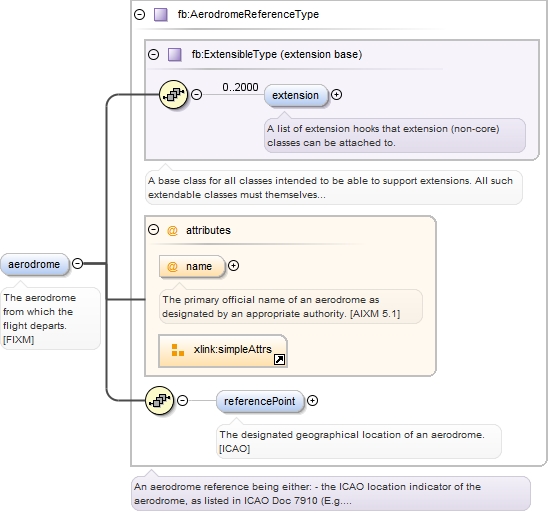

<fx:aerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:aerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome from which the flight departs. [FIXM]</documentation>
  </annotation>
</element>
Element fx:DepartureType / fx:takeoffAlternateAerodrome
Namespace http://www.fixm.aero/flight/4.1
Annotations

An alternate aerodrome at which an aircraft can land should this become necessary
shortly after take-off and it is not possible to use the aerodrome of departure.
[ICAO Doc 4444]
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 2000
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

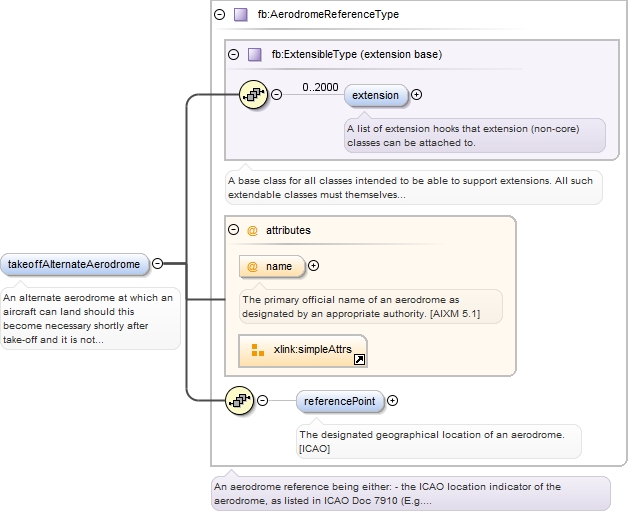

<fx:takeoffAlternateAerodrome name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</fx:takeoffAlternateAerodrome>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="takeoffAlternateAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="2000">
  <annotation>
    <documentation>An alternate aerodrome at which an aircraft can land should this become necessary shortly after take-off and it is not possible to use the aerodrome of departure. [ICAO Doc 4444]</documentation>
  </annotation>
</element>
Element fx:Departure
Namespace http://www.fixm.aero/flight/4.1
Diagram

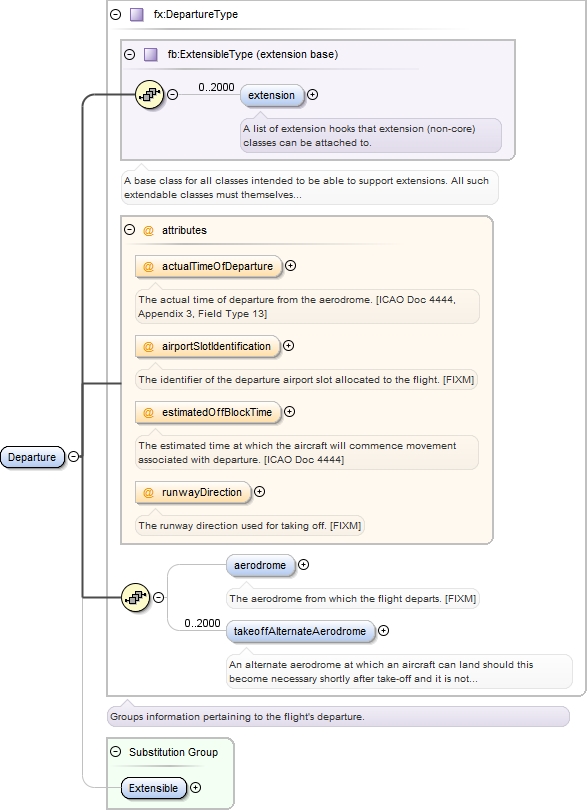

Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Departure_xsd.tmp#DepartureType_actualTimeOfDeparture Departure_xsd.tmp#DepartureType_airportSlotIdentification Departure_xsd.tmp#DepartureType_estimatedOffBlockTime Departure_xsd.tmp#DepartureType_runwayDirection Departure_xsd.tmp#DepartureType_aerodrome Departure_xsd.tmp#DepartureType_takeoffAlternateAerodrome Departure_xsd.tmp#DepartureType Extension_xsd.tmp#Extensible
Type fx:DepartureType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:aerodrome{0,1} , fx:takeoffAlternateAerodrome{0,2000}
Children fb:extension, fx:aerodrome, fx:takeoffAlternateAerodrome
Instance

<fx:Departure actualTimeOfDeparture="" airportSlotIdentification="" estimatedOffBlockTime="" runwayDirection="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:aerodrome name="">{0,1}</fx:aerodrome>
  <fx:takeoffAlternateAerodrome name="">{0,2000}</fx:takeoffAlternateAerodrome>
</fx:Departure>
Attributes
QName Type Fixed Default Use Annotation
actualTimeOfDeparture fb:TimeType optional
The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field
Type 13]
airportSlotIdentification fb:AirportSlotIdentificationType optional
The identifier of the departure airport slot allocated to the flight. [FIXM]
estimatedOffBlockTime fb:TimeType optional
The estimated time at which the aircraft will commence movement associated with departure.
[ICAO Doc 4444]
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction used for taking off. [FIXM]
Source

<element name="Departure" type="fx:DepartureType" substitutionGroup="fb:Extensible"/>
Complex Type fx:DepartureType
Namespace http://www.fixm.aero/flight/4.1
Annotations

Groups information pertaining to the flight's departure.
Diagram

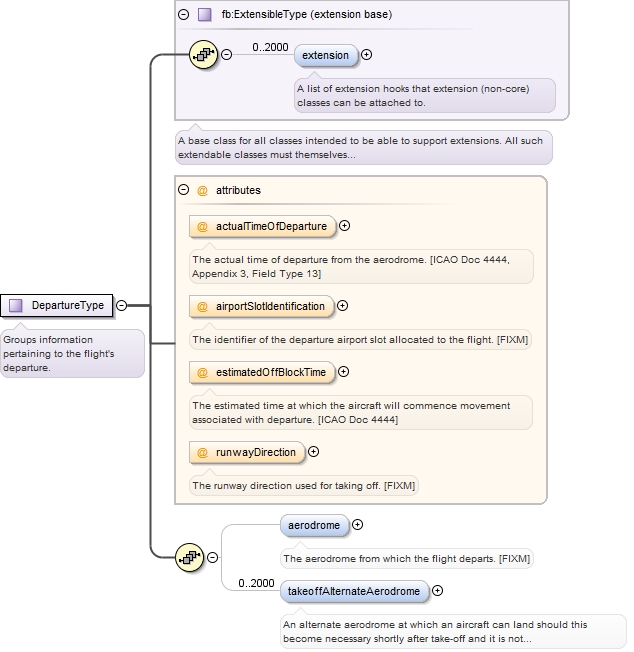

Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Departure_xsd.tmp#DepartureType_actualTimeOfDeparture Departure_xsd.tmp#DepartureType_airportSlotIdentification Departure_xsd.tmp#DepartureType_estimatedOffBlockTime Departure_xsd.tmp#DepartureType_runwayDirection Departure_xsd.tmp#DepartureType_aerodrome Departure_xsd.tmp#DepartureType_takeoffAlternateAerodrome
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:aerodrome{0,1} , fx:takeoffAlternateAerodrome{0,2000}
Children fb:extension, fx:aerodrome, fx:takeoffAlternateAerodrome
Attributes
QName Type Fixed Default Use Annotation
actualTimeOfDeparture fb:TimeType optional
The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field
Type 13]
airportSlotIdentification fb:AirportSlotIdentificationType optional
The identifier of the departure airport slot allocated to the flight. [FIXM]
estimatedOffBlockTime fb:TimeType optional
The estimated time at which the aircraft will commence movement associated with departure.
[ICAO Doc 4444]
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction used for taking off. [FIXM]
Source

<complexType name="DepartureType">
  <annotation>
    <documentation>Groups information pertaining to the flight's departure.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The aerodrome from which the flight departs. [FIXM]</documentation>
          </annotation>
        </element>
        <element name="takeoffAlternateAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="2000">
          <annotation>
            <documentation>An alternate aerodrome at which an aircraft can land should this become necessary shortly after take-off and it is not possible to use the aerodrome of departure. [ICAO Doc 4444]</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="actualTimeOfDeparture" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field Type 13]</documentation>
        </annotation>
      </attribute>
      <attribute name="airportSlotIdentification" type="fb:AirportSlotIdentificationType" use="optional">
        <annotation>
          <documentation>The identifier of the departure airport slot allocated to the flight. [FIXM]</documentation>
        </annotation>
      </attribute>
      <attribute name="estimatedOffBlockTime" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>The estimated time at which the aircraft will commence movement associated with departure. [ICAO Doc 4444]</documentation>
        </annotation>
      </attribute>
      <attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
        <annotation>
          <documentation>The runway direction used for taking off. [FIXM]</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fx:DepartureType / @actualTimeOfDeparture
Namespace No namespace
Annotations

The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field
Type 13]
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Complex Type fx:DepartureType
Source

<attribute name="actualTimeOfDeparture" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>The actual time of departure from the aerodrome. [ICAO Doc 4444, Appendix 3, Field Type 13]</documentation>
  </annotation>
</attribute>
Attribute fx:DepartureType / @airportSlotIdentification
Namespace No namespace
Annotations

The identifier of the departure airport slot allocated to the flight. [FIXM]
Type fb:AirportSlotIdentificationType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 10
Used by
Complex Type fx:DepartureType
Source

<attribute name="airportSlotIdentification" type="fb:AirportSlotIdentificationType" use="optional">
  <annotation>
    <documentation>The identifier of the departure airport slot allocated to the flight. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:DepartureType / @estimatedOffBlockTime
Namespace No namespace
Annotations

The estimated time at which the aircraft will commence movement associated with departure.
[ICAO Doc 4444]
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Complex Type fx:DepartureType
Source

<attribute name="estimatedOffBlockTime" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>The estimated time at which the aircraft will commence movement associated with departure. [ICAO Doc 4444]</documentation>
  </annotation>
</attribute>
Attribute fx:DepartureType / @runwayDirection
Namespace No namespace
Annotations

The runway direction used for taking off. [FIXM]
Type fb:RunwayDirectionDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
Used by
Complex Type fx:DepartureType
Source

<attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
  <annotation>
    <documentation>The runway direction used for taking off. [FIXM]</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
