Included schema NasTmiData.xsd
Namespace http://www.faa.aero/nas/4.1
Annotations

Copyright (c) 2016 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/

Contains information about Traffic Management Initiatives affecting the flight.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.1
Element nas:NasTmiType / nas:advisories
Namespace http://www.faa.aero/nas/4.1
Annotations

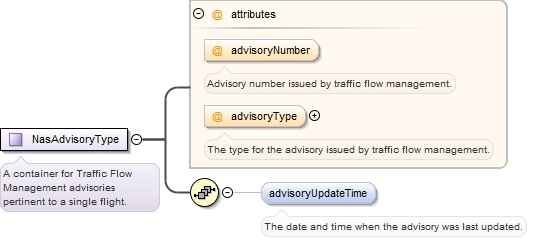

A container for Traffic Flow Management advisories pertinent to a single flight.

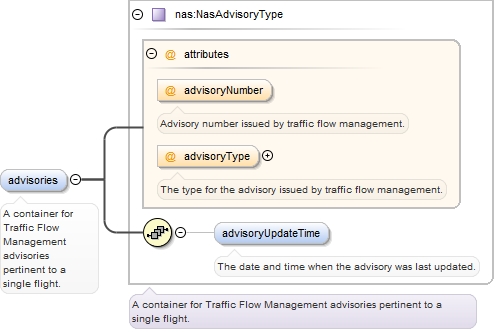

Diagram
Diagram NasTmiData_xsd.tmp#NasAdvisoryType_advisoryNumber NasTmiData_xsd.tmp#NasAdvisoryType_advisoryType NasTmiData_xsd.tmp#NasAdvisoryType_advisoryUpdateTime NasTmiData_xsd.tmp#NasAdvisoryType
Type nas:NasAdvisoryType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model nas:advisoryUpdateTime{0,1}
Children nas:advisoryUpdateTime
Instance

<nas:advisories advisoryNumber="" advisoryType="">
  <nas:advisoryUpdateTime>{0,1}</nas:advisoryUpdateTime>
</nas:advisories>
Attributes
QName Type Fixed Default Use Annotation
advisoryNumber CharacterStringType optional
Advisory number issued by traffic flow management.
advisoryType nas:AdvisoryTypeType optional
The type for the advisory issued by traffic flow management.
Source

<element name="advisories" type="nas:NasAdvisoryType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A container for Traffic Flow Management advisories pertinent to a single flight.</documentation>
  </annotation>
</element>
Element nas:NasAdvisoryType / nas:advisoryUpdateTime
Namespace http://www.faa.aero/nas/4.1
Annotations

The date and time when the advisory was last updated.
Diagram
Diagram
Type TimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="advisoryUpdateTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The date and time when the advisory was last updated.</documentation>
  </annotation>
</element>

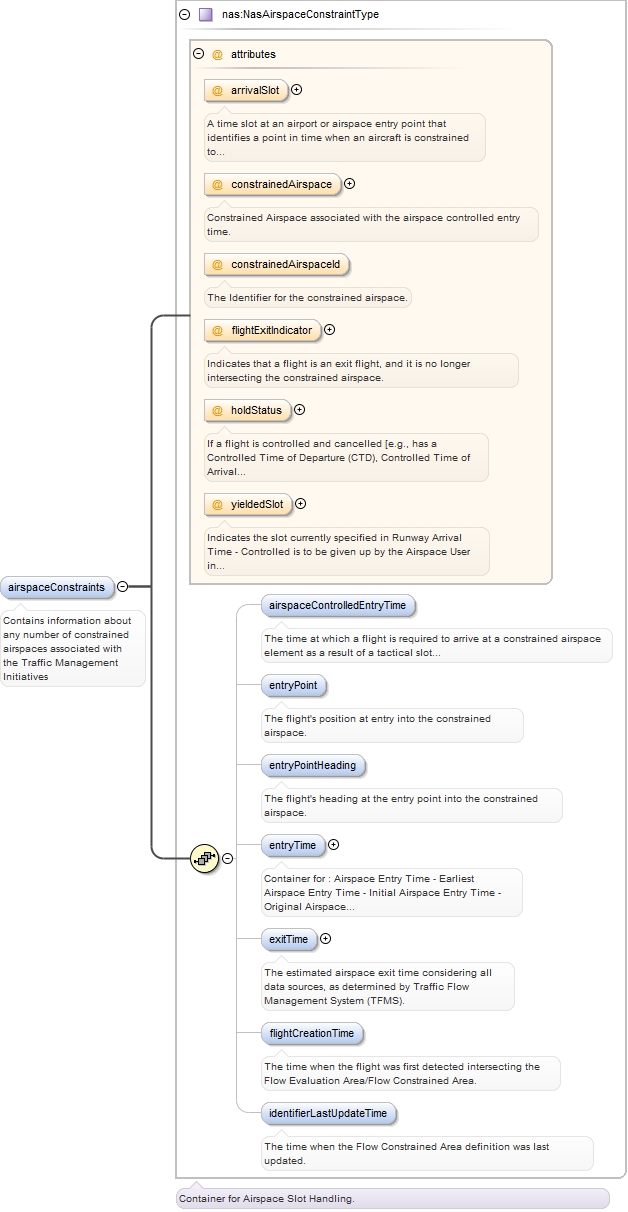

Element nas:NasTmiType / nas:airspaceConstraints
Namespace http://www.faa.aero/nas/4.1
Annotations

Contains information about any number of constrained airspaces associated with the
Traffic Management Initiatives
Diagram
Diagram NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_arrivalSlot NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_constrainedAirspace NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_constrainedAirspaceId NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_flightExitIndicator NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_holdStatus NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_yieldedSlot NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_airspaceControlledEntryTime NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_entryPoint NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_entryPointHeading NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_entryTime NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_exitTime NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_flightCreationTime NasEnRouteData_xsd.tmp#NasAirspaceConstraintType_identifierLastUpdateTime NasEnRouteData_xsd.tmp#NasAirspaceConstraintType
Type nas:NasAirspaceConstraintType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:airspaceControlledEntryTime{0,1} , nas:entryPoint{0,1} , nas:entryPointHeading{0,1} , nas:entryTime{0,1} , nas:exitTime{0,1} , nas:flightCreationTime{0,1} , nas:identifierLastUpdateTime{0,1}
Children nas:airspaceControlledEntryTime, nas:entryPoint, nas:entryPointHeading, nas:entryTime, nas:exitTime, nas:flightCreationTime, nas:identifierLastUpdateTime
Instance

<nas:airspaceConstraints arrivalSlot="" constrainedAirspace="" constrainedAirspaceId="" flightExitIndicator="" holdStatus="" yieldedSlot="">
  <nas:airspaceControlledEntryTime>{0,1}</nas:airspaceControlledEntryTime>
  <nas:entryPoint>{0,1}</nas:entryPoint>
  <nas:entryPointHeading>{0,1}</nas:entryPointHeading>
  <nas:entryTime>{0,1}</nas:entryTime>
  <nas:exitTime>{0,1}</nas:exitTime>
  <nas:flightCreationTime>{0,1}</nas:flightCreationTime>
  <nas:identifierLastUpdateTime>{0,1}</nas:identifierLastUpdateTime>
</nas:airspaceConstraints>
Attributes
QName Type Fixed Default Use Annotation
arrivalSlot nas:SlotAssignmentType optional
A time slot at an airport or airspace entry point that identifies a point in time
when an aircraft is constrained to arrive at the airport or airspace entry point.
constrainedAirspace nas:ConstrainedAirspaceType optional
Constrained Airspace associated with the airspace controlled entry time.
constrainedAirspaceId TextNameType optional
The Identifier for the constrained airspace.
flightExitIndicator nas:FlightExitIndicatorType optional
Indicates that a flight is an exit flight, and it is no longer intersecting the constrained
airspace.
holdStatus nas:SlotHoldStatusType optional
If a flight is controlled and cancelled [e.g., has a Controlled Time of Departure
(CTD), Controlled Time of Arrival (CTA), and Arrival Slot (ASLOT)], the slot hold
status indicates whether the slot associated with this flight is being held, or would
be held, by the Airspace User for the next full compression.
yieldedSlot nas:SlotYieldedIndicatorType optional
Indicates the slot currently specified in   Runway Arrival Time - Controlled   is
to be given up by the Airspace User in return for a later slot.
Source

<element name="airspaceConstraints" type="nas:NasAirspaceConstraintType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Contains information about any number of constrained airspaces associated with the Traffic Management Initiatives</documentation>
  </annotation>
</element>

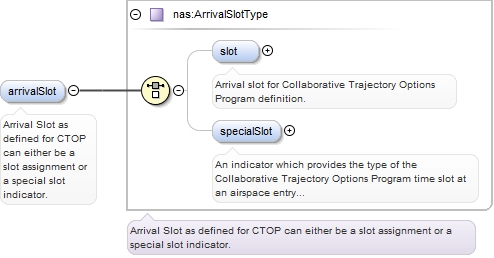

Element nas:NasTmiType / nas:arrivalSlot
Namespace http://www.faa.aero/nas/4.1
Annotations

Arrival Slot as defined for CTOP can either be a slot assignment or a special slot
indicator.
Diagram
Diagram NasTmiTrajectoryOptions_xsd.tmp#ArrivalSlotType_slot NasTmiTrajectoryOptions_xsd.tmp#ArrivalSlotType_specialSlot NasTmiTrajectoryOptions_xsd.tmp#ArrivalSlotType
Type nas:ArrivalSlotType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:slot{0,1} | nas:specialSlot{0,1}
Children nas:slot, nas:specialSlot
Instance

<nas:arrivalSlot>
  <nas:slot>{0,1}</nas:slot>
  <nas:specialSlot>{0,1}</nas:specialSlot>
</nas:arrivalSlot>
Source

<element name="arrivalSlot" type="nas:ArrivalSlotType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Arrival Slot as defined for CTOP can either be a slot assignment or a special slot indicator.</documentation>
  </annotation>
</element>

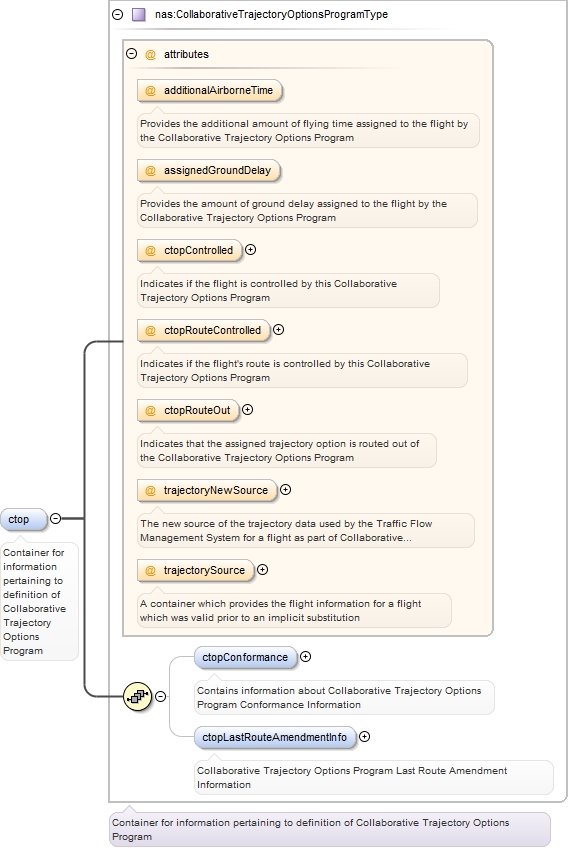

Element nas:NasTmiType / nas:ctop
Namespace http://www.faa.aero/nas/4.1
Annotations

Container for information pertaining to definition of Collaborative Trajectory Options
Program
Diagram
Diagram NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_additionalAirborneTime NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_assignedGroundDelay NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_ctopControlled NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_ctopRouteControlled NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_ctopRouteOut NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_trajectoryNewSource NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_trajectorySource NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_ctopConformance NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType_ctopLastRouteAmendmentInfo NasTmiTrajectoryOptions_xsd.tmp#CollaborativeTrajectoryOptionsProgramType
Type nas:CollaborativeTrajectoryOptionsProgramType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:ctopConformance{0,1} , nas:ctopLastRouteAmendmentInfo{0,1}
Children nas:ctopConformance, nas:ctopLastRouteAmendmentInfo
Instance

<nas:ctop additionalAirborneTime="" assignedGroundDelay="" ctopControlled="" ctopRouteControlled="" ctopRouteOut="" trajectoryNewSource="" trajectorySource="">
  <nas:ctopConformance altitudeConformance="" conformanceStatus="" routeConformance="" speedConformance="">{0,1}</nas:ctopConformance>
  <nas:ctopLastRouteAmendmentInfo amendmentRejectReason="" amendmentStatus="" tmiIdentifier="">{0,1}</nas:ctopLastRouteAmendmentInfo>
</nas:ctop>
Attributes
QName Type Fixed Default Use Annotation
additionalAirborneTime DurationType optional
Provides the additional amount of flying time assigned to the flight by the Collaborative
Trajectory Options Program
assignedGroundDelay DurationType optional
Provides the amount of ground delay assigned to the flight by the Collaborative Trajectory
Options Program
ctopControlled nas:CtopControlledIndicatorType optional
Indicates if the flight is controlled by this Collaborative Trajectory Options Program
ctopRouteControlled nas:CtopRouteControlledIndicatorType optional
Indicates if the flight's route is controlled by this Collaborative Trajectory Options
Program
ctopRouteOut nas:CtopRouteOutIndicatorType optional
Indicates that the assigned trajectory option is routed out of the Collaborative
Trajectory Options Program
trajectoryNewSource nas:TrajectoryNewSourceType optional
The new source of the trajectory data used by the Traffic Flow Management System
for a flight as part of Collaborative Trajectory Options Program allocation
trajectorySource nas:TrajectorySourceType optional
A container which provides the flight information for a flight which was valid prior
to an implicit substitution
Source

<element name="ctop" type="nas:CollaborativeTrajectoryOptionsProgramType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Container for information pertaining to definition of Collaborative Trajectory Options Program</documentation>
  </annotation>
</element>

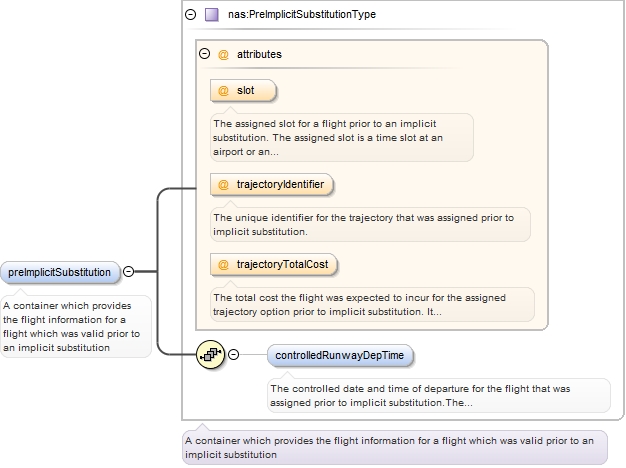

Element nas:NasTmiType / nas:preImplicitSubstitution
Namespace http://www.faa.aero/nas/4.1
Annotations

A container which provides the flight information for a flight which was valid prior
to an implicit substitution
Diagram
Diagram NasTmiTrajectoryOptions_xsd.tmp#PreImplicitSubstitutionType_slot NasTmiTrajectoryOptions_xsd.tmp#PreImplicitSubstitutionType_trajectoryIdentifier NasTmiTrajectoryOptions_xsd.tmp#PreImplicitSubstitutionType_trajectoryTotalCost NasTmiTrajectoryOptions_xsd.tmp#PreImplicitSubstitutionType_controlledRunwayDepTime NasTmiTrajectoryOptions_xsd.tmp#PreImplicitSubstitutionType
Type nas:PreImplicitSubstitutionType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:controlledRunwayDepTime{0,1}
Children nas:controlledRunwayDepTime
Instance

<nas:preImplicitSubstitution slot="" trajectoryIdentifier="" trajectoryTotalCost="">
  <nas:controlledRunwayDepTime>{0,1}</nas:controlledRunwayDepTime>
</nas:preImplicitSubstitution>
Attributes
QName Type Fixed Default Use Annotation
slot CharacterStringType optional
The assigned slot for a flight prior to an implicit substitution. The assigned slot
is a time slot at an airport or an airspace entry point that identifies a point in
time when an aircraft is constrained to arrive at the airport or airspace entry point.
trajectoryIdentifier CountType optional
The unique identifier for the trajectory that was assigned prior to implicit substitution.
trajectoryTotalCost CountType optional
The total cost the flight was expected to incur for the assigned trajectory option
prior to implicit substitution. It includes the Relative Trajectory Cost and the
Traffic Flow Management assigned delay for the assigned trajectory option.
Source

<element name="preImplicitSubstitution" type="nas:PreImplicitSubstitutionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A container which provides the flight information for a flight which was valid prior to an implicit substitution</documentation>
  </annotation>
</element>

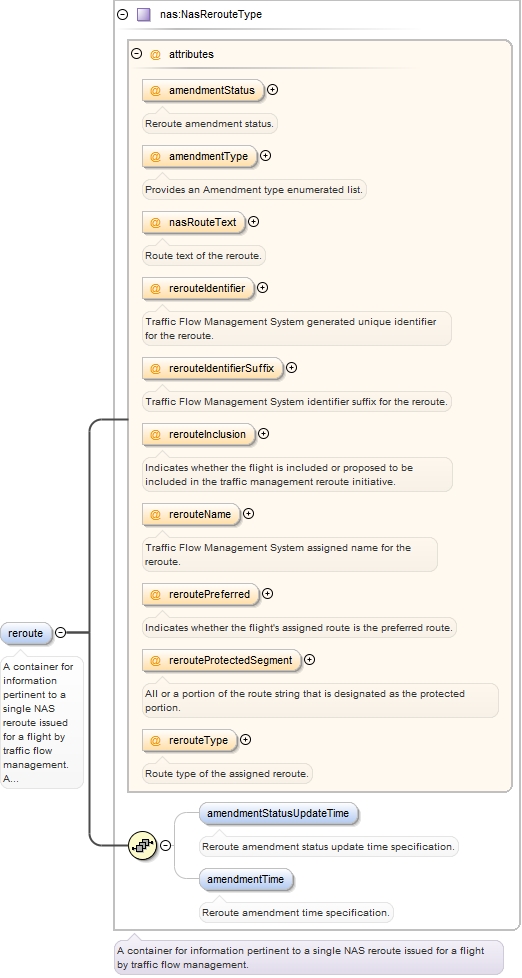

Element nas:NasTmiType / nas:reroute
Namespace http://www.faa.aero/nas/4.1
Annotations

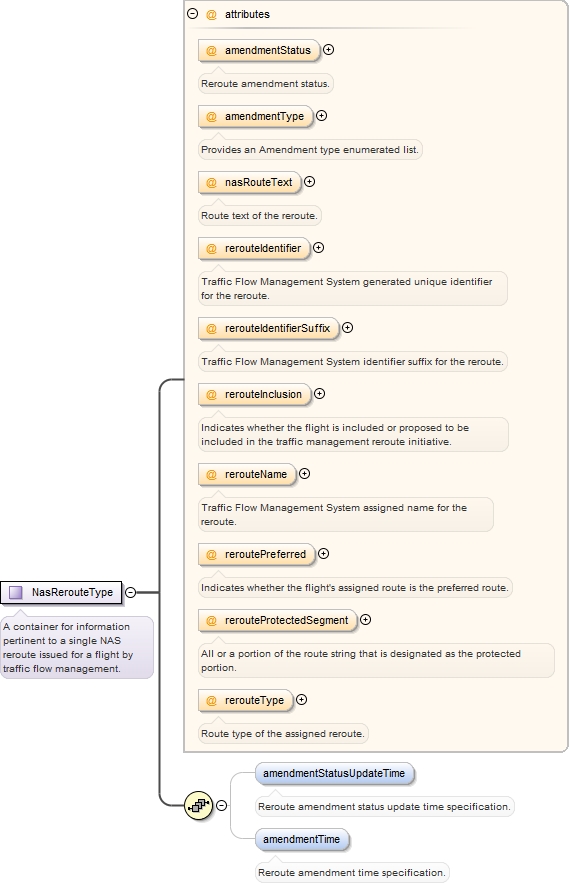

A container for information pertinent to a single NAS reroute issued for a flight
by traffic flow management.
A container for information pertinent to a single NAS reroute issued for a flight
by traffic flow management.
Diagram
Diagram NasTmiData_xsd.tmp#NasRerouteType_amendmentStatus NasTmiData_xsd.tmp#NasRerouteType_amendmentType NasTmiData_xsd.tmp#NasRerouteType_nasRouteText NasTmiData_xsd.tmp#NasRerouteType_rerouteIdentifier NasTmiData_xsd.tmp#NasRerouteType_rerouteIdentifierSuffix NasTmiData_xsd.tmp#NasRerouteType_rerouteInclusion NasTmiData_xsd.tmp#NasRerouteType_rerouteName NasTmiData_xsd.tmp#NasRerouteType_reroutePreferred NasTmiData_xsd.tmp#NasRerouteType_rerouteProtectedSegment NasTmiData_xsd.tmp#NasRerouteType_rerouteType NasTmiData_xsd.tmp#NasRerouteType_amendmentStatusUpdateTime NasTmiData_xsd.tmp#NasRerouteType_amendmentTime NasTmiData_xsd.tmp#NasRerouteType
Type nas:NasRerouteType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model nas:amendmentStatusUpdateTime{0,1} , nas:amendmentTime{0,1}
Children nas:amendmentStatusUpdateTime, nas:amendmentTime
Instance

<nas:reroute amendmentStatus="" amendmentType="" nasRouteText="" rerouteIdentifier="" rerouteIdentifierSuffix="" rerouteInclusion="" rerouteName="" reroutePreferred="" rerouteProtectedSegment="" rerouteType="">
  <nas:amendmentStatusUpdateTime>{0,1}</nas:amendmentStatusUpdateTime>
  <nas:amendmentTime>{0,1}</nas:amendmentTime>
</nas:reroute>
Attributes
QName Type Fixed Default Use Annotation
amendmentStatus nas:AmendmentStatusType optional
Reroute amendment status.
amendmentType nas:AmendmentTypeType optional
Provides an Amendment type enumerated list.
nasRouteText restriction of CharacterStringType optional
Route text of the reroute.
rerouteIdentifier restriction of CharacterStringType optional
Traffic Flow Management System generated unique identifier for the reroute.
rerouteIdentifierSuffix restriction of CountType optional
Traffic Flow Management System  identifier suffix for the reroute.
rerouteInclusion nas:RerouteInclusionIndicatorType optional
Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
rerouteName restriction of CharacterStringType optional
Traffic Flow Management System assigned name for the reroute.
reroutePreferred nas:ReroutePreferredIndicatorType optional
Indicates whether the flight's assigned route is the preferred route.
rerouteProtectedSegment restriction of CharacterStringType optional
All or a portion of the route string that is designated as the protected portion.
rerouteType nas:RerouteTypeType optional
Route type of the assigned reroute.
Source

<element name="reroute" type="nas:NasRerouteType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management. A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management.</documentation>
  </annotation>
</element>
Element nas:NasRerouteType / nas:amendmentStatusUpdateTime
Namespace http://www.faa.aero/nas/4.1
Annotations

Reroute amendment status update time specification.
Diagram
Diagram
Type TimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="amendmentStatusUpdateTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Reroute amendment status update time specification.</documentation>
  </annotation>
</element>
Element nas:NasRerouteType / nas:amendmentTime
Namespace http://www.faa.aero/nas/4.1
Annotations

Reroute amendment time specification.
Diagram
Diagram
Type TimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="amendmentTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Reroute amendment time specification.</documentation>
  </annotation>
</element>

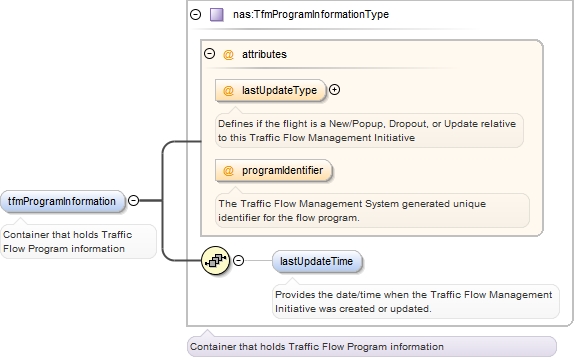

Element nas:NasTmiType / nas:tfmProgramInformation
Namespace http://www.faa.aero/nas/4.1
Annotations

Container that holds Traffic Flow Program information
Diagram
Diagram NasTmiData_xsd.tmp#TfmProgramInformationType_lastUpdateType NasTmiData_xsd.tmp#TfmProgramInformationType_programIdentifier NasTmiData_xsd.tmp#TfmProgramInformationType_lastUpdateTime NasTmiData_xsd.tmp#TfmProgramInformationType
Type nas:TfmProgramInformationType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:lastUpdateTime{0,1}
Children nas:lastUpdateTime
Instance

<nas:tfmProgramInformation lastUpdateType="" programIdentifier="">
  <nas:lastUpdateTime>{0,1}</nas:lastUpdateTime>
</nas:tfmProgramInformation>
Attributes
QName Type Fixed Default Use Annotation
lastUpdateType nas:TfmProgramUpdateTypeType optional
Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic
Flow Management Initiative
programIdentifier CharacterStringType optional
The Traffic Flow Management System generated unique identifier for the flow program.
Source

<element name="tfmProgramInformation" type="nas:TfmProgramInformationType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Container that holds Traffic Flow Program information</documentation>
  </annotation>
</element>
Element nas:TfmProgramInformationType / nas:lastUpdateTime
Namespace http://www.faa.aero/nas/4.1
Annotations

Provides the date/time when the Traffic Flow Management Initiative was created or
updated.
Diagram
Diagram
Type TimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="lastUpdateTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Provides the date/time when the Traffic Flow Management Initiative was created or updated.</documentation>
  </annotation>
</element>

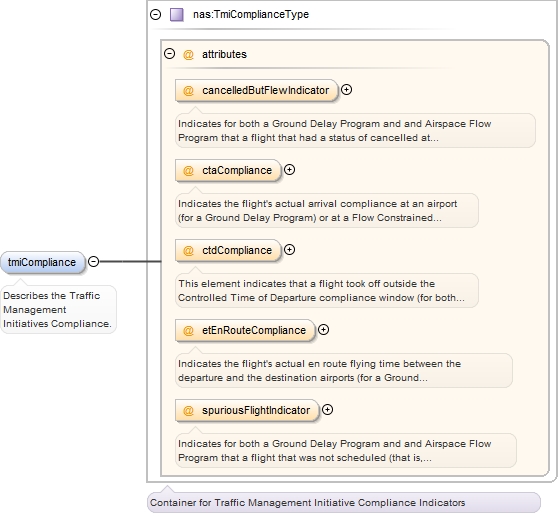

Element nas:NasTmiType / nas:tmiCompliance
Namespace http://www.faa.aero/nas/4.1
Annotations

Describes the Traffic Management Initiatives Compliance.
Diagram
Diagram NasTmiCompliance_xsd.tmp#TmiComplianceType_cancelledButFlewIndicator NasTmiCompliance_xsd.tmp#TmiComplianceType_ctaCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_ctdCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_etEnRouteCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_spuriousFlightIndicator NasTmiCompliance_xsd.tmp#TmiComplianceType
Type nas:TmiComplianceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
cancelledButFlewIndicator nas:CanceledButFlewIndicatorType optional
Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that had a status of cancelled at the time that it was activated by a NAS message
and then it operated.
ctaCompliance nas:TmiComplianceIndicatorType optional
Indicates the flight's actual arrival compliance at an airport (for a Ground Delay
Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference
to the controlled time of arrival issued.
ctdCompliance nas:TmiComplianceIndicatorType optional
This element indicates that a flight took off outside the Controlled Time of Departure
compliance window (for both Ground Delay Program and Airspace Flow Program)
etEnRouteCompliance nas:TmiComplianceIndicatorType optional
Indicates the flight's actual en route flying time between the departure and the
destination airports (for a Ground Delay Program) or from the departure airport to
the Flow Constraint Area entry point was outside the compliance time range.
spuriousFlightIndicator nas:SpuriousFlightIndicatorType optional
Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that was not scheduled (that is, was created on that day from a CDM message or flight
plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM
message.
Source

<element name="tmiCompliance" type="nas:TmiComplianceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Describes the Traffic Management Initiatives Compliance.</documentation>
  </annotation>
</element>

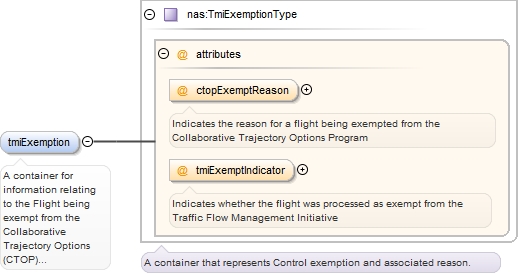

Element nas:NasTmiType / nas:tmiExemption
Namespace http://www.faa.aero/nas/4.1
Annotations

A container for information relating to the Flight being exempt from the Collaborative
Trajectory Options (CTOP) program control.
Diagram
Diagram NasTmiTrajectoryOptions_xsd.tmp#TmiExemptionType_ctopExemptReason NasTmiTrajectoryOptions_xsd.tmp#TmiExemptionType_tmiExemptIndicator NasTmiTrajectoryOptions_xsd.tmp#TmiExemptionType
Type nas:TmiExemptionType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
ctopExemptReason nas:CtopExemptReasonType optional
Indicates the reason for a flight being exempted from the Collaborative Trajectory
Options Program
tmiExemptIndicator nas:TmiExemptIndicatorType optional
Indicates whether the flight was processed as exempt from the Traffic Flow Management
Initiative
Source

<element name="tmiExemption" type="nas:TmiExemptionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A container for information relating to the Flight being exempt from the Collaborative Trajectory Options (CTOP) program control.</documentation>
  </annotation>
</element>

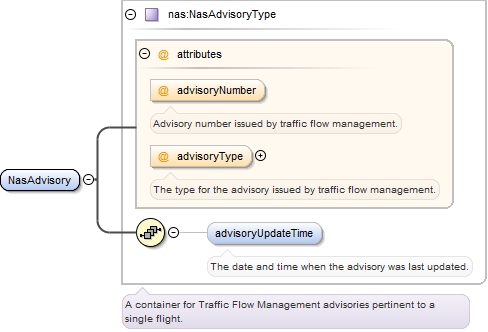

Element nas:NasAdvisory
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasTmiData_xsd.tmp#NasAdvisoryType_advisoryNumber NasTmiData_xsd.tmp#NasAdvisoryType_advisoryType NasTmiData_xsd.tmp#NasAdvisoryType_advisoryUpdateTime NasTmiData_xsd.tmp#NasAdvisoryType
Type nas:NasAdvisoryType
Properties
content: complex
Model nas:advisoryUpdateTime{0,1}
Children nas:advisoryUpdateTime
Instance

<nas:NasAdvisory advisoryNumber="" advisoryType="">
  <nas:advisoryUpdateTime>{0,1}</nas:advisoryUpdateTime>
</nas:NasAdvisory>
Attributes
QName Type Fixed Default Use Annotation
advisoryNumber CharacterStringType optional
Advisory number issued by traffic flow management.
advisoryType nas:AdvisoryTypeType optional
The type for the advisory issued by traffic flow management.
Source

<element name="NasAdvisory" type="nas:NasAdvisoryType"/>

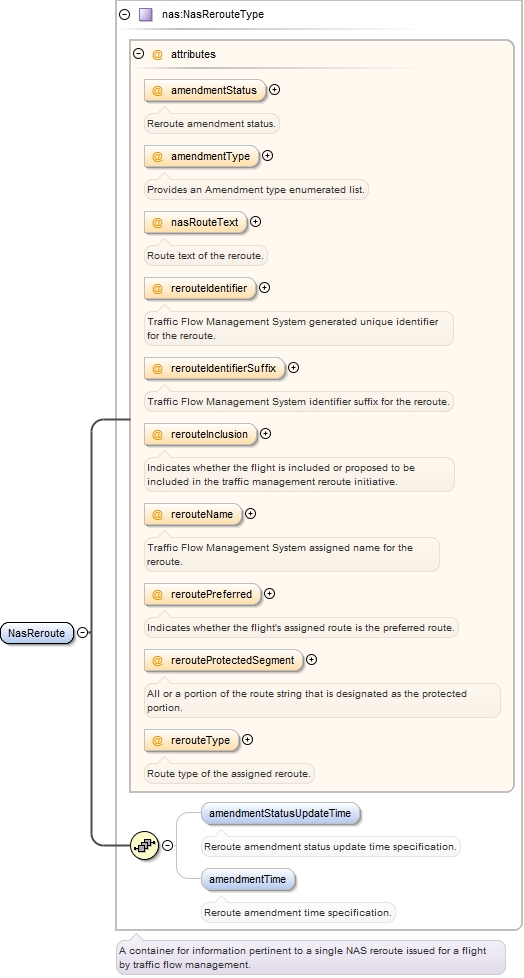

Element nas:NasReroute
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasTmiData_xsd.tmp#NasRerouteType_amendmentStatus NasTmiData_xsd.tmp#NasRerouteType_amendmentType NasTmiData_xsd.tmp#NasRerouteType_nasRouteText NasTmiData_xsd.tmp#NasRerouteType_rerouteIdentifier NasTmiData_xsd.tmp#NasRerouteType_rerouteIdentifierSuffix NasTmiData_xsd.tmp#NasRerouteType_rerouteInclusion NasTmiData_xsd.tmp#NasRerouteType_rerouteName NasTmiData_xsd.tmp#NasRerouteType_reroutePreferred NasTmiData_xsd.tmp#NasRerouteType_rerouteProtectedSegment NasTmiData_xsd.tmp#NasRerouteType_rerouteType NasTmiData_xsd.tmp#NasRerouteType_amendmentStatusUpdateTime NasTmiData_xsd.tmp#NasRerouteType_amendmentTime NasTmiData_xsd.tmp#NasRerouteType
Type nas:NasRerouteType
Properties
content: complex
Model nas:amendmentStatusUpdateTime{0,1} , nas:amendmentTime{0,1}
Children nas:amendmentStatusUpdateTime, nas:amendmentTime
Instance

<nas:NasReroute amendmentStatus="" amendmentType="" nasRouteText="" rerouteIdentifier="" rerouteIdentifierSuffix="" rerouteInclusion="" rerouteName="" reroutePreferred="" rerouteProtectedSegment="" rerouteType="">
  <nas:amendmentStatusUpdateTime>{0,1}</nas:amendmentStatusUpdateTime>
  <nas:amendmentTime>{0,1}</nas:amendmentTime>
</nas:NasReroute>
Attributes
QName Type Fixed Default Use Annotation
amendmentStatus nas:AmendmentStatusType optional
Reroute amendment status.
amendmentType nas:AmendmentTypeType optional
Provides an Amendment type enumerated list.
nasRouteText restriction of CharacterStringType optional
Route text of the reroute.
rerouteIdentifier restriction of CharacterStringType optional
Traffic Flow Management System generated unique identifier for the reroute.
rerouteIdentifierSuffix restriction of CountType optional
Traffic Flow Management System  identifier suffix for the reroute.
rerouteInclusion nas:RerouteInclusionIndicatorType optional
Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
rerouteName restriction of CharacterStringType optional
Traffic Flow Management System assigned name for the reroute.
reroutePreferred nas:ReroutePreferredIndicatorType optional
Indicates whether the flight's assigned route is the preferred route.
rerouteProtectedSegment restriction of CharacterStringType optional
All or a portion of the route string that is designated as the protected portion.
rerouteType nas:RerouteTypeType optional
Route type of the assigned reroute.
Source

<element name="NasReroute" type="nas:NasRerouteType"/>

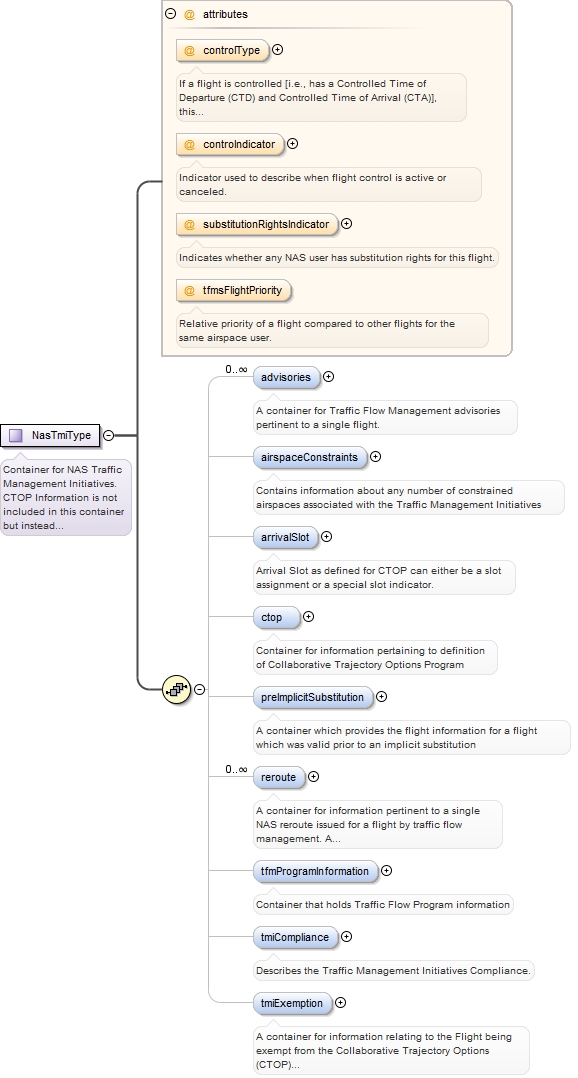

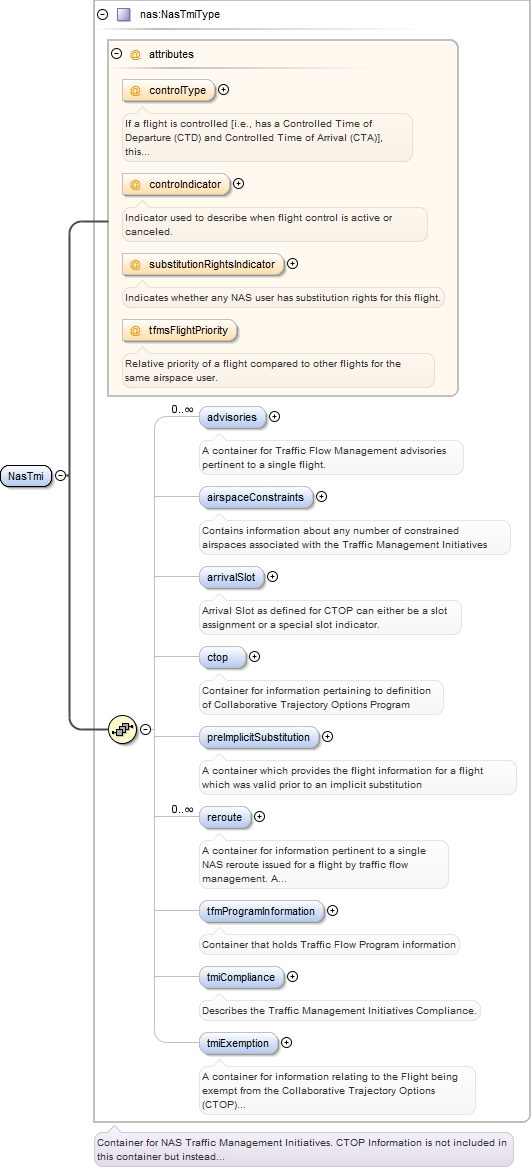

Element nas:NasTmi
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasTmiData_xsd.tmp#NasTmiType_controlType NasTmiData_xsd.tmp#NasTmiType_controlndicator NasTmiData_xsd.tmp#NasTmiType_substitutionRightsIndicator NasTmiData_xsd.tmp#NasTmiType_tfmsFlightPriority NasTmiData_xsd.tmp#NasTmiType_advisories NasTmiData_xsd.tmp#NasTmiType_airspaceConstraints NasTmiData_xsd.tmp#NasTmiType_arrivalSlot NasTmiData_xsd.tmp#NasTmiType_ctop NasTmiData_xsd.tmp#NasTmiType_preImplicitSubstitution NasTmiData_xsd.tmp#NasTmiType_reroute NasTmiData_xsd.tmp#NasTmiType_tfmProgramInformation NasTmiData_xsd.tmp#NasTmiType_tmiCompliance NasTmiData_xsd.tmp#NasTmiType_tmiExemption NasTmiData_xsd.tmp#NasTmiType
Type nas:NasTmiType
Properties
content: complex
Model nas:advisories* , nas:airspaceConstraints{0,1} , nas:arrivalSlot{0,1} , nas:ctop{0,1} , nas:preImplicitSubstitution{0,1} , nas:reroute* , nas:tfmProgramInformation{0,1} , nas:tmiCompliance{0,1} , nas:tmiExemption{0,1}
Children nas:advisories, nas:airspaceConstraints, nas:arrivalSlot, nas:ctop, nas:preImplicitSubstitution, nas:reroute, nas:tfmProgramInformation, nas:tmiCompliance, nas:tmiExemption
Instance

<nas:NasTmi controlndicator="" controlType="" substitutionRightsIndicator="" tfmsFlightPriority="">
  <nas:advisories advisoryNumber="" advisoryType="">{0,unbounded}</nas:advisories>
  <nas:airspaceConstraints arrivalSlot="" constrainedAirspace="" constrainedAirspaceId="" flightExitIndicator="" holdStatus="" yieldedSlot="">{0,1}</nas:airspaceConstraints>
  <nas:arrivalSlot>{0,1}</nas:arrivalSlot>
  <nas:ctop additionalAirborneTime="" assignedGroundDelay="" ctopControlled="" ctopRouteControlled="" ctopRouteOut="" trajectoryNewSource="" trajectorySource="">{0,1}</nas:ctop>
  <nas:preImplicitSubstitution slot="" trajectoryIdentifier="" trajectoryTotalCost="">{0,1}</nas:preImplicitSubstitution>
  <nas:reroute amendmentStatus="" amendmentType="" nasRouteText="" rerouteIdentifier="" rerouteIdentifierSuffix="" rerouteInclusion="" rerouteName="" reroutePreferred="" rerouteProtectedSegment="" rerouteType="">{0,unbounded}</nas:reroute>
  <nas:tfmProgramInformation lastUpdateType="" programIdentifier="">{0,1}</nas:tfmProgramInformation>
  <nas:tmiCompliance cancelledButFlewIndicator="" ctaCompliance="" ctdCompliance="" etEnRouteCompliance="" spuriousFlightIndicator="">{0,1}</nas:tmiCompliance>
  <nas:tmiExemption ctopExemptReason="" tmiExemptIndicator="">{0,1}</nas:tmiExemption>
</nas:NasTmi>
Attributes
QName Type Fixed Default Use Annotation
controlType nas:ControlTypeType optional
If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled
Time of Arrival (CTA)], this element indicates the specific source of the current
control times for this flight.
controlndicator nas:ControlIndicatorType optional
Indicator used to describe when flight control is active or canceled.
substitutionRightsIndicator nas:SubstitutionRightsIndicatorType optional
Indicates whether any NAS user has substitution rights for this flight.
tfmsFlightPriority CountType optional
Relative priority of a flight compared to other flights for the same airspace user.
Source

<element name="NasTmi" type="nas:NasTmiType"/>

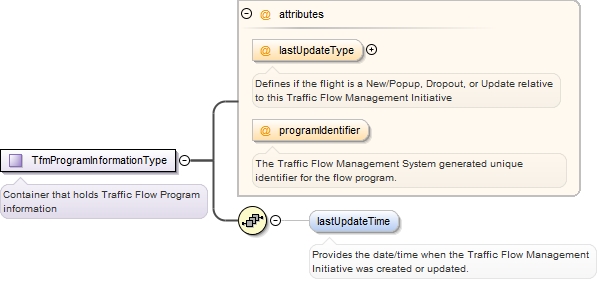

Element nas:TfmProgramInformation
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasTmiData_xsd.tmp#TfmProgramInformationType_lastUpdateType NasTmiData_xsd.tmp#TfmProgramInformationType_programIdentifier NasTmiData_xsd.tmp#TfmProgramInformationType_lastUpdateTime NasTmiData_xsd.tmp#TfmProgramInformationType
Type nas:TfmProgramInformationType
Properties
content: complex
Model nas:lastUpdateTime{0,1}
Children nas:lastUpdateTime
Instance

<nas:TfmProgramInformation lastUpdateType="" programIdentifier="">
  <nas:lastUpdateTime>{0,1}</nas:lastUpdateTime>
</nas:TfmProgramInformation>
Attributes
QName Type Fixed Default Use Annotation
lastUpdateType nas:TfmProgramUpdateTypeType optional
Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic
Flow Management Initiative
programIdentifier CharacterStringType optional
The Traffic Flow Management System generated unique identifier for the flow program.
Source

<element name="TfmProgramInformation" type="nas:TfmProgramInformationType"/>
Complex Type nas:NasTmiType
Namespace http://www.faa.aero/nas/4.1
Annotations

Container for NAS Traffic Management Initiatives.  CTOP Information is not included
in this container but instead collected in the NasTmiTrajectoryOption Container and
connected to the Flight Object.
Diagram
Diagram NasTmiData_xsd.tmp#NasTmiType_controlType NasTmiData_xsd.tmp#NasTmiType_controlndicator NasTmiData_xsd.tmp#NasTmiType_substitutionRightsIndicator NasTmiData_xsd.tmp#NasTmiType_tfmsFlightPriority NasTmiData_xsd.tmp#NasTmiType_advisories NasTmiData_xsd.tmp#NasTmiType_airspaceConstraints NasTmiData_xsd.tmp#NasTmiType_arrivalSlot NasTmiData_xsd.tmp#NasTmiType_ctop NasTmiData_xsd.tmp#NasTmiType_preImplicitSubstitution NasTmiData_xsd.tmp#NasTmiType_reroute NasTmiData_xsd.tmp#NasTmiType_tfmProgramInformation NasTmiData_xsd.tmp#NasTmiType_tmiCompliance NasTmiData_xsd.tmp#NasTmiType_tmiExemption
Used by
Model nas:advisories* , nas:airspaceConstraints{0,1} , nas:arrivalSlot{0,1} , nas:ctop{0,1} , nas:preImplicitSubstitution{0,1} , nas:reroute* , nas:tfmProgramInformation{0,1} , nas:tmiCompliance{0,1} , nas:tmiExemption{0,1}
Children nas:advisories, nas:airspaceConstraints, nas:arrivalSlot, nas:ctop, nas:preImplicitSubstitution, nas:reroute, nas:tfmProgramInformation, nas:tmiCompliance, nas:tmiExemption
Attributes
QName Type Fixed Default Use Annotation
controlType nas:ControlTypeType optional

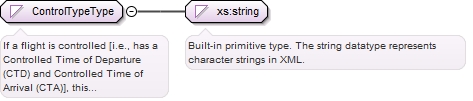

If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled
Time of Arrival (CTA)], this element indicates the specific source of the current
control times for this flight.
controlndicator nas:ControlIndicatorType optional
Indicator used to describe when flight control is active or canceled.
substitutionRightsIndicator nas:SubstitutionRightsIndicatorType optional
Indicates whether any NAS user has substitution rights for this flight.
tfmsFlightPriority CountType optional
Relative priority of a flight compared to other flights for the same airspace user.
Source

<complexType name="NasTmiType">
  <annotation>
    <documentation>Container for NAS Traffic Management Initiatives. CTOP Information is not included in this container but instead collected in the NasTmiTrajectoryOption Container and connected to the Flight Object.</documentation>
  </annotation>
  <sequence>
    <element name="advisories" type="nas:NasAdvisoryType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>A container for Traffic Flow Management advisories pertinent to a single flight.</documentation>
      </annotation>
    </element>
    <element name="airspaceConstraints" type="nas:NasAirspaceConstraintType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Contains information about any number of constrained airspaces associated with the Traffic Management Initiatives</documentation>
      </annotation>
    </element>
    <element name="arrivalSlot" type="nas:ArrivalSlotType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Arrival Slot as defined for CTOP can either be a slot assignment or a special slot indicator.</documentation>
      </annotation>
    </element>
    <element name="ctop" type="nas:CollaborativeTrajectoryOptionsProgramType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Container for information pertaining to definition of Collaborative Trajectory Options Program</documentation>
      </annotation>
    </element>
    <element name="preImplicitSubstitution" type="nas:PreImplicitSubstitutionType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A container which provides the flight information for a flight which was valid prior to an implicit substitution</documentation>
      </annotation>
    </element>
    <element name="reroute" type="nas:NasRerouteType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management. A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management.</documentation>
      </annotation>
    </element>
    <element name="tfmProgramInformation" type="nas:TfmProgramInformationType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Container that holds Traffic Flow Program information</documentation>
      </annotation>
    </element>
    <element name="tmiCompliance" type="nas:TmiComplianceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Describes the Traffic Management Initiatives Compliance.</documentation>
      </annotation>
    </element>
    <element name="tmiExemption" type="nas:TmiExemptionType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>A container for information relating to the Flight being exempt from the Collaborative Trajectory Options (CTOP) program control.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="controlType" type="nas:ControlTypeType" use="optional">
    <annotation>
      <documentation>If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled Time of Arrival (CTA)], this element indicates the specific source of the current control times for this flight.</documentation>
    </annotation>
  </attribute>
  <attribute name="controlndicator" type="nas:ControlIndicatorType" use="optional">
    <annotation>
      <documentation>Indicator used to describe when flight control is active or canceled.</documentation>
    </annotation>
  </attribute>
  <attribute name="substitutionRightsIndicator" type="nas:SubstitutionRightsIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates whether any NAS user has substitution rights for this flight.</documentation>
    </annotation>
  </attribute>
  <attribute name="tfmsFlightPriority" type="fb:CountType" use="optional">
    <annotation>
      <documentation>Relative priority of a flight compared to other flights for the same airspace user.</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type nas:NasAdvisoryType
Namespace http://www.faa.aero/nas/4.1
Annotations

A container for Traffic Flow Management advisories pertinent to a single flight.
Diagram
Diagram NasTmiData_xsd.tmp#NasAdvisoryType_advisoryNumber NasTmiData_xsd.tmp#NasAdvisoryType_advisoryType NasTmiData_xsd.tmp#NasAdvisoryType_advisoryUpdateTime
Used by
Model nas:advisoryUpdateTime{0,1}
Children nas:advisoryUpdateTime
Attributes
QName Type Fixed Default Use Annotation
advisoryNumber CharacterStringType optional
Advisory number issued by traffic flow management.
advisoryType nas:AdvisoryTypeType optional
The type for the advisory issued by traffic flow management.
Source

<complexType name="NasAdvisoryType">
  <annotation>
    <documentation>A container for Traffic Flow Management advisories pertinent to a single flight.</documentation>
  </annotation>
  <sequence>
    <element name="advisoryUpdateTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The date and time when the advisory was last updated.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="advisoryNumber" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Advisory number issued by traffic flow management.</documentation>
    </annotation>
  </attribute>
  <attribute name="advisoryType" type="nas:AdvisoryTypeType" use="optional">
    <annotation>
      <documentation>The type for the advisory issued by traffic flow management.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type nas:AdvisoryTypeType
Namespace http://www.faa.aero/nas/4.1
Annotations

The type for the advisory issued by traffic flow management.
Diagram
Diagram
Type restriction of string
Facets
enumeration GDP
Ground Delay Program Advisory
enumeration AFP
Airspace Flow Program Advisory
enumeration GDP_CANCEL
Ground Delay Program cancellation Advisory
enumeration AFP_CANCEL
Airspace Flow Program Cancellation Advisory
enumeration GS
Ground Stop Program Advisory
enumeration GS_CANCEL
Ground Stop Program cancellation Advisory
enumeration REROUTE
Reroute Advisory
enumeration CTOP
Collaborative Trajectory Options Program Advisory
enumeration CTOP_CANCEL
Collaborative Trajectory Options Program cancellation Advisory
Used by
Source

<simpleType name="AdvisoryTypeType">
  <annotation>
    <documentation>The type for the advisory issued by traffic flow management.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="GDP">
      <annotation>
        <documentation>Ground Delay Program Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="AFP">
      <annotation>
        <documentation>Airspace Flow Program Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="GDP_CANCEL">
      <annotation>
        <documentation>Ground Delay Program cancellation Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="AFP_CANCEL">
      <annotation>
        <documentation>Airspace Flow Program Cancellation Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="GS">
      <annotation>
        <documentation>Ground Stop Program Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="GS_CANCEL">
      <annotation>
        <documentation>Ground Stop Program cancellation Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="REROUTE">
      <annotation>
        <documentation>Reroute Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="CTOP">
      <annotation>
        <documentation>Collaborative Trajectory Options Program Advisory</documentation>
      </annotation>
    </enumeration>
    <enumeration value="CTOP_CANCEL">
      <annotation>
        <documentation>Collaborative Trajectory Options Program cancellation Advisory</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type nas:NasRerouteType
Namespace http://www.faa.aero/nas/4.1
Annotations

A container for information pertinent to a single NAS reroute issued for a flight
by traffic flow management.
Diagram
Diagram NasTmiData_xsd.tmp#NasRerouteType_amendmentStatus NasTmiData_xsd.tmp#NasRerouteType_amendmentType NasTmiData_xsd.tmp#NasRerouteType_nasRouteText NasTmiData_xsd.tmp#NasRerouteType_rerouteIdentifier NasTmiData_xsd.tmp#NasRerouteType_rerouteIdentifierSuffix NasTmiData_xsd.tmp#NasRerouteType_rerouteInclusion NasTmiData_xsd.tmp#NasRerouteType_rerouteName NasTmiData_xsd.tmp#NasRerouteType_reroutePreferred NasTmiData_xsd.tmp#NasRerouteType_rerouteProtectedSegment NasTmiData_xsd.tmp#NasRerouteType_rerouteType NasTmiData_xsd.tmp#NasRerouteType_amendmentStatusUpdateTime NasTmiData_xsd.tmp#NasRerouteType_amendmentTime
Used by
Model nas:amendmentStatusUpdateTime{0,1} , nas:amendmentTime{0,1}
Children nas:amendmentStatusUpdateTime, nas:amendmentTime
Attributes
QName Type Fixed Default Use Annotation
amendmentStatus nas:AmendmentStatusType optional
Reroute amendment status.
amendmentType nas:AmendmentTypeType optional
Provides an Amendment type enumerated list.
nasRouteText restriction of CharacterStringType optional
Route text of the reroute.
rerouteIdentifier restriction of CharacterStringType optional
Traffic Flow Management System generated unique identifier for the reroute.
rerouteIdentifierSuffix restriction of CountType optional
Traffic Flow Management System  identifier suffix for the reroute.
rerouteInclusion nas:RerouteInclusionIndicatorType optional
Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
rerouteName restriction of CharacterStringType optional
Traffic Flow Management System assigned name for the reroute.
reroutePreferred nas:ReroutePreferredIndicatorType optional
Indicates whether the flight's assigned route is the preferred route.
rerouteProtectedSegment restriction of CharacterStringType optional
All or a portion of the route string that is designated as the protected portion.
rerouteType nas:RerouteTypeType optional
Route type of the assigned reroute.
Source

<complexType name="NasRerouteType">
  <annotation>
    <documentation>A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management.</documentation>
  </annotation>
  <sequence>
    <element name="amendmentStatusUpdateTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Reroute amendment status update time specification.</documentation>
      </annotation>
    </element>
    <element name="amendmentTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Reroute amendment time specification.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="amendmentStatus" type="nas:AmendmentStatusType" use="optional">
    <annotation>
      <documentation>Reroute amendment status.</documentation>
    </annotation>
  </attribute>
  <attribute name="amendmentType" type="nas:AmendmentTypeType" use="optional">
    <annotation>
      <documentation>Provides an Amendment type enumerated list.</documentation>
    </annotation>
  </attribute>
  <attribute name="nasRouteText" use="optional">
    <annotation>
      <documentation>Route text of the reroute.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <pattern value="([A-Z]|\d|/|\+|\*|\.|\s|_|&amp;#8853;)+"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="rerouteIdentifier" use="optional">
    <annotation>
      <documentation>Traffic Flow Management System generated unique identifier for the reroute.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <minLength value="3"/>
        <maxLength value="100"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="rerouteIdentifierSuffix" use="optional">
    <annotation>
      <documentation>Traffic Flow Management System identifier suffix for the reroute.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CountType">
        <maxInclusive value="99"/>
        <minInclusive value="0"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="rerouteInclusion" type="nas:RerouteInclusionIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates whether the flight is included or proposed to be included in the traffic management reroute initiative.</documentation>
    </annotation>
  </attribute>
  <attribute name="rerouteName" use="optional">
    <annotation>
      <documentation>Traffic Flow Management System assigned name for the reroute.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <minLength value="0"/>
        <maxLength value="64"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="reroutePreferred" type="nas:ReroutePreferredIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates whether the flight's assigned route is the preferred route.</documentation>
    </annotation>
  </attribute>
  <attribute name="rerouteProtectedSegment" use="optional">
    <annotation>
      <documentation>All or a portion of the route string that is designated as the protected portion.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <minLength value="1"/>
        <maxLength value="1000"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="rerouteType" type="nas:RerouteTypeType" use="optional">
    <annotation>
      <documentation>Route type of the assigned reroute.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type nas:AmendmentStatusType
Namespace http://www.faa.aero/nas/4.1
Annotations

Provides a route amendment status enumerated list.
Diagram
Diagram
Type restriction of string
Facets
enumeration SENT
enumeration HELD
enumeration TOUT
enumeration PEND
enumeration APLD
enumeration AMOD
enumeration DROP
enumeration RJCT
Used by
Source

<simpleType name="AmendmentStatusType">
  <annotation>
    <documentation>Provides a route amendment status enumerated list.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SENT"/>
    <enumeration value="HELD"/>
    <enumeration value="TOUT"/>
    <enumeration value="PEND"/>
    <enumeration value="APLD"/>
    <enumeration value="AMOD"/>
    <enumeration value="DROP"/>
    <enumeration value="RJCT"/>
  </restriction>
</simpleType>
Simple Type nas:AmendmentTypeType
Namespace http://www.faa.aero/nas/4.1
Annotations

Provides an Amendment type enumerated list.
Diagram
Diagram
Type restriction of string
Facets
enumeration MANUAL
enumeration AUTO
enumeration AUTO_CHNG_RTE
Used by
Source

<simpleType name="AmendmentTypeType">
  <annotation>
    <documentation>Provides an Amendment type enumerated list.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="MANUAL"/>
    <enumeration value="AUTO"/>
    <enumeration value="AUTO_CHNG_RTE"/>
  </restriction>
</simpleType>
Simple Type nas:RerouteInclusionIndicatorType
Namespace http://www.faa.aero/nas/4.1
Annotations

Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
Diagram
Diagram
Type restriction of string
Facets
enumeration INCLUDED
Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
enumeration NOT_INCLUDED
Used by
Source

<simpleType name="RerouteInclusionIndicatorType">
  <annotation>
    <documentation>Indicates whether the flight is included or proposed to be included in the traffic management reroute initiative.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="INCLUDED">
      <annotation>
        <documentation>Indicates whether the flight is included or proposed to be included in the traffic management reroute initiative.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="NOT_INCLUDED"/>
  </restriction>
</simpleType>
Simple Type nas:ReroutePreferredIndicatorType
Namespace http://www.faa.aero/nas/4.1
Annotations

Indicates whether the flight's assigned route is the preferred route.
Diagram
Diagram
Type restriction of string
Facets
enumeration PREFERRED
Used by
Source

<simpleType name="ReroutePreferredIndicatorType">
  <annotation>
    <documentation>Indicates whether the flight's assigned route is the preferred route.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="PREFERRED"/>
  </restriction>
</simpleType>
Simple Type nas:RerouteTypeType
Namespace http://www.faa.aero/nas/4.1
Annotations

Route type of the assigned reroute.
Diagram
Diagram
Type restriction of string
Facets
enumeration NONE
blank entry (for EXPLICIT selection)
enumeration CDR_RTE
Coded Departure Route (retrieved from the CDR db)
enumeration RERTE
Reroute (manually updated reroute)
enumeration UPT_RTE
User Preferred Trajectory Route (user submitted early intent route)
enumeration UNKN_RTE
Unknown Route
Used by
Source

<simpleType name="RerouteTypeType">
  <annotation>
    <documentation>Route type of the assigned reroute.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="NONE">
      <annotation>
        <documentation>blank entry (for EXPLICIT selection)</documentation>
      </annotation>
    </enumeration>
    <enumeration value="CDR_RTE">
      <annotation>
        <documentation>Coded Departure Route (retrieved from the CDR db)</documentation>
      </annotation>
    </enumeration>
    <enumeration value="RERTE">
      <annotation>
        <documentation>Reroute (manually updated reroute)</documentation>
      </annotation>
    </enumeration>
    <enumeration value="UPT_RTE">
      <annotation>
        <documentation>User Preferred Trajectory Route (user submitted early intent route)</documentation>
      </annotation>
    </enumeration>
    <enumeration value="UNKN_RTE">
      <annotation>
        <documentation>Unknown Route</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Complex Type nas:TfmProgramInformationType
Namespace http://www.faa.aero/nas/4.1
Annotations

Container that holds Traffic Flow Program information
Diagram
Diagram NasTmiData_xsd.tmp#TfmProgramInformationType_lastUpdateType NasTmiData_xsd.tmp#TfmProgramInformationType_programIdentifier NasTmiData_xsd.tmp#TfmProgramInformationType_lastUpdateTime
Used by
Model nas:lastUpdateTime{0,1}
Children nas:lastUpdateTime
Attributes
QName Type Fixed Default Use Annotation
lastUpdateType nas:TfmProgramUpdateTypeType optional
Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic
Flow Management Initiative
programIdentifier CharacterStringType optional
The Traffic Flow Management System generated unique identifier for the flow program.
Source

<complexType name="TfmProgramInformationType">
  <annotation>
    <documentation>Container that holds Traffic Flow Program information</documentation>
  </annotation>
  <sequence>
    <element name="lastUpdateTime" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Provides the date/time when the Traffic Flow Management Initiative was created or updated.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="lastUpdateType" type="nas:TfmProgramUpdateTypeType" use="optional">
    <annotation>
      <documentation>Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic Flow Management Initiative</documentation>
    </annotation>
  </attribute>
  <attribute name="programIdentifier" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The Traffic Flow Management System generated unique identifier for the flow program.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type nas:TfmProgramUpdateTypeType
Namespace http://www.faa.aero/nas/4.1
Annotations

Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic
Flow Management Initiative
Diagram
Diagram
Type restriction of string
Facets
enumeration NEW
enumeration UPDATE
enumeration DROPOUT
Used by
Source

<simpleType name="TfmProgramUpdateTypeType">
  <annotation>
    <documentation>Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic Flow Management Initiative</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="NEW"/>
    <enumeration value="UPDATE"/>
    <enumeration value="DROPOUT"/>
  </restriction>
</simpleType>
Simple Type nas:ControlTypeType
Namespace http://www.faa.aero/nas/4.1
Annotations

If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled
Time of Arrival (CTA)], this element indicates the specific source of the current
control times for this flight.
Diagram
Diagram
Type restriction of string
Facets
enumeration GDP
enumeration AFP
enumeration GS
enumeration BLKT
enumeration COMP
enumeration BRG
enumeration DAS
enumeration GAAP
enumeration UDP
enumeration RCTL
enumeration SUB
enumeration SCS
enumeration ECR
enumeration UPD
enumeration ABRG
enumeration SBRG
enumeration UBRG
enumeration ADPT
enumeration CTOP
Used by
Source

<simpleType name="ControlTypeType">
  <annotation>
    <documentation>If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled Time of Arrival (CTA)], this element indicates the specific source of the current control times for this flight.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="GDP"/>
    <enumeration value="AFP"/>
    <enumeration value="GS"/>
    <enumeration value="BLKT"/>
    <enumeration value="COMP"/>
    <enumeration value="BRG"/>
    <enumeration value="DAS"/>
    <enumeration value="GAAP"/>
    <enumeration value="UDP"/>
    <enumeration value="RCTL"/>
    <enumeration value="SUB"/>
    <enumeration value="SCS"/>
    <enumeration value="ECR"/>
    <enumeration value="UPD"/>
    <enumeration value="ABRG"/>
    <enumeration value="SBRG"/>
    <enumeration value="UBRG"/>
    <enumeration value="ADPT"/>
    <enumeration value="CTOP"/>
  </restriction>
</simpleType>
Simple Type nas:ControlIndicatorType
Namespace http://www.faa.aero/nas/4.1
Annotations

Indicator used to describe when flight control is active or canceled.
Diagram
Diagram
Type restriction of string
Facets
enumeration CONTROL_ACTIVE
enumeration CONTROL_CANCELLED
Used by
Source

<simpleType name="ControlIndicatorType">
  <annotation>
    <documentation>Indicator used to describe when flight control is active or canceled.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="CONTROL_ACTIVE"/>
    <enumeration value="CONTROL_CANCELLED"/>
  </restriction>
</simpleType>
Simple Type nas:SubstitutionRightsIndicatorType
Namespace http://www.faa.aero/nas/4.1
Annotations

Indicates whether any NAS user has substitution rights for this flight.
Diagram
Diagram
Type restriction of string
Facets
enumeration SUBSTITUTION_RIGHTS
Used by
Source

<simpleType name="SubstitutionRightsIndicatorType">
  <annotation>
    <documentation>Indicates whether any NAS user has substitution rights for this flight.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SUBSTITUTION_RIGHTS"/>
  </restriction>
</simpleType>
Attribute nas:NasAdvisoryType / @advisoryNumber
Namespace No namespace
Annotations

Advisory number issued by traffic flow management.
Type CharacterStringType
Properties
use: optional
Used by
Complex Type nas:NasAdvisoryType
Source

<attribute name="advisoryNumber" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Advisory number issued by traffic flow management.</documentation>
  </annotation>
</attribute>
Attribute nas:NasAdvisoryType / @advisoryType
Namespace No namespace
Annotations

The type for the advisory issued by traffic flow management.
Type nas:AdvisoryTypeType
Properties
use: optional
Facets
enumeration GDP
Ground Delay Program Advisory
enumeration AFP
Airspace Flow Program Advisory
enumeration GDP_CANCEL
Ground Delay Program cancellation Advisory
enumeration AFP_CANCEL
Airspace Flow Program Cancellation Advisory
enumeration GS
Ground Stop Program Advisory
enumeration GS_CANCEL
Ground Stop Program cancellation Advisory
enumeration REROUTE
Reroute Advisory
enumeration CTOP
Collaborative Trajectory Options Program Advisory
enumeration CTOP_CANCEL
Collaborative Trajectory Options Program cancellation Advisory
Used by
Complex Type nas:NasAdvisoryType
Source

<attribute name="advisoryType" type="nas:AdvisoryTypeType" use="optional">
  <annotation>
    <documentation>The type for the advisory issued by traffic flow management.</documentation>
  </annotation>
</attribute>
Attribute nas:NasRerouteType / @amendmentStatus
Namespace No namespace
Annotations

Reroute amendment status.
Type nas:AmendmentStatusType
Properties
use: optional
Facets
enumeration SENT
enumeration HELD
enumeration TOUT
enumeration PEND
enumeration APLD
enumeration AMOD
enumeration DROP
enumeration RJCT
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="amendmentStatus" type="nas:AmendmentStatusType" use="optional">
  <annotation>
    <documentation>Reroute amendment status.</documentation>
  </annotation>
</attribute>
Attribute nas:NasRerouteType / @amendmentType
Namespace No namespace
Annotations

Provides an Amendment type enumerated list.
Type nas:AmendmentTypeType
Properties
use: optional
Facets
enumeration MANUAL
enumeration AUTO
enumeration AUTO_CHNG_RTE
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="amendmentType" type="nas:AmendmentTypeType" use="optional">
  <annotation>
    <documentation>Provides an Amendment type enumerated list.</documentation>
  </annotation>
</attribute>
Attribute nas:NasRerouteType / @nasRouteText
Namespace No namespace
Annotations

Route text of the reroute.
Type restriction of CharacterStringType
Type hierarchy
  • CharacterStringType
Properties
use: optional
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="nasRouteText" use="optional">
  <annotation>
    <documentation>Route text of the reroute.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="([A-Z]|\d|/|\+|\*|\.|\s|_|&amp;#8853;)+"/>
    </restriction>
  </simpleType>
</attribute>
Attribute nas:NasRerouteType / @rerouteIdentifier
Namespace No namespace
Annotations

Traffic Flow Management System generated unique identifier for the reroute.
Type restriction of CharacterStringType
Type hierarchy
  • CharacterStringType
Properties
use: optional
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="rerouteIdentifier" use="optional">
  <annotation>
    <documentation>Traffic Flow Management System generated unique identifier for the reroute.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <minLength value="3"/>
      <maxLength value="100"/>
    </restriction>
  </simpleType>
</attribute>
Attribute nas:NasRerouteType / @rerouteIdentifierSuffix
Namespace No namespace
Annotations

Traffic Flow Management System  identifier suffix for the reroute.
Type restriction of CountType
Type hierarchy
  • CountType
Properties
use: optional
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="rerouteIdentifierSuffix" use="optional">
  <annotation>
    <documentation>Traffic Flow Management System identifier suffix for the reroute.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CountType">
      <maxInclusive value="99"/>
      <minInclusive value="0"/>
    </restriction>
  </simpleType>
</attribute>
Attribute nas:NasRerouteType / @rerouteInclusion
Namespace No namespace
Annotations

Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
Type nas:RerouteInclusionIndicatorType
Properties
use: optional
Facets
enumeration INCLUDED
Indicates whether the flight is included or proposed to be included in the traffic
management reroute initiative.
enumeration NOT_INCLUDED
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="rerouteInclusion" type="nas:RerouteInclusionIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates whether the flight is included or proposed to be included in the traffic management reroute initiative.</documentation>
  </annotation>
</attribute>
Attribute nas:NasRerouteType / @rerouteName
Namespace No namespace
Annotations

Traffic Flow Management System assigned name for the reroute.
Type restriction of CharacterStringType
Type hierarchy
  • CharacterStringType
Properties
use: optional
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="rerouteName" use="optional">
  <annotation>
    <documentation>Traffic Flow Management System assigned name for the reroute.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <minLength value="0"/>
      <maxLength value="64"/>
    </restriction>
  </simpleType>
</attribute>
Attribute nas:NasRerouteType / @reroutePreferred
Namespace No namespace
Annotations

Indicates whether the flight's assigned route is the preferred route.
Type nas:ReroutePreferredIndicatorType
Properties
use: optional
Facets
enumeration PREFERRED
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="reroutePreferred" type="nas:ReroutePreferredIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates whether the flight's assigned route is the preferred route.</documentation>
  </annotation>
</attribute>
Attribute nas:NasRerouteType / @rerouteProtectedSegment
Namespace No namespace
Annotations

All or a portion of the route string that is designated as the protected portion.
Type restriction of CharacterStringType
Type hierarchy
  • CharacterStringType
Properties
use: optional
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="rerouteProtectedSegment" use="optional">
  <annotation>
    <documentation>All or a portion of the route string that is designated as the protected portion.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <minLength value="1"/>
      <maxLength value="1000"/>
    </restriction>
  </simpleType>
</attribute>
Attribute nas:NasRerouteType / @rerouteType
Namespace No namespace
Annotations

Route type of the assigned reroute.
Type nas:RerouteTypeType
Properties
use: optional
Facets
enumeration NONE
blank entry (for EXPLICIT selection)
enumeration CDR_RTE
Coded Departure Route (retrieved from the CDR db)
enumeration RERTE
Reroute (manually updated reroute)
enumeration UPT_RTE
User Preferred Trajectory Route (user submitted early intent route)
enumeration UNKN_RTE
Unknown Route
Used by
Complex Type nas:NasRerouteType
Source

<attribute name="rerouteType" type="nas:RerouteTypeType" use="optional">
  <annotation>
    <documentation>Route type of the assigned reroute.</documentation>
  </annotation>
</attribute>
Attribute nas:TfmProgramInformationType / @lastUpdateType
Namespace No namespace
Annotations

Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic
Flow Management Initiative
Type nas:TfmProgramUpdateTypeType
Properties
use: optional
Facets
enumeration NEW
enumeration UPDATE
enumeration DROPOUT
Used by
Source

<attribute name="lastUpdateType" type="nas:TfmProgramUpdateTypeType" use="optional">
  <annotation>
    <documentation>Defines if the flight is a New/Popup, Dropout, or Update relative to this Traffic Flow Management Initiative</documentation>
  </annotation>
</attribute>
Attribute nas:TfmProgramInformationType / @programIdentifier
Namespace No namespace
Annotations

The Traffic Flow Management System generated unique identifier for the flow program.
Type CharacterStringType
Properties
use: optional
Used by
Source

<attribute name="programIdentifier" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The Traffic Flow Management System generated unique identifier for the flow program.</documentation>
  </annotation>
</attribute>
Attribute nas:NasTmiType / @controlType
Namespace No namespace
Annotations

If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled
Time of Arrival (CTA)], this element indicates the specific source of the current
control times for this flight.
Type nas:ControlTypeType
Properties
use: optional
Facets
enumeration GDP
enumeration AFP
enumeration GS
enumeration BLKT
enumeration COMP
enumeration BRG
enumeration DAS
enumeration GAAP
enumeration UDP
enumeration RCTL
enumeration SUB
enumeration SCS
enumeration ECR
enumeration UPD
enumeration ABRG
enumeration SBRG
enumeration UBRG
enumeration ADPT
enumeration CTOP
Used by
Complex Type nas:NasTmiType
Source

<attribute name="controlType" type="nas:ControlTypeType" use="optional">
  <annotation>
    <documentation>If a flight is controlled [i.e., has a Controlled Time of Departure (CTD) and Controlled Time of Arrival (CTA)], this element indicates the specific source of the current control times for this flight.</documentation>
  </annotation>
</attribute>
Attribute nas:NasTmiType / @controlndicator
Namespace No namespace
Annotations

Indicator used to describe when flight control is active or canceled.
Type nas:ControlIndicatorType
Properties
use: optional
Facets
enumeration CONTROL_ACTIVE
enumeration CONTROL_CANCELLED
Used by
Complex Type nas:NasTmiType
Source

<attribute name="controlndicator" type="nas:ControlIndicatorType" use="optional">
  <annotation>
    <documentation>Indicator used to describe when flight control is active or canceled.</documentation>
  </annotation>
</attribute>
Attribute nas:NasTmiType / @substitutionRightsIndicator
Namespace No namespace
Annotations

Indicates whether any NAS user has substitution rights for this flight.
Type nas:SubstitutionRightsIndicatorType
Properties
use: optional
Facets
enumeration SUBSTITUTION_RIGHTS
Used by
Complex Type nas:NasTmiType
Source

<attribute name="substitutionRightsIndicator" type="nas:SubstitutionRightsIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates whether any NAS user has substitution rights for this flight.</documentation>
  </annotation>
</attribute>
Attribute nas:NasTmiType / @tfmsFlightPriority
Namespace No namespace
Annotations

Relative priority of a flight compared to other flights for the same airspace user.
Type CountType
Properties
use: optional
Used by
Complex Type nas:NasTmiType
Source

<attribute name="tfmsFlightPriority" type="fb:CountType" use="optional">
  <annotation>
    <documentation>Relative priority of a flight compared to other flights for the same airspace user.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
