Included schema NasTfdm.xsd
Namespace http://www.faa.aero/nas/4.1
Annotations

Copyright (c) 2016 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/

Contains elements specific to Tower Flight Data Manager (TFDM) not used by other
systems.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.1

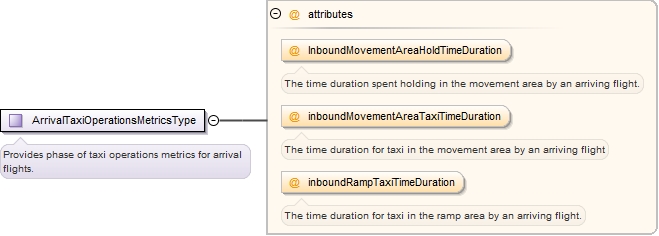

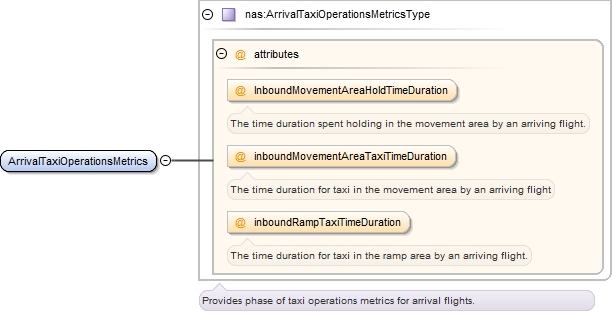

Element nas:ArrivalTaxiOperationsMetrics
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_InboundMovementAreaHoldTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_inboundMovementAreaTaxiTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_inboundRampTaxiTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType
Type nas:ArrivalTaxiOperationsMetricsType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
InboundMovementAreaHoldTimeDuration DurationType optional
The time duration spent holding in the movement area by an arriving flight.
inboundMovementAreaTaxiTimeDuration DurationType optional
The time duration for taxi in the movement area by an arriving flight
inboundRampTaxiTimeDuration DurationType optional
The time duration for  taxi in the ramp area by an arriving flight.
Source

<element name="ArrivalTaxiOperationsMetrics" type="nas:ArrivalTaxiOperationsMetricsType"/>

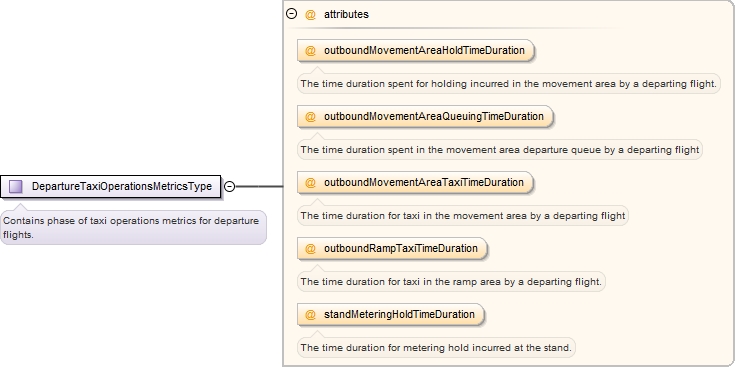

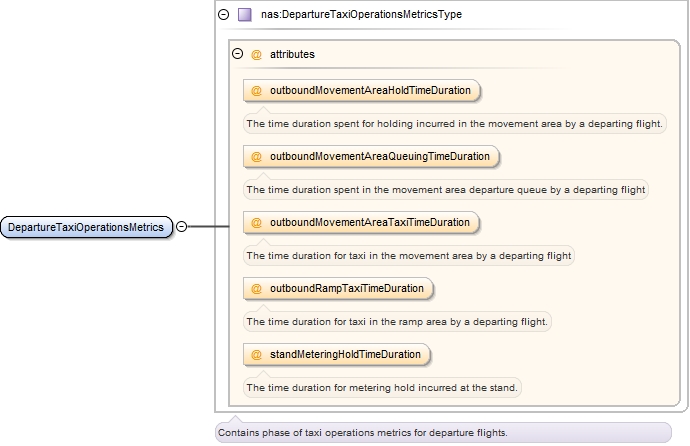

Element nas:DepartureTaxiOperationsMetrics
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaHoldTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaQueuingTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaTaxiTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundRampTaxiTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_standMeteringHoldTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType
Type nas:DepartureTaxiOperationsMetricsType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
outboundMovementAreaHoldTimeDuration DurationType optional
The time duration spent for holding incurred in the movement area by a departing
flight.
outboundMovementAreaQueuingTimeDuration DurationType optional
The time duration spent in the movement area departure queue by a departing flight
outboundMovementAreaTaxiTimeDuration DurationType optional
The time duration for taxi in the movement area by a departing flight
outboundRampTaxiTimeDuration DurationType optional
The time duration for taxi in the ramp area by a departing flight.
standMeteringHoldTimeDuration DurationType optional
The time duration for metering hold incurred at the stand.
Source

<element name="DepartureTaxiOperationsMetrics" type="nas:DepartureTaxiOperationsMetricsType"/>

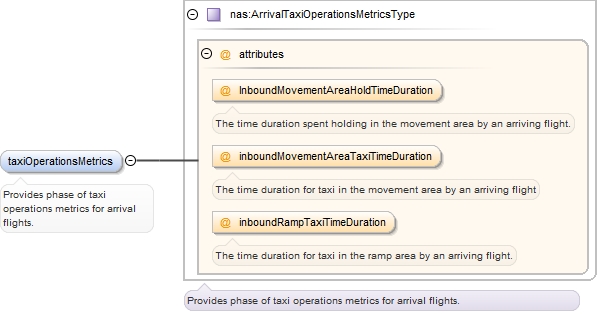

Element nas:TfdmArrivalType / nas:taxiOperationsMetrics
Namespace http://www.faa.aero/nas/4.1
Annotations

Provides phase of taxi operations metrics for arrival flights.
Diagram
Diagram NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_InboundMovementAreaHoldTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_inboundMovementAreaTaxiTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_inboundRampTaxiTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType
Type nas:ArrivalTaxiOperationsMetricsType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
InboundMovementAreaHoldTimeDuration DurationType optional
The time duration spent holding in the movement area by an arriving flight.
inboundMovementAreaTaxiTimeDuration DurationType optional
The time duration for taxi in the movement area by an arriving flight
inboundRampTaxiTimeDuration DurationType optional
The time duration for  taxi in the ramp area by an arriving flight.
Source

<element name="taxiOperationsMetrics" type="nas:ArrivalTaxiOperationsMetricsType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Provides phase of taxi operations metrics for arrival flights.</documentation>
  </annotation>
</element>

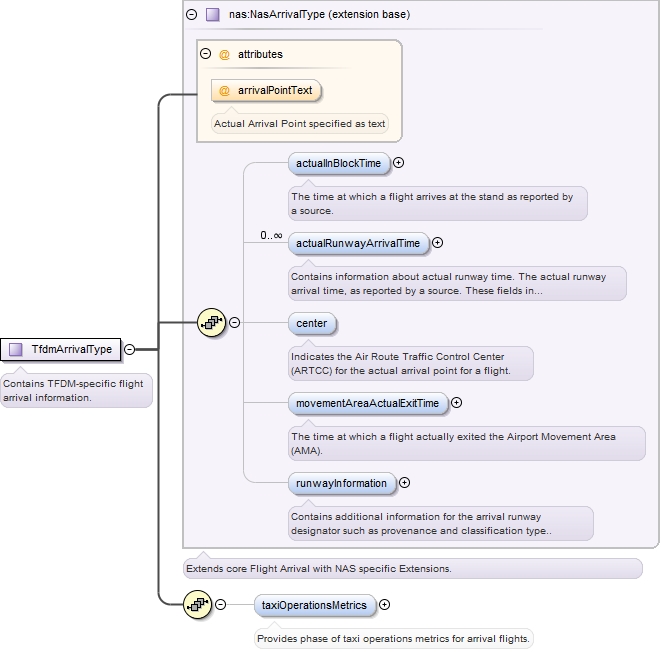

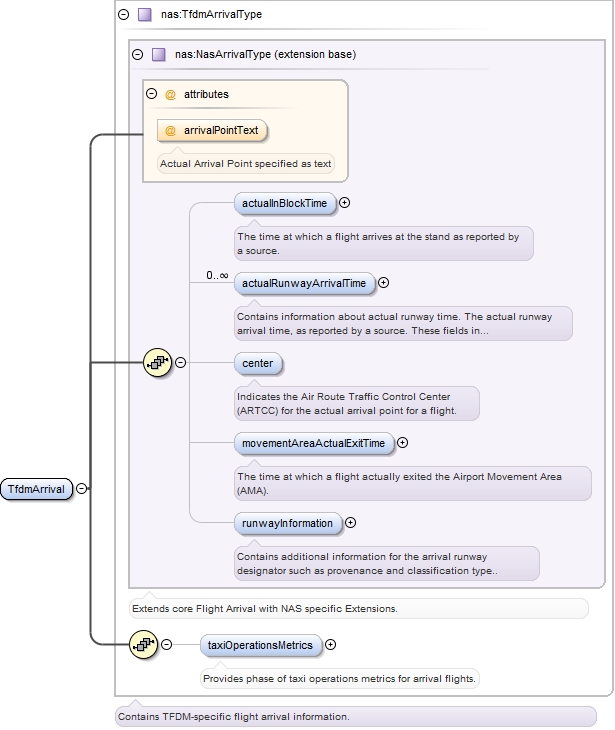

Element nas:TfdmArrival
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasArrival_xsd.tmp#NasArrivalType_arrivalPointText NasArrival_xsd.tmp#NasArrivalType_actualInBlockTime NasArrival_xsd.tmp#NasArrivalType_actualRunwayArrivalTime NasArrival_xsd.tmp#NasArrivalType_center NasArrival_xsd.tmp#NasArrivalType_movementAreaActualExitTime NasArrival_xsd.tmp#NasArrivalType_runwayInformation NasArrival_xsd.tmp#NasArrivalType NasTfdm_xsd.tmp#TfdmArrivalType_taxiOperationsMetrics NasTfdm_xsd.tmp#TfdmArrivalType
Type nas:TfdmArrivalType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • Arrival
Model nas:actualInBlockTime{0,1} , nas:actualRunwayArrivalTime* , nas:center{0,1} , nas:movementAreaActualExitTime{0,1} , nas:runwayInformation{0,1} , nas:taxiOperationsMetrics{0,1}
Children nas:actualInBlockTime, nas:actualRunwayArrivalTime, nas:center, nas:movementAreaActualExitTime, nas:runwayInformation, nas:taxiOperationsMetrics
Instance

<nas:TfdmArrival>
  <nas:actualInBlockTime source="">{0,1}</nas:actualInBlockTime>
  <nas:actualRunwayArrivalTime source="">{0,unbounded}</nas:actualRunwayArrivalTime>
  <nas:center>{0,1}</nas:center>
  <nas:movementAreaActualExitTime source="">{0,1}</nas:movementAreaActualExitTime>
  <nas:runwayInformation classificationType="" source="">{0,1}</nas:runwayInformation>
  <nas:taxiOperationsMetrics InboundMovementAreaHoldTimeDuration="" inboundMovementAreaTaxiTimeDuration="" inboundRampTaxiTimeDuration="">{0,1}</nas:taxiOperationsMetrics>
</nas:TfdmArrival>
Source

<element name="TfdmArrival" type="nas:TfdmArrivalType" substitutionGroup="fx:Arrival"/>

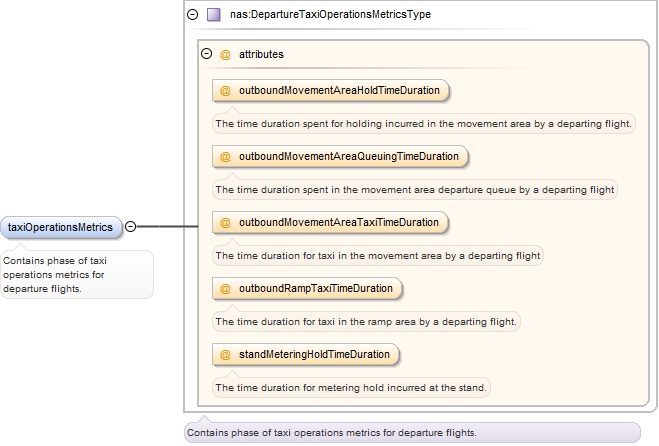

Element nas:TfdmDepartureType / nas:taxiOperationsMetrics
Namespace http://www.faa.aero/nas/4.1
Annotations

Contains phase of taxi operations metrics for departure flights.
Diagram
Diagram NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaHoldTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaQueuingTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaTaxiTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundRampTaxiTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_standMeteringHoldTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType
Type nas:DepartureTaxiOperationsMetricsType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
outboundMovementAreaHoldTimeDuration DurationType optional
The time duration spent for holding incurred in the movement area by a departing
flight.
outboundMovementAreaQueuingTimeDuration DurationType optional
The time duration spent in the movement area departure queue by a departing flight
outboundMovementAreaTaxiTimeDuration DurationType optional
The time duration for taxi in the movement area by a departing flight
outboundRampTaxiTimeDuration DurationType optional
The time duration for taxi in the ramp area by a departing flight.
standMeteringHoldTimeDuration DurationType optional
The time duration for metering hold incurred at the stand.
Source

<element name="taxiOperationsMetrics" type="nas:DepartureTaxiOperationsMetricsType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Contains phase of taxi operations metrics for departure flights.</documentation>
  </annotation>
</element>

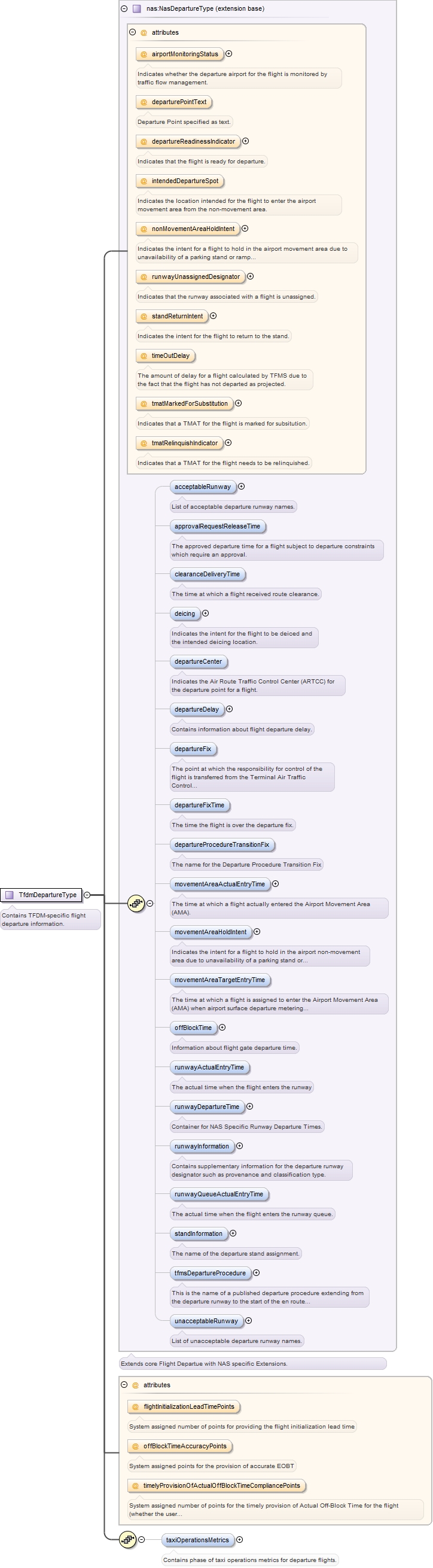

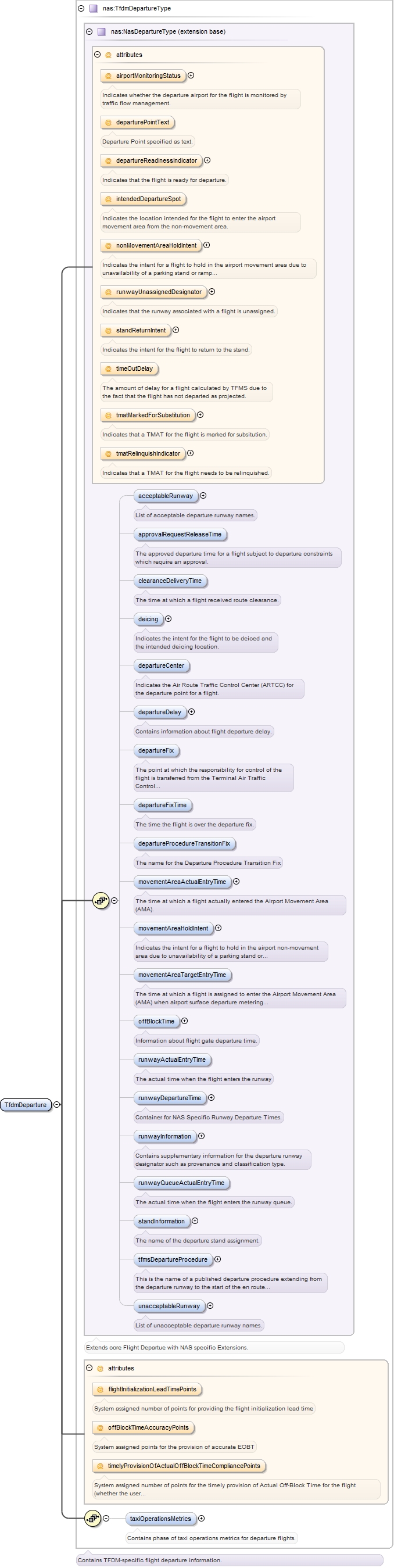

Element nas:TfdmDeparture
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasDeparture_xsd.tmp#NasDepartureType_airportMonitoringStatus NasDeparture_xsd.tmp#NasDepartureType_departurePointText NasDeparture_xsd.tmp#NasDepartureType_departureReadinessIndicator NasDeparture_xsd.tmp#NasDepartureType_intendedDepartureSpot NasDeparture_xsd.tmp#NasDepartureType_nonMovementAreaHoldIntent NasDeparture_xsd.tmp#NasDepartureType_runwayUnassignedDesignator NasDeparture_xsd.tmp#NasDepartureType_standReturnIntent NasDeparture_xsd.tmp#NasDepartureType_timeOutDelay NasDeparture_xsd.tmp#NasDepartureType_tmatMarkedForSubstitution NasDeparture_xsd.tmp#NasDepartureType_tmatRelinquishIndicator NasDeparture_xsd.tmp#NasDepartureType_acceptableRunway NasDeparture_xsd.tmp#NasDepartureType_approvalRequestReleaseTime NasDeparture_xsd.tmp#NasDepartureType_clearanceDeliveryTime NasDeparture_xsd.tmp#NasDepartureType_deicing NasDeparture_xsd.tmp#NasDepartureType_departureCenter NasDeparture_xsd.tmp#NasDepartureType_departureDelay NasDeparture_xsd.tmp#NasDepartureType_departureFix NasDeparture_xsd.tmp#NasDepartureType_departureFixTime NasDeparture_xsd.tmp#NasDepartureType_departureProcedureTransitionFix NasDeparture_xsd.tmp#NasDepartureType_movementAreaActualEntryTime NasDeparture_xsd.tmp#NasDepartureType_movementAreaHoldIntent NasDeparture_xsd.tmp#NasDepartureType_movementAreaTargetEntryTime NasDeparture_xsd.tmp#NasDepartureType_offBlockTime NasDeparture_xsd.tmp#NasDepartureType_runwayActualEntryTime NasDeparture_xsd.tmp#NasDepartureType_runwayDepartureTime NasDeparture_xsd.tmp#NasDepartureType_runwayInformation NasDeparture_xsd.tmp#NasDepartureType_runwayQueueActualEntryTime NasDeparture_xsd.tmp#NasDepartureType_standInformation NasDeparture_xsd.tmp#NasDepartureType_tfmsDepartureProcedure NasDeparture_xsd.tmp#NasDepartureType_unacceptableRunway NasDeparture_xsd.tmp#NasDepartureType NasTfdm_xsd.tmp#TfdmDepartureType_flightInitializationLeadTimePoints NasTfdm_xsd.tmp#TfdmDepartureType_offBlockTimeAccuracyPoints NasTfdm_xsd.tmp#TfdmDepartureType_timelyProvisionOfActualOffBlockTimeCompliancePoints NasTfdm_xsd.tmp#TfdmDepartureType_taxiOperationsMetrics NasTfdm_xsd.tmp#TfdmDepartureType
Type nas:TfdmDepartureType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • Departure
Model nas:acceptableRunway{0,1} , nas:approvalRequestReleaseTime{0,1} , nas:clearanceDeliveryTime{0,1} , nas:deicing{0,1} , nas:departureCenter{0,1} , nas:departureDelay{0,1} , nas:departureFix{0,1} , nas:departureFixTime{0,1} , nas:departureProcedureTransitionFix{0,1} , nas:movementAreaActualEntryTime{0,1} , nas:movementAreaHoldIntent{0,1} , nas:movementAreaTargetEntryTime{0,1} , nas:offBlockTime{0,1} , nas:runwayActualEntryTime{0,1} , nas:runwayDepartureTime{0,1} , nas:runwayInformation{0,1} , nas:runwayQueueActualEntryTime{0,1} , nas:standInformation{0,1} , nas:tfmsDepartureProcedure{0,1} , nas:unacceptableRunway{0,1} , nas:taxiOperationsMetrics{0,1}
Children nas:acceptableRunway, nas:approvalRequestReleaseTime, nas:clearanceDeliveryTime, nas:deicing, nas:departureCenter, nas:departureDelay, nas:departureFix, nas:departureFixTime, nas:departureProcedureTransitionFix, nas:movementAreaActualEntryTime, nas:movementAreaHoldIntent, nas:movementAreaTargetEntryTime, nas:offBlockTime, nas:runwayActualEntryTime, nas:runwayDepartureTime, nas:runwayInformation, nas:runwayQueueActualEntryTime, nas:standInformation, nas:taxiOperationsMetrics, nas:tfmsDepartureProcedure, nas:unacceptableRunway
Instance

<nas:TfdmDeparture flightInitializationLeadTimePoints="" offBlockTimeAccuracyPoints="" timelyProvisionOfActualOffBlockTimeCompliancePoints="">
  <nas:acceptableRunway>{0,1}</nas:acceptableRunway>
  <nas:approvalRequestReleaseTime>{0,1}</nas:approvalRequestReleaseTime>
  <nas:clearanceDeliveryTime>{0,1}</nas:clearanceDeliveryTime>
  <nas:deicing deicingIntent="" deicingLocation="">{0,1}</nas:deicing>
  <nas:departureCenter>{0,1}</nas:departureCenter>
  <nas:departureDelay facilityToCharge="" reason="" remarks="" tmiIdentifier="">{0,1}</nas:departureDelay>
  <nas:departureFix>{0,1}</nas:departureFix>
  <nas:departureFixTime>{0,1}</nas:departureFixTime>
  <nas:departureProcedureTransitionFix>{0,1}</nas:departureProcedureTransitionFix>
  <nas:movementAreaActualEntryTime source="">{0,1}</nas:movementAreaActualEntryTime>
  <nas:movementAreaHoldIntent holdIntent="">{0,1}</nas:movementAreaHoldIntent>
  <nas:movementAreaTargetEntryTime>{0,1}</nas:movementAreaTargetEntryTime>
  <nas:offBlockTime>{0,1}</nas:offBlockTime>
  <nas:runwayActualEntryTime>{0,1}</nas:runwayActualEntryTime>
  <nas:runwayDepartureTime>{0,1}</nas:runwayDepartureTime>
  <nas:runwayInformation classificationType="" source="">{0,1}</nas:runwayInformation>
  <nas:runwayQueueActualEntryTime>{0,1}</nas:runwayQueueActualEntryTime>
  <nas:standInformation source="" standName="">{0,1}</nas:standInformation>
  <nas:tfmsDepartureProcedure>{0,1}</nas:tfmsDepartureProcedure>
  <nas:unacceptableRunway>{0,1}</nas:unacceptableRunway>
  <nas:taxiOperationsMetrics outboundMovementAreaHoldTimeDuration="" outboundMovementAreaQueuingTimeDuration="" outboundMovementAreaTaxiTimeDuration="" outboundRampTaxiTimeDuration="" standMeteringHoldTimeDuration="">{0,1}</nas:taxiOperationsMetrics>
</nas:TfdmDeparture>
Attributes
QName Type Fixed Default Use Annotation
flightInitializationLeadTimePoints CountType optional
System assigned number of points for providing the flight initialization lead time
offBlockTimeAccuracyPoints CountType optional
System assigned points for the provision of accurate EOBT
timelyProvisionOfActualOffBlockTimeCompliancePoints CountType optional
System assigned number of points for the timely provision of Actual Off-Block Time
for the flight (whether the user provided the AOBT for a flight within five minutes
of its pushback
Source

<element name="TfdmDeparture" type="nas:TfdmDepartureType" substitutionGroup="fx:Departure"/>

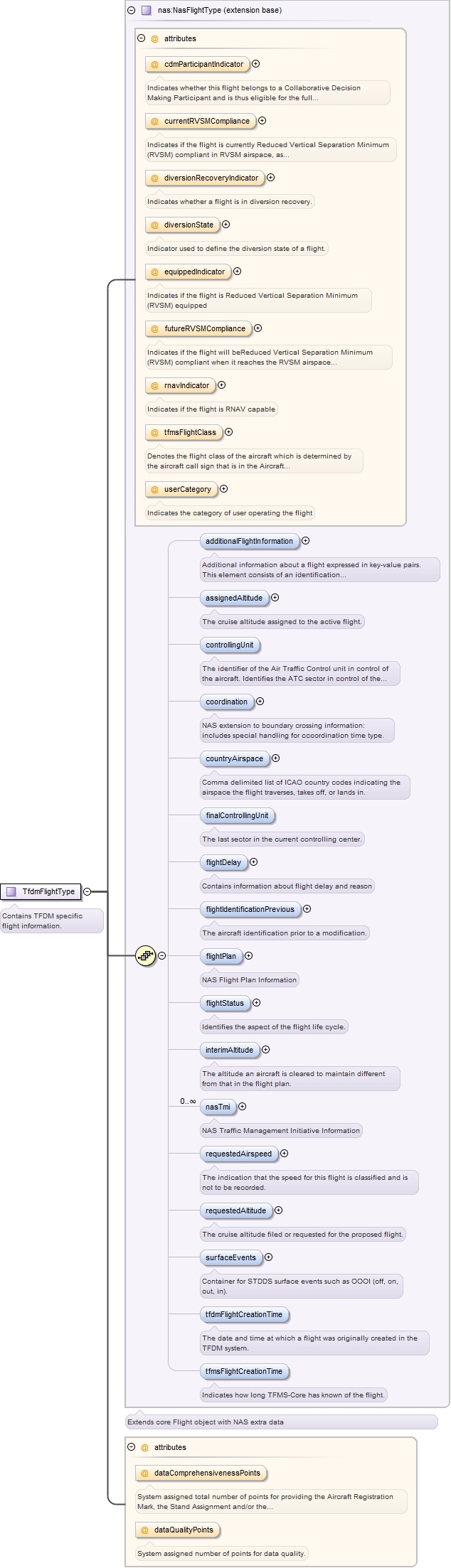

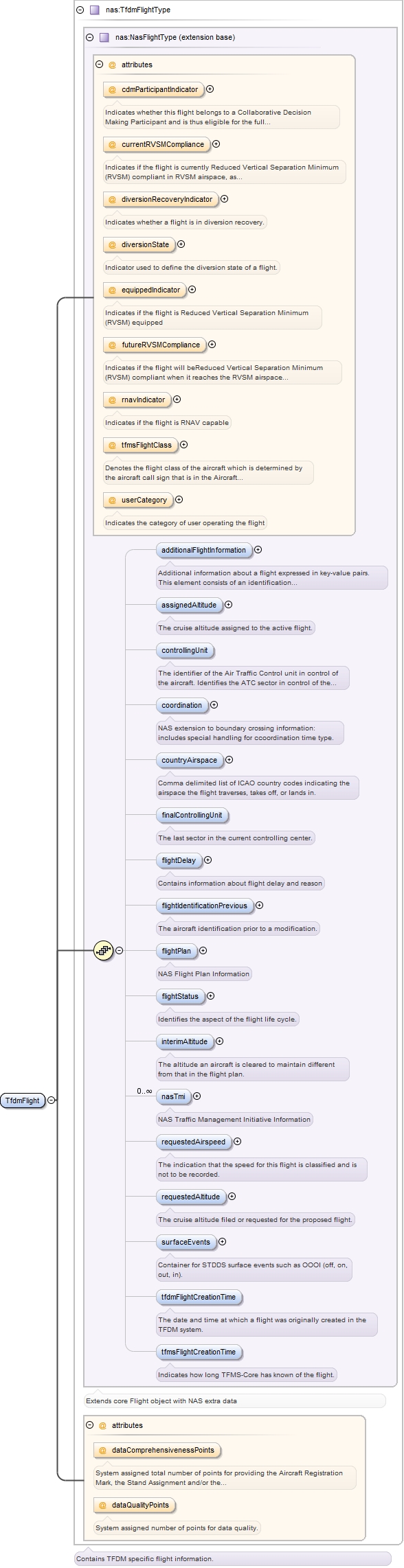

Element nas:TfdmFlight
Namespace http://www.faa.aero/nas/4.1
Diagram
Diagram NasFlightData_xsd.tmp#NasFlightType_cdmParticipantIndicator NasFlightData_xsd.tmp#NasFlightType_currentRVSMCompliance NasFlightData_xsd.tmp#NasFlightType_diversionRecoveryIndicator NasFlightData_xsd.tmp#NasFlightType_diversionState NasFlightData_xsd.tmp#NasFlightType_equippedIndicator NasFlightData_xsd.tmp#NasFlightType_futureRVSMCompliance NasFlightData_xsd.tmp#NasFlightType_rnavIndicator NasFlightData_xsd.tmp#NasFlightType_tfmsFlightClass NasFlightData_xsd.tmp#NasFlightType_userCategory NasFlightData_xsd.tmp#NasFlightType_additionalFlightInformation NasFlightData_xsd.tmp#NasFlightType_assignedAltitude NasFlightData_xsd.tmp#NasFlightType_controllingUnit NasFlightData_xsd.tmp#NasFlightType_coordination NasFlightData_xsd.tmp#NasFlightType_countryAirspace NasFlightData_xsd.tmp#NasFlightType_finalControllingUnit NasFlightData_xsd.tmp#NasFlightType_flightDelay NasFlightData_xsd.tmp#NasFlightType_flightIdentificationPrevious NasFlightData_xsd.tmp#NasFlightType_flightPlan NasFlightData_xsd.tmp#NasFlightType_flightStatus NasFlightData_xsd.tmp#NasFlightType_interimAltitude NasFlightData_xsd.tmp#NasFlightType_nasTmi NasFlightData_xsd.tmp#NasFlightType_requestedAirspeed NasFlightData_xsd.tmp#NasFlightType_requestedAltitude NasFlightData_xsd.tmp#NasFlightType_surfaceEvents NasFlightData_xsd.tmp#NasFlightType_tfdmFlightCreationTime NasFlightData_xsd.tmp#NasFlightType_tfmsFlightCreationTime NasFlightData_xsd.tmp#NasFlightType NasTfdm_xsd.tmp#TfdmFlightType_dataComprehensivenessPoints NasTfdm_xsd.tmp#TfdmFlightType_dataQualityPoints NasTfdm_xsd.tmp#TfdmFlightType
Type nas:TfdmFlightType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • Flight
Model nas:additionalFlightInformation{0,1} , nas:assignedAltitude{0,1} , nas:controllingUnit{0,1} , nas:coordination{0,1} , nas:countryAirspace{0,1} , nas:finalControllingUnit{0,1} , nas:flightDelay{0,1} , nas:flightIdentificationPrevious{0,1} , nas:flightPlan{0,1} , nas:flightStatus{0,1} , nas:interimAltitude{0,1} , nas:nasTmi* , nas:requestedAirspeed{0,1} , nas:requestedAltitude{0,1} , nas:surfaceEvents{0,1} , nas:tfdmFlightCreationTime{0,1} , nas:tfmsFlightCreationTime{0,1}
Children nas:additionalFlightInformation, nas:assignedAltitude, nas:controllingUnit, nas:coordination, nas:countryAirspace, nas:finalControllingUnit, nas:flightDelay, nas:flightIdentificationPrevious, nas:flightPlan, nas:flightStatus, nas:interimAltitude, nas:nasTmi, nas:requestedAirspeed, nas:requestedAltitude, nas:surfaceEvents, nas:tfdmFlightCreationTime, nas:tfmsFlightCreationTime
Instance

<nas:TfdmFlight dataComprehensivenessPoints="" dataQualityPoints="">
  <nas:additionalFlightInformation>{0,1}</nas:additionalFlightInformation>
  <nas:assignedAltitude>{0,1}</nas:assignedAltitude>
  <nas:controllingUnit>{0,1}</nas:controllingUnit>
  <nas:coordination coordinationTimeHandling="" delayTimeToAbsorb="">{0,1}</nas:coordination>
  <nas:countryAirspace>{0,1}</nas:countryAirspace>
  <nas:finalControllingUnit>{0,1}</nas:finalControllingUnit>
  <nas:flightDelay delayStatus="">{0,1}</nas:flightDelay>
  <nas:flightIdentificationPrevious>{0,1}</nas:flightIdentificationPrevious>
  <nas:flightPlan flightPlanRemarks="" identifier="" starsFlightPlanDeletedIndicator="" starsFlightPlanStatus="" starsFlightPlanSuspendedIndicator="">{0,1}</nas:flightPlan>
  <nas:flightStatus airborneHold="" sfdpsFlightStatus="" starsFlightStatus="" tfmsFlightStatus="">{0,1}</nas:flightStatus>
  <nas:interimAltitude>{0,1}</nas:interimAltitude>
  <nas:nasTmi controlndicator="" controlType="" substitutionRightsIndicator="" tfmsFlightPriority="">{0,unbounded}</nas:nasTmi>
  <nas:requestedAirspeed>{0,1}</nas:requestedAirspeed>
  <nas:requestedAltitude>{0,1}</nas:requestedAltitude>
  <nas:surfaceEvents>{0,1}</nas:surfaceEvents>
  <nas:tfdmFlightCreationTime>{0,1}</nas:tfdmFlightCreationTime>
  <nas:tfmsFlightCreationTime>{0,1}</nas:tfmsFlightCreationTime>
</nas:TfdmFlight>
Attributes
QName Type Fixed Default Use Annotation
dataComprehensivenessPoints CountType optional
System assigned total number of points for providing the Aircraft Registration Mark,
the Stand Assignment and/or the Cancellation Intent for the flight.
dataQualityPoints CountType optional
System assigned number of points for data quality.
Source

<element name="TfdmFlight" type="nas:TfdmFlightType" substitutionGroup="fx:Flight"/>
Complex Type nas:ArrivalTaxiOperationsMetricsType
Namespace http://www.faa.aero/nas/4.1
Annotations

Provides phase of taxi operations metrics for arrival flights.
Diagram
Diagram NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_InboundMovementAreaHoldTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_inboundMovementAreaTaxiTimeDuration NasTfdm_xsd.tmp#ArrivalTaxiOperationsMetricsType_inboundRampTaxiTimeDuration
Used by
Attributes
QName Type Fixed Default Use Annotation
InboundMovementAreaHoldTimeDuration DurationType optional
The time duration spent holding in the movement area by an arriving flight.
inboundMovementAreaTaxiTimeDuration DurationType optional
The time duration for taxi in the movement area by an arriving flight
inboundRampTaxiTimeDuration DurationType optional
The time duration for  taxi in the ramp area by an arriving flight.
Source

<complexType name="ArrivalTaxiOperationsMetricsType">
  <annotation>
    <documentation>Provides phase of taxi operations metrics for arrival flights.</documentation>
  </annotation>
  <attribute name="InboundMovementAreaHoldTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration spent holding in the movement area by an arriving flight.</documentation>
    </annotation>
  </attribute>
  <attribute name="inboundMovementAreaTaxiTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration for taxi in the movement area by an arriving flight</documentation>
    </annotation>
  </attribute>
  <attribute name="inboundRampTaxiTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration for taxi in the ramp area by an arriving flight.</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type nas:DepartureTaxiOperationsMetricsType
Namespace http://www.faa.aero/nas/4.1
Annotations

Contains phase of taxi operations metrics for departure flights.
Diagram
Diagram NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaHoldTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaQueuingTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundMovementAreaTaxiTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_outboundRampTaxiTimeDuration NasTfdm_xsd.tmp#DepartureTaxiOperationsMetricsType_standMeteringHoldTimeDuration
Used by
Attributes
QName Type Fixed Default Use Annotation
outboundMovementAreaHoldTimeDuration DurationType optional
The time duration spent for holding incurred in the movement area by a departing
flight.
outboundMovementAreaQueuingTimeDuration DurationType optional
The time duration spent in the movement area departure queue by a departing flight
outboundMovementAreaTaxiTimeDuration DurationType optional
The time duration for taxi in the movement area by a departing flight
outboundRampTaxiTimeDuration DurationType optional
The time duration for taxi in the ramp area by a departing flight.
standMeteringHoldTimeDuration DurationType optional
The time duration for metering hold incurred at the stand.
Source

<complexType name="DepartureTaxiOperationsMetricsType">
  <annotation>
    <documentation>Contains phase of taxi operations metrics for departure flights.</documentation>
  </annotation>
  <attribute name="outboundMovementAreaHoldTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration spent for holding incurred in the movement area by a departing flight.</documentation>
    </annotation>
  </attribute>
  <attribute name="outboundMovementAreaQueuingTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration spent in the movement area departure queue by a departing flight</documentation>
    </annotation>
  </attribute>
  <attribute name="outboundMovementAreaTaxiTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration for taxi in the movement area by a departing flight</documentation>
    </annotation>
  </attribute>
  <attribute name="outboundRampTaxiTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration for taxi in the ramp area by a departing flight.</documentation>
    </annotation>
  </attribute>
  <attribute name="standMeteringHoldTimeDuration" type="fb:DurationType" use="optional">
    <annotation>
      <documentation>The time duration for metering hold incurred at the stand.</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type nas:TfdmArrivalType
Namespace http://www.faa.aero/nas/4.1
Annotations

Contains TFDM-specific flight arrival information.
Diagram
Diagram NasArrival_xsd.tmp#NasArrivalType_arrivalPointText NasArrival_xsd.tmp#NasArrivalType_actualInBlockTime NasArrival_xsd.tmp#NasArrivalType_actualRunwayArrivalTime NasArrival_xsd.tmp#NasArrivalType_center NasArrival_xsd.tmp#NasArrivalType_movementAreaActualExitTime NasArrival_xsd.tmp#NasArrivalType_runwayInformation NasArrival_xsd.tmp#NasArrivalType NasTfdm_xsd.tmp#TfdmArrivalType_taxiOperationsMetrics
Type extension of nas:NasArrivalType
Type hierarchy
Used by
Element nas:TfdmArrival
Model nas:actualInBlockTime{0,1} , nas:actualRunwayArrivalTime* , nas:center{0,1} , nas:movementAreaActualExitTime{0,1} , nas:runwayInformation{0,1} , nas:taxiOperationsMetrics{0,1}
Children nas:actualInBlockTime, nas:actualRunwayArrivalTime, nas:center, nas:movementAreaActualExitTime, nas:runwayInformation, nas:taxiOperationsMetrics
Source

<complexType name="TfdmArrivalType">
  <annotation>
    <documentation>Contains TFDM-specific flight arrival information.</documentation>
  </annotation>
  <complexContent>
    <extension base="nas:NasArrivalType">
      <sequence>
        <element name="taxiOperationsMetrics" type="nas:ArrivalTaxiOperationsMetricsType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Provides phase of taxi operations metrics for arrival flights.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type nas:TfdmDepartureType
Namespace http://www.faa.aero/nas/4.1
Annotations

Contains TFDM-specific flight departure information.
Diagram
Diagram NasDeparture_xsd.tmp#NasDepartureType_airportMonitoringStatus NasDeparture_xsd.tmp#NasDepartureType_departurePointText NasDeparture_xsd.tmp#NasDepartureType_departureReadinessIndicator NasDeparture_xsd.tmp#NasDepartureType_intendedDepartureSpot NasDeparture_xsd.tmp#NasDepartureType_nonMovementAreaHoldIntent NasDeparture_xsd.tmp#NasDepartureType_runwayUnassignedDesignator NasDeparture_xsd.tmp#NasDepartureType_standReturnIntent NasDeparture_xsd.tmp#NasDepartureType_timeOutDelay NasDeparture_xsd.tmp#NasDepartureType_tmatMarkedForSubstitution NasDeparture_xsd.tmp#NasDepartureType_tmatRelinquishIndicator NasDeparture_xsd.tmp#NasDepartureType_acceptableRunway NasDeparture_xsd.tmp#NasDepartureType_approvalRequestReleaseTime NasDeparture_xsd.tmp#NasDepartureType_clearanceDeliveryTime NasDeparture_xsd.tmp#NasDepartureType_deicing NasDeparture_xsd.tmp#NasDepartureType_departureCenter NasDeparture_xsd.tmp#NasDepartureType_departureDelay NasDeparture_xsd.tmp#NasDepartureType_departureFix NasDeparture_xsd.tmp#NasDepartureType_departureFixTime NasDeparture_xsd.tmp#NasDepartureType_departureProcedureTransitionFix NasDeparture_xsd.tmp#NasDepartureType_movementAreaActualEntryTime NasDeparture_xsd.tmp#NasDepartureType_movementAreaHoldIntent NasDeparture_xsd.tmp#NasDepartureType_movementAreaTargetEntryTime NasDeparture_xsd.tmp#NasDepartureType_offBlockTime NasDeparture_xsd.tmp#NasDepartureType_runwayActualEntryTime NasDeparture_xsd.tmp#NasDepartureType_runwayDepartureTime NasDeparture_xsd.tmp#NasDepartureType_runwayInformation NasDeparture_xsd.tmp#NasDepartureType_runwayQueueActualEntryTime NasDeparture_xsd.tmp#NasDepartureType_standInformation NasDeparture_xsd.tmp#NasDepartureType_tfmsDepartureProcedure NasDeparture_xsd.tmp#NasDepartureType_unacceptableRunway NasDeparture_xsd.tmp#NasDepartureType NasTfdm_xsd.tmp#TfdmDepartureType_flightInitializationLeadTimePoints NasTfdm_xsd.tmp#TfdmDepartureType_offBlockTimeAccuracyPoints NasTfdm_xsd.tmp#TfdmDepartureType_timelyProvisionOfActualOffBlockTimeCompliancePoints NasTfdm_xsd.tmp#TfdmDepartureType_taxiOperationsMetrics
Type extension of nas:NasDepartureType
Type hierarchy
Used by
Model nas:acceptableRunway{0,1} , nas:approvalRequestReleaseTime{0,1} , nas:clearanceDeliveryTime{0,1} , nas:deicing{0,1} , nas:departureCenter{0,1} , nas:departureDelay{0,1} , nas:departureFix{0,1} , nas:departureFixTime{0,1} , nas:departureProcedureTransitionFix{0,1} , nas:movementAreaActualEntryTime{0,1} , nas:movementAreaHoldIntent{0,1} , nas:movementAreaTargetEntryTime{0,1} , nas:offBlockTime{0,1} , nas:runwayActualEntryTime{0,1} , nas:runwayDepartureTime{0,1} , nas:runwayInformation{0,1} , nas:runwayQueueActualEntryTime{0,1} , nas:standInformation{0,1} , nas:tfmsDepartureProcedure{0,1} , nas:unacceptableRunway{0,1} , nas:taxiOperationsMetrics{0,1}
Children nas:acceptableRunway, nas:approvalRequestReleaseTime, nas:clearanceDeliveryTime, nas:deicing, nas:departureCenter, nas:departureDelay, nas:departureFix, nas:departureFixTime, nas:departureProcedureTransitionFix, nas:movementAreaActualEntryTime, nas:movementAreaHoldIntent, nas:movementAreaTargetEntryTime, nas:offBlockTime, nas:runwayActualEntryTime, nas:runwayDepartureTime, nas:runwayInformation, nas:runwayQueueActualEntryTime, nas:standInformation, nas:taxiOperationsMetrics, nas:tfmsDepartureProcedure, nas:unacceptableRunway
Attributes
QName Type Fixed Default Use Annotation
flightInitializationLeadTimePoints CountType optional
System assigned number of points for providing the flight initialization lead time
offBlockTimeAccuracyPoints CountType optional
System assigned points for the provision of accurate EOBT
timelyProvisionOfActualOffBlockTimeCompliancePoints CountType optional
System assigned number of points for the timely provision of Actual Off-Block Time
for the flight (whether the user provided the AOBT for a flight within five minutes
of its pushback
Source

<complexType name="TfdmDepartureType">
  <annotation>
    <documentation>Contains TFDM-specific flight departure information.</documentation>
  </annotation>
  <complexContent>
    <extension base="nas:NasDepartureType">
      <sequence>
        <element name="taxiOperationsMetrics" type="nas:DepartureTaxiOperationsMetricsType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Contains phase of taxi operations metrics for departure flights.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="flightInitializationLeadTimePoints" type="fb:CountType" use="optional">
        <annotation>
          <documentation>System assigned number of points for providing the flight initialization lead time</documentation>
        </annotation>
      </attribute>
      <attribute name="offBlockTimeAccuracyPoints" type="fb:CountType" use="optional">
        <annotation>
          <documentation>System assigned points for the provision of accurate EOBT</documentation>
        </annotation>
      </attribute>
      <attribute name="timelyProvisionOfActualOffBlockTimeCompliancePoints" type="fb:CountType" use="optional">
        <annotation>
          <documentation>System assigned number of points for the timely provision of Actual Off-Block Time for the flight (whether the user provided the AOBT for a flight within five minutes of its pushback</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type nas:TfdmFlightType
Namespace http://www.faa.aero/nas/4.1
Annotations

Contains TFDM specific flight information.
Diagram
Diagram NasFlightData_xsd.tmp#NasFlightType_cdmParticipantIndicator NasFlightData_xsd.tmp#NasFlightType_currentRVSMCompliance NasFlightData_xsd.tmp#NasFlightType_diversionRecoveryIndicator NasFlightData_xsd.tmp#NasFlightType_diversionState NasFlightData_xsd.tmp#NasFlightType_equippedIndicator NasFlightData_xsd.tmp#NasFlightType_futureRVSMCompliance NasFlightData_xsd.tmp#NasFlightType_rnavIndicator NasFlightData_xsd.tmp#NasFlightType_tfmsFlightClass NasFlightData_xsd.tmp#NasFlightType_userCategory NasFlightData_xsd.tmp#NasFlightType_additionalFlightInformation NasFlightData_xsd.tmp#NasFlightType_assignedAltitude NasFlightData_xsd.tmp#NasFlightType_controllingUnit NasFlightData_xsd.tmp#NasFlightType_coordination NasFlightData_xsd.tmp#NasFlightType_countryAirspace NasFlightData_xsd.tmp#NasFlightType_finalControllingUnit NasFlightData_xsd.tmp#NasFlightType_flightDelay NasFlightData_xsd.tmp#NasFlightType_flightIdentificationPrevious NasFlightData_xsd.tmp#NasFlightType_flightPlan NasFlightData_xsd.tmp#NasFlightType_flightStatus NasFlightData_xsd.tmp#NasFlightType_interimAltitude NasFlightData_xsd.tmp#NasFlightType_nasTmi NasFlightData_xsd.tmp#NasFlightType_requestedAirspeed NasFlightData_xsd.tmp#NasFlightType_requestedAltitude NasFlightData_xsd.tmp#NasFlightType_surfaceEvents NasFlightData_xsd.tmp#NasFlightType_tfdmFlightCreationTime NasFlightData_xsd.tmp#NasFlightType_tfmsFlightCreationTime NasFlightData_xsd.tmp#NasFlightType NasTfdm_xsd.tmp#TfdmFlightType_dataComprehensivenessPoints NasTfdm_xsd.tmp#TfdmFlightType_dataQualityPoints
Type extension of nas:NasFlightType
Type hierarchy
Used by
Element nas:TfdmFlight
Model nas:additionalFlightInformation{0,1} , nas:assignedAltitude{0,1} , nas:controllingUnit{0,1} , nas:coordination{0,1} , nas:countryAirspace{0,1} , nas:finalControllingUnit{0,1} , nas:flightDelay{0,1} , nas:flightIdentificationPrevious{0,1} , nas:flightPlan{0,1} , nas:flightStatus{0,1} , nas:interimAltitude{0,1} , nas:nasTmi* , nas:requestedAirspeed{0,1} , nas:requestedAltitude{0,1} , nas:surfaceEvents{0,1} , nas:tfdmFlightCreationTime{0,1} , nas:tfmsFlightCreationTime{0,1}
Children nas:additionalFlightInformation, nas:assignedAltitude, nas:controllingUnit, nas:coordination, nas:countryAirspace, nas:finalControllingUnit, nas:flightDelay, nas:flightIdentificationPrevious, nas:flightPlan, nas:flightStatus, nas:interimAltitude, nas:nasTmi, nas:requestedAirspeed, nas:requestedAltitude, nas:surfaceEvents, nas:tfdmFlightCreationTime, nas:tfmsFlightCreationTime
Attributes
QName Type Fixed Default Use Annotation
dataComprehensivenessPoints CountType optional
System assigned total number of points for providing the Aircraft Registration Mark,
the Stand Assignment and/or the Cancellation Intent for the flight.
dataQualityPoints CountType optional
System assigned number of points for data quality.
Source

<complexType name="TfdmFlightType">
  <annotation>
    <documentation>Contains TFDM specific flight information.</documentation>
  </annotation>
  <complexContent>
    <extension base="nas:NasFlightType">
      <attribute name="dataComprehensivenessPoints" type="fb:CountType" use="optional">
        <annotation>
          <documentation>System assigned total number of points for providing the Aircraft Registration Mark, the Stand Assignment and/or the Cancellation Intent for the flight.</documentation>
        </annotation>
      </attribute>
      <attribute name="dataQualityPoints" type="fb:CountType" use="optional">
        <annotation>
          <documentation>System assigned number of points for data quality.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute nas:ArrivalTaxiOperationsMetricsType / @InboundMovementAreaHoldTimeDuration
Namespace No namespace
Annotations

The time duration spent holding in the movement area by an arriving flight.
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="InboundMovementAreaHoldTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration spent holding in the movement area by an arriving flight.</documentation>
  </annotation>
</attribute>
Attribute nas:ArrivalTaxiOperationsMetricsType / @inboundMovementAreaTaxiTimeDuration
Namespace No namespace
Annotations

The time duration for taxi in the movement area by an arriving flight
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="inboundMovementAreaTaxiTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration for taxi in the movement area by an arriving flight</documentation>
  </annotation>
</attribute>
Attribute nas:ArrivalTaxiOperationsMetricsType / @inboundRampTaxiTimeDuration
Namespace No namespace
Annotations

The time duration for  taxi in the ramp area by an arriving flight.
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="inboundRampTaxiTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration for taxi in the ramp area by an arriving flight.</documentation>
  </annotation>
</attribute>
Attribute nas:DepartureTaxiOperationsMetricsType / @outboundMovementAreaHoldTimeDuration
Namespace No namespace
Annotations

The time duration spent for holding incurred in the movement area by a departing
flight.
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="outboundMovementAreaHoldTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration spent for holding incurred in the movement area by a departing flight.</documentation>
  </annotation>
</attribute>
Attribute nas:DepartureTaxiOperationsMetricsType / @outboundMovementAreaQueuingTimeDuration
Namespace No namespace
Annotations

The time duration spent in the movement area departure queue by a departing flight
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="outboundMovementAreaQueuingTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration spent in the movement area departure queue by a departing flight</documentation>
  </annotation>
</attribute>
Attribute nas:DepartureTaxiOperationsMetricsType / @outboundMovementAreaTaxiTimeDuration
Namespace No namespace
Annotations

The time duration for taxi in the movement area by a departing flight
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="outboundMovementAreaTaxiTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration for taxi in the movement area by a departing flight</documentation>
  </annotation>
</attribute>
Attribute nas:DepartureTaxiOperationsMetricsType / @outboundRampTaxiTimeDuration
Namespace No namespace
Annotations

The time duration for taxi in the ramp area by a departing flight.
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="outboundRampTaxiTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration for taxi in the ramp area by a departing flight.</documentation>
  </annotation>
</attribute>
Attribute nas:DepartureTaxiOperationsMetricsType / @standMeteringHoldTimeDuration
Namespace No namespace
Annotations

The time duration for metering hold incurred at the stand.
Type DurationType
Properties
use: optional
Used by
Source

<attribute name="standMeteringHoldTimeDuration" type="fb:DurationType" use="optional">
  <annotation>
    <documentation>The time duration for metering hold incurred at the stand.</documentation>
  </annotation>
</attribute>
Attribute nas:TfdmDepartureType / @flightInitializationLeadTimePoints
Namespace No namespace
Annotations

System assigned number of points for providing the flight initialization lead time
Type CountType
Properties
use: optional
Used by
Complex Type nas:TfdmDepartureType
Source

<attribute name="flightInitializationLeadTimePoints" type="fb:CountType" use="optional">
  <annotation>
    <documentation>System assigned number of points for providing the flight initialization lead time</documentation>
  </annotation>
</attribute>
Attribute nas:TfdmDepartureType / @offBlockTimeAccuracyPoints
Namespace No namespace
Annotations

System assigned points for the provision of accurate EOBT
Type CountType
Properties
use: optional
Used by
Complex Type nas:TfdmDepartureType
Source

<attribute name="offBlockTimeAccuracyPoints" type="fb:CountType" use="optional">
  <annotation>
    <documentation>System assigned points for the provision of accurate EOBT</documentation>
  </annotation>
</attribute>
Attribute nas:TfdmDepartureType / @timelyProvisionOfActualOffBlockTimeCompliancePoints
Namespace No namespace
Annotations

System assigned number of points for the timely provision of Actual Off-Block Time
for the flight (whether the user provided the AOBT for a flight within five minutes
of its pushback
Type CountType
Properties
use: optional
Used by
Complex Type nas:TfdmDepartureType
Source

<attribute name="timelyProvisionOfActualOffBlockTimeCompliancePoints" type="fb:CountType" use="optional">
  <annotation>
    <documentation>System assigned number of points for the timely provision of Actual Off-Block Time for the flight (whether the user provided the AOBT for a flight within five minutes of its pushback</documentation>
  </annotation>
</attribute>
Attribute nas:TfdmFlightType / @dataComprehensivenessPoints
Namespace No namespace
Annotations

System assigned total number of points for providing the Aircraft Registration Mark,
the Stand Assignment and/or the Cancellation Intent for the flight.
Type CountType
Properties
use: optional
Used by
Complex Type nas:TfdmFlightType
Source

<attribute name="dataComprehensivenessPoints" type="fb:CountType" use="optional">
  <annotation>
    <documentation>System assigned total number of points for providing the Aircraft Registration Mark, the Stand Assignment and/or the Cancellation Intent for the flight.</documentation>
  </annotation>
</attribute>
Attribute nas:TfdmFlightType / @dataQualityPoints
Namespace No namespace
Annotations

System assigned number of points for data quality.
Type CountType
Properties
use: optional
Used by
Complex Type nas:TfdmFlightType
Source

<attribute name="dataQualityPoints" type="fb:CountType" use="optional">
  <annotation>
    <documentation>System assigned number of points for data quality.</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
