Included schema NasAirspace.xsd
Namespace http://www.faa.aero/nas/4.1
Annotations

Copyright (c) 2016 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/

The NasAerodrome package contains the US specific extensions to the FIXM core Aerodrome
package.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0
Complex Type nas:TfmsInstrumentRouteDesignatorType
Namespace http://www.faa.aero/nas/4.1
Annotations

This is a TFMS Specific route designator that can be defined as one of several specific
TFMS route types.

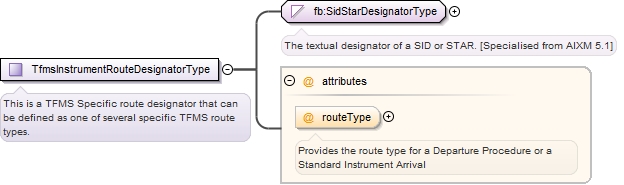

Diagram
Diagram Airspace_xsd.tmp#SidStarDesignatorType NasAirspace_xsd.tmp#TfmsInstrumentRouteDesignatorType_routeType
Type extension of fb:SidStarDesignatorType
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
routeType nas:TfmsRouteTypeType optional
Provides the route type for a Departure Procedure or a Standard Instrument Arrival
Source

<complexType name="TfmsInstrumentRouteDesignatorType">
  <annotation>
    <documentation>This is a TFMS Specific route designator that can be defined as one of several specific TFMS route types.</documentation>
  </annotation>
  <simpleContent>
    <extension base="fb:SidStarDesignatorType">
      <attribute name="routeType" type="nas:TfmsRouteTypeType" use="optional">
        <annotation>
          <documentation>Provides the route type for a Departure Procedure or a Standard Instrument Arrival</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Simple Type nas:TfmsRouteTypeType
Namespace http://www.faa.aero/nas/4.1
Annotations

Provides the route type for a Departure Procedure or a Standard Instrument Arrival
Diagram
Diagram
Type restriction of string
Facets
enumeration AIRWAY
enumeration CODED_ROUTE
enumeration DIRECT
enumeration SID
enumeration STAR
enumeration AAR
enumeration ADR
enumeration ADAR
enumeration UNKNOWN
enumeration OTHER
Used by
Source

<simpleType name="TfmsRouteTypeType">
  <annotation>
    <documentation>Provides the route type for a Departure Procedure or a Standard Instrument Arrival</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="AIRWAY"/>
    <enumeration value="CODED_ROUTE"/>
    <enumeration value="DIRECT"/>
    <enumeration value="SID"/>
    <enumeration value="STAR"/>
    <enumeration value="AAR"/>
    <enumeration value="ADR"/>
    <enumeration value="ADAR"/>
    <enumeration value="UNKNOWN"/>
    <enumeration value="OTHER"/>
  </restriction>
</simpleType>
Attribute nas:TfmsInstrumentRouteDesignatorType / @routeType
Namespace No namespace
Annotations

Provides the route type for a Departure Procedure or a Standard Instrument Arrival
Type nas:TfmsRouteTypeType
Properties
use: optional
Facets
enumeration AIRWAY
enumeration CODED_ROUTE
enumeration DIRECT
enumeration SID
enumeration STAR
enumeration AAR
enumeration ADR
enumeration ADAR
enumeration UNKNOWN
enumeration OTHER
Used by
Source

<attribute name="routeType" type="nas:TfmsRouteTypeType" use="optional">
  <annotation>
    <documentation>Provides the route type for a Departure Procedure or a Standard Instrument Arrival</documentation>
  </annotation>
</attribute>
