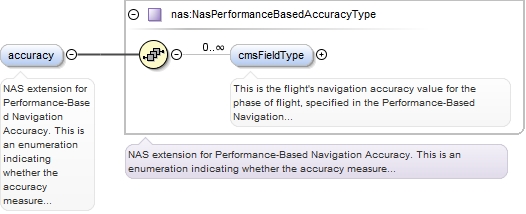

<nas:accuracy>
  <nas:cmsFieldType phase="" type="" uom="">{0,unbounded}</nas:cmsFieldType>
</nas:accuracy>

<element name="accuracy" type="nas:NasPerformanceBasedAccuracyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>NAS extension for Performance-Based Navigation Accuracy. This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP). This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
  </annotation>
</element>

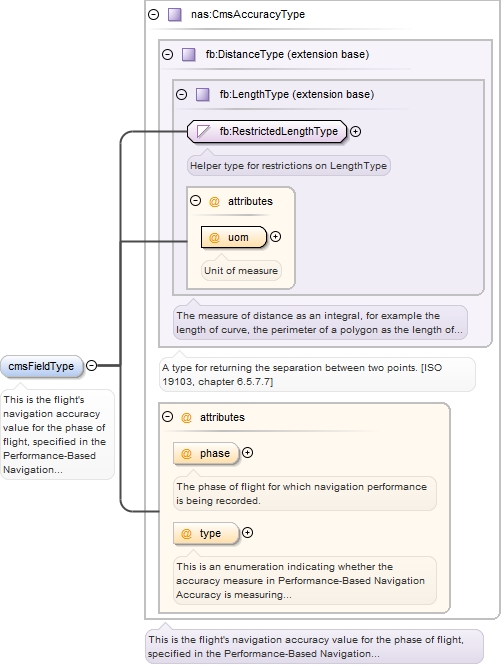

<element name="cmsFieldType" type="nas:CmsAccuracyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
  </annotation>
</element>

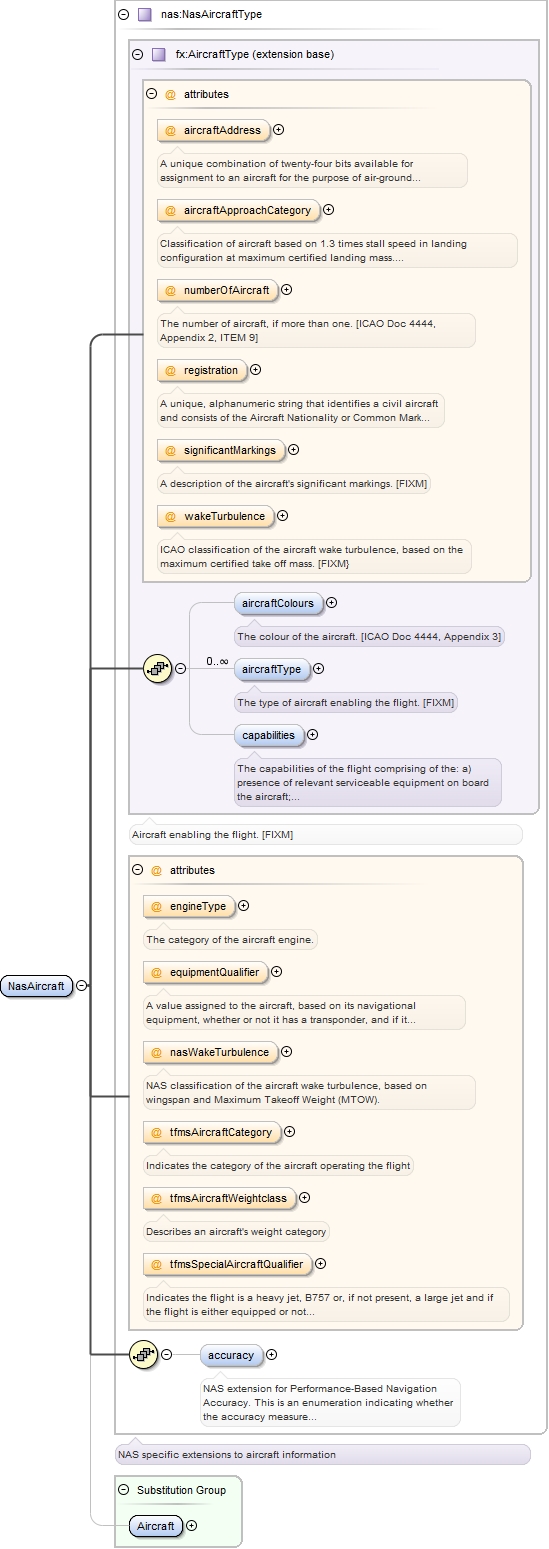

<nas:NasAircraft aircraftAddress="" aircraftApproachCategory="" engineType="" equipmentQualifier="" nasWakeTurbulence="" numberOfAircraft="" registration="" significantMarkings="" tfmsAircraftCategory="" tfmsAircraftWeightclass="" tfmsSpecialAircraftQualifier="" wakeTurbulence="">
  <fx:aircraftColours>{0,1}</fx:aircraftColours>
  <fx:aircraftType numberOfAircraft="">{0,unbounded}</fx:aircraftType>
  <fx:capabilities standardCapabilities="">{0,1}</fx:capabilities>
  <nas:accuracy>{0,1}</nas:accuracy>
</nas:NasAircraft>

<element name="NasAircraft" type="nas:NasAircraftType" substitutionGroup="fx:Aircraft"/>

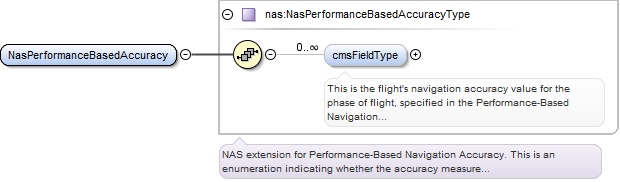

<nas:NasPerformanceBasedAccuracy>
  <nas:cmsFieldType phase="" type="" uom="">{0,unbounded}</nas:cmsFieldType>
</nas:NasPerformanceBasedAccuracy>

<element name="NasPerformanceBasedAccuracy" type="nas:NasPerformanceBasedAccuracyType"/>

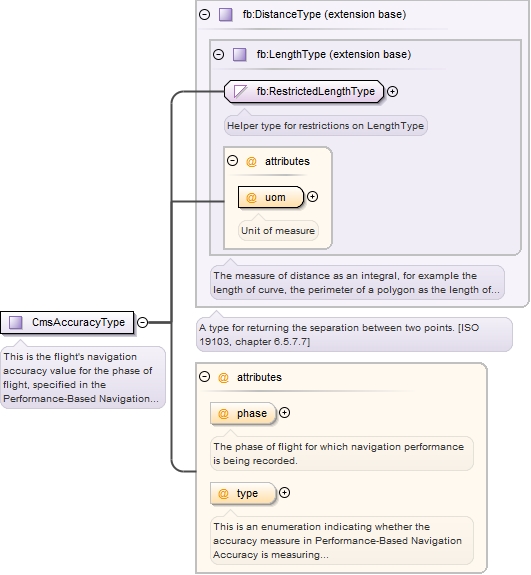

<complexType name="CmsAccuracyType">
  <annotation>
    <documentation>This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
  </annotation>
  <simpleContent>
    <extension base="fb:DistanceType">
      <attribute name="phase" type="nas:NasPerformanceBasedNavigationPhaseType" use="optional">
        <annotation>
          <documentation>The phase of flight for which navigation performance is being recorded.</documentation>
        </annotation>
      </attribute>
      <attribute name="type" type="nas:CmsAccuracyTypeType" use="optional">
        <annotation>
          <documentation>This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP).</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>

<simpleType name="NasPerformanceBasedNavigationPhaseType">
  <annotation>
    <documentation>The phase of flight for which navigation performance is being recorded.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="DEPARTURE"/>
    <enumeration value="ARRIVAL"/>
    <enumeration value="ENROUTE"/>
    <enumeration value="OCEANIC"/>
    <enumeration value="SPARE_1"/>
    <enumeration value="SPARE_2"/>
  </restriction>
</simpleType>

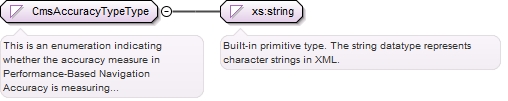

<simpleType name="CmsAccuracyTypeType">
  <annotation>
    <documentation>This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP).</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="RNV"/>
    <enumeration value="RNP"/>
  </restriction>
</simpleType>

<simpleType name="EngineTypeType">
  <annotation>
    <documentation>The category of the aircraft engine.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="PISTON"/>
    <enumeration value="JET"/>
    <enumeration value="TURBO"/>
  </restriction>
</simpleType>

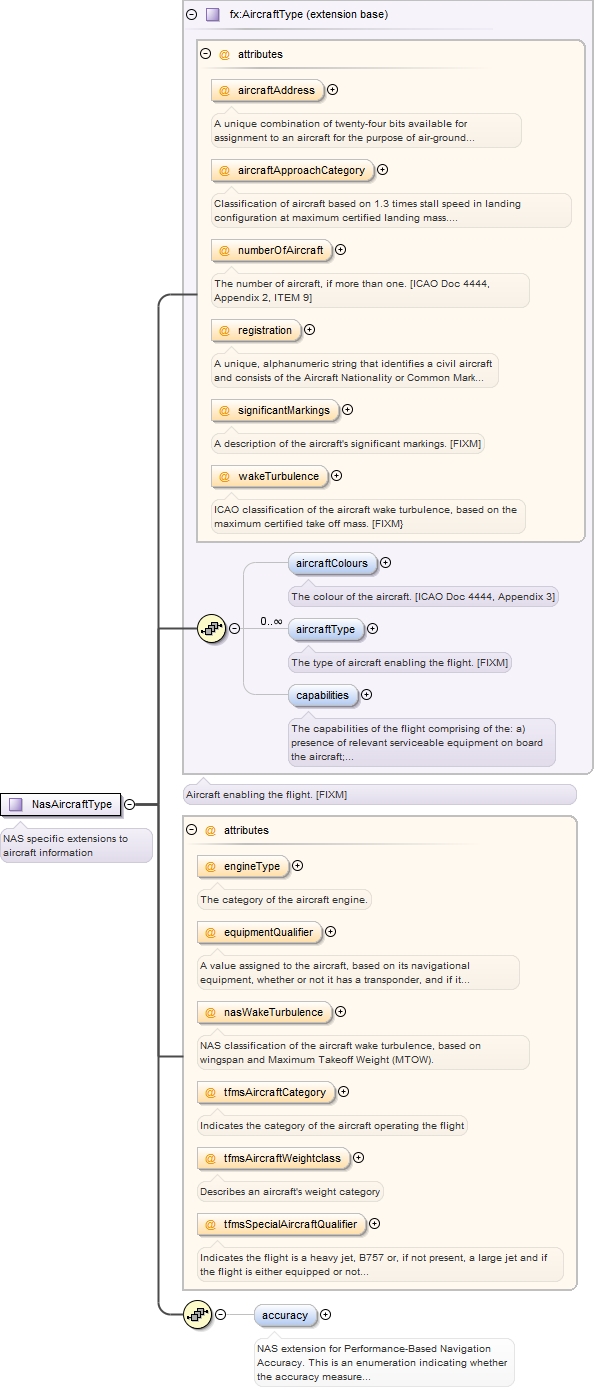

<complexType name="NasAircraftType">
  <annotation>
    <documentation>NAS specific extensions to aircraft information</documentation>
  </annotation>
  <complexContent>
    <extension base="fx:AircraftType">
      <sequence>
        <element name="accuracy" type="nas:NasPerformanceBasedAccuracyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>NAS extension for Performance-Based Navigation Accuracy. This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP). This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="engineType" type="nas:EngineTypeType" use="optional">
        <annotation>
          <documentation>The category of the aircraft engine.</documentation>
        </annotation>
      </attribute>
      <attribute name="equipmentQualifier" type="nas:NasAirborneEquipmentQualifierType" use="optional">
        <annotation>
          <documentation>A value assigned to the aircraft, based on its navigational equipment, whether or not it has a transponder, and if it has a transponder, whether the transponder supports Mode C.</documentation>
        </annotation>
      </attribute>
      <attribute name="nasWakeTurbulence" type="nas:WakeTurbulenceCategoryExtendedType" use="optional">
        <annotation>
          <documentation>NAS classification of the aircraft wake turbulence, based on wingspan and Maximum Takeoff Weight (MTOW).</documentation>
        </annotation>
      </attribute>
      <attribute name="tfmsAircraftCategory" type="nas:TfmsAircraftCategoryType" use="optional">
        <annotation>
          <documentation>Indicates the category of the aircraft operating the flight</documentation>
        </annotation>
      </attribute>
      <attribute name="tfmsAircraftWeightclass" type="nas:TfmsAircraftWeightClassType" use="optional">
        <annotation>
          <documentation>Describes an aircraft's weight category</documentation>
        </annotation>
      </attribute>
      <attribute name="tfmsSpecialAircraftQualifier" type="nas:TfmsSpecialAircraftQualifierType" use="optional">
        <annotation>
          <documentation>Indicates the flight is a heavy jet, B757 or, if not present, a large jet and if the flight is either equipped or not with TCAS. This indicator is used for output purposes such as strip printing and message transfers to other facilities such as Automated Radar Terminal System (ARTS).</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>

<complexType name="NasPerformanceBasedAccuracyType">
  <annotation>
    <documentation>NAS extension for Performance-Based Navigation Accuracy. This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP). This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
  </annotation>
  <sequence>
    <element name="cmsFieldType" type="nas:CmsAccuracyType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
      </annotation>
    </element>
  </sequence>
</complexType>

<simpleType name="NasAirborneEquipmentQualifierType">
  <annotation>
    <documentation>A value assigned to the aircraft, based on its navigational equipment, whether or not it has a transponder, and if it has a transponder, whether the transponder supports Mode C.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="X">
      <annotation>
        <documentation>No RVSM, No DME, No transponder</documentation>
      </annotation>
    </enumeration>
    <enumeration value="T">
      <annotation>
        <documentation>No RVSM, No DME, Transponder with no mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="U">
      <annotation>
        <documentation>No RVSM, No DME: Transponder with mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="D">
      <annotation>
        <documentation>DME: No transponder</documentation>
      </annotation>
    </enumeration>
    <enumeration value="B">
      <annotation>
        <documentation>DME: Transponder with no mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="A">
      <annotation>
        <documentation>DME: Transponder with mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="M">
      <annotation>
        <documentation>TACAN ONLY: No transponder</documentation>
      </annotation>
    </enumeration>
    <enumeration value="N">
      <annotation>
        <documentation>TACAN ONLY: Transponder with no mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="P">
      <annotation>
        <documentation>TACAN ONLY: Transponder with mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="Y">
      <annotation>
        <documentation>LORAN,VORDME,INS,RNAV: No transponder</documentation>
      </annotation>
    </enumeration>
    <enumeration value="C">
      <annotation>
        <documentation>LORAN,VORDME,INS,RNAV: Transponder with no mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="I">
      <annotation>
        <documentation>LORAN,VORDME,INSRNAV: Transponder with mode C</documentation>
      </annotation>
    </enumeration>
    <enumeration value="H">
      <annotation>
        <documentation>RVSM, Failed transponder or Failed Mode C capability</documentation>
      </annotation>
    </enumeration>
    <enumeration value="S">
      <annotation>
        <documentation>ADVANCED RNAV, TRANSPONDER, MODE C: FMS with DMEDME position updating</documentation>
      </annotation>
    </enumeration>
    <enumeration value="G">
      <annotation>
        <documentation>ADVANCED RNAV, TRANSPONDER, MODE C: Global Navigation Satellite System (GNSS), including GPS or Wide Area Augmentation System (WAAS), with en?route and terminal capability.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="V">
      <annotation>
        <documentation>ADVANCED RNAV, TRANSPONDER, MODE C: Required Navigational Performance (RNP). The aircraft meets the RNP type prescribed for the route segments, routes and/or area concerned</documentation>
      </annotation>
    </enumeration>
    <enumeration value="Z">
      <annotation>
        <documentation>REDUCED VERTICAL SEPARATION MINIMUM (RVSM): E with RVSM</documentation>
      </annotation>
    </enumeration>
    <enumeration value="L">
      <annotation>
        <documentation>REDUCED VERTICAL SEPARATION MINIMUM (RVSM): G with RVSM</documentation>
      </annotation>
    </enumeration>
    <enumeration value="W">
      <annotation>
        <documentation>REDUCED VERTICAL SEPARATION MINIMUM (RVSM): RVSM</documentation>
      </annotation>
    </enumeration>
    <enumeration value="Q"/>
    <enumeration value="R"/>
  </restriction>
</simpleType>

<simpleType name="WakeTurbulenceCategoryExtendedType">
  <annotation>
    <documentation>NAS classification of the aircraft wake turbulence, based on wingspan and Maximum Takeoff Weight (MTOW).</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="A">
      <annotation>
        <documentation>Aircraft capable of MTOW of 300,000 pounds or more and a wingspan greater than 245 feet.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="B">
      <annotation>
        <documentation>Aircraft capable of MTOW of 300,000 pounds or more and a wingspan greater than 175 feet and less than or equal to 245 feet.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="C">
      <annotation>
        <documentation>Aircraft capable of a MTOW of 300,000 pounds or more and a wingspan greater than 125 feet and less than or equal to 175 feet.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="D">
      <annotation>
        <documentation>Aircraft capable of a MTOW of less than 300,000 pounds and a wingspan greater than 125 feet and less than or equal to 175 feet, or aircraft with a wingspan greater than 90 feet and less than or equal to 125 feet.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="E">
      <annotation>
        <documentation>Aircraft capable of a MTOW greater than 41,000 pounds with a wingspan greater than 65 feet and less than or equal to 90 feet.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="F">
      <annotation>
        <documentation>Aircraft capable of a MTOW of less than 41,000 pounds and a wingspan less than or equal to 125 feet, or aircraft capable of a MTOW less than 15,500 pounds regardless of wingspan, or a powered sailplane.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>

<simpleType name="TfmsAircraftCategoryType">
  <annotation>
    <documentation>Indicates the category of the aircraft operating the flight</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SINGLE_PISTON_PROP"/>
    <enumeration value="MULTI_PISTON_PROP"/>
    <enumeration value="SINGLE_TURBO_PROP"/>
    <enumeration value="MULTI_TURBO_PROP"/>
    <enumeration value="CIVILIAN_JET"/>
    <enumeration value="MILITARY_FIGHTER_JET"/>
    <enumeration value="MILITARY_LARGE_JET"/>
    <enumeration value="SPECIAL_TURBO_JET"/>
    <enumeration value="HELICOPTER"/>
  </restriction>
</simpleType>

<simpleType name="TfmsAircraftWeightClassType">
  <annotation>
    <documentation>Describes an aircraft's weight category</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SMALL"/>
    <enumeration value="LARGE"/>
    <enumeration value="HEAVY"/>
  </restriction>
</simpleType>

<simpleType name="TfmsSpecialAircraftQualifierType">
  <annotation>
    <documentation>Indicates the flight is a heavy jet, B757 or, if not present, a large jet and if the flight is either equipped or not with TCAS. This indicator is used for output purposes such as strip printing and message transfers to other facilities such as Automated Radar Terminal System (ARTS).</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="HEAVY_JET">
      <annotation>
        <documentation>Capable of takeoff weights of 300,000 pounds or more</documentation>
      </annotation>
    </enumeration>
    <enumeration value="TCAS">
      <annotation>
        <documentation>Traffic collision avoidance system or traffic alert and collision avoidance system</documentation>
      </annotation>
    </enumeration>
    <enumeration value="B757">
      <annotation>
        <documentation>Controllers are required to apply the special wake turbulence separation criteria for the Boeing 757.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="B757_TCAS">
      <annotation>
        <documentation>Boeing 757 with traffic collision avoidance system</documentation>
      </annotation>
    </enumeration>
    <enumeration value="HEAVY_JET_AND_TCAS">
      <annotation>
        <documentation>Capable of takeoff weights of 300,000 pounds or more and traffic collision avoidance system.</documentation>
      </annotation>
    </enumeration>
    <enumeration value="WAKE_TURBULENCE"/>
    <enumeration value="OTHER"/>
  </restriction>
</simpleType>

<attribute name="phase" type="nas:NasPerformanceBasedNavigationPhaseType" use="optional">
  <annotation>
    <documentation>The phase of flight for which navigation performance is being recorded.</documentation>
  </annotation>
</attribute>

<attribute name="type" type="nas:CmsAccuracyTypeType" use="optional">
  <annotation>
    <documentation>This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP).</documentation>
  </annotation>
</attribute>

<attribute name="engineType" type="nas:EngineTypeType" use="optional">
  <annotation>
    <documentation>The category of the aircraft engine.</documentation>
  </annotation>
</attribute>

<attribute name="equipmentQualifier" type="nas:NasAirborneEquipmentQualifierType" use="optional">
  <annotation>
    <documentation>A value assigned to the aircraft, based on its navigational equipment, whether or not it has a transponder, and if it has a transponder, whether the transponder supports Mode C.</documentation>
  </annotation>
</attribute>

<attribute name="nasWakeTurbulence" type="nas:WakeTurbulenceCategoryExtendedType" use="optional">
  <annotation>
    <documentation>NAS classification of the aircraft wake turbulence, based on wingspan and Maximum Takeoff Weight (MTOW).</documentation>
  </annotation>
</attribute>

<attribute name="tfmsAircraftCategory" type="nas:TfmsAircraftCategoryType" use="optional">
  <annotation>
    <documentation>Indicates the category of the aircraft operating the flight</documentation>
  </annotation>
</attribute>

<attribute name="tfmsAircraftWeightclass" type="nas:TfmsAircraftWeightClassType" use="optional">
  <annotation>
    <documentation>Describes an aircraft's weight category</documentation>
  </annotation>
</attribute>

<attribute name="tfmsSpecialAircraftQualifier" type="nas:TfmsSpecialAircraftQualifierType" use="optional">
  <annotation>
    <documentation>Indicates the flight is a heavy jet, B757 or, if not present, a large jet and if the flight is either equipped or not with TCAS. This indicator is used for output purposes such as strip printing and message transfers to other facilities such as Automated Radar Terminal System (ARTS).</documentation>
  </annotation>
</attribute>
