Included schema NasTmiCompliance.xsd
Namespace http://www.faa.aero/nas/4.0
Annotations

Copyright (c) 2016 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/

Contains information about flight's compliance to Traffic Management Initiatives.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0
Element nas:TmiCompliance
Namespace http://www.faa.aero/nas/4.0

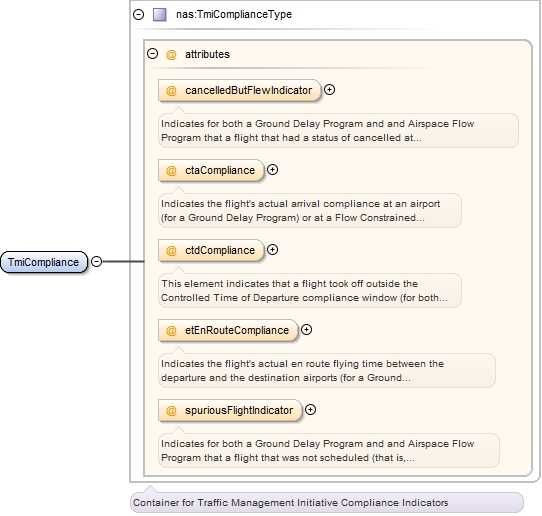

Diagram
Diagram NasTmiCompliance_xsd.tmp#TmiComplianceType_cancelledButFlewIndicator NasTmiCompliance_xsd.tmp#TmiComplianceType_ctaCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_ctdCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_etEnRouteCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_spuriousFlightIndicator NasTmiCompliance_xsd.tmp#TmiComplianceType
Type nas:TmiComplianceType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
cancelledButFlewIndicator nas:CanceledButFlewIndicatorType optional
Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that had a status of cancelled at the time that it was activated by a NAS message
and then it operated.
ctaCompliance nas:TmiComplianceIndicatorType optional
Indicates the flight's actual arrival compliance at an airport (for a Ground Delay
Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference
to the controlled time of arrival issued.
ctdCompliance nas:TmiComplianceIndicatorType optional
This element indicates that a flight took off outside the Controlled Time of Departure
compliance window (for both Ground Delay Program and Airspace Flow Program)
etEnRouteCompliance nas:TmiComplianceIndicatorType optional
Indicates the flight's actual en route flying time between the departure and the
destination airports (for a Ground Delay Program) or from the departure airport to
the Flow Constraint Area entry point was outside the compliance time range.
spuriousFlightIndicator nas:SpuriousFlightIndicatorType optional
Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that was not scheduled (that is, was created on that day from a CDM message or flight
plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM
message.
Source

<element name="TmiCompliance" type="nas:TmiComplianceType"/>
Complex Type nas:TmiComplianceType
Namespace http://www.faa.aero/nas/4.0
Annotations

Container for Traffic Management Initiative Compliance Indicators

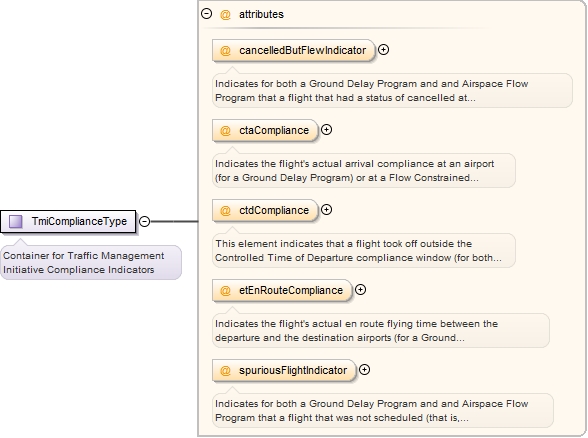

Diagram
Diagram NasTmiCompliance_xsd.tmp#TmiComplianceType_cancelledButFlewIndicator NasTmiCompliance_xsd.tmp#TmiComplianceType_ctaCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_ctdCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_etEnRouteCompliance NasTmiCompliance_xsd.tmp#TmiComplianceType_spuriousFlightIndicator
Used by
Attributes
QName Type Fixed Default Use Annotation
cancelledButFlewIndicator nas:CanceledButFlewIndicatorType optional
Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that had a status of cancelled at the time that it was activated by a NAS message
and then it operated.
ctaCompliance nas:TmiComplianceIndicatorType optional
Indicates the flight's actual arrival compliance at an airport (for a Ground Delay
Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference
to the controlled time of arrival issued.
ctdCompliance nas:TmiComplianceIndicatorType optional
This element indicates that a flight took off outside the Controlled Time of Departure
compliance window (for both Ground Delay Program and Airspace Flow Program)
etEnRouteCompliance nas:TmiComplianceIndicatorType optional
Indicates the flight's actual en route flying time between the departure and the
destination airports (for a Ground Delay Program) or from the departure airport to
the Flow Constraint Area entry point was outside the compliance time range.
spuriousFlightIndicator nas:SpuriousFlightIndicatorType optional
Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that was not scheduled (that is, was created on that day from a CDM message or flight
plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM
message.
Source

<complexType name="TmiComplianceType">
  <annotation>
    <documentation>Container for Traffic Management Initiative Compliance Indicators</documentation>
  </annotation>
  <attribute name="cancelledButFlewIndicator" type="nas:CanceledButFlewIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight that had a status of cancelled at the time that it was activated by a NAS message and then it operated.</documentation>
    </annotation>
  </attribute>
  <attribute name="ctaCompliance" type="nas:TmiComplianceIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates the flight's actual arrival compliance at an airport (for a Ground Delay Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference to the controlled time of arrival issued.</documentation>
    </annotation>
  </attribute>
  <attribute name="ctdCompliance" type="nas:TmiComplianceIndicatorType" use="optional">
    <annotation>
      <documentation>This element indicates that a flight took off outside the Controlled Time of Departure compliance window (for both Ground Delay Program and Airspace Flow Program)</documentation>
    </annotation>
  </attribute>
  <attribute name="etEnRouteCompliance" type="nas:TmiComplianceIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates the flight's actual en route flying time between the departure and the destination airports (for a Ground Delay Program) or from the departure airport to the Flow Constraint Area entry point was outside the compliance time range.</documentation>
    </annotation>
  </attribute>
  <attribute name="spuriousFlightIndicator" type="nas:SpuriousFlightIndicatorType" use="optional">
    <annotation>
      <documentation>Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight that was not scheduled (that is, was created on that day from a CDM message or flight plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM message.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type nas:CanceledButFlewIndicatorType
Namespace http://www.faa.aero/nas/4.0
Annotations

Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that had a status of cancelled at the time that it was activated by a NAS message
and then it operated.
Diagram
Diagram
Type restriction of string
Facets
enumeration CANCELED_BUT_FLEW
Used by
Source

<simpleType name="CanceledButFlewIndicatorType">
  <annotation>
    <documentation>Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight that had a status of cancelled at the time that it was activated by a NAS message and then it operated.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="CANCELED_BUT_FLEW"/>
  </restriction>
</simpleType>
Simple Type nas:TmiComplianceIndicatorType
Namespace http://www.faa.aero/nas/4.0
Annotations

Indicates whether a flight is compliant to a number of aspects of Traffic Management
Initiative.
Diagram
Diagram
Type restriction of string
Facets
enumeration COMPLIANT
Used by
Source

<simpleType name="TmiComplianceIndicatorType">
  <annotation>
    <documentation>Indicates whether a flight is compliant to a number of aspects of Traffic Management Initiative.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="COMPLIANT"/>
  </restriction>
</simpleType>
Simple Type nas:SpuriousFlightIndicatorType
Namespace http://www.faa.aero/nas/4.0
Annotations

Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that was not scheduled (that is, was created on that day from a CDM message or flight
plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM
message.
Diagram
Diagram
Type restriction of string
Facets
enumeration SPURIOUS_FLIGHT
Used by
Source

<simpleType name="SpuriousFlightIndicatorType">
  <annotation>
    <documentation>Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight that was not scheduled (that is, was created on that day from a CDM message or flight plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM message.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SPURIOUS_FLIGHT"/>
  </restriction>
</simpleType>
Attribute nas:TmiComplianceType / @cancelledButFlewIndicator
Namespace No namespace
Annotations

Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that had a status of cancelled at the time that it was activated by a NAS message
and then it operated.
Type nas:CanceledButFlewIndicatorType
Properties
use: optional
Facets
enumeration CANCELED_BUT_FLEW
Used by
Complex Type nas:TmiComplianceType
Source

<attribute name="cancelledButFlewIndicator" type="nas:CanceledButFlewIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight that had a status of cancelled at the time that it was activated by a NAS message and then it operated.</documentation>
  </annotation>
</attribute>
Attribute nas:TmiComplianceType / @ctaCompliance
Namespace No namespace
Annotations

Indicates the flight's actual arrival compliance at an airport (for a Ground Delay
Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference
to the controlled time of arrival issued.
Type nas:TmiComplianceIndicatorType
Properties
use: optional
Facets
enumeration COMPLIANT
Used by
Complex Type nas:TmiComplianceType
Source

<attribute name="ctaCompliance" type="nas:TmiComplianceIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates the flight's actual arrival compliance at an airport (for a Ground Delay Program) or at a Flow Constrained Area (for an Airspace Flow Program) in reference to the controlled time of arrival issued.</documentation>
  </annotation>
</attribute>
Attribute nas:TmiComplianceType / @ctdCompliance
Namespace No namespace
Annotations

This element indicates that a flight took off outside the Controlled Time of Departure
compliance window (for both Ground Delay Program and Airspace Flow Program)
Type nas:TmiComplianceIndicatorType
Properties
use: optional
Facets
enumeration COMPLIANT
Used by
Complex Type nas:TmiComplianceType
Source

<attribute name="ctdCompliance" type="nas:TmiComplianceIndicatorType" use="optional">
  <annotation>
    <documentation>This element indicates that a flight took off outside the Controlled Time of Departure compliance window (for both Ground Delay Program and Airspace Flow Program)</documentation>
  </annotation>
</attribute>
Attribute nas:TmiComplianceType / @etEnRouteCompliance
Namespace No namespace
Annotations

Indicates the flight's actual en route flying time between the departure and the
destination airports (for a Ground Delay Program) or from the departure airport to
the Flow Constraint Area entry point was outside the compliance time range.
Type nas:TmiComplianceIndicatorType
Properties
use: optional
Facets
enumeration COMPLIANT
Used by
Complex Type nas:TmiComplianceType
Source

<attribute name="etEnRouteCompliance" type="nas:TmiComplianceIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates the flight's actual en route flying time between the departure and the destination airports (for a Ground Delay Program) or from the departure airport to the Flow Constraint Area entry point was outside the compliance time range.</documentation>
  </annotation>
</attribute>
Attribute nas:TmiComplianceType / @spuriousFlightIndicator
Namespace No namespace
Annotations

Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight
that was not scheduled (that is, was created on that day from a CDM message or flight
plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM
message.
Type nas:SpuriousFlightIndicatorType
Properties
use: optional
Facets
enumeration SPURIOUS_FLIGHT
Used by
Complex Type nas:TmiComplianceType
Source

<attribute name="spuriousFlightIndicator" type="nas:SpuriousFlightIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates for both a Ground Delay Program and and Airspace Flow Program that a flight that was not scheduled (that is, was created on that day from a CDM message or flight plan), was controlled in a Traffic Management Initiative and was cancelled by a CDM message.</documentation>
  </annotation>
</attribute>
