http://www.faa.aero/nas/3.1

Complex Types

Resource hierarchy:

Main schema Nas.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
NAS package contains the NAS specific FIXM extension packages.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasAircraft.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
The NASAircraft package contains the NAS specific extensions to the FIXM core aircraft
package.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasAirspace.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
The NasAerodrome package contains the US specific extensions to the FIXM core Aerodrome
package.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasAltitude.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
NasAltitude package contains the NAS specific altitude definitions that extend the
FIXM Core defined altitude.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasArrival.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Package contains the NAS specific extensions to the FIXM core FlightArrival.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasTmi.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Defines the NAS specific  traffic management initiatives concepts.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasTmiTrajectoryOptions.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Contains the definitions for NAS specific trajectory options that support the CTOP
program.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasCoordination.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Package contains the NAS specific extensions to the FIXM Core coordination classes.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasDeparture.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Package contains NAS specific extension to the FIXM Core FlightDeparture.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasEnRouteData.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Contains definitions to NAS specific extension of FIXM Core En Route concepts.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasFlightData.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Contains the NAS Specific Flight definitions that extend the FIXM Core Flight.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasFlightIntent.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Contains the NAS Specific Flight Intent definitions.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasFlightPlan.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Contains the definition of Flight Plan, which is a specifically preserved in the
NAS extension of FIXM.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasMessage.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
This package contains a basic message definition prototype. Each message can contain
a FIXM flight and be part of a message collection as a means to transport FIXM data.
It is included as part of the NAS extension to allow basic messaging capability that
is not agreed upon in the Core FIXM.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasPosition.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Package defines NAS specific extension to the Core FIXM position package.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasRoute.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Contains the NAS specific flightroute definition that extends the Core FIXM  flight
route concepts.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]
Included schema NasStatus.xsd
Namespace http://www.faa.aero/nas/3.1
Annotations
Copyright (c) 2015 US Federal Aviation Administration (FAA)
===========================================
All rights reserved.

Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list
of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the disclaimer in the documentation and/or other materials
provided with the distribution.
* The name of US FAA or the names of its contributors may not be used to endorse
or promote products derived from this specification without specific prior written
permission.

DISCLAIMER

THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

==========================================
Editorial note: this license is an instance of the BSD license template as provided
by the Open Source Initiative:
http://www.opensource.org/licenses/bsd-license.php

The authoritative reference for FIXM is www.FIXM.aero.

Details on the US FAA: http://www.faa.gov/
Defines the NAS specific flight status information.
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.0
[ top ]

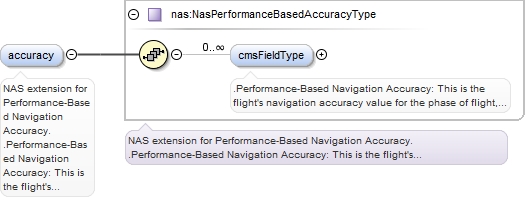

Element nas:NasAircraftType / nas:accuracy
Namespace http://www.faa.aero/nas/3.1
Annotations
NAS extension for Performance-Based Navigation Accuracy.

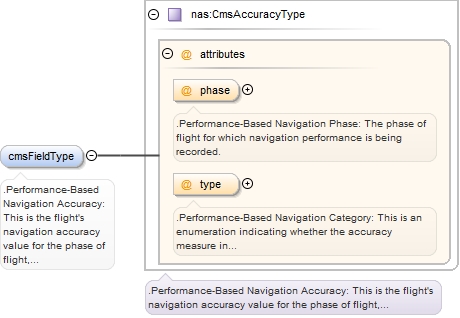

.Performance-Based Navigation Accuracy: This is the flight's navigation accuracy
value for the phase of flight, specified in the Performance-Based Navigation Phase.

.Performance-Based Navigation Category: This is an enumeration indicating whether
the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation
(RNAV) or Required Navigation Performance (RNP).
Diagram
Diagram nas.tmp#NasPerformanceBasedAccuracyType_cmsFieldType nas.tmp#NasPerformanceBasedAccuracyType
Type nas:NasPerformanceBasedAccuracyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:cmsFieldType*
Children nas:cmsFieldType
Instance
<nas:accuracy>
  <nas:cmsFieldType>{0,unbounded}</nas:cmsFieldType>
</nas:accuracy>
Source
<element name="accuracy" type="nas:NasPerformanceBasedAccuracyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>NAS extension for Performance-Based Navigation Accuracy. .Performance-Based Navigation Accuracy: This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase. .Performance-Based Navigation Category: This is an enumeration indicating whether the accuracy measure in Performance-Based Navigation Accuracy is measuring Area Navigation (RNAV) or Required Navigation Performance (RNP).</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasPerformanceBasedAccuracyType / nas:cmsFieldType
Namespace http://www.faa.aero/nas/3.1
Annotations
.Performance-Based Navigation Accuracy: This is the flight's navigation accuracy
value for the phase of flight, specified in the Performance-Based Navigation Phase.

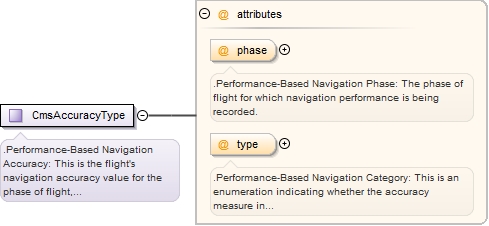

Diagram
Diagram nas.tmp#CmsAccuracyType_phase nas.tmp#CmsAccuracyType_type nas.tmp#CmsAccuracyType
Type nas:CmsAccuracyType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Source
<element name="cmsFieldType" type="nas:CmsAccuracyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>.Performance-Based Navigation Accuracy: This is the flight's navigation accuracy value for the phase of flight, specified in the Performance-Based Navigation Phase.</documentation>
  </annotation>
</element>
[ top ]

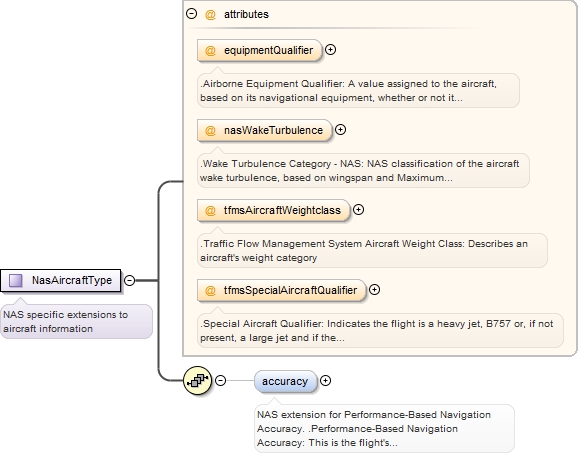

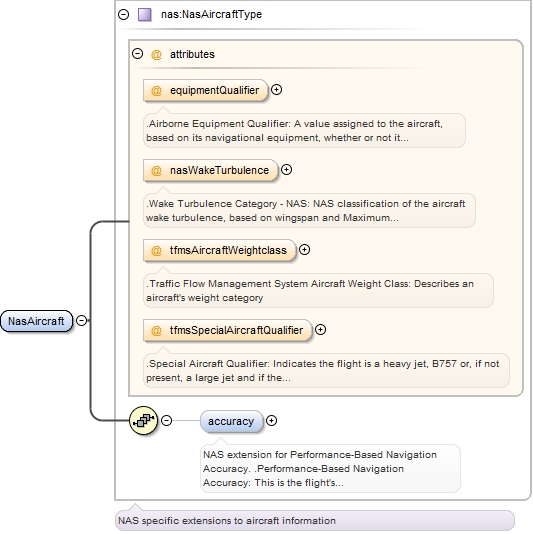

Element nas:NasAircraft
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#NasAircraftType_equipmentQualifier nas.tmp#NasAircraftType_nasWakeTurbulence nas.tmp#NasAircraftType_tfmsAircraftWeightclass nas.tmp#NasAircraftType_tfmsSpecialAircraftQualifier nas.tmp#NasAircraftType_accuracy nas.tmp#NasAircraftType
Type nas:NasAircraftType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • Feature
Model nas:accuracy{0,1}
Children nas:accuracy
Instance
<nas:NasAircraft>
  <nas:accuracy>{0,1}</nas:accuracy>
</nas:NasAircraft>
Source
<element name="NasAircraft" type="nas:NasAircraftType" substitutionGroup="fb:Feature"/>
[ top ]

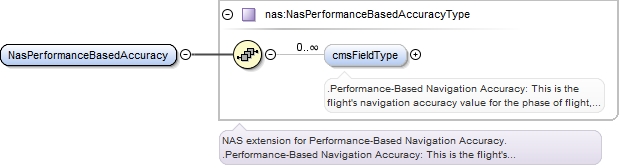

Element nas:NasPerformanceBasedAccuracy
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#NasPerformanceBasedAccuracyType_cmsFieldType nas.tmp#NasPerformanceBasedAccuracyType
Type nas:NasPerformanceBasedAccuracyType
Properties
content: complex
Model nas:cmsFieldType*
Children nas:cmsFieldType
Instance
<nas:NasPerformanceBasedAccuracy>
  <nas:cmsFieldType>{0,unbounded}</nas:cmsFieldType>
</nas:NasPerformanceBasedAccuracy>
Source
<element name="NasPerformanceBasedAccuracy" type="nas:NasPerformanceBasedAccuracyType"/>
[ top ]
Element nas:AltFixAltAltitudeType / nas:point
Namespace http://www.faa.aero/nas/3.1
Annotations
Fix associated with the altitude
Diagram
Diagram
Type SignificantPointType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="point" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Fix associated with the altitude</documentation>
  </annotation>
</element>
[ top ]
Element nas:AltFixAltAltitudeType / nas:post
Namespace http://www.faa.aero/nas/3.1
Annotations
Altitude post the specified fix.
Diagram
Diagram
Type AltitudeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="post" type="ff:AltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Altitude post the specified fix.</documentation>
  </annotation>
</element>
[ top ]
Element nas:AltFixAltAltitudeType / nas:pre
Namespace http://www.faa.aero/nas/3.1
Annotations
Altitude pre specified fix.
Diagram
Diagram
Type AltitudeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="pre" type="ff:AltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Altitude pre specified fix.</documentation>
  </annotation>
</element>
[ top ]

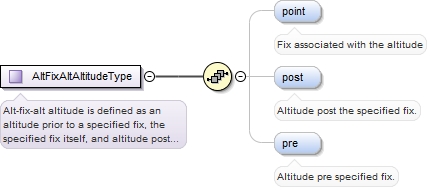

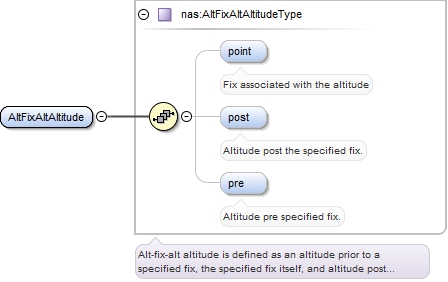

Element nas:AltFixAltAltitude
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#AltFixAltAltitudeType_point nas.tmp#AltFixAltAltitudeType_post nas.tmp#AltFixAltAltitudeType_pre nas.tmp#AltFixAltAltitudeType
Type nas:AltFixAltAltitudeType
Properties
content: complex
Model nas:point{0,1} , nas:post{0,1} , nas:pre{0,1}
Children nas:point, nas:post, nas:pre
Instance
<nas:AltFixAltAltitude>
  <nas:point>{0,1}</nas:point>
  <nas:post>{0,1}</nas:post>
  <nas:pre>{0,1}</nas:pre>
</nas:AltFixAltAltitude>
Source
<element name="AltFixAltAltitude" type="nas:AltFixAltAltitudeType"/>
[ top ]

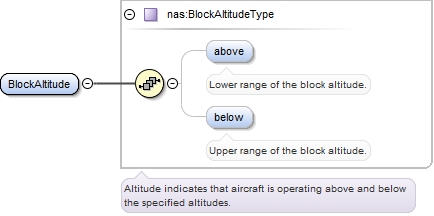

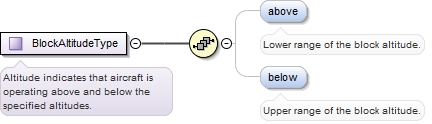

Element nas:BlockAltitudeType / nas:above
Namespace http://www.faa.aero/nas/3.1
Annotations
Lower range of the block altitude.
Diagram
Diagram
Type AltitudeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="above" type="ff:AltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Lower range of the block altitude.</documentation>
  </annotation>
</element>
[ top ]
Element nas:BlockAltitudeType / nas:below
Namespace http://www.faa.aero/nas/3.1
Annotations
Upper range of the block altitude.
Diagram
Diagram
Type AltitudeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="below" type="ff:AltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Upper range of the block altitude.</documentation>
  </annotation>
</element>
[ top ]
Element nas:BlockAltitude
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#BlockAltitudeType_above nas.tmp#BlockAltitudeType_below nas.tmp#BlockAltitudeType
Type nas:BlockAltitudeType
Properties
content: complex
Model nas:above{0,1} , nas:below{0,1}
Children nas:above, nas:below
Instance
<nas:BlockAltitude>
  <nas:above>{0,1}</nas:above>
  <nas:below>{0,1}</nas:below>
</nas:BlockAltitude>
Source
<element name="BlockAltitude" type="nas:BlockAltitudeType"/>
[ top ]
Element nas:NasAltitudeType / nas:above
Namespace http://www.faa.aero/nas/3.1
Annotations

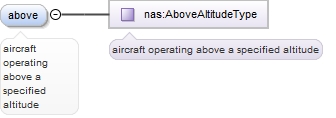

aircraft operating above a specified altitude
Diagram
Diagram nas.tmp#AboveAltitudeType
Type nas:AboveAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="above" type="nas:AboveAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>aircraft operating above a specified altitude</documentation>
  </annotation>
</element>
[ top ]

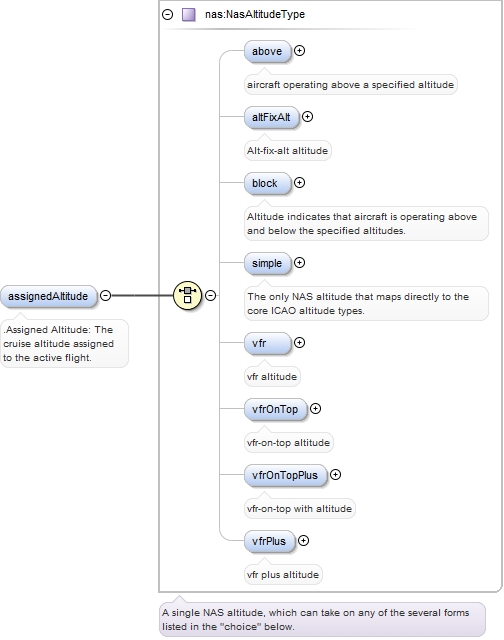

Element nas:NasAltitudeType / nas:altFixAlt
Namespace http://www.faa.aero/nas/3.1
Annotations

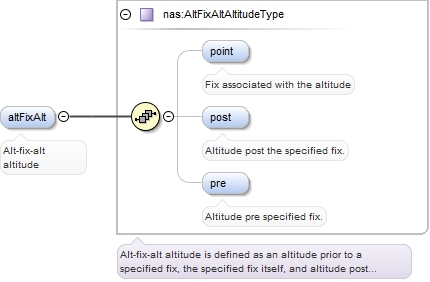

Alt-fix-alt altitude
Diagram
Diagram nas.tmp#AltFixAltAltitudeType_point nas.tmp#AltFixAltAltitudeType_post nas.tmp#AltFixAltAltitudeType_pre nas.tmp#AltFixAltAltitudeType
Type nas:AltFixAltAltitudeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:point{0,1} , nas:post{0,1} , nas:pre{0,1}
Children nas:point, nas:post, nas:pre
Instance
<nas:altFixAlt>
  <nas:point>{0,1}</nas:point>
  <nas:post>{0,1}</nas:post>
  <nas:pre>{0,1}</nas:pre>
</nas:altFixAlt>
Source
<element name="altFixAlt" type="nas:AltFixAltAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Alt-fix-alt altitude</documentation>
  </annotation>
</element>
[ top ]

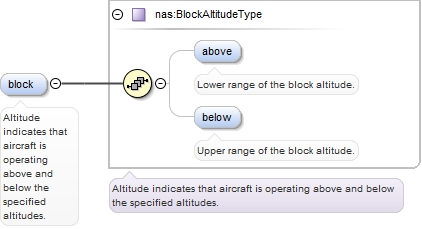

Element nas:NasAltitudeType / nas:block
Namespace http://www.faa.aero/nas/3.1
Annotations
Altitude indicates that aircraft is operating  above and below the specified altitudes.
Diagram
Diagram nas.tmp#BlockAltitudeType_above nas.tmp#BlockAltitudeType_below nas.tmp#BlockAltitudeType
Type nas:BlockAltitudeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:above{0,1} , nas:below{0,1}
Children nas:above, nas:below
Instance
<nas:block>
  <nas:above>{0,1}</nas:above>
  <nas:below>{0,1}</nas:below>
</nas:block>
Source
<element name="block" type="nas:BlockAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Altitude indicates that aircraft is operating above and below the specified altitudes.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasAltitudeType / nas:simple
Namespace http://www.faa.aero/nas/3.1
Annotations

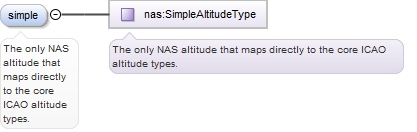

The only NAS altitude that maps directly to the core ICAO altitude types.
Diagram
Diagram nas.tmp#SimpleAltitudeType
Type nas:SimpleAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="simple" type="nas:SimpleAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The only NAS altitude that maps directly to the core ICAO altitude types.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasAltitudeType / nas:vfr
Namespace http://www.faa.aero/nas/3.1
Annotations
vfr altitude
Diagram
Diagram nas.tmp#VfrAltitudeType
Type nas:VfrAltitudeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="vfr" type="nas:VfrAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>vfr altitude</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasAltitudeType / nas:vfrOnTop
Namespace http://www.faa.aero/nas/3.1
Annotations
vfr-on-top altitude
Diagram
Diagram nas.tmp#VfrOnTopAltitudeType
Type nas:VfrOnTopAltitudeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="vfrOnTop" type="nas:VfrOnTopAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>vfr-on-top altitude</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasAltitudeType / nas:vfrOnTopPlus
Namespace http://www.faa.aero/nas/3.1
Annotations
vfr-on-top with altitude
Diagram
Diagram nas.tmp#VfrOnTopPlusAltitudeType
Type nas:VfrOnTopPlusAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="vfrOnTopPlus" type="nas:VfrOnTopPlusAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>vfr-on-top with altitude</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasAltitudeType / nas:vfrPlus
Namespace http://www.faa.aero/nas/3.1
Annotations
vfr plus altitude
Diagram
Diagram nas.tmp#VfrPlusAltitudeType
Type nas:VfrPlusAltitudeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="vfrPlus" type="nas:VfrPlusAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>vfr plus altitude</documentation>
  </annotation>
</element>
[ top ]

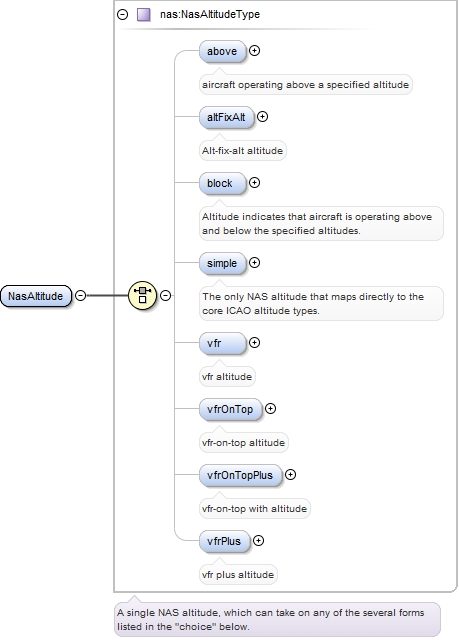

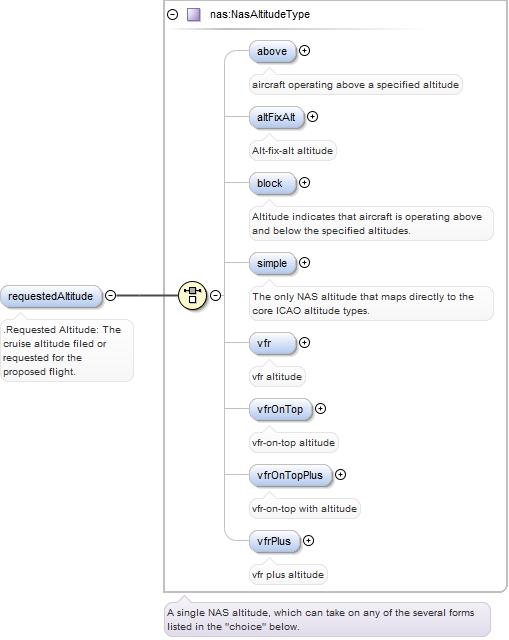

Element nas:NasAltitude
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#NasAltitudeType_above nas.tmp#NasAltitudeType_altFixAlt nas.tmp#NasAltitudeType_block nas.tmp#NasAltitudeType_simple nas.tmp#NasAltitudeType_vfr nas.tmp#NasAltitudeType_vfrOnTop nas.tmp#NasAltitudeType_vfrOnTopPlus nas.tmp#NasAltitudeType_vfrPlus nas.tmp#NasAltitudeType
Type nas:NasAltitudeType
Properties
content: complex
Model nas:above{0,1} | nas:altFixAlt{0,1} | nas:block{0,1} | nas:simple{0,1} | nas:vfr{0,1} | nas:vfrOnTop{0,1} | nas:vfrOnTopPlus{0,1} | nas:vfrPlus{0,1}
Children nas:above, nas:altFixAlt, nas:block, nas:simple, nas:vfr, nas:vfrOnTop, nas:vfrOnTopPlus, nas:vfrPlus
Instance
<nas:NasAltitude>
  <nas:above>{0,1}</nas:above>
  <nas:altFixAlt>{0,1}</nas:altFixAlt>
  <nas:block>{0,1}</nas:block>
  <nas:simple>{0,1}</nas:simple>
  <nas:vfr>{0,1}</nas:vfr>
  <nas:vfrOnTop>{0,1}</nas:vfrOnTop>
  <nas:vfrOnTopPlus>{0,1}</nas:vfrOnTopPlus>
  <nas:vfrPlus>{0,1}</nas:vfrPlus>
</nas:NasAltitude>
Source
<element name="NasAltitude" type="nas:NasAltitudeType"/>
[ top ]
Element nas:VfrAltitude
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#VfrAltitudeType
Type nas:VfrAltitudeType
Properties
content: complex
Source
<element name="VfrAltitude" type="nas:VfrAltitudeType"/>
[ top ]
Element nas:VfrOnTopAltitude
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#VfrOnTopAltitudeType
Type nas:VfrOnTopAltitudeType
Properties
content: complex
Source
<element name="VfrOnTopAltitude" type="nas:VfrOnTopAltitudeType"/>
[ top ]

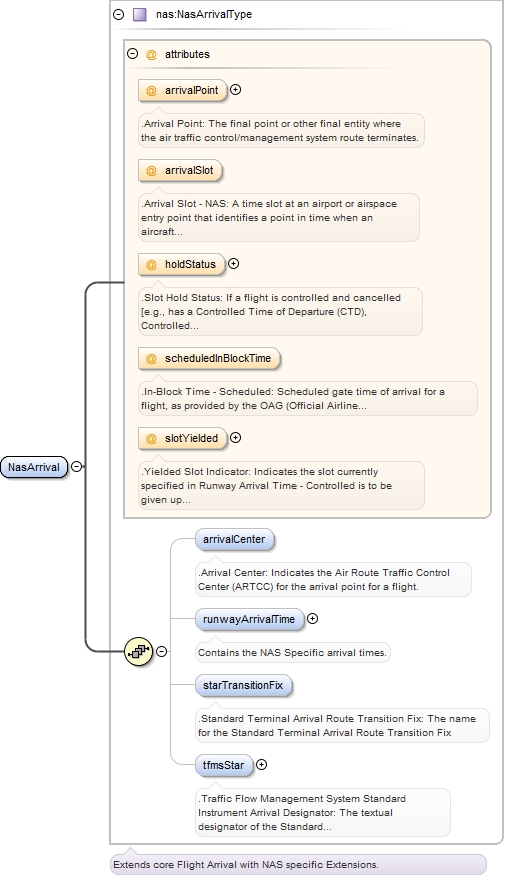

Element nas:NasArrivalType / nas:arrivalCenter
Namespace http://www.faa.aero/nas/3.1
Annotations
.Arrival Center: Indicates the Air Route Traffic Control Center (ARTCC) for the arrival
point for a flight.
Diagram
Diagram
Type AtcUnitReferenceType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="arrivalCenter" type="fb:AtcUnitReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Arrival Center: Indicates the Air Route Traffic Control Center (ARTCC) for the arrival point for a flight.</documentation>
  </annotation>
</element>
[ top ]

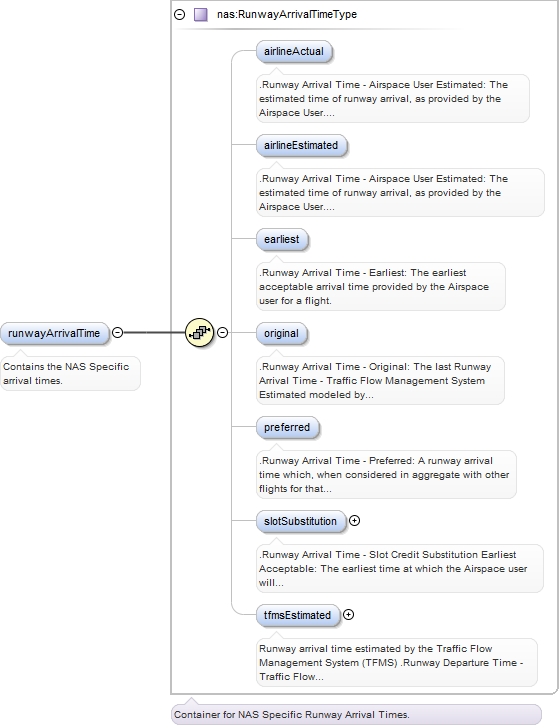

Element nas:NasArrivalType / nas:runwayArrivalTime
Namespace http://www.faa.aero/nas/3.1
Annotations
Contains the NAS Specific arrival times.
Diagram
Diagram nas.tmp#RunwayArrivalTimeType_airlineActual nas.tmp#RunwayArrivalTimeType_airlineEstimated nas.tmp#RunwayArrivalTimeType_earliest nas.tmp#RunwayArrivalTimeType_original nas.tmp#RunwayArrivalTimeType_preferred nas.tmp#RunwayArrivalTimeType_slotSubstitution nas.tmp#RunwayArrivalTimeType_tfmsEstimated nas.tmp#RunwayArrivalTimeType
Type nas:RunwayArrivalTimeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:airlineActual{0,1} , nas:airlineEstimated{0,1} , nas:earliest{0,1} , nas:original{0,1} , nas:preferred{0,1} , nas:slotSubstitution{0,1} , nas:tfmsEstimated{0,1}
Children nas:airlineActual, nas:airlineEstimated, nas:earliest, nas:original, nas:preferred, nas:slotSubstitution, nas:tfmsEstimated
Instance
<nas:runwayArrivalTime>
  <nas:airlineActual>{0,1}</nas:airlineActual>
  <nas:airlineEstimated>{0,1}</nas:airlineEstimated>
  <nas:earliest>{0,1}</nas:earliest>
  <nas:original>{0,1}</nas:original>
  <nas:preferred>{0,1}</nas:preferred>
  <nas:slotSubstitution>{0,1}</nas:slotSubstitution>
  <nas:tfmsEstimated>{0,1}</nas:tfmsEstimated>
</nas:runwayArrivalTime>
Source
<element name="runwayArrivalTime" type="nas:RunwayArrivalTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Contains the NAS Specific arrival times.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayArrivalTimeType / nas:airlineActual
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Airspace User Estimated: The estimated time of runway arrival,
as provided by the Airspace User.
.Runway Departure Time - Airspace User Actual: The actual time of runway departure,
as provided by the Airspace User.
.Runway Arrival Time - Airspace User Actual: The actual time of runway arrival, as
provided by the Airspace User.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="airlineActual" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Airspace User Estimated: The estimated time of runway arrival, as provided by the Airspace User. .Runway Departure Time - Airspace User Actual: The actual time of runway departure, as provided by the Airspace User. .Runway Arrival Time - Airspace User Actual: The actual time of runway arrival, as provided by the Airspace User.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayArrivalTimeType / nas:airlineEstimated
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Airspace User Estimated: The estimated time of runway arrival,
as provided by the Airspace User.
.Runway Arrival Time - Airspace User Actual: The actual time of runway arrival, as
provided by the Airspace User.
.Runway Departure Time - Airspace User Estimated: The estimated time of runway departure,
as provided by the Airspace User.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="airlineEstimated" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Airspace User Estimated: The estimated time of runway arrival, as provided by the Airspace User. .Runway Arrival Time - Airspace User Actual: The actual time of runway arrival, as provided by the Airspace User. .Runway Departure Time - Airspace User Estimated: The estimated time of runway departure, as provided by the Airspace User.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayArrivalTimeType / nas:earliest
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Earliest: The earliest acceptable arrival time provided by
the Airspace user for a flight.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="earliest" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Earliest: The earliest acceptable arrival time provided by the Airspace user for a flight.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayArrivalTimeType / nas:original
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Original: The last Runway Arrival Time - Traffic Flow Management
System Estimated modeled by TFMS before either a Traffic Management Initiative (TMI)
is issued, or the flight departs, or the flight is  time-out  delayed by TFMS.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="original" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Original: The last Runway Arrival Time - Traffic Flow Management System Estimated modeled by TFMS before either a Traffic Management Initiative (TMI) is issued, or the flight departs, or the flight is time-out delayed by TFMS.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayArrivalTimeType / nas:preferred
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Preferred: A runway arrival time which, when considered in
aggregate with other flights for that Airspace User, indicates the preferred arrival
sequence.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="preferred" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Preferred: A runway arrival time which, when considered in aggregate with other flights for that Airspace User, indicates the preferred arrival sequence.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayArrivalTimeType / nas:slotSubstitution
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Slot Credit Substitution Earliest Acceptable: The earliest
time at which the Airspace user will accept a slot in a Traffic Management Initiative
(TMI) Ground Delay Program (GDP) in return for a yielded slot.
.Runway Arrival Time - Slot Credit Substitution Latest Acceptable: The latest time
at which the Airspace user will accept a slot in a Traffic Management Initiative
(TMI) Ground Delay Program (GDP), in return for a yielded slot.
Diagram

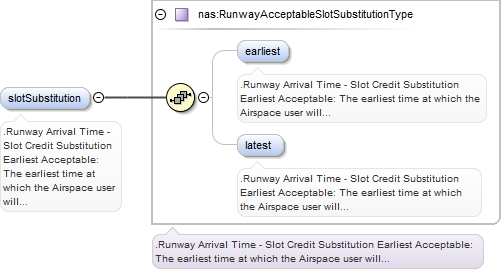

Diagram nas.tmp#RunwayAcceptableSlotSubstitutionType_earliest nas.tmp#RunwayAcceptableSlotSubstitutionType_latest nas.tmp#RunwayAcceptableSlotSubstitutionType
Type nas:RunwayAcceptableSlotSubstitutionType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:earliest{0,1} , nas:latest{0,1}
Children nas:earliest, nas:latest
Instance
<nas:slotSubstitution>
  <nas:earliest>{0,1}</nas:earliest>
  <nas:latest>{0,1}</nas:latest>
</nas:slotSubstitution>
Source
<element name="slotSubstitution" type="nas:RunwayAcceptableSlotSubstitutionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Slot Credit Substitution Earliest Acceptable: The earliest time at which the Airspace user will accept a slot in a Traffic Management Initiative (TMI) Ground Delay Program (GDP) in return for a yielded slot. .Runway Arrival Time - Slot Credit Substitution Latest Acceptable: The latest time at which the Airspace user will accept a slot in a Traffic Management Initiative (TMI) Ground Delay Program (GDP), in return for a yielded slot.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayAcceptableSlotSubstitutionType / nas:earliest
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Slot Credit Substitution Earliest Acceptable: The earliest
time at which the Airspace user will accept a slot in a Traffic Management Initiative
(TMI) Ground Delay Program (GDP) in return for a yielded slot.
.Runway Arrival Time - Slot Credit Substitution Latest Acceptable: The latest time
at which the Airspace user will accept a slot in a Traffic Management Initiative
(TMI) Ground Delay Program (GDP), in return for a yielded slot.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="earliest" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Slot Credit Substitution Earliest Acceptable: The earliest time at which the Airspace user will accept a slot in a Traffic Management Initiative (TMI) Ground Delay Program (GDP) in return for a yielded slot. .Runway Arrival Time - Slot Credit Substitution Latest Acceptable: The latest time at which the Airspace user will accept a slot in a Traffic Management Initiative (TMI) Ground Delay Program (GDP), in return for a yielded slot.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayAcceptableSlotSubstitutionType / nas:latest
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Slot Credit Substitution Earliest Acceptable: The earliest
time at which the Airspace user will accept a slot in a Traffic Management Initiative
(TMI) Ground Delay Program (GDP) in return for a yielded slot.
.Runway Arrival Time - Slot Credit Substitution Latest Acceptable: The latest time
at which the Airspace user will accept a slot in a Traffic Management Initiative
(TMI) Ground Delay Program (GDP), in return for a yielded slot.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="latest" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Arrival Time - Slot Credit Substitution Earliest Acceptable: The earliest time at which the Airspace user will accept a slot in a Traffic Management Initiative (TMI) Ground Delay Program (GDP) in return for a yielded slot. .Runway Arrival Time - Slot Credit Substitution Latest Acceptable: The latest time at which the Airspace user will accept a slot in a Traffic Management Initiative (TMI) Ground Delay Program (GDP), in return for a yielded slot.</documentation>
  </annotation>
</element>
[ top ]

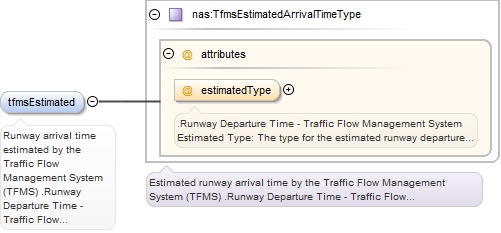

Element nas:RunwayArrivalTimeType / nas:tfmsEstimated
Namespace http://www.faa.aero/nas/3.1
Annotations
Runway arrival time estimated by the Traffic Flow Management System (TFMS)
.Runway Departure Time - Traffic Flow Management System Estimated: The estimated
runway departure time considering all data sources, as determined by Traffic Flow
Management System (TFMS).
.Runway Arrival Time - Traffic Flow Management System Estimated Type: The type for
the estimated runway arrival time determined by Traffic Flow Management System (TFMS).

.Runway Arrival Time - Traffic Flow Management System Estimated: The estimated runway
arrival time considering all data sources, as determined by Traffic Flow Management
System (TFMS).
Diagram
Diagram nas.tmp#TfmsEstimatedArrivalTimeType_estimatedType nas.tmp#TfmsEstimatedArrivalTimeType
Type nas:TfmsEstimatedArrivalTimeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="tfmsEstimated" type="nas:TfmsEstimatedArrivalTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Runway arrival time estimated by the Traffic Flow Management System (TFMS) .Runway Departure Time - Traffic Flow Management System Estimated: The estimated runway departure time considering all data sources, as determined by Traffic Flow Management System (TFMS). .Runway Arrival Time - Traffic Flow Management System Estimated Type: The type for the estimated runway arrival time determined by Traffic Flow Management System (TFMS). .Runway Arrival Time - Traffic Flow Management System Estimated: The estimated runway arrival time considering all data sources, as determined by Traffic Flow Management System (TFMS).</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasArrivalType / nas:starTransitionFix
Namespace http://www.faa.aero/nas/3.1
Annotations
.Standard Terminal Arrival Route Transition Fix: The name for the Standard Terminal
Arrival Route Transition Fix
Diagram
Diagram
Type SignificantPointType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="starTransitionFix" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Standard Terminal Arrival Route Transition Fix: The name for the Standard Terminal Arrival Route Transition Fix</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasArrivalType / nas:tfmsStar
Namespace http://www.faa.aero/nas/3.1
Annotations
.Traffic Flow Management System Standard Instrument Arrival Designator: The textual
designator of the Standard Instrument Arrival (STAR).

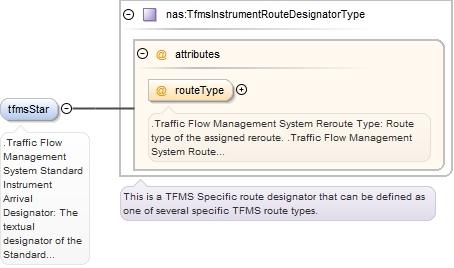

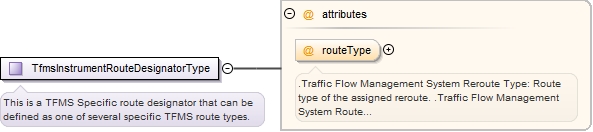

Diagram
Diagram nas.tmp#TfmsInstrumentRouteDesignatorType_routeType nas.tmp#TfmsInstrumentRouteDesignatorType
Type nas:TfmsInstrumentRouteDesignatorType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source
<element name="tfmsStar" type="nas:TfmsInstrumentRouteDesignatorType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Traffic Flow Management System Standard Instrument Arrival Designator: The textual designator of the Standard Instrument Arrival (STAR).</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasArrival
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#NasArrivalType_arrivalPoint nas.tmp#NasArrivalType_arrivalSlot nas.tmp#NasArrivalType_holdStatus nas.tmp#NasArrivalType_scheduledInBlockTime nas.tmp#NasArrivalType_slotYielded nas.tmp#NasArrivalType_arrivalCenter nas.tmp#NasArrivalType_runwayArrivalTime nas.tmp#NasArrivalType_starTransitionFix nas.tmp#NasArrivalType_tfmsStar nas.tmp#NasArrivalType
Type nas:NasArrivalType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • Feature
Model nas:arrivalCenter{0,1} , nas:runwayArrivalTime{0,1} , nas:starTransitionFix{0,1} , nas:tfmsStar{0,1}
Children nas:arrivalCenter, nas:runwayArrivalTime, nas:starTransitionFix, nas:tfmsStar
Instance
<nas:NasArrival>
  <nas:arrivalCenter>{0,1}</nas:arrivalCenter>
  <nas:runwayArrivalTime>{0,1}</nas:runwayArrivalTime>
  <nas:starTransitionFix>{0,1}</nas:starTransitionFix>
  <nas:tfmsStar>{0,1}</nas:tfmsStar>
</nas:NasArrival>
Source
<element name="NasArrival" type="nas:NasArrivalType" substitutionGroup="fb:Feature"/>
[ top ]

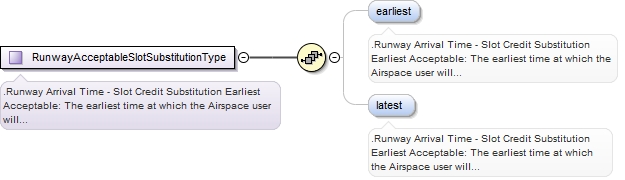

Element nas:RunwayAcceptableSlotSubstitution
Namespace http://www.faa.aero/nas/3.1

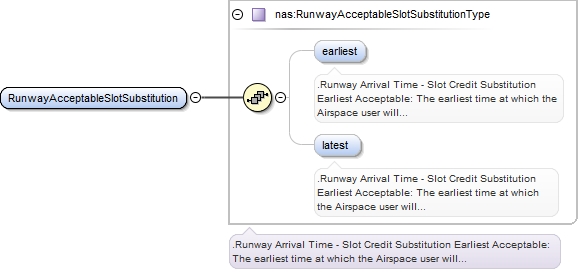

Diagram
Diagram nas.tmp#RunwayAcceptableSlotSubstitutionType_earliest nas.tmp#RunwayAcceptableSlotSubstitutionType_latest nas.tmp#RunwayAcceptableSlotSubstitutionType
Type nas:RunwayAcceptableSlotSubstitutionType
Properties
content: complex
Model nas:earliest{0,1} , nas:latest{0,1}
Children nas:earliest, nas:latest
Instance
<nas:RunwayAcceptableSlotSubstitution>
  <nas:earliest>{0,1}</nas:earliest>
  <nas:latest>{0,1}</nas:latest>
</nas:RunwayAcceptableSlotSubstitution>
Source
<element name="RunwayAcceptableSlotSubstitution" type="nas:RunwayAcceptableSlotSubstitutionType"/>
[ top ]
Element nas:RunwayArrivalTime
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#RunwayArrivalTimeType_airlineActual nas.tmp#RunwayArrivalTimeType_airlineEstimated nas.tmp#RunwayArrivalTimeType_earliest nas.tmp#RunwayArrivalTimeType_original nas.tmp#RunwayArrivalTimeType_preferred nas.tmp#RunwayArrivalTimeType_slotSubstitution nas.tmp#RunwayArrivalTimeType_tfmsEstimated nas.tmp#RunwayArrivalTimeType
Type nas:RunwayArrivalTimeType
Properties
content: complex
Model nas:airlineActual{0,1} , nas:airlineEstimated{0,1} , nas:earliest{0,1} , nas:original{0,1} , nas:preferred{0,1} , nas:slotSubstitution{0,1} , nas:tfmsEstimated{0,1}
Children nas:airlineActual, nas:airlineEstimated, nas:earliest, nas:original, nas:preferred, nas:slotSubstitution, nas:tfmsEstimated
Instance
<nas:RunwayArrivalTime>
  <nas:airlineActual>{0,1}</nas:airlineActual>
  <nas:airlineEstimated>{0,1}</nas:airlineEstimated>
  <nas:earliest>{0,1}</nas:earliest>
  <nas:original>{0,1}</nas:original>
  <nas:preferred>{0,1}</nas:preferred>
  <nas:slotSubstitution>{0,1}</nas:slotSubstitution>
  <nas:tfmsEstimated>{0,1}</nas:tfmsEstimated>
</nas:RunwayArrivalTime>
Source
<element name="RunwayArrivalTime" type="nas:RunwayArrivalTimeType"/>
[ top ]

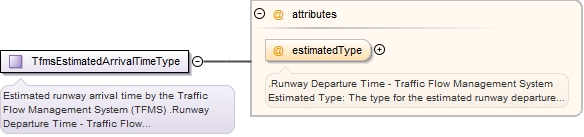

Element nas:TfmsEstimatedArrivalTime
Namespace http://www.faa.aero/nas/3.1

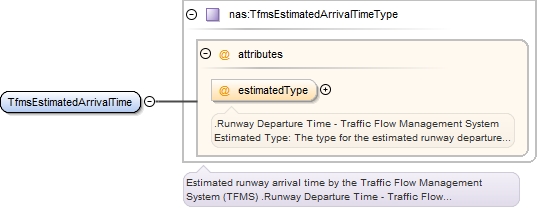

Diagram
Diagram nas.tmp#TfmsEstimatedArrivalTimeType_estimatedType nas.tmp#TfmsEstimatedArrivalTimeType
Type nas:TfmsEstimatedArrivalTimeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • ReportedTime
Source
<element name="TfmsEstimatedArrivalTime" type="nas:TfmsEstimatedArrivalTimeType" substitutionGroup="fb:ReportedTime"/>
[ top ]

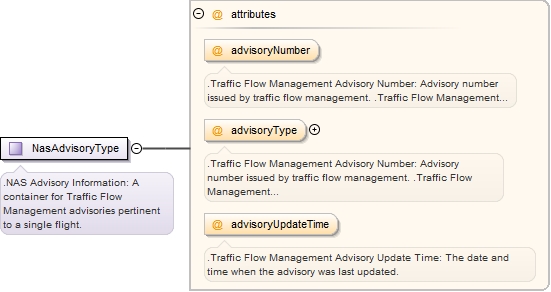

Element nas:NasAdvisory
Namespace http://www.faa.aero/nas/3.1

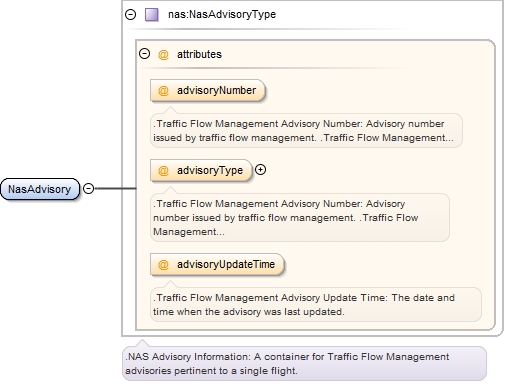

Diagram
Diagram nas.tmp#NasAdvisoryType_advisoryNumber nas.tmp#NasAdvisoryType_advisoryType nas.tmp#NasAdvisoryType_advisoryUpdateTime nas.tmp#NasAdvisoryType
Type nas:NasAdvisoryType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
advisoryNumber FreeTextType optional
.Traffic Flow Management Advisory Number: Advisory number issued by traffic flow
management.
.Traffic Flow Management Advisory Type: The type for the advisory issued by traffic
flow management.

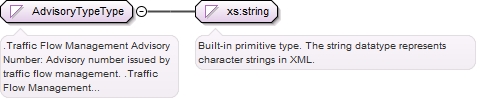

advisoryType nas:AdvisoryTypeType optional
.Traffic Flow Management Advisory Number: Advisory number issued by traffic flow
management.
.Traffic Flow Management Advisory Type: The type for the advisory issued by traffic
flow management.
advisoryUpdateTime TimeType optional
.Traffic Flow Management Advisory Update Time: The date and time when the advisory
was last updated.
Source
<element name="NasAdvisory" type="nas:NasAdvisoryType"/>
[ top ]

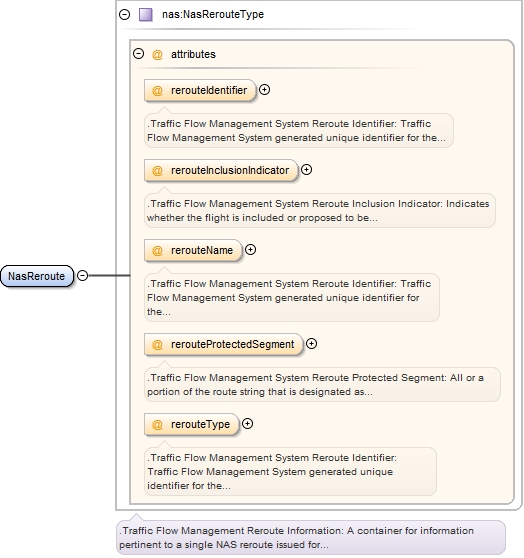

Element nas:NasReroute
Namespace http://www.faa.aero/nas/3.1
Diagram

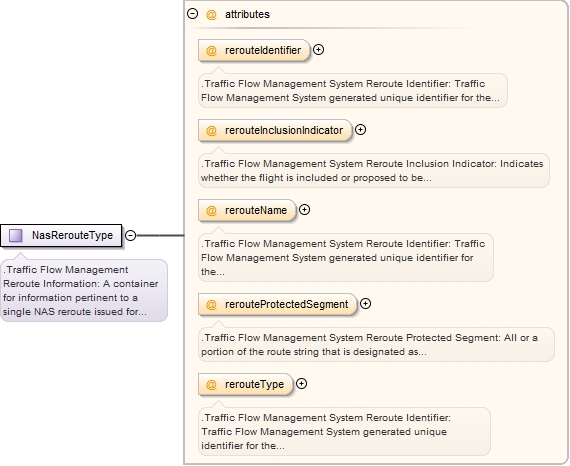

Diagram nas.tmp#NasRerouteType_rerouteIdentifier nas.tmp#NasRerouteType_rerouteInclusionIndicator nas.tmp#NasRerouteType_rerouteName nas.tmp#NasRerouteType_rerouteProtectedSegment nas.tmp#NasRerouteType_rerouteType nas.tmp#NasRerouteType
Type nas:NasRerouteType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
rerouteIdentifier restriction of FreeTextType optional
.Traffic Flow Management System Reroute Identifier: Traffic Flow Management System
generated unique identifier for the reroute.
.Traffic Flow Management System Reroute Name: Traffic Flow Management System assigned
name for the reroute.
.Traffic Flow Management System Reroute Type: Route type of the assigned reroute.
rerouteInclusionIndicator nas:RerouteInclusionIndicatorType optional
.Traffic Flow Management System Reroute Inclusion Indicator: Indicates whether the
flight is included or proposed to be included in the traffic management reroute initiative.
rerouteName restriction of FreeTextType optional
.Traffic Flow Management System Reroute Identifier: Traffic Flow Management System
generated unique identifier for the reroute.
.Traffic Flow Management System Reroute Name: Traffic Flow Management System assigned
name for the reroute.
.Traffic Flow Management System Reroute Type: Route type of the assigned reroute.
rerouteProtectedSegment restriction of FreeTextType optional
.Traffic Flow Management System Reroute Protected Segment: All or a portion of the
route string that is designated as the protected portion.

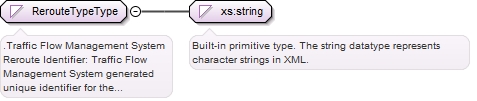

rerouteType nas:RerouteTypeType optional
.Traffic Flow Management System Reroute Identifier: Traffic Flow Management System
generated unique identifier for the reroute.
.Traffic Flow Management System Reroute Name: Traffic Flow Management System assigned
name for the reroute.
.Traffic Flow Management System Reroute Type: Route type of the assigned reroute.

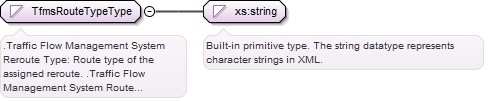

.Traffic Flow Management System Route Type: Provides the route type for a Departure
Procedure or a Standard Instrument Arrival
Source
<element name="NasReroute" type="nas:NasRerouteType"/>
[ top ]

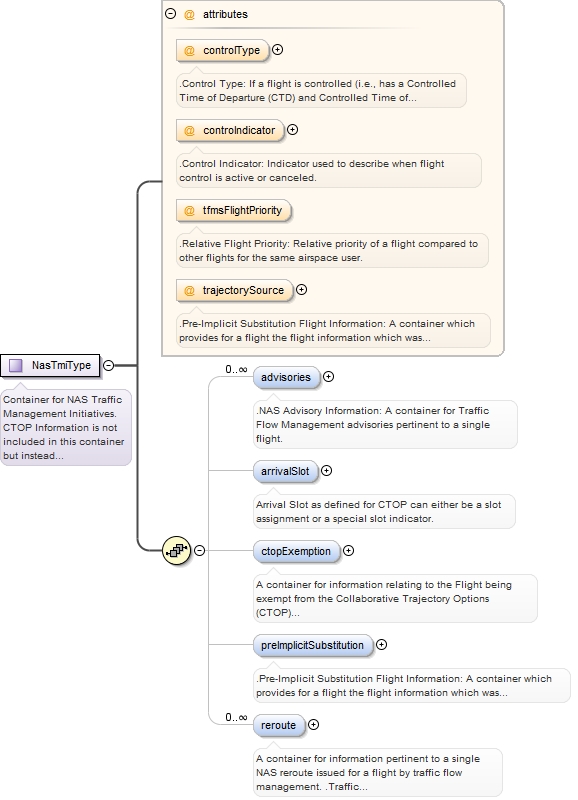

Element nas:NasTmiType / nas:advisories
Namespace http://www.faa.aero/nas/3.1
Annotations
.NAS Advisory Information: A container for Traffic Flow Management advisories pertinent
to a single flight.
Diagram
Diagram nas.tmp#NasAdvisoryType_advisoryNumber nas.tmp#NasAdvisoryType_advisoryType nas.tmp#NasAdvisoryType_advisoryUpdateTime nas.tmp#NasAdvisoryType
Type nas:NasAdvisoryType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
advisoryNumber FreeTextType optional
.Traffic Flow Management Advisory Number: Advisory number issued by traffic flow
management.
.Traffic Flow Management Advisory Type: The type for the advisory issued by traffic
flow management.
advisoryType nas:AdvisoryTypeType optional
.Traffic Flow Management Advisory Number: Advisory number issued by traffic flow
management.
.Traffic Flow Management Advisory Type: The type for the advisory issued by traffic
flow management.
advisoryUpdateTime TimeType optional
.Traffic Flow Management Advisory Update Time: The date and time when the advisory
was last updated.
Source
<element name="advisories" type="nas:NasAdvisoryType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>.NAS Advisory Information: A container for Traffic Flow Management advisories pertinent to a single flight.</documentation>
  </annotation>
</element>
[ top ]

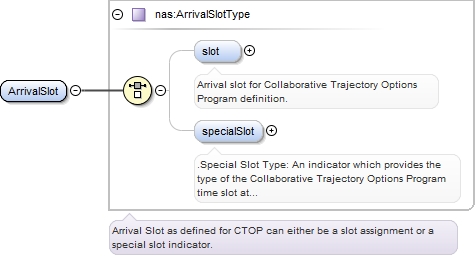

Element nas:NasTmiType / nas:arrivalSlot
Namespace http://www.faa.aero/nas/3.1
Annotations
Arrival Slot as defined for CTOP can either be a slot assignment or a special slot
indicator.

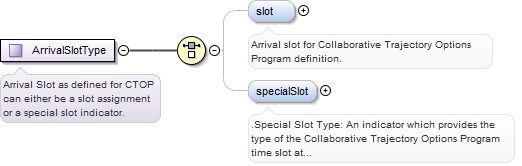

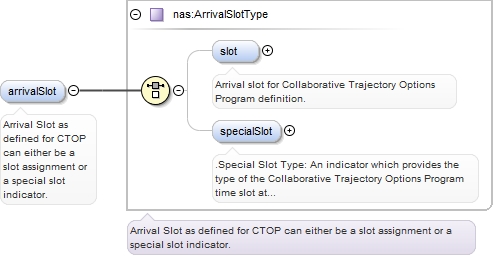

Diagram
Diagram nas.tmp#ArrivalSlotType_slot nas.tmp#ArrivalSlotType_specialSlot nas.tmp#ArrivalSlotType
Type nas:ArrivalSlotType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:slot{0,1} | nas:specialSlot{0,1}
Children nas:slot, nas:specialSlot
Instance
<nas:arrivalSlot>
  <nas:slot>{0,1}</nas:slot>
  <nas:specialSlot>{0,1}</nas:specialSlot>
</nas:arrivalSlot>
Source
<element name="arrivalSlot" type="nas:ArrivalSlotType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Arrival Slot as defined for CTOP can either be a slot assignment or a special slot indicator.</documentation>
  </annotation>
</element>
[ top ]
Element nas:ArrivalSlotType / nas:slot
Namespace http://www.faa.aero/nas/3.1
Annotations
Arrival slot for Collaborative Trajectory Options Program definition.

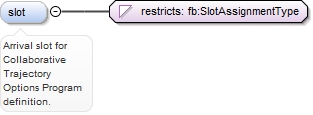

Diagram
Diagram
Type restriction of SlotAssignmentType
Type hierarchy
  • SlotAssignmentType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="slot" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Arrival slot for Collaborative Trajectory Options Program definition.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:SlotAssignmentType">
      <pattern value="[a-zA-Z0-9]{6}[.]{1}[0-9]{12}[a-zA-Z]{1}|NOSLOT"/>
    </restriction>
  </simpleType>
</element>
[ top ]
Element nas:ArrivalSlotType / nas:specialSlot
Namespace http://www.faa.aero/nas/3.1
Annotations
.Special Slot Type: An indicator which provides the type of the Collaborative Trajectory
Options Program time slot at an airspace entry point.

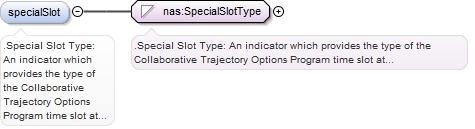

Diagram

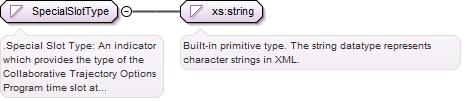

Diagram nas.tmp#SpecialSlotType
Type nas:SpecialSlotType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
enumeration PURGED
enumeration REMOVED
Source
<element name="specialSlot" type="nas:SpecialSlotType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Special Slot Type: An indicator which provides the type of the Collaborative Trajectory Options Program time slot at an airspace entry point.</documentation>
  </annotation>
</element>
[ top ]

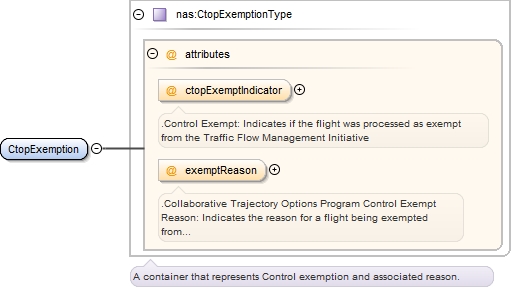

Element nas:NasTmiType / nas:ctopExemption
Namespace http://www.faa.aero/nas/3.1
Annotations
A container for information relating to the Flight being exempt from the Collaborative
Trajectory Options (CTOP) program control.

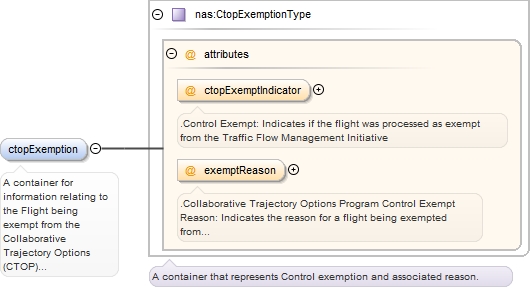

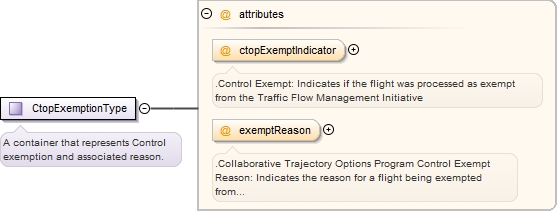

Diagram
Diagram nas.tmp#CtopExemptionType_ctopExemptIndicator nas.tmp#CtopExemptionType_exemptReason nas.tmp#CtopExemptionType
Type nas:CtopExemptionType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
ctopExemptIndicator nas:CtopExemptIndicatorType optional
.Control Exempt: Indicates if the flight was processed as exempt from the Traffic
Flow Management Initiative

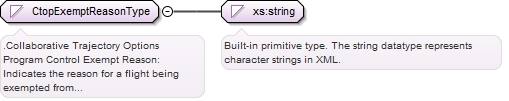

exemptReason nas:CtopExemptReasonType optional
.Collaborative Trajectory Options Program Control Exempt Reason: Indicates the reason
for a flight being exempted from the Collaborative Trajectory Options Program
Source
<element name="ctopExemption" type="nas:CtopExemptionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A container for information relating to the Flight being exempt from the Collaborative Trajectory Options (CTOP) program control.</documentation>
  </annotation>
</element>
[ top ]

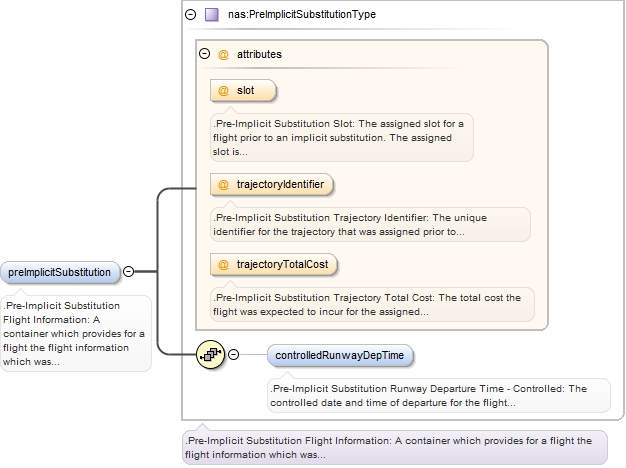

Element nas:NasTmiType / nas:preImplicitSubstitution
Namespace http://www.faa.aero/nas/3.1
Annotations
.Pre-Implicit Substitution Flight Information: A container which provides for a flight
the flight information which was valid prior to an implicit substitution

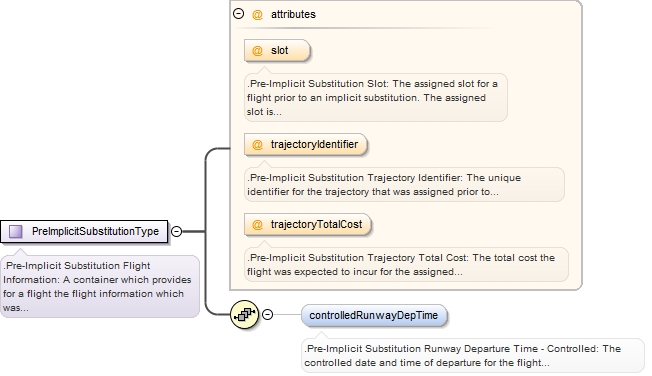

Diagram
Diagram nas.tmp#PreImplicitSubstitutionType_slot nas.tmp#PreImplicitSubstitutionType_trajectoryIdentifier nas.tmp#PreImplicitSubstitutionType_trajectoryTotalCost nas.tmp#PreImplicitSubstitutionType_controlledRunwayDepTime nas.tmp#PreImplicitSubstitutionType
Type nas:PreImplicitSubstitutionType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:controlledRunwayDepTime{0,1}
Children nas:controlledRunwayDepTime
Instance
<nas:preImplicitSubstitution slot="" trajectoryIdentifier="" trajectoryTotalCost="">
  <nas:controlledRunwayDepTime>{0,1}</nas:controlledRunwayDepTime>
</nas:preImplicitSubstitution>
Attributes
QName Type Fixed Default Use Annotation
slot FreeTextType optional
.Pre-Implicit Substitution Slot: The assigned slot for a flight prior to an implicit
substitution. The assigned slot is a time slot at an airport or an airspace entry
point that identifies a point in time when an aircraft is constrained to arrive at
the airport or airspace entry point.
trajectoryIdentifier CountType optional
.Pre-Implicit Substitution Trajectory Identifier: The unique identifier for the trajectory
that was assigned prior to implicit substitution.
trajectoryTotalCost CountType optional
.Pre-Implicit Substitution Trajectory Total Cost: The total cost the flight was expected
to incur for the assigned trajectory option prior to implicit substitution. It includes
the Trajectory Relative Cost and the Traffic Flow Management assigned delay for the
assigned trajectory option.
Source
<element name="preImplicitSubstitution" type="nas:PreImplicitSubstitutionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Pre-Implicit Substitution Flight Information: A container which provides for a flight the flight information which was valid prior to an implicit substitution</documentation>
  </annotation>
</element>
[ top ]
Element nas:PreImplicitSubstitutionType / nas:controlledRunwayDepTime
Namespace http://www.faa.aero/nas/3.1
Annotations
.Pre-Implicit Substitution Runway Departure Time - Controlled: The controlled date
and time of departure for the flight that was assigned prior to implicit substitution.The
controlled date and time of departure represents the time at which a flight is required
to take off from the runway as a result of a tactical slot allocation or a Traffic
Management Initiative.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="controlledRunwayDepTime" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Pre-Implicit Substitution Runway Departure Time - Controlled: The controlled date and time of departure for the flight that was assigned prior to implicit substitution.The controlled date and time of departure represents the time at which a flight is required to take off from the runway as a result of a tactical slot allocation or a Traffic Management Initiative.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasTmiType / nas:reroute
Namespace http://www.faa.aero/nas/3.1
Annotations
A container for information pertinent to a single NAS reroute issued for a flight
by traffic flow management.
.Traffic Flow Management Reroute Information: A container for information pertinent
to a single NAS reroute issued for a flight by traffic flow management.

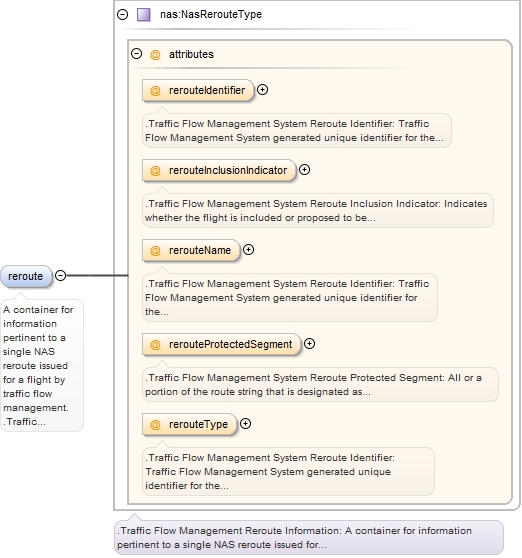

Diagram
Diagram nas.tmp#NasRerouteType_rerouteIdentifier nas.tmp#NasRerouteType_rerouteInclusionIndicator nas.tmp#NasRerouteType_rerouteName nas.tmp#NasRerouteType_rerouteProtectedSegment nas.tmp#NasRerouteType_rerouteType nas.tmp#NasRerouteType
Type nas:NasRerouteType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
rerouteIdentifier restriction of FreeTextType optional
.Traffic Flow Management System Reroute Identifier: Traffic Flow Management System
generated unique identifier for the reroute.
.Traffic Flow Management System Reroute Name: Traffic Flow Management System assigned
name for the reroute.
.Traffic Flow Management System Reroute Type: Route type of the assigned reroute.
rerouteInclusionIndicator nas:RerouteInclusionIndicatorType optional
.Traffic Flow Management System Reroute Inclusion Indicator: Indicates whether the
flight is included or proposed to be included in the traffic management reroute initiative.
rerouteName restriction of FreeTextType optional
.Traffic Flow Management System Reroute Identifier: Traffic Flow Management System
generated unique identifier for the reroute.
.Traffic Flow Management System Reroute Name: Traffic Flow Management System assigned
name for the reroute.
.Traffic Flow Management System Reroute Type: Route type of the assigned reroute.
rerouteProtectedSegment restriction of FreeTextType optional
.Traffic Flow Management System Reroute Protected Segment: All or a portion of the
route string that is designated as the protected portion.
rerouteType nas:RerouteTypeType optional
.Traffic Flow Management System Reroute Identifier: Traffic Flow Management System
generated unique identifier for the reroute.
.Traffic Flow Management System Reroute Name: Traffic Flow Management System assigned
name for the reroute.
.Traffic Flow Management System Reroute Type: Route type of the assigned reroute.

.Traffic Flow Management System Route Type: Provides the route type for a Departure
Procedure or a Standard Instrument Arrival
Source
<element name="reroute" type="nas:NasRerouteType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management. .Traffic Flow Management Reroute Information: A container for information pertinent to a single NAS reroute issued for a flight by traffic flow management.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasTmi
Namespace http://www.faa.aero/nas/3.1

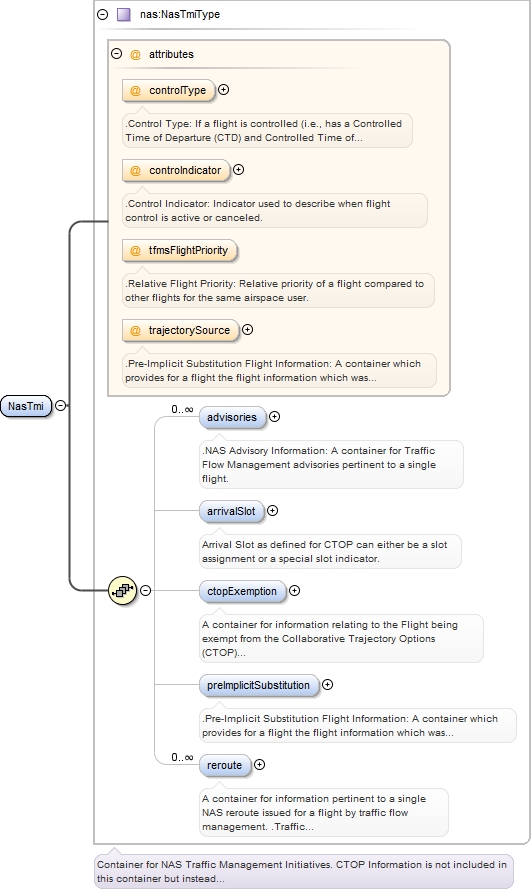

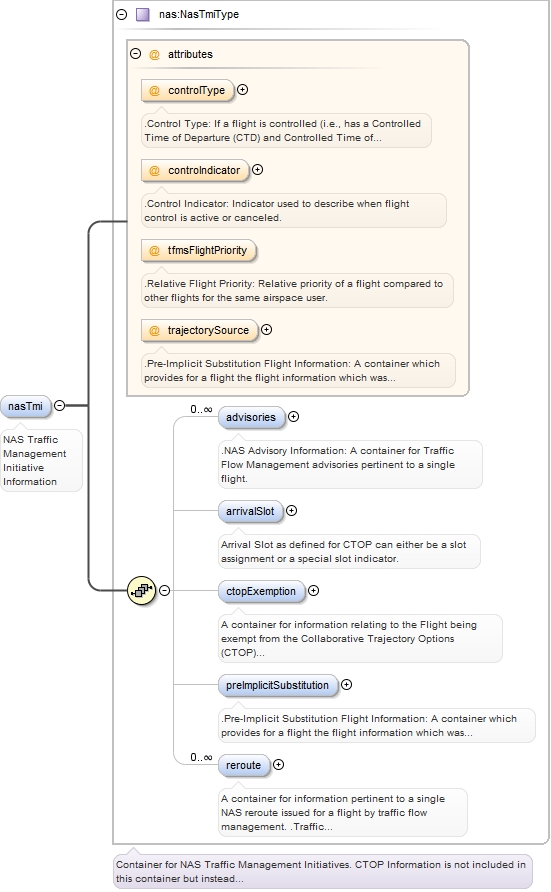

Diagram
Diagram nas.tmp#NasTmiType_controlType nas.tmp#NasTmiType_controlndicator nas.tmp#NasTmiType_tfmsFlightPriority nas.tmp#NasTmiType_trajectorySource nas.tmp#NasTmiType_advisories nas.tmp#NasTmiType_arrivalSlot nas.tmp#NasTmiType_ctopExemption nas.tmp#NasTmiType_preImplicitSubstitution nas.tmp#NasTmiType_reroute nas.tmp#NasTmiType
Type nas:NasTmiType
Properties
content: complex
Model nas:advisories* , nas:arrivalSlot{0,1} , nas:ctopExemption{0,1} , nas:preImplicitSubstitution{0,1} , nas:reroute*
Children nas:advisories, nas:arrivalSlot, nas:ctopExemption, nas:preImplicitSubstitution, nas:reroute
Instance
<nas:NasTmi controlndicator="" controlType="" tfmsFlightPriority="" trajectorySource="">
  <nas:advisories advisoryNumber="" advisoryType="" advisoryUpdateTime="">{0,unbounded}</nas:advisories>
  <nas:arrivalSlot>{0,1}</nas:arrivalSlot>
  <nas:ctopExemption ctopExemptIndicator="" exemptReason="">{0,1}</nas:ctopExemption>
  <nas:preImplicitSubstitution slot="" trajectoryIdentifier="" trajectoryTotalCost="">{0,1}</nas:preImplicitSubstitution>
  <nas:reroute rerouteIdentifier="" rerouteInclusionIndicator="" rerouteName="" rerouteProtectedSegment="" rerouteType="">{0,unbounded}</nas:reroute>
</nas:NasTmi>
Attributes
QName Type Fixed Default Use Annotation
controlType nas:ControlTypeType optional
.Control Type: If a flight is controlled (i.e., has a Controlled Time of Departure
(CTD) and Controlled Time of Arrival(CTA), this element indicates the specific source
of the current control times for this flight.
controlndicator nas:ControlIndicatorType optional
.Control Indicator: Indicator used to describe when flight control is active or canceled.
tfmsFlightPriority CountType optional
.Relative Flight Priority: Relative priority of a flight compared to other flights
for the same airspace user.
trajectorySource nas:TrajectorySourceType optional
.Pre-Implicit Substitution Flight Information: A container which provides for a flight
the flight information which was valid prior to an implicit substitution
Source
<element name="NasTmi" type="nas:NasTmiType"/>
[ top ]
Element nas:ArrivalSlot
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#ArrivalSlotType_slot nas.tmp#ArrivalSlotType_specialSlot nas.tmp#ArrivalSlotType
Type nas:ArrivalSlotType
Properties
content: complex
Model nas:slot{0,1} | nas:specialSlot{0,1}
Children nas:slot, nas:specialSlot
Instance
<nas:ArrivalSlot>
  <nas:slot>{0,1}</nas:slot>
  <nas:specialSlot>{0,1}</nas:specialSlot>
</nas:ArrivalSlot>
Source
<element name="ArrivalSlot" type="nas:ArrivalSlotType"/>
[ top ]
Element nas:ConstrainedAirspaceEntry
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#ConstrainedAirspaceEntryType_earliestAirspaceEntryTime nas.tmp#ConstrainedAirspaceEntryType_impactFca nas.tmp#ConstrainedAirspaceEntryType
Type nas:ConstrainedAirspaceEntryType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
earliestAirspaceEntryTime TimeType optional
.Airspace Entry Time - Earliest: The earliest time the flight could enter the constrained
airspace.
impactFca ConstrainedAirspaceType optional
Contains:
.Airspace Identifier: Unique Identifier for the constrained airspace to be traversed
by the trajectory option.
.Trajectory Airspace Impact: Container for the list of constrained airspace areas
to be traversed by the trajectory option.
Source
<element name="ConstrainedAirspaceEntry" type="nas:ConstrainedAirspaceEntryType"/>
[ top ]
Element nas:CtopExemption
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#CtopExemptionType_ctopExemptIndicator nas.tmp#CtopExemptionType_exemptReason nas.tmp#CtopExemptionType
Type nas:CtopExemptionType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
ctopExemptIndicator nas:CtopExemptIndicatorType optional
.Control Exempt: Indicates if the flight was processed as exempt from the Traffic
Flow Management Initiative
exemptReason nas:CtopExemptReasonType optional
.Collaborative Trajectory Options Program Control Exempt Reason: Indicates the reason
for a flight being exempted from the Collaborative Trajectory Options Program
Source
<element name="CtopExemption" type="nas:CtopExemptionType"/>
[ top ]
Element nas:NasTrajectoryOptionType / nas:constrainedAirspaceEntry
Namespace http://www.faa.aero/nas/3.1
Annotations
Container for NAS Trajectory Option Constraints.
Diagram
Diagram nas.tmp#ConstrainedAirspaceEntryType_earliestAirspaceEntryTime nas.tmp#ConstrainedAirspaceEntryType_impactFca nas.tmp#ConstrainedAirspaceEntryType
Type nas:ConstrainedAirspaceEntryType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
earliestAirspaceEntryTime TimeType optional
.Airspace Entry Time - Earliest: The earliest time the flight could enter the constrained
airspace.
impactFca ConstrainedAirspaceType optional
Contains:
.Airspace Identifier: Unique Identifier for the constrained airspace to be traversed
by the trajectory option.
.Trajectory Airspace Impact: Container for the list of constrained airspace areas
to be traversed by the trajectory option.
Source
<element name="constrainedAirspaceEntry" type="nas:ConstrainedAirspaceEntryType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Container for NAS Trajectory Option Constraints.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasTrajectoryOption
Namespace http://www.faa.aero/nas/3.1
Diagram

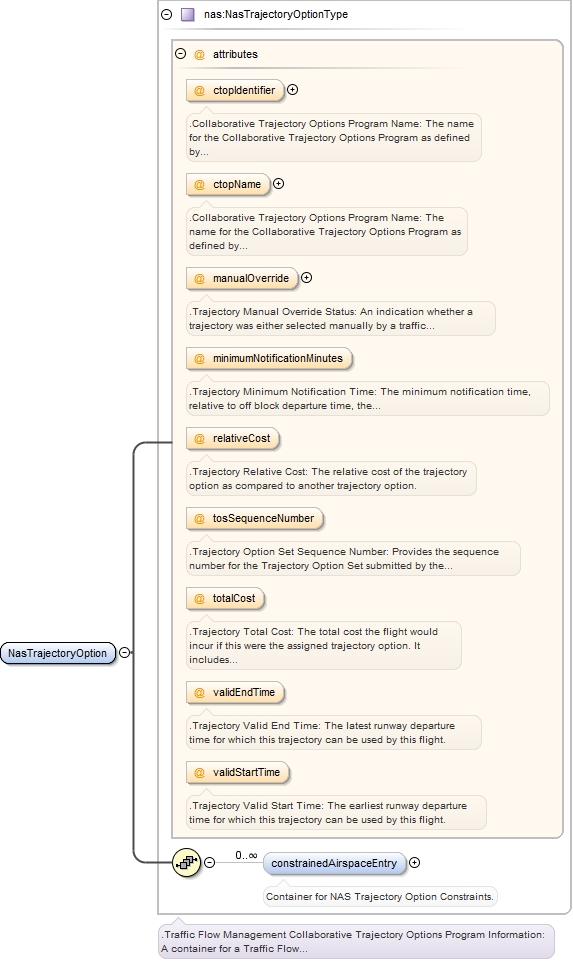

Diagram nas.tmp#NasTrajectoryOptionType_ctopIdentifier nas.tmp#NasTrajectoryOptionType_ctopName nas.tmp#NasTrajectoryOptionType_manualOverride nas.tmp#NasTrajectoryOptionType_minimumNotificationMinutes nas.tmp#NasTrajectoryOptionType_relativeCost nas.tmp#NasTrajectoryOptionType_tosSequenceNumber nas.tmp#NasTrajectoryOptionType_totalCost nas.tmp#NasTrajectoryOptionType_validEndTime nas.tmp#NasTrajectoryOptionType_validStartTime nas.tmp#NasTrajectoryOptionType_constrainedAirspaceEntry nas.tmp#NasTrajectoryOptionType
Type nas:NasTrajectoryOptionType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • RankedTrajectory
Model nas:constrainedAirspaceEntry*
Children nas:constrainedAirspaceEntry
Instance
<nas:NasTrajectoryOption>
  <nas:constrainedAirspaceEntry earliestAirspaceEntryTime="" impactFca="">{0,unbounded}</nas:constrainedAirspaceEntry>
</nas:NasTrajectoryOption>
Source
<element name="NasTrajectoryOption" type="nas:NasTrajectoryOptionType" substitutionGroup="fx:RankedTrajectory"/>
[ top ]
Element nas:PreImplicitSubstitution
Namespace http://www.faa.aero/nas/3.1
Diagram
Diagram nas.tmp#PreImplicitSubstitutionType_slot nas.tmp#PreImplicitSubstitutionType_trajectoryIdentifier nas.tmp#PreImplicitSubstitutionType_trajectoryTotalCost nas.tmp#PreImplicitSubstitutionType_controlledRunwayDepTime nas.tmp#PreImplicitSubstitutionType
Type nas:PreImplicitSubstitutionType
Properties
content: complex
Model nas:controlledRunwayDepTime{0,1}
Children nas:controlledRunwayDepTime
Instance
<nas:PreImplicitSubstitution slot="" trajectoryIdentifier="" trajectoryTotalCost="">
  <nas:controlledRunwayDepTime>{0,1}</nas:controlledRunwayDepTime>
</nas:PreImplicitSubstitution>
Attributes
QName Type Fixed Default Use Annotation
slot FreeTextType optional
.Pre-Implicit Substitution Slot: The assigned slot for a flight prior to an implicit
substitution. The assigned slot is a time slot at an airport or an airspace entry
point that identifies a point in time when an aircraft is constrained to arrive at
the airport or airspace entry point.
trajectoryIdentifier CountType optional
.Pre-Implicit Substitution Trajectory Identifier: The unique identifier for the trajectory
that was assigned prior to implicit substitution.
trajectoryTotalCost CountType optional
.Pre-Implicit Substitution Trajectory Total Cost: The total cost the flight was expected
to incur for the assigned trajectory option prior to implicit substitution. It includes
the Trajectory Relative Cost and the Traffic Flow Management assigned delay for the
assigned trajectory option.
Source
<element name="PreImplicitSubstitution" type="nas:PreImplicitSubstitutionType"/>
[ top ]
Element nas:NasHandoffType / nas:acceptingUnit
Namespace http://www.faa.aero/nas/3.1
Annotations
.Handoff Accepting Unit: The Air Traffic Control (ATC) unit accepting control of
the aircraft as a result of a handoff.
.Handoff Accepting Sector: The Air Traffic Control (ATC) sector accepting control
of the aircraft as a result of a handoff.
Diagram
Diagram
Type AtcUnitReferenceType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="acceptingUnit" type="fb:AtcUnitReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Handoff Accepting Unit: The Air Traffic Control (ATC) unit accepting control of the aircraft as a result of a handoff. .Handoff Accepting Sector: The Air Traffic Control (ATC) sector accepting control of the aircraft as a result of a handoff.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasHandoff
Namespace http://www.faa.aero/nas/3.1

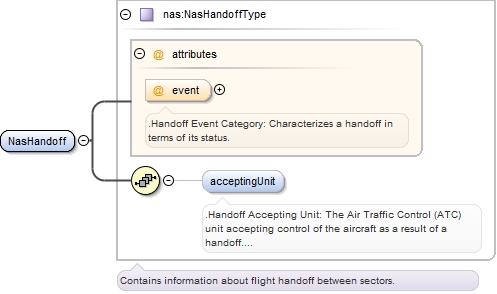

Diagram

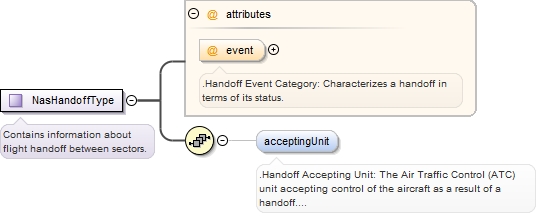

Diagram nas.tmp#NasHandoffType_event nas.tmp#NasHandoffType_acceptingUnit nas.tmp#NasHandoffType
Type nas:NasHandoffType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • Handoff
Model nas:acceptingUnit{0,1}
Children nas:acceptingUnit
Instance
<nas:NasHandoff>
  <nas:acceptingUnit>{0,1}</nas:acceptingUnit>
</nas:NasHandoff>
Source
<element name="NasHandoff" type="nas:NasHandoffType" substitutionGroup="fx:Handoff"/>
[ top ]
Element nas:NasUnitBoundaryType / nas:boundaryCrossingActual
Namespace http://www.faa.aero/nas/3.1
Annotations
Container for the Actual Boundary Crossing Attributes
.Boundary Crossing Time - Actual: The actual time at which a flight crosses the associated
boundary crossing point.
.Boundary Crossing Position - Actual: The actual boundary crossing point inbound
to the Air Route Traffic Control Center (ARTCC) for the flight.
Diagram
Diagram
Type BoundaryCrossingType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="boundaryCrossingActual" type="fx:BoundaryCrossingType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Container for the Actual Boundary Crossing Attributes .Boundary Crossing Time - Actual: The actual time at which a flight crosses the associated boundary crossing point. .Boundary Crossing Position - Actual: The actual boundary crossing point inbound to the Air Route Traffic Control Center (ARTCC) for the flight.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasUnitBoundary
Namespace http://www.faa.aero/nas/3.1

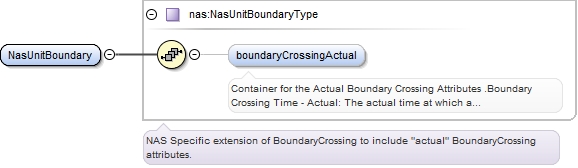

Diagram
Diagram nas.tmp#NasUnitBoundaryType_boundaryCrossingActual nas.tmp#NasUnitBoundaryType
Type nas:NasUnitBoundaryType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
  • AtcUnitReference
Model nas:boundaryCrossingActual{0,1}
Children nas:boundaryCrossingActual
Instance
<nas:NasUnitBoundary>
  <nas:boundaryCrossingActual>{0,1}</nas:boundaryCrossingActual>
</nas:NasUnitBoundary>
Source
<element name="NasUnitBoundary" type="nas:NasUnitBoundaryType" substitutionGroup="fb:AtcUnitReference"/>
[ top ]
Element nas:NasDepartureType / nas:departureCenter
Namespace http://www.faa.aero/nas/3.1
Annotations
.Departure Center: Indicates the Air Route Traffic Control Center (ARTCC) for the
departure point for a flight.
Diagram
Diagram
Type AtcUnitReferenceType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="departureCenter" type="fb:AtcUnitReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Departure Center: Indicates the Air Route Traffic Control Center (ARTCC) for the departure point for a flight.</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasDepartureType / nas:departureProcedureTransitionFix
Namespace http://www.faa.aero/nas/3.1
Annotations
.Departure Procedure Transition Fix: The name for the Departure Procedure Transition
Fix
Diagram
Diagram
Type SignificantPointType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="departureProcedureTransitionFix" type="fb:SignificantPointType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Departure Procedure Transition Fix: The name for the Departure Procedure Transition Fix</documentation>
  </annotation>
</element>
[ top ]
Element nas:NasDepartureType / nas:runwayDepartureTime
Namespace http://www.faa.aero/nas/3.1
Annotations
Container for NAS Specific Runway Departure Times.

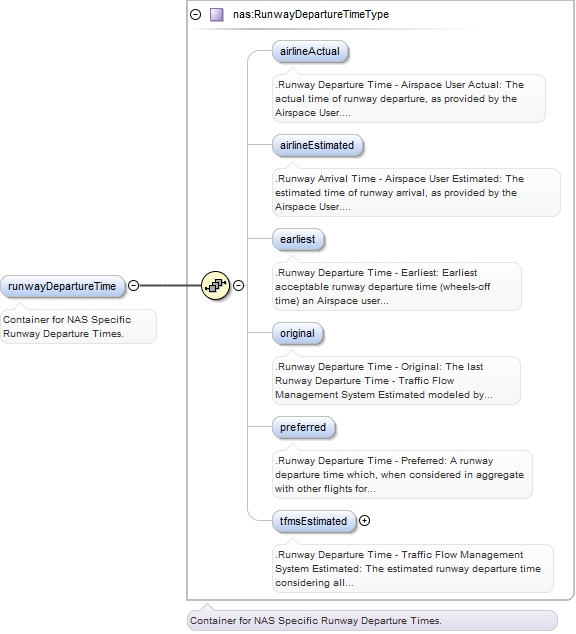

Diagram

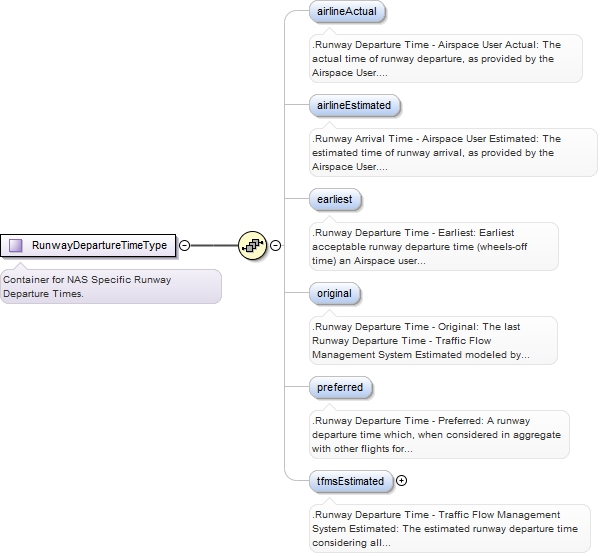

Diagram nas.tmp#RunwayDepartureTimeType_airlineActual nas.tmp#RunwayDepartureTimeType_airlineEstimated nas.tmp#RunwayDepartureTimeType_earliest nas.tmp#RunwayDepartureTimeType_original nas.tmp#RunwayDepartureTimeType_preferred nas.tmp#RunwayDepartureTimeType_tfmsEstimated nas.tmp#RunwayDepartureTimeType
Type nas:RunwayDepartureTimeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model nas:airlineActual{0,1} , nas:airlineEstimated{0,1} , nas:earliest{0,1} , nas:original{0,1} , nas:preferred{0,1} , nas:tfmsEstimated{0,1}
Children nas:airlineActual, nas:airlineEstimated, nas:earliest, nas:original, nas:preferred, nas:tfmsEstimated
Instance
<nas:runwayDepartureTime>
  <nas:airlineActual>{0,1}</nas:airlineActual>
  <nas:airlineEstimated>{0,1}</nas:airlineEstimated>
  <nas:earliest>{0,1}</nas:earliest>
  <nas:original>{0,1}</nas:original>
  <nas:preferred>{0,1}</nas:preferred>
  <nas:tfmsEstimated>{0,1}</nas:tfmsEstimated>
</nas:runwayDepartureTime>
Source
<element name="runwayDepartureTime" type="nas:RunwayDepartureTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Container for NAS Specific Runway Departure Times.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayDepartureTimeType / nas:airlineActual
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Departure Time - Airspace User Actual: The actual time of runway departure,
as provided by the Airspace User.
.Runway Arrival Time - Airspace User Actual: The actual time of runway arrival, as
provided by the Airspace User.
.Runway Departure Time - Airspace User Estimated: The estimated time of runway departure,
as provided by the Airspace User.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="airlineActual" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>.Runway Departure Time - Airspace User Actual: The actual time of runway departure, as provided by the Airspace User. .Runway Arrival Time - Airspace User Actual: The actual time of runway arrival, as provided by the Airspace User. .Runway Departure Time - Airspace User Estimated: The estimated time of runway departure, as provided by the Airspace User.</documentation>
  </annotation>
</element>
[ top ]
Element nas:RunwayDepartureTimeType / nas:airlineEstimated
Namespace http://www.faa.aero/nas/3.1
Annotations
.Runway Arrival Time - Airspace User Estimated: The estimated time of runway arrival,
as provided by the Airspace User.
.Runway Departure Time - Airspace User Actual: The actual time of runway departure,
as provided by the Airspace User.
.Runway Departure Time - Airspace User Estimated: The estimated time of runway departure,
as provided by the Airspace User.
Diagram
Diagram
Type ReportedTimeType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<element name="airlineEstimated" type="fb:ReportedTimeType" minOccurs="0" maxOccurs="1">
