This package defines the ranked trajectory information.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.1.0

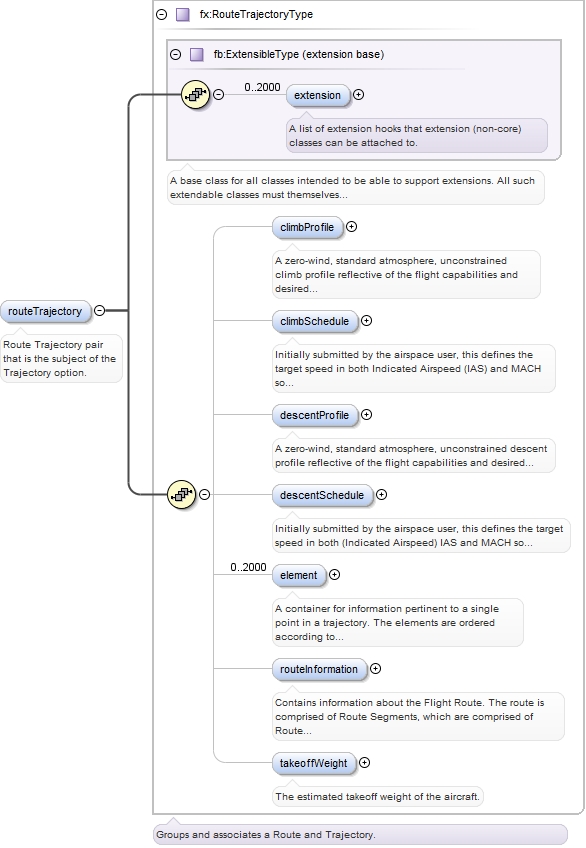

Element fx:RankedTrajectoryType / fx:routeTrajectory
Namespace http://www.fixm.aero/flight/4.1
Annotations

Route Trajectory pair that is the subject of the Trajectory option.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_element RouteTrajectory_xsd.tmp#RouteTrajectoryType_routeInformation RouteTrajectory_xsd.tmp#RouteTrajectoryType_takeoffWeight RouteTrajectory_xsd.tmp#RouteTrajectoryType
Type fx:RouteTrajectoryType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fx:climbProfile{0,1} , fx:climbSchedule{0,1} , fx:descentProfile{0,1} , fx:descentSchedule{0,1} , fx:element{0,2000} , fx:routeInformation{0,1} , fx:takeoffWeight{0,1}
Children fb:extension, fx:climbProfile, fx:climbSchedule, fx:descentProfile, fx:descentSchedule, fx:element, fx:routeInformation, fx:takeoffWeight
Instance

<fx:routeTrajectory>
  <fb:extension>{0,2000}</fb:extension>
  <fx:climbProfile>{0,1}</fx:climbProfile>
  <fx:climbSchedule>{0,1}</fx:climbSchedule>
  <fx:descentProfile>{0,1}</fx:descentProfile>
  <fx:descentSchedule>{0,1}</fx:descentSchedule>
  <fx:element flightRulesChange="" modified="" modifiedRouteItemReference="" routeTerminationIndicator="" routeTruncationIndicator="" seqNum="">{0,2000}</fx:element>
  <fx:routeInformation airfileRouteStartTime="" flightRulesCategory="" routeText="" totalEstimatedElapsedTime="">{0,1}</fx:routeInformation>
  <fx:takeoffWeight uom="">{0,1}</fx:takeoffWeight>
</fx:routeTrajectory>
Source

<element name="routeTrajectory" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Route Trajectory pair that is the subject of the Trajectory option.</documentation>
  </annotation>
</element>

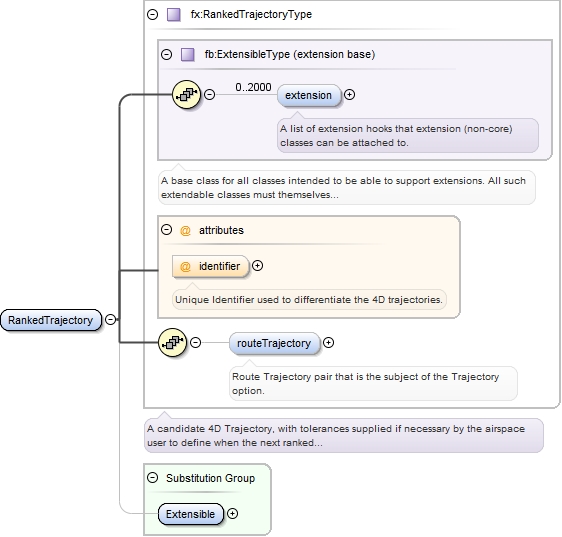

Element fx:RankedTrajectory
Namespace http://www.fixm.aero/flight/4.1
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RankedTrajectory_xsd.tmp#RankedTrajectoryType_identifier RankedTrajectory_xsd.tmp#RankedTrajectoryType_routeTrajectory RankedTrajectory_xsd.tmp#RankedTrajectoryType Extension_xsd.tmp#Extensible
Type fx:RankedTrajectoryType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fb:extension{0,2000} , fx:routeTrajectory{0,1}
Children fb:extension, fx:routeTrajectory
Instance

<fx:RankedTrajectory identifier="">
  <fb:extension>{0,2000}</fb:extension>
  <fx:routeTrajectory>{0,1}</fx:routeTrajectory>
</fx:RankedTrajectory>
Attributes
QName Type Fixed Default Use Annotation
identifier restriction of fb:CharacterStringType optional
Unique Identifier used to differentiate the 4D trajectories.
Source

<element name="RankedTrajectory" type="fx:RankedTrajectoryType" substitutionGroup="fb:Extensible"/>

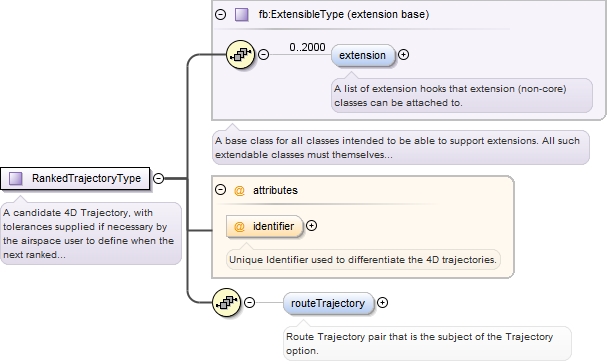

Complex Type fx:RankedTrajectoryType
Namespace http://www.fixm.aero/flight/4.1
Annotations

A candidate 4D Trajectory, with tolerances supplied if necessary by the airspace
user to define when the next ranked trajectory should be used.
This is the route associated with a single Ranked 4D trajectory for a flight.  It
indicates the intent of the flight and includes the path over the surface of the
earth, the altitude and the speed for the flight.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType RankedTrajectory_xsd.tmp#RankedTrajectoryType_identifier RankedTrajectory_xsd.tmp#RankedTrajectoryType_routeTrajectory
Type extension of fb:ExtensibleType
Type hierarchy
Used by
Model fb:extension{0,2000} , fx:routeTrajectory{0,1}
Children fb:extension, fx:routeTrajectory
Attributes
QName Type Fixed Default Use Annotation
identifier restriction of fb:CharacterStringType optional
Unique Identifier used to differentiate the 4D trajectories.
Source

<complexType name="RankedTrajectoryType">
  <annotation>
    <documentation>A candidate 4D Trajectory, with tolerances supplied if necessary by the airspace user to define when the next ranked trajectory should be used. This is the route associated with a single Ranked 4D trajectory for a flight. It indicates the intent of the flight and includes the path over the surface of the earth, the altitude and the speed for the flight.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensibleType">
      <sequence>
        <element name="routeTrajectory" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Route Trajectory pair that is the subject of the Trajectory option.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="identifier" use="optional">
        <annotation>
          <documentation>Unique Identifier used to differentiate the 4D trajectories.</documentation>
        </annotation>
        <simpleType>
          <restriction base="fb:CharacterStringType">
            <pattern value="[0-9]{1,2}"/>
          </restriction>
        </simpleType>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fx:RankedTrajectoryType / @identifier
Namespace No namespace
Annotations

Unique Identifier used to differentiate the 4D trajectories.
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [0-9]{1,2}
Used by
Source

<attribute name="identifier" use="optional">
  <annotation>
    <documentation>Unique Identifier used to differentiate the 4D trajectories.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="[0-9]{1,2}"/>
    </restriction>
  </simpleType>
</attribute>
