Included schema IcaoChgMessage.xsd
Namespace http://www.fixm.aero/icao/1.0
Annotations

Copyright (c) 2017 Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA,
       International Coordinating Council of Aerospace Industries Associations, JCAB, NATS
       Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the
       following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions
  and the disclaimer in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, GCAA UAE, IATA, International Coordinating
  Council of Aerospace Industries Associations, JCAB, NATS Limited, NAV CANADA, SESAR Joint Undertaking &
  US FAA nor the names of their contributors may be used to endorse or promote products derived from this
  specification without specific prior written permission.

       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the UAE GCAA: https://www.gcaa.gov.ae
       Details on the ICCAIA: www.iccaia.org
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

This package provides support for Support for ICAO CHG Message. Supports the fields
of previous ACID, departure aerodrome, destination aerodrome, and EOBT with DOF.
Properties
attribute form default: unqualified
element form default: qualified
version: 1.0.0

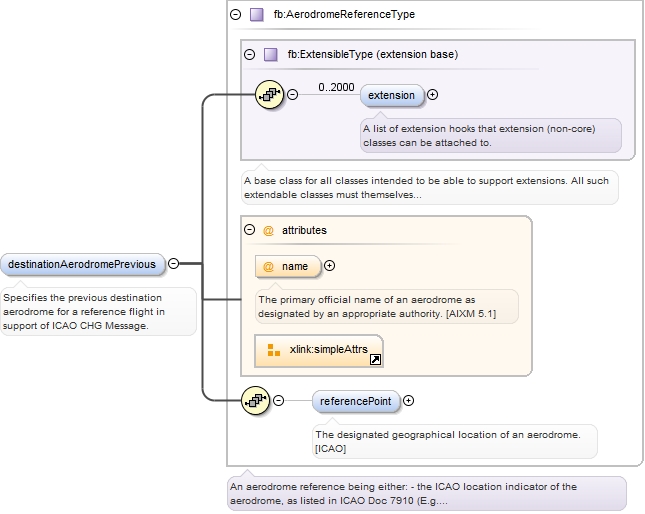

Element icao:IcaoChgArrivalType / icao:destinationAerodromePrevious
Namespace http://www.fixm.aero/icao/1.0
Annotations

Specifies the previous destination aerodrome for a reference flight in support of
ICAO CHG Message.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<icao:destinationAerodromePrevious name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</icao:destinationAerodromePrevious>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="destinationAerodromePrevious" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Specifies the previous destination aerodrome for a reference flight in support of ICAO CHG Message.</documentation>
  </annotation>
</element>

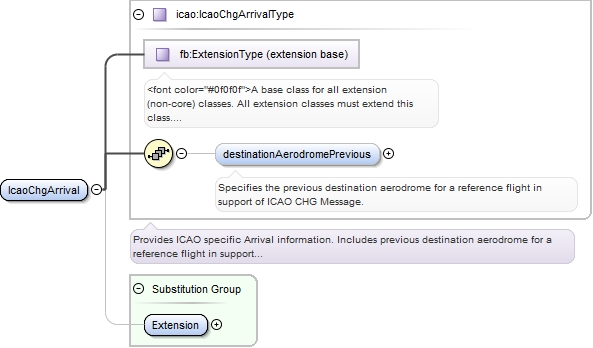

Element icao:IcaoChgArrival
Namespace http://www.fixm.aero/icao/1.0
Diagram
Diagram Extension_xsd.tmp#ExtensionType IcaoChgMessage_xsd.tmp#IcaoChgArrivalType_destinationAerodromePrevious IcaoChgMessage_xsd.tmp#IcaoChgArrivalType Extension_xsd.tmp#Extension
Type icao:IcaoChgArrivalType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model icao:destinationAerodromePrevious{0,1}
Children icao:destinationAerodromePrevious
Instance

<icao:IcaoChgArrival>
  <icao:destinationAerodromePrevious name="">{0,1}</icao:destinationAerodromePrevious>
</icao:IcaoChgArrival>
Source

<element name="IcaoChgArrival" type="icao:IcaoChgArrivalType" substitutionGroup="fb:Extension"/>

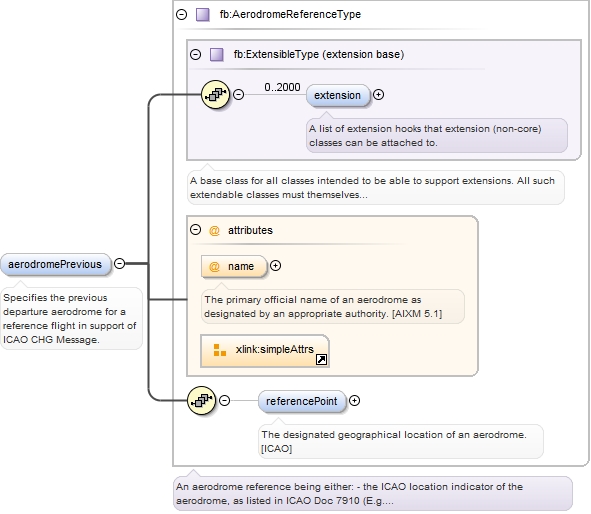

Element icao:IcaoChgDepartureType / icao:aerodromePrevious
Namespace http://www.fixm.aero/icao/1.0
Annotations

Specifies the previous departure aerodrome for a reference flight in support of ICAO
CHG Message.
Diagram
Diagram Extension_xsd.tmp#ExtensibleType_extension Extension_xsd.tmp#ExtensibleType Aerodrome_xsd.tmp#AerodromeReferenceType_name Aerodrome_xsd.tmp#AerodromeReferenceType_referencePoint Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:extension{0,2000} , fb:referencePoint{0,1}
Children fb:extension, fb:referencePoint
Instance

<icao:aerodromePrevious name="">
  <fb:extension>{0,2000}</fb:extension>
  <fb:referencePoint>{0,1}</fb:referencePoint>
</icao:aerodromePrevious>
Attributes
QName Type Fixed Default Use Annotation
name fb:AerodromeNameType optional
The primary official name of an aerodrome as designated by an appropriate authority.
[AIXM 5.1]
Source

<element name="aerodromePrevious" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Specifies the previous departure aerodrome for a reference flight in support of ICAO CHG Message.</documentation>
  </annotation>
</element>

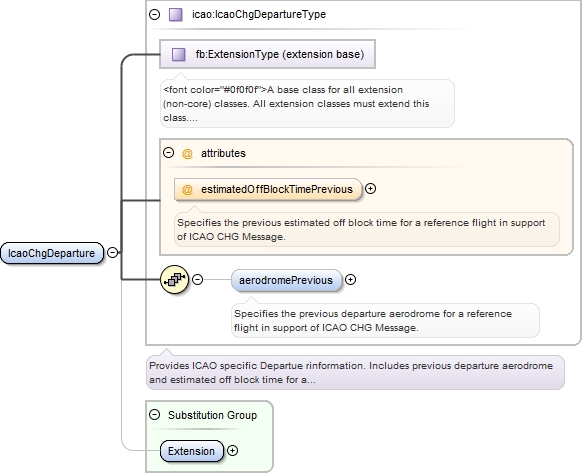

Element icao:IcaoChgDeparture
Namespace http://www.fixm.aero/icao/1.0
Diagram
Diagram Extension_xsd.tmp#ExtensionType IcaoChgMessage_xsd.tmp#IcaoChgDepartureType_estimatedOffBlockTimePrevious IcaoChgMessage_xsd.tmp#IcaoChgDepartureType_aerodromePrevious IcaoChgMessage_xsd.tmp#IcaoChgDepartureType Extension_xsd.tmp#Extension
Type icao:IcaoChgDepartureType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model icao:aerodromePrevious{0,1}
Children icao:aerodromePrevious
Instance

<icao:IcaoChgDeparture estimatedOffBlockTimePrevious="">
  <icao:aerodromePrevious name="">{0,1}</icao:aerodromePrevious>
</icao:IcaoChgDeparture>
Attributes
QName Type Fixed Default Use Annotation
estimatedOffBlockTimePrevious fb:TimeType optional
Specifies the previous estimated off block time for a reference flight in support
of ICAO CHG Message.
Source

<element name="IcaoChgDeparture" type="icao:IcaoChgDepartureType" substitutionGroup="fb:Extension"/>
Element icao:IcaoChgFlightIdentification
Namespace http://www.fixm.aero/icao/1.0
Diagram
Diagram Extension_xsd.tmp#ExtensionType IcaoChgMessage_xsd.tmp#IcaoChgFlightIdentificationType_aircraftIdentificationPrevious IcaoChgMessage_xsd.tmp#IcaoChgFlightIdentificationType Extension_xsd.tmp#Extension
Type icao:IcaoChgFlightIdentificationType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Attributes
QName Type Fixed Default Use Annotation
aircraftIdentificationPrevious fb:AircraftIdentificationType optional
Specifies the previous aircraft identification.
Source

<element name="IcaoChgFlightIdentification" type="icao:IcaoChgFlightIdentificationType" substitutionGroup="fb:Extension"/>

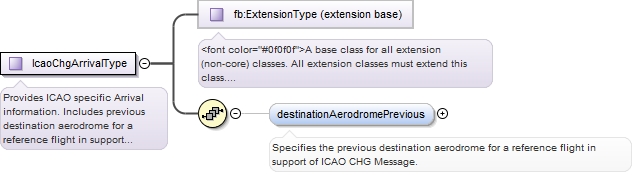

Complex Type icao:IcaoChgArrivalType
Namespace http://www.fixm.aero/icao/1.0
Annotations

Provides ICAO specific Arrival information. Includes previous destination aerodrome
for a reference flight in support of ICAO CHG Message.
Diagram
Diagram Extension_xsd.tmp#ExtensionType IcaoChgMessage_xsd.tmp#IcaoChgArrivalType_destinationAerodromePrevious
Type extension of fb:ExtensionType
Type hierarchy
Used by
Model icao:destinationAerodromePrevious{0,1}
Children icao:destinationAerodromePrevious
Source

<complexType name="IcaoChgArrivalType">
  <annotation>
    <documentation>Provides ICAO specific Arrival information. Includes previous destination aerodrome for a reference flight in support of ICAO CHG Message.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensionType">
      <sequence>
        <element name="destinationAerodromePrevious" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Specifies the previous destination aerodrome for a reference flight in support of ICAO CHG Message.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Complex Type icao:IcaoChgDepartureType
Namespace http://www.fixm.aero/icao/1.0
Annotations

Provides ICAO specific Departue rinformation. Includes previous departure aerodrome
and estimated off block time for a reference flight in support of ICAO CHG Message.
Diagram
Diagram Extension_xsd.tmp#ExtensionType IcaoChgMessage_xsd.tmp#IcaoChgDepartureType_estimatedOffBlockTimePrevious IcaoChgMessage_xsd.tmp#IcaoChgDepartureType_aerodromePrevious
Type extension of fb:ExtensionType
Type hierarchy
Used by
Model icao:aerodromePrevious{0,1}
Children icao:aerodromePrevious
Attributes
QName Type Fixed Default Use Annotation
estimatedOffBlockTimePrevious fb:TimeType optional
Specifies the previous estimated off block time for a reference flight in support
of ICAO CHG Message.
Source

<complexType name="IcaoChgDepartureType">
  <annotation>
    <documentation>Provides ICAO specific Departue rinformation. Includes previous departure aerodrome and estimated off block time for a reference flight in support of ICAO CHG Message.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensionType">
      <sequence>
        <element name="aerodromePrevious" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Specifies the previous departure aerodrome for a reference flight in support of ICAO CHG Message.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="estimatedOffBlockTimePrevious" type="fb:TimeType" use="optional">
        <annotation>
          <documentation>Specifies the previous estimated off block time for a reference flight in support of ICAO CHG Message.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>

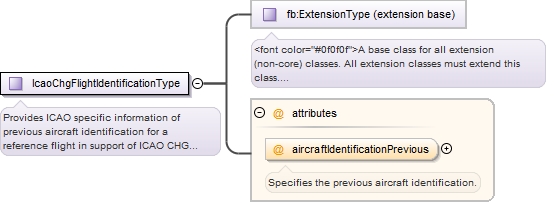

Complex Type icao:IcaoChgFlightIdentificationType
Namespace http://www.fixm.aero/icao/1.0
Annotations

Provides ICAO specific information of previous aircraft identification for a reference
flight in support of ICAO CHG Message.
Diagram
Diagram Extension_xsd.tmp#ExtensionType IcaoChgMessage_xsd.tmp#IcaoChgFlightIdentificationType_aircraftIdentificationPrevious
Type extension of fb:ExtensionType
Type hierarchy
Used by
Attributes
QName Type Fixed Default Use Annotation
aircraftIdentificationPrevious fb:AircraftIdentificationType optional
Specifies the previous aircraft identification.
Source

<complexType name="IcaoChgFlightIdentificationType">
  <annotation>
    <documentation>Provides ICAO specific information of previous aircraft identification for a reference flight in support of ICAO CHG Message.</documentation>
  </annotation>
  <complexContent>
    <extension base="fb:ExtensionType">
      <attribute name="aircraftIdentificationPrevious" type="fb:AircraftIdentificationType" use="optional">
        <annotation>
          <documentation>Specifies the previous aircraft identification.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute icao:IcaoChgDepartureType / @estimatedOffBlockTimePrevious
Namespace No namespace
Annotations

Specifies the previous estimated off block time for a reference flight in support
of ICAO CHG Message.
Type fb:TimeType
Properties
use: optional
Facets
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
Used by
Source

<attribute name="estimatedOffBlockTimePrevious" type="fb:TimeType" use="optional">
  <annotation>
    <documentation>Specifies the previous estimated off block time for a reference flight in support of ICAO CHG Message.</documentation>
  </annotation>
</attribute>
Attribute icao:IcaoChgFlightIdentificationType / @aircraftIdentificationPrevious
Namespace No namespace
Annotations

Specifies the previous aircraft identification.
Type fb:AircraftIdentificationType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [A-Z0-9]{2,7}
Used by
Source

<attribute name="aircraftIdentificationPrevious" type="fb:AircraftIdentificationType" use="optional">
  <annotation>
    <documentation>Specifies the previous aircraft identification.</documentation>
  </annotation>
</attribute>
