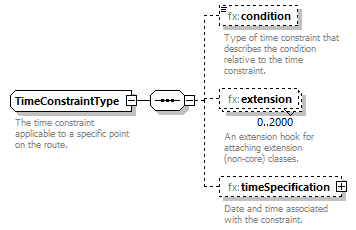

complexType TimeConstraintType
diagram Fixm_diagrams/Fixm_p521.png
namespace http://www.fixm.aero/flight/4.2
children fx:condition fx:extension fx:timeSpecification
used by
element RouteTrajectoryConstraintType/time
annotation
documentation
The time constraint applicable to a specific point on the route.
source <xs:complexType name="TimeConstraintType">

<xs:annotation>

<xs:documentation>The time constraint applicable to a specific point on the route. </xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="condition" type="fx:TimeConditionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Type of time constraint that describes the condition relative to the time constraint.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:TimeConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="timeSpecification" type="fb:TimeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Date and time associated with the constraint.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element TimeConstraintType/condition
diagram Fixm_diagrams/Fixm_p522.png
namespace http://www.fixm.aero/flight/4.2
type fx:TimeConditionType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration AT
enumeration AT_OR_AFTER
enumeration AT_OR_BEFORE
enumeration BETWEEN
annotation
documentation
Type of time constraint that describes the condition relative to the time constraint.
source <xs:element name="condition" type="fx:TimeConditionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Type of time constraint that describes the condition relative to the time constraint.</xs:documentation>

</xs:annotation>
</xs:element>

element TimeConstraintType/extension
diagram Fixm_diagrams/Fixm_p523.png
namespace http://www.fixm.aero/flight/4.2
type fb:TimeConstraintExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:TimeConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

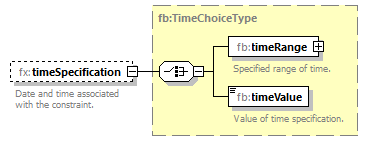

element TimeConstraintType/timeSpecification
diagram Fixm_diagrams/Fixm_p524.png
namespace http://www.fixm.aero/flight/4.2
type fb:TimeChoiceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:timeRange fb:timeValue
annotation
documentation
Date and time associated with the constraint.
source <xs:element name="timeSpecification" type="fb:TimeChoiceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Date and time associated with the constraint.</xs:documentation>

</xs:annotation>
</xs:element>
