complexType ShippingInformationType

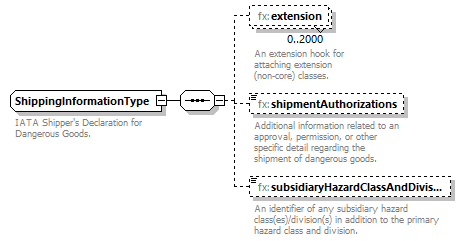

diagram Fixm_diagrams/Fixm_p374.png
namespace http://www.fixm.aero/flight/4.2
children fx:extension fx:shipmentAuthorizations fx:subsidiaryHazardClassAndDivision
used by
element DangerousGoodsType/shippingInformation
annotation
documentation
IATA Shipper's Declaration for Dangerous Goods.
source <xs:complexType name="ShippingInformationType">

<xs:annotation>

<xs:documentation>IATA Shipper's Declaration for Dangerous Goods.</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="extension" type="fb:ShippingInformationExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="shipmentAuthorizations" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="subsidiaryHazardClassAndDivision" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element ShippingInformationType/extension
diagram Fixm_diagrams/Fixm_p375.png
namespace http://www.fixm.aero/flight/4.2
type fb:ShippingInformationExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:ShippingInformationExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element ShippingInformationType/shipmentAuthorizations
diagram Fixm_diagrams/Fixm_p376.png
namespace http://www.fixm.aero/flight/4.2
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.
source <xs:element name="shipmentAuthorizations" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Additional information related to an approval, permission, or other specific detail regarding the shipment of dangerous goods.</xs:documentation>

</xs:annotation>
</xs:element>

element ShippingInformationType/subsidiaryHazardClassAndDivision
diagram Fixm_diagrams/Fixm_p377.png
namespace http://www.fixm.aero/flight/4.2
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.
source <xs:element name="subsidiaryHazardClassAndDivision" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>An identifier of any subsidiary hazard class(es)/division(s) in addition to the primary hazard class and division.</xs:documentation>

</xs:annotation>
</xs:element>
