complexType Point4DTimeChoiceType

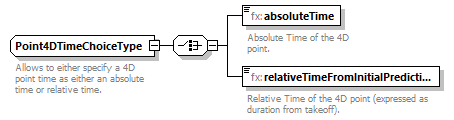

diagram Fixm_diagrams/Fixm_p443.png
namespace http://www.fixm.aero/flight/4.2
children fx:absoluteTime fx:relativeTimeFromInitialPredictionPoint
used by
element TrajectoryPoint4DType/time
annotation
documentation
Allows to either specify a 4D point time as either an absolute time or relative time.
source <xs:complexType name="Point4DTimeChoiceType">

<xs:annotation>

<xs:documentation>Allows to either specify a 4D point time as either an absolute time or relative time.</xs:documentation>

</xs:annotation>

<xs:choice>

<xs:element name="absoluteTime" type="fb:TimeType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Absolute Time of the 4D point.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="relativeTimeFromInitialPredictionPoint" type="fb:DurationType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Relative Time of the 4D point (expressed as duration from takeoff).</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>
</xs:complexType>

element Point4DTimeChoiceType/absoluteTime
diagram Fixm_diagrams/Fixm_p444.png
namespace http://www.fixm.aero/flight/4.2
type fb:TimeType
properties
content simple
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
Absolute Time of the 4D point.
source <xs:element name="absoluteTime" type="fb:TimeType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Absolute Time of the 4D point.</xs:documentation>

</xs:annotation>
</xs:element>

element Point4DTimeChoiceType/relativeTimeFromInitialPredictionPoint
diagram Fixm_diagrams/Fixm_p445.png
namespace http://www.fixm.aero/flight/4.2
type fb:DurationType
properties
content simple
annotation
documentation
Relative Time of the 4D point (expressed as duration from takeoff).
source <xs:element name="relativeTimeFromInitialPredictionPoint" type="fb:DurationType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Relative Time of the 4D point (expressed as duration from takeoff).</xs:documentation>

</xs:annotation>
</xs:element>
