complexType MeteorologicalDataType

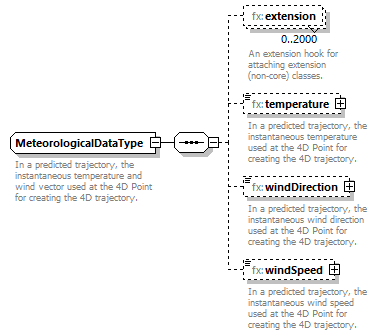

diagram Fixm_diagrams/Fixm_p435.png
namespace http://www.fixm.aero/flight/4.2
children fx:extension fx:temperature fx:windDirection fx:windSpeed
used by
element TrajectoryPoint4DType/metData
annotation
documentation
In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.
source <xs:complexType name="MeteorologicalDataType">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous temperature and wind vector used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="extension" type="fb:MeteorologicalDataExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="temperature" type="fb:TemperatureType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous temperature used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="windDirection" type="fb:WindDirectionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous wind direction used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="windSpeed" type="fb:WindSpeedType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous wind speed used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element MeteorologicalDataType/extension
diagram Fixm_diagrams/Fixm_p436.png
namespace http://www.fixm.aero/flight/4.2
type fb:MeteorologicalDataExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:MeteorologicalDataExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element MeteorologicalDataType/temperature
diagram Fixm_diagrams/Fixm_p437.png
namespace http://www.fixm.aero/flight/4.2
type fb:TemperatureType
properties
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomTemperatureType  required
documentation
Unit of measure
annotation
documentation
In a predicted trajectory, the instantaneous temperature used at the 4D Point for creating the 4D trajectory.
source <xs:element name="temperature" type="fb:TemperatureType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous temperature used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>
</xs:element>

element MeteorologicalDataType/windDirection

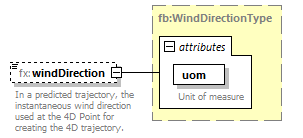

diagram Fixm_diagrams/Fixm_p438.png
namespace http://www.fixm.aero/flight/4.2
type fb:WindDirectionType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
maxInclusive 360
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomAngleType  required
documentation
Unit of measure
annotation
documentation
In a predicted trajectory, the instantaneous wind direction used at the 4D Point for creating the 4D trajectory.
source <xs:element name="windDirection" type="fb:WindDirectionType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous wind direction used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>
</xs:element>

element MeteorologicalDataType/windSpeed
diagram Fixm_diagrams/Fixm_p439.png
namespace http://www.fixm.aero/flight/4.2
type fb:WindSpeedType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomWindSpeedType  required
documentation
Unit of measure
annotation
documentation
In a predicted trajectory, the instantaneous wind speed used at the 4D Point for creating the 4D trajectory.
source <xs:element name="windSpeed" type="fb:WindSpeedType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>In a predicted trajectory, the instantaneous wind speed used at the 4D Point for creating the 4D trajectory.</xs:documentation>

</xs:annotation>
</xs:element>
