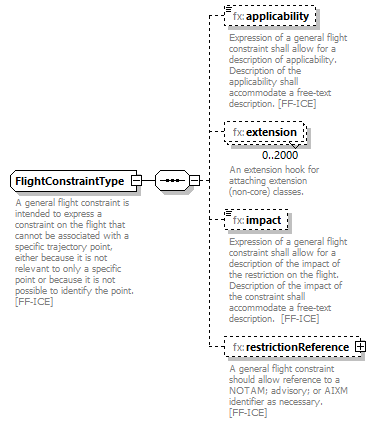

complexType FlightConstraintType
diagram Fixm_diagrams/Fixm_p316.png
namespace http://www.fixm.aero/flight/4.2
children fx:applicability fx:extension fx:impact fx:restrictionReference
used by
element FlightType/flightConstraint
annotation
documentation
A general flight constraint is intended to express a constraint on the flight that cannot be associated with a specific trajectory point, either because it is not relevant to only a specific point or because it is not possible to identify the point. [FF-ICE]
source <xs:complexType name="FlightConstraintType">

<xs:annotation>

<xs:documentation>A general flight constraint is intended to express a constraint on the flight that cannot be associated with a specific trajectory point, either because it is not relevant to only a specific point or because it is not possible to identify the point. [FF-ICE]</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="applicability" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Expression of a general flight constraint shall allow for a description of applicability.  Description of the applicability shall accommodate a free-text description. [FF-ICE]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:FlightConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="impact" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Expression of a general flight constraint shall allow for a description of the impact of the restriction on the flight. Description of the impact of the constraint shall accommodate a free-text description.  [FF-ICE]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="restrictionReference" type="fb:RestrictionReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A general flight constraint should allow reference to a NOTAM; advisory; or AIXM identifier as necessary. [FF-ICE]</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element FlightConstraintType/applicability
diagram Fixm_diagrams/Fixm_p317.png
namespace http://www.fixm.aero/flight/4.2
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Expression of a general flight constraint shall allow for a description of applicability.  Description of the applicability shall accommodate a free-text description. [FF-ICE]
source <xs:element name="applicability" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Expression of a general flight constraint shall allow for a description of applicability.  Description of the applicability shall accommodate a free-text description. [FF-ICE]</xs:documentation>

</xs:annotation>
</xs:element>

element FlightConstraintType/extension
diagram Fixm_diagrams/Fixm_p318.png
namespace http://www.fixm.aero/flight/4.2
type fb:FlightConstraintExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:FlightConstraintExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element FlightConstraintType/impact
diagram Fixm_diagrams/Fixm_p319.png
namespace http://www.fixm.aero/flight/4.2
type fb:CharacterStringType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
annotation
documentation
Expression of a general flight constraint shall allow for a description of the impact of the restriction on the flight. Description of the impact of the constraint shall accommodate a free-text description.  [FF-ICE]
source <xs:element name="impact" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Expression of a general flight constraint shall allow for a description of the impact of the restriction on the flight. Description of the impact of the constraint shall accommodate a free-text description.  [FF-ICE]</xs:documentation>

</xs:annotation>
</xs:element>

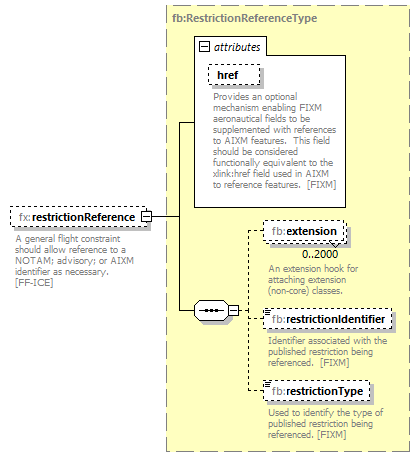

element FlightConstraintType/restrictionReference
diagram Fixm_diagrams/Fixm_p320.png
namespace http://www.fixm.aero/flight/4.2
type fb:RestrictionReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:restrictionIdentifier fb:restrictionType
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation
documentation
A general flight constraint should allow reference to a NOTAM; advisory; or AIXM identifier as necessary. [FF-ICE]
source <xs:element name="restrictionReference" type="fb:RestrictionReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>A general flight constraint should allow reference to a NOTAM; advisory; or AIXM identifier as necessary. [FF-ICE]</xs:documentation>

</xs:annotation>
</xs:element>
