complexType FlightCapabilitiesType

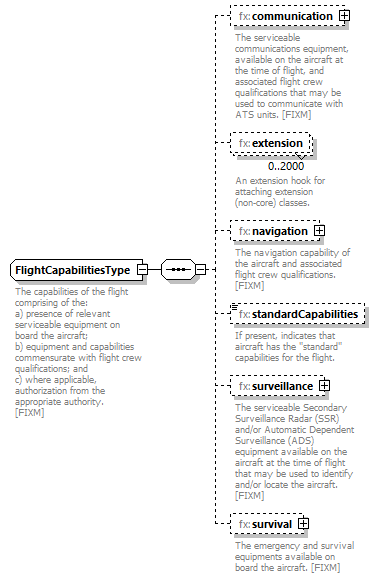

diagram Fixm_diagrams/Fixm_p242.png
namespace http://www.fixm.aero/flight/4.2
children fx:communication fx:extension fx:navigation fx:standardCapabilities fx:surveillance fx:survival
used by
element AircraftType/capabilities
annotation
documentation
The capabilities of the flight comprising of the:
a) presence of relevant serviceable equipment on board the aircraft;
b) equipment and capabilities commensurate with flight crew qualifications; and
c) where applicable, authorization from the appropriate authority.
[FIXM]
source <xs:complexType name="FlightCapabilitiesType">

<xs:annotation>

<xs:documentation>The capabilities of the flight comprising of the:
a) presence of relevant serviceable equipment on board the aircraft;
b) equipment and capabilities commensurate with flight crew qualifications; and
c) where applicable, authorization from the appropriate authority.
[FIXM]
</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="communication" type="fx:CommunicationCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The serviceable communications equipment, available on the aircraft at the time of flight, and associated flight crew qualifications that may be used to communicate with ATS units. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:FlightCapabilitiesExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="navigation" type="fx:NavigationCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The navigation capability of the aircraft and associated flight crew qualifications. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="standardCapabilities" type="fx:StandardCapabilitiesIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>If present, indicates that aircraft has the "standard" capabilities for the flight.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="surveillance" type="fx:SurveillanceCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The serviceable Secondary Surveillance Radar (SSR) and/or Automatic Dependent Surveillance (ADS) equipment available on the aircraft at the time of flight that may be used to identify and/or locate the aircraft. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="survival" type="fx:SurvivalCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The emergency and survival equipments available on board the aircraft. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element FlightCapabilitiesType/communication

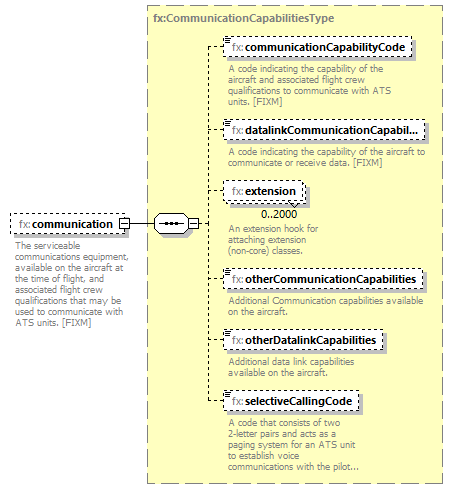

diagram Fixm_diagrams/Fixm_p243.png
namespace http://www.fixm.aero/flight/4.2
type fx:CommunicationCapabilitiesType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:communicationCapabilityCode fx:datalinkCommunicationCapabilityCode fx:extension fx:otherCommunicationCapabilities fx:otherDatalinkCapabilities fx:selectiveCallingCode
annotation
documentation
The serviceable communications equipment, available on the aircraft at the time of flight, and associated flight crew qualifications that may be used to communicate with ATS units. [FIXM]
source <xs:element name="communication" type="fx:CommunicationCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The serviceable communications equipment, available on the aircraft at the time of flight, and associated flight crew qualifications that may be used to communicate with ATS units. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element FlightCapabilitiesType/extension
diagram Fixm_diagrams/Fixm_p244.png
namespace http://www.fixm.aero/flight/4.2
type fb:FlightCapabilitiesExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:FlightCapabilitiesExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element FlightCapabilitiesType/navigation

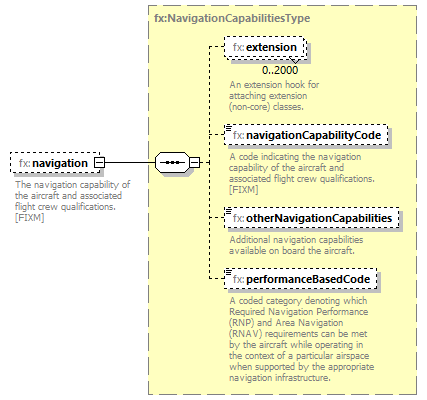

diagram Fixm_diagrams/Fixm_p245.png
namespace http://www.fixm.aero/flight/4.2
type fx:NavigationCapabilitiesType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:extension fx:navigationCapabilityCode fx:otherNavigationCapabilities fx:performanceBasedCode
annotation
documentation
The navigation capability of the aircraft and associated flight crew qualifications. [FIXM]
source <xs:element name="navigation" type="fx:NavigationCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The navigation capability of the aircraft and associated flight crew qualifications. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element FlightCapabilitiesType/standardCapabilities
diagram Fixm_diagrams/Fixm_p246.png
namespace http://www.fixm.aero/flight/4.2
type fx:StandardCapabilitiesIndicatorType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
enumeration STANDARD
documentation
This element indicates the aircraft carries the set of capabilities considered standard by the appropriate authority.
annotation
documentation
If present, indicates that aircraft has the "standard" capabilities for the flight.
source <xs:element name="standardCapabilities" type="fx:StandardCapabilitiesIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>If present, indicates that aircraft has the "standard" capabilities for the flight.</xs:documentation>

</xs:annotation>
</xs:element>

element FlightCapabilitiesType/surveillance

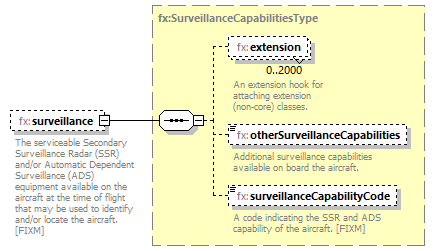

diagram Fixm_diagrams/Fixm_p247.png
namespace http://www.fixm.aero/flight/4.2
type fx:SurveillanceCapabilitiesType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:extension fx:otherSurveillanceCapabilities fx:surveillanceCapabilityCode
annotation
documentation
The serviceable Secondary Surveillance Radar (SSR) and/or Automatic Dependent Surveillance (ADS) equipment available on the aircraft at the time of flight that may be used to identify and/or locate the aircraft. [FIXM]
source <xs:element name="surveillance" type="fx:SurveillanceCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The serviceable Secondary Surveillance Radar (SSR) and/or Automatic Dependent Surveillance (ADS) equipment available on the aircraft at the time of flight that may be used to identify and/or locate the aircraft. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element FlightCapabilitiesType/survival

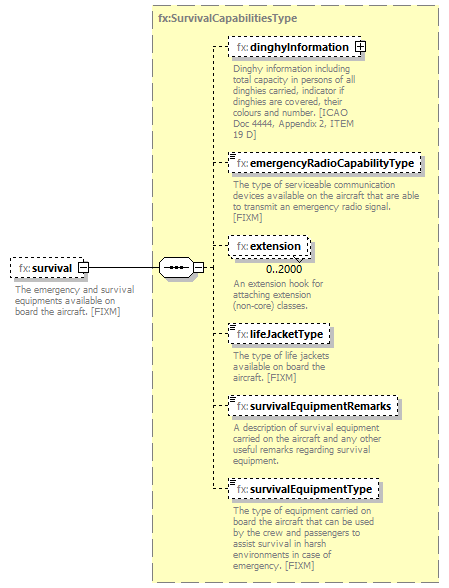

diagram Fixm_diagrams/Fixm_p248.png
namespace http://www.fixm.aero/flight/4.2
type fx:SurvivalCapabilitiesType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:dinghyInformation fx:emergencyRadioCapabilityType fx:extension fx:lifeJacketType fx:survivalEquipmentRemarks fx:survivalEquipmentType
annotation
documentation
The emergency and survival equipments available on board the aircraft. [FIXM]
source <xs:element name="survival" type="fx:SurvivalCapabilitiesType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The emergency and survival equipments available on board the aircraft. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>
