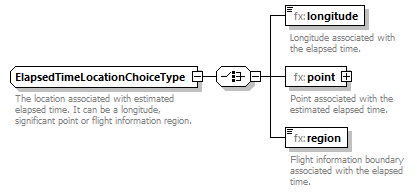

complexType ElapsedTimeLocationChoiceType
diagram Fixm_diagrams/Fixm_p412.png
namespace http://www.fixm.aero/flight/4.2
children fx:longitude fx:point fx:region
used by
element EstimatedElapsedTimeType/location
annotation
documentation
The location associated with estimated elapsed time. It can be a longitude, significant point or flight information region.
source <xs:complexType name="ElapsedTimeLocationChoiceType">

<xs:annotation>

<xs:documentation>The location associated with estimated elapsed time. It can be a longitude, significant point or flight information region.</xs:documentation>

</xs:annotation>

<xs:choice>

<xs:element name="longitude" type="fb:LongitudeType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Longitude associated with the elapsed time.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="point" type="fb:SignificantPointChoiceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Point associated with the estimated elapsed time.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="region" type="fb:LocationIndicatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Flight information boundary associated with the elapsed time.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>
</xs:complexType>

element ElapsedTimeLocationChoiceType/longitude
diagram Fixm_diagrams/Fixm_p413.png
namespace http://www.fixm.aero/flight/4.2
type fb:LongitudeType
properties
content simple
facets
Kind Value Annotation
minInclusive -180
maxInclusive 180
annotation
documentation
Longitude associated with the elapsed time.
source <xs:element name="longitude" type="fb:LongitudeType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Longitude associated with the elapsed time.</xs:documentation>

</xs:annotation>
</xs:element>

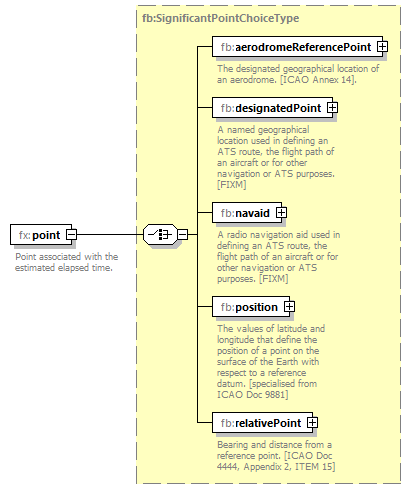

element ElapsedTimeLocationChoiceType/point
diagram Fixm_diagrams/Fixm_p414.png
namespace http://www.fixm.aero/flight/4.2
type fb:SignificantPointChoiceType
properties
content complex
children fb:aerodromeReferencePoint fb:designatedPoint fb:navaid fb:position fb:relativePoint
annotation
documentation
Point associated with the estimated elapsed time.
source <xs:element name="point" type="fb:SignificantPointChoiceType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Point associated with the estimated elapsed time.</xs:documentation>

</xs:annotation>
</xs:element>

element ElapsedTimeLocationChoiceType/region
diagram Fixm_diagrams/Fixm_p415.png
namespace http://www.fixm.aero/flight/4.2
type fb:LocationIndicatorType
properties
content simple
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern [A-Z]{4}
annotation
documentation
Flight information boundary associated with the elapsed time.
source <xs:element name="region" type="fb:LocationIndicatorType" minOccurs="1" maxOccurs="1">

<xs:annotation>

<xs:documentation>Flight information boundary associated with the elapsed time.</xs:documentation>

</xs:annotation>
</xs:element>
