complexType DinghiesType

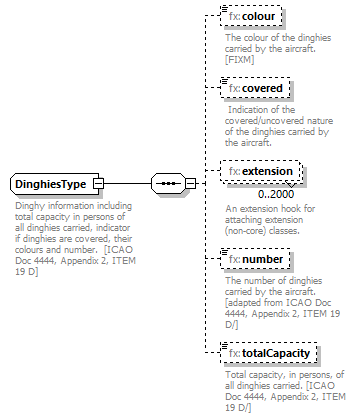

diagram
namespace	http://www.fixm.aero/flight/4.2
children	fx:colour fx:covered fx:extension fx:number fx:totalCapacity
used by	element  SurvivalCapabilitiesType/dinghyInformation
annotation	documentation Dinghy information including total capacity in persons of all dinghies carried, indicator if dinghies are covered, their colours and number.  [ICAO Doc 4444, Appendix 2, ITEM 19 D]
source	<xs:complexType name="DinghiesType">   <xs:annotation>     <xs:documentation>Dinghy information including total capacity in persons of all dinghies carried, indicator if dinghies are covered, their colours and number.  [ICAO Doc 4444, Appendix 2, ITEM 19 D]</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="colour" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The colour of the dinghies carried by the aircraft. [FIXM]</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="covered" type="fx:DinghyCoverIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation> Indication of the covered/uncovered nature of the dinghies carried by the aircraft.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="extension" type="fb:DinghiesExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">       <xs:annotation>         <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="number" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>The number of dinghies carried by the aircraft. [adapted from ICAO Doc 4444, Appendix 2, ITEM 19 D/]</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="totalCapacity" type="fb:CountPositiveType" nillable="true" minOccurs="0" maxOccurs="1">       <xs:annotation>         <xs:documentation>Total capacity, in persons, of all dinghies carried. [ICAO Doc 4444, Appendix 2, ITEM 19 D/]</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element DinghiesType/colour

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CharacterStringType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minLength  0 maxLength  4096
annotation	documentation The colour of the dinghies carried by the aircraft. [FIXM]
source	<xs:element name="colour" type="fb:CharacterStringType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The colour of the dinghies carried by the aircraft. [FIXM]</xs:documentation>   </xs:annotation> </xs:element>

element DinghiesType/covered

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fx:DinghyCoverIndicatorType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation enumeration  COVERED documentation Indication of the covered/uncovered nature of the dinghies carried by the aircraft. [FIXM]
annotation	documentation Indication of the covered/uncovered nature of the dinghies carried by the aircraft.
source	<xs:element name="covered" type="fx:DinghyCoverIndicatorType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation> Indication of the covered/uncovered nature of the dinghies carried by the aircraft.</xs:documentation>   </xs:annotation> </xs:element>

element DinghiesType/extension

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:DinghiesExtensionType
properties	minOcc  0 maxOcc  2000 content  complex nillable  true
annotation	documentation An extension hook for attaching extension (non-core) classes.
source	<xs:element name="extension" type="fb:DinghiesExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">   <xs:annotation>     <xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>   </xs:annotation> </xs:element>

element DinghiesType/number

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CountType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  0
annotation	documentation The number of dinghies carried by the aircraft. [adapted from ICAO Doc 4444, Appendix 2, ITEM 19 D/]
source	<xs:element name="number" type="fb:CountType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>The number of dinghies carried by the aircraft. [adapted from ICAO Doc 4444, Appendix 2, ITEM 19 D/]</xs:documentation>   </xs:annotation> </xs:element>

element DinghiesType/totalCapacity

diagram
namespace	http://www.fixm.aero/flight/4.2
type	fb:CountPositiveType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation minInclusive  1
annotation	documentation Total capacity, in persons, of all dinghies carried. [ICAO Doc 4444, Appendix 2, ITEM 19 D/]
source	<xs:element name="totalCapacity" type="fb:CountPositiveType" nillable="true" minOccurs="0" maxOccurs="1">   <xs:annotation>     <xs:documentation>Total capacity, in persons, of all dinghies carried. [ICAO Doc 4444, Appendix 2, ITEM 19 D/]</xs:documentation>   </xs:annotation> </xs:element>
