complexType DangerousGoodsDimensionsType

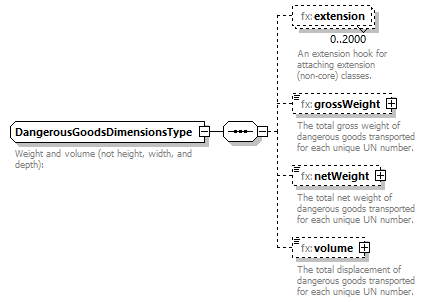

diagram Fixm_diagrams/Fixm_p381.png
namespace http://www.fixm.aero/flight/4.2
children fx:extension fx:grossWeight fx:netWeight fx:volume
used by
elements DangerousGoodsPackageType/shipmentDimensions DangerousGoodsPackageGroupType/shipmentDimensions
annotation
documentation
Weight and volume (not height, width, and depth):
source <xs:complexType name="DangerousGoodsDimensionsType">

<xs:annotation>

<xs:documentation>Weight and volume (not height, width, and depth):</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="extension" type="fb:DangerousGoodsDimensionsExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="grossWeight" type="fb:WeightType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total gross weight of dangerous goods transported for each unique UN number.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="netWeight" type="fb:WeightType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total net weight of dangerous goods transported for each unique UN number.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="volume" type="fb:VolumeType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total displacement of dangerous goods transported for each unique UN number.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element DangerousGoodsDimensionsType/extension
diagram Fixm_diagrams/Fixm_p382.png
namespace http://www.fixm.aero/flight/4.2
type fb:DangerousGoodsDimensionsExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:DangerousGoodsDimensionsExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element DangerousGoodsDimensionsType/grossWeight
diagram Fixm_diagrams/Fixm_p383.png
namespace http://www.fixm.aero/flight/4.2
type fb:WeightType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomWeightType  required
documentation
Unit of measure
annotation
documentation
The total gross weight of dangerous goods transported for each unique UN number.
source <xs:element name="grossWeight" type="fb:WeightType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total gross weight of dangerous goods transported for each unique UN number.</xs:documentation>

</xs:annotation>
</xs:element>

element DangerousGoodsDimensionsType/netWeight
diagram Fixm_diagrams/Fixm_p384.png
namespace http://www.fixm.aero/flight/4.2
type fb:WeightType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomWeightType  required
documentation
Unit of measure
annotation
documentation
The total net weight of dangerous goods transported for each unique UN number.
source <xs:element name="netWeight" type="fb:WeightType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total net weight of dangerous goods transported for each unique UN number.</xs:documentation>

</xs:annotation>
</xs:element>

element DangerousGoodsDimensionsType/volume
diagram Fixm_diagrams/Fixm_p385.png
namespace http://www.fixm.aero/flight/4.2
type fb:VolumeType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minInclusive 0
attributes
Name  Type  Use  Default  Fixed  Annotation
uom  fb:UomVolumeType  required
documentation
Unit of measure
annotation
documentation
The total displacement of dangerous goods transported for each unique UN number.
source <xs:element name="volume" type="fb:VolumeType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The total displacement of dangerous goods transported for each unique UN number.</xs:documentation>

</xs:annotation>
</xs:element>
