complexType ArrivalType

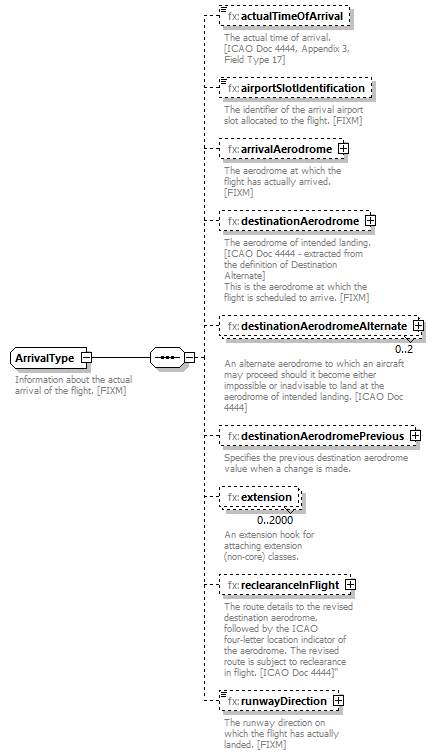

diagram Fixm_diagrams/Fixm_p215.png
namespace http://www.fixm.aero/flight/4.2
children fx:actualTimeOfArrival fx:airportSlotIdentification fx:arrivalAerodrome fx:destinationAerodrome fx:destinationAerodromeAlternate fx:destinationAerodromePrevious fx:extension fx:reclearanceInFlight fx:runwayDirection
used by
element FlightType/arrival
annotation
documentation
Information about the actual arrival of the flight. [FIXM]
source <xs:complexType name="ArrivalType">

<xs:annotation>

<xs:documentation>Information about the actual arrival of the flight. [FIXM]</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="actualTimeOfArrival" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="airportSlotIdentification" type="fb:AirportSlotIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The identifier of the arrival airport slot allocated to the flight. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="arrivalAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The aerodrome at which the flight has actually arrived. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="destinationAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate]
This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="destinationAerodromeAlternate" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="2">

<xs:annotation>

<xs:documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="destinationAerodromePrevious" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies the previous destination aerodrome value when a change is made.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:ArrivalExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="runwayDirection" type="fb:RunwayDirectionDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The runway direction on which the flight has actually landed. [FIXM]</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element ArrivalType/actualTimeOfArrival
diagram Fixm_diagrams/Fixm_p216.png
namespace http://www.fixm.aero/flight/4.2
type fb:TimeType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
pattern -?([1-9][0-9]{3,}|0[0-9]{3})-(0[1-9]|1[0-2])-(0[1-9]|[12][0-9]|3[01])T(([01][0-9]|2[0-3]):[0-5][0-9]:[0-5][0-9](\.[0-9]+)?|(24:00:00(\.0+)?))Z
annotation
documentation
The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]
source <xs:element name="actualTimeOfArrival" type="fb:TimeType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/airportSlotIdentification
diagram Fixm_diagrams/Fixm_p217.png
namespace http://www.fixm.aero/flight/4.2
type fb:AirportSlotIdentificationType
properties
minOcc 0
maxOcc 1
content simple
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 10
annotation
documentation
The identifier of the arrival airport slot allocated to the flight. [FIXM]
source <xs:element name="airportSlotIdentification" type="fb:AirportSlotIdentificationType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The identifier of the arrival airport slot allocated to the flight. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/arrivalAerodrome

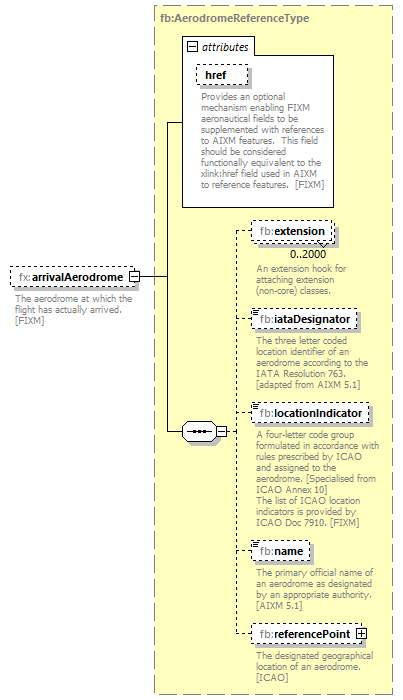

diagram Fixm_diagrams/Fixm_p218.png
namespace http://www.fixm.aero/flight/4.2
type fb:AerodromeReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation
documentation
The aerodrome at which the flight has actually arrived. [FIXM]
source <xs:element name="arrivalAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The aerodrome at which the flight has actually arrived. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/destinationAerodrome

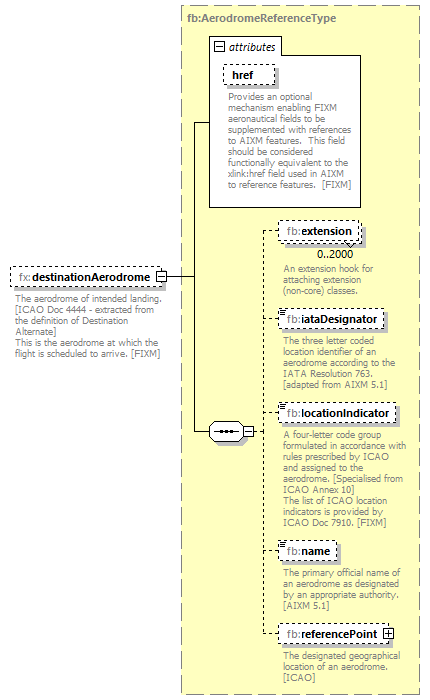

diagram Fixm_diagrams/Fixm_p219.png
namespace http://www.fixm.aero/flight/4.2
type fb:AerodromeReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation
documentation
The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate]
This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
source <xs:element name="destinationAerodrome" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate]
This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/destinationAerodromeAlternate

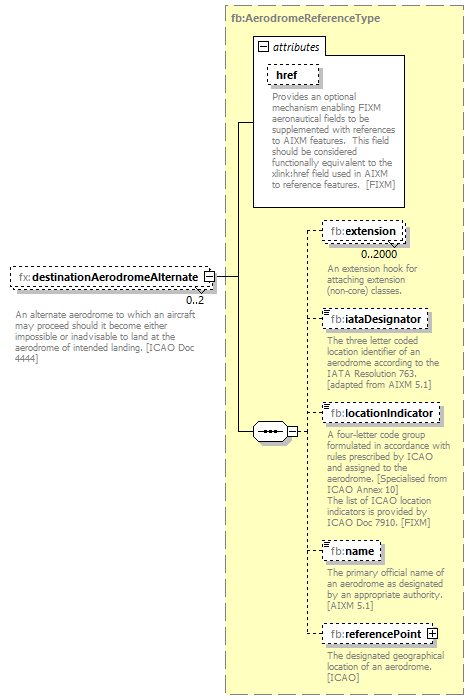

diagram Fixm_diagrams/Fixm_p220.png
namespace http://www.fixm.aero/flight/4.2
type fb:AerodromeReferenceType
properties
minOcc 0
maxOcc 2
content complex
nillable true
children fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation
documentation
An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]
source <xs:element name="destinationAerodromeAlternate" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="2">

<xs:annotation>

<xs:documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/destinationAerodromePrevious

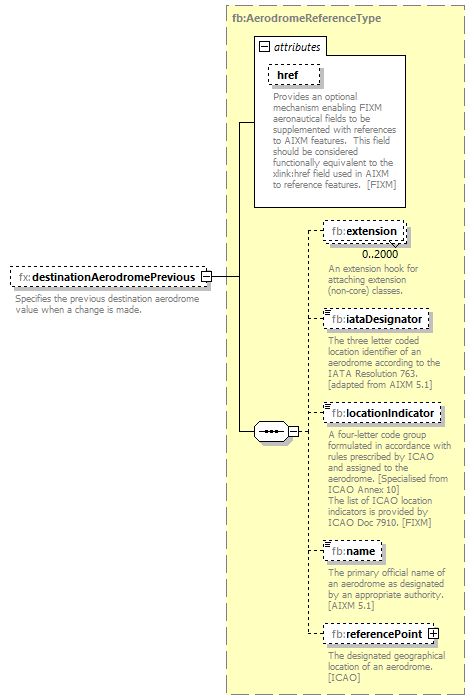

diagram Fixm_diagrams/Fixm_p221.png
namespace http://www.fixm.aero/flight/4.2
type fb:AerodromeReferenceType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fb:extension fb:iataDesignator fb:locationIndicator fb:name fb:referencePoint
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features.  [FIXM]
annotation
documentation
Specifies the previous destination aerodrome value when a change is made.
source <xs:element name="destinationAerodromePrevious" type="fb:AerodromeReferenceType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Specifies the previous destination aerodrome value when a change is made.</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/extension
diagram Fixm_diagrams/Fixm_p222.png
namespace http://www.fixm.aero/flight/4.2
type fb:ArrivalExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:ArrivalExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/reclearanceInFlight

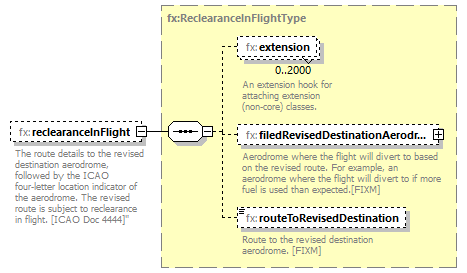

diagram Fixm_diagrams/Fixm_p223.png
namespace http://www.fixm.aero/flight/4.2
type fx:ReclearanceInFlightType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:extension fx:filedRevisedDestinationAerodrome fx:routeToRevisedDestination
annotation
documentation
The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
source <xs:element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
</xs:documentation>

</xs:annotation>
</xs:element>

element ArrivalType/runwayDirection

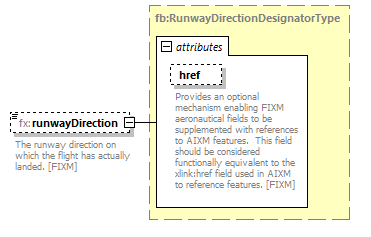

diagram Fixm_diagrams/Fixm_p224.png
namespace http://www.fixm.aero/flight/4.2
type fb:RunwayDirectionDesignatorType
properties
minOcc 0
maxOcc 1
content complex
nillable true
facets
Kind Value Annotation
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
attributes
Name  Type  Use  Default  Fixed  Annotation
href  fb:HypertextReferenceType  optional
documentation
Provides an optional mechanism enabling FIXM aeronautical fields to be supplemented with references to AIXM features.  This field should be considered functionally equivalent to the xlink:href field used in AIXM to reference features. [FIXM]
annotation
documentation
The runway direction on which the flight has actually landed. [FIXM]
source <xs:element name="runwayDirection" type="fb:RunwayDirectionDesignatorType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The runway direction on which the flight has actually landed. [FIXM]</xs:documentation>

</xs:annotation>
</xs:element>
