Contains details about any route changes associated with Route or Trajectory points.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0
Element fx:AbstractRouteChange
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#CruiseClimbStart RouteChanges_xsd.tmp#LevelChange RouteChanges_xsd.tmp#SpeedChange
Type fx:AbstractRouteChangeType
Properties
content: complex
Substitution Group
Source
<element name="AbstractRouteChange" type="fx:AbstractRouteChangeType"/>

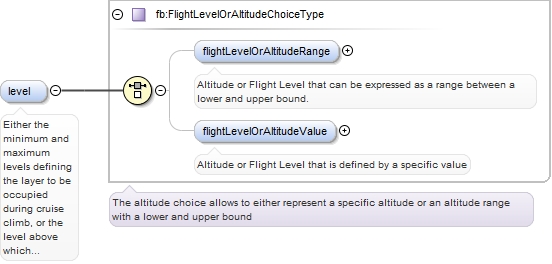

Element fx:CruiseClimbStartType / fx:level
Namespace http://www.fixm.aero/flight/4.0
Annotations
Either the minimum and maximum levels defining the layer to be occupied during cruise
climb, or the level above which cruise climb is planned
Diagram
Diagram RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType_flightLevelOrAltitudeRange RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType_flightLevelOrAltitudeValue RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeChoiceType
Type fb:FlightLevelOrAltitudeChoiceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:flightLevelOrAltitudeRange{0,1} | fb:flightLevelOrAltitudeValue{0,1}
Children fb:flightLevelOrAltitudeRange, fb:flightLevelOrAltitudeValue
Instance
<fx:level>
  <fb:flightLevelOrAltitudeRange>{0,1}</fb:flightLevelOrAltitudeRange>
  <fb:flightLevelOrAltitudeValue>{0,1}</fb:flightLevelOrAltitudeValue>
</fx:level>
Source
<element name="level" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Either the minimum and maximum levels defining the layer to be occupied during cruise climb, or the level above which cruise climb is planned</documentation>
  </annotation>
</element>

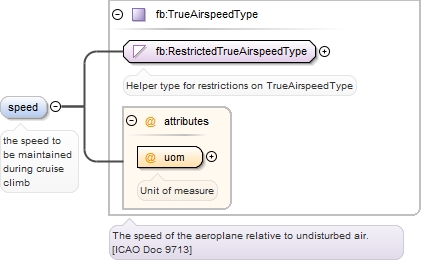

Element fx:CruiseClimbStartType / fx:speed
Namespace http://www.fixm.aero/flight/4.0
Annotations
the speed to be maintained during cruise climb
Diagram
Diagram Measures_xsd.tmp#RestrictedTrueAirspeedType Measures_xsd.tmp#TrueAirspeedType_uom Measures_xsd.tmp#TrueAirspeedType
Type fb:TrueAirspeedType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomAirspeedType required
Unit of measure
Source
<element name="speed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>the speed to be maintained during cruise climb</documentation>
  </annotation>
</element>

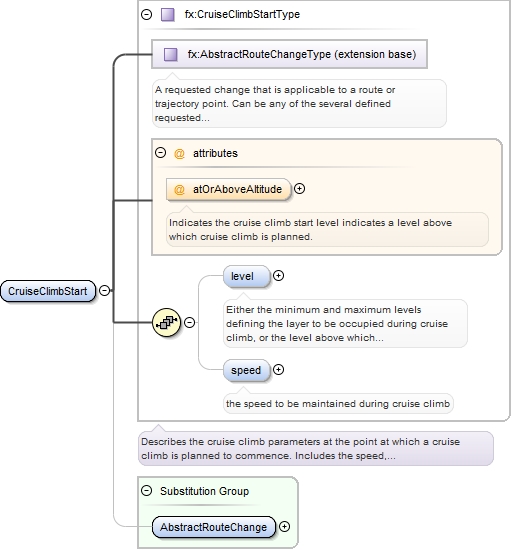

Element fx:CruiseClimbStart
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#CruiseClimbStartType_atOrAboveAltitude RouteChanges_xsd.tmp#CruiseClimbStartType_level RouteChanges_xsd.tmp#CruiseClimbStartType_speed RouteChanges_xsd.tmp#CruiseClimbStartType RouteChanges_xsd.tmp#AbstractRouteChange
Type fx:CruiseClimbStartType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fx:level{0,1} , fx:speed{0,1}
Children fx:level, fx:speed
Instance
<fx:CruiseClimbStart atOrAboveAltitude="">
  <fx:level>{0,1}</fx:level>
  <fx:speed uom="">{0,1}</fx:speed>
</fx:CruiseClimbStart>
Attributes
QName Type Fixed Default Use Annotation
atOrAboveAltitude fx:AtOrAboveAltitudeIndicatorType optional
Indicates the cruise climb start  level indicates a  level above which cruise climb
is planned.
Source
<element name="CruiseClimbStart" type="fx:CruiseClimbStartType" substitutionGroup="fx:AbstractRouteChange"/>

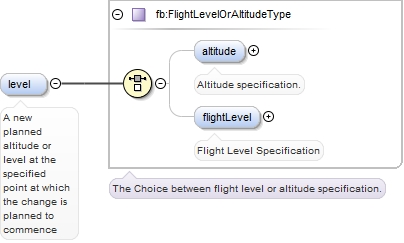

Element fx:LevelChangeType / fx:level
Namespace http://www.fixm.aero/flight/4.0
Annotations
A new planned altitude or level at the specified point at which the change is planned
to commence
Diagram
Diagram RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_altitude RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType_flightLevel RangesAndChoices_xsd.tmp#FlightLevelOrAltitudeType
Type fb:FlightLevelOrAltitudeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fb:altitude{0,1} | fb:flightLevel{0,1}
Children fb:altitude, fb:flightLevel
Instance
<fx:level>
  <fb:altitude ref="" uom="">{0,1}</fb:altitude>
  <fb:flightLevel ref="" uom="">{0,1}</fb:flightLevel>
</fx:level>
Source
<element name="level" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A new planned altitude or level at the specified point at which the change is planned to commence</documentation>
  </annotation>
</element>

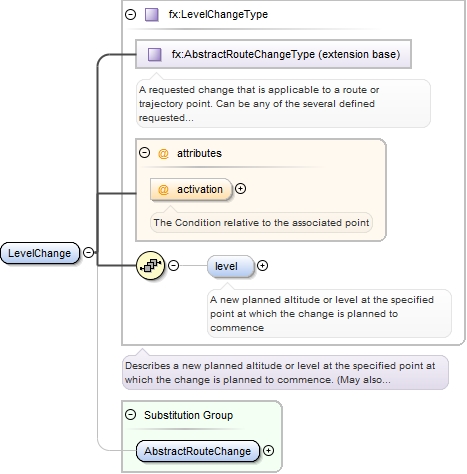

Element fx:LevelChange
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#LevelChangeType_activation RouteChanges_xsd.tmp#LevelChangeType_level RouteChanges_xsd.tmp#LevelChangeType RouteChanges_xsd.tmp#AbstractRouteChange
Type fx:LevelChangeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fx:level{0,1}
Children fx:level
Instance
<fx:LevelChange activation="">
  <fx:level>{0,1}</fx:level>
</fx:LevelChange>
Attributes
QName Type Fixed Default Use Annotation
activation fx:ActivationType optional
The Condition relative to the associated point
Source
<element name="LevelChange" type="fx:LevelChangeType" substitutionGroup="fx:AbstractRouteChange"/>

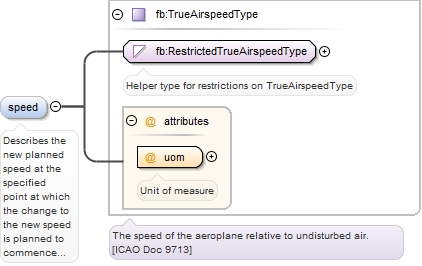

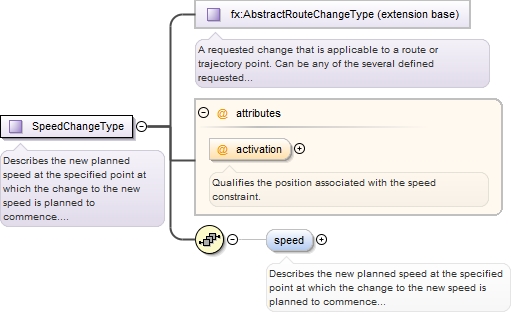

Element fx:SpeedChangeType / fx:speed
Namespace http://www.fixm.aero/flight/4.0
Annotations
Describes the new planned speed at the specified point at which the change to the
new speed is planned to commence
.Speed Change: Describes the new planned speed at the specified point at which the
change to the new speed is planned to commence.  (May also describe a point at which
the speed change is planned to be attained).
Diagram
Diagram Measures_xsd.tmp#RestrictedTrueAirspeedType Measures_xsd.tmp#TrueAirspeedType_uom Measures_xsd.tmp#TrueAirspeedType
Type fb:TrueAirspeedType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomAirspeedType required
Unit of measure
Source
<element name="speed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Describes the new planned speed at the specified point at which the change to the new speed is planned to commence .Speed Change: Describes the new planned speed at the specified point at which the change to the new speed is planned to commence. (May also describe a point at which the speed change is planned to be attained).</documentation>
  </annotation>
</element>

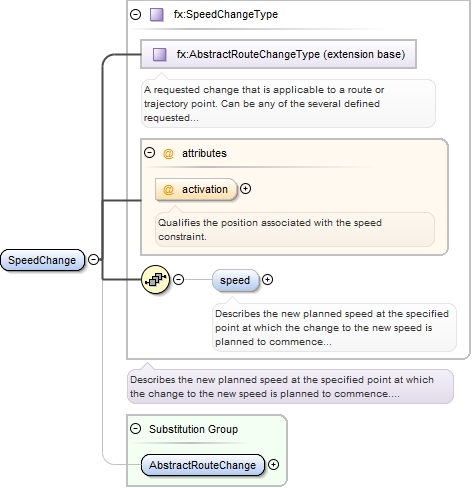

Element fx:SpeedChange
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#SpeedChangeType_activation RouteChanges_xsd.tmp#SpeedChangeType_speed RouteChanges_xsd.tmp#SpeedChangeType RouteChanges_xsd.tmp#AbstractRouteChange
Type fx:SpeedChangeType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model fx:speed{0,1}
Children fx:speed
Instance
<fx:SpeedChange activation="">
  <fx:speed uom="">{0,1}</fx:speed>
</fx:SpeedChange>
Attributes
QName Type Fixed Default Use Annotation
activation fx:ActivationType optional
Qualifies the position associated with the speed constraint.
Source
<element name="SpeedChange" type="fx:SpeedChangeType" substitutionGroup="fx:AbstractRouteChange"/>
Complex Type fx:AbstractRouteChangeType
Namespace http://www.fixm.aero/flight/4.0
Annotations
A requested change that is applicable to a route or trajectory point. Can be any
of the several defined requested changes.
Diagram
Diagram
Properties
abstract: true
Used by
Source
<complexType abstract="true" name="AbstractRouteChangeType">
  <annotation>
    <documentation>A requested change that is applicable to a route or trajectory point. Can be any of the several defined requested changes.</documentation>
  </annotation>
</complexType>
Simple Type fx:AtOrAboveAltitudeIndicatorType
Namespace http://www.fixm.aero/flight/4.0
Annotations
Indicates the cruise climb start  level indicates a  level above which cruise climb
is planned.
Diagram
Diagram
Type restriction of string
Facets
enumeration AT_OR_ABOVE_ALTITUDE
Used by
Source
<simpleType name="AtOrAboveAltitudeIndicatorType">
  <annotation>
    <documentation>Indicates the cruise climb start level indicates a level above which cruise climb is planned.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="AT_OR_ABOVE_ALTITUDE"/>
  </restriction>
</simpleType>

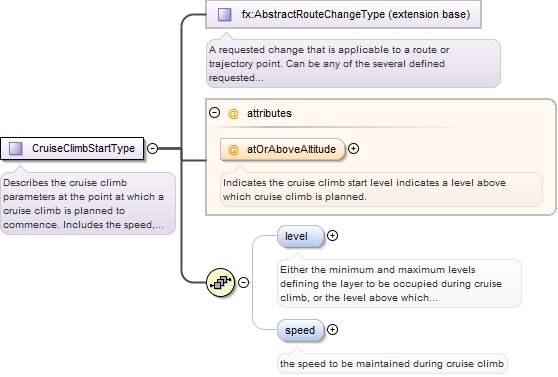

Complex Type fx:CruiseClimbStartType
Namespace http://www.fixm.aero/flight/4.0
Annotations
Describes the cruise climb parameters at the point at which a cruise climb is planned
to commence.  Includes the speed, the lower level and the upper level of the cruise
climb.
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#CruiseClimbStartType_atOrAboveAltitude RouteChanges_xsd.tmp#CruiseClimbStartType_level RouteChanges_xsd.tmp#CruiseClimbStartType_speed
Type extension of fx:AbstractRouteChangeType
Type hierarchy
Used by
Model fx:level{0,1} , fx:speed{0,1}
Children fx:level, fx:speed
Attributes
QName Type Fixed Default Use Annotation
atOrAboveAltitude fx:AtOrAboveAltitudeIndicatorType optional
Indicates the cruise climb start  level indicates a  level above which cruise climb
is planned.
Source
<complexType name="CruiseClimbStartType">
  <annotation>
    <documentation>Describes the cruise climb parameters at the point at which a cruise climb is planned to commence. Includes the speed, the lower level and the upper level of the cruise climb.</documentation>
  </annotation>
  <complexContent>
    <extension base="fx:AbstractRouteChangeType">
      <sequence>
        <element name="level" type="fb:FlightLevelOrAltitudeChoiceType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Either the minimum and maximum levels defining the layer to be occupied during cruise climb, or the level above which cruise climb is planned</documentation>
          </annotation>
        </element>
        <element name="speed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>the speed to be maintained during cruise climb</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="atOrAboveAltitude" type="fx:AtOrAboveAltitudeIndicatorType" use="optional">
        <annotation>
          <documentation>Indicates the cruise climb start level indicates a level above which cruise climb is planned.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>

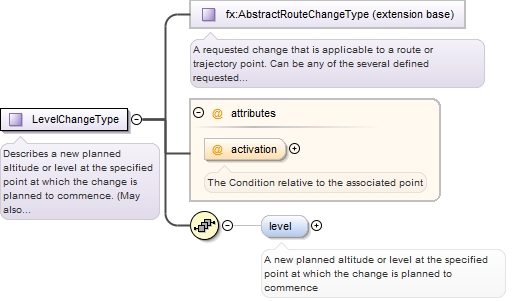

Complex Type fx:LevelChangeType
Namespace http://www.fixm.aero/flight/4.0
Annotations
Describes a new planned altitude or level at the specified point at which the change
is planned to commence.  (May also describe a point at which the altitude or level
change is planned to be attained.)
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#LevelChangeType_activation RouteChanges_xsd.tmp#LevelChangeType_level
Type extension of fx:AbstractRouteChangeType
Type hierarchy
Used by
Element fx:LevelChange
Model fx:level{0,1}
Children fx:level
Attributes
QName Type Fixed Default Use Annotation
activation fx:ActivationType optional
The Condition relative to the associated point
Source
<complexType name="LevelChangeType">
  <annotation>
    <documentation>Describes a new planned altitude or level at the specified point at which the change is planned to commence. (May also describe a point at which the altitude or level change is planned to be attained.)</documentation>
  </annotation>
  <complexContent>
    <extension base="fx:AbstractRouteChangeType">
      <sequence>
        <element name="level" type="fb:FlightLevelOrAltitudeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A new planned altitude or level at the specified point at which the change is planned to commence</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="activation" type="fx:ActivationType" use="optional">
        <annotation>
          <documentation>The Condition relative to the associated point</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Complex Type fx:SpeedChangeType
Namespace http://www.fixm.aero/flight/4.0
Annotations
Describes the new planned speed at the specified point at which the change to the
new speed is planned to commence.  (May also describe a point at which the speed
change is planned to be attained).
Diagram
Diagram RouteChanges_xsd.tmp#AbstractRouteChangeType RouteChanges_xsd.tmp#SpeedChangeType_activation RouteChanges_xsd.tmp#SpeedChangeType_speed
Type extension of fx:AbstractRouteChangeType
Type hierarchy
Used by
Element fx:SpeedChange
Model fx:speed{0,1}
Children fx:speed
Attributes
QName Type Fixed Default Use Annotation
activation fx:ActivationType optional
Qualifies the position associated with the speed constraint.
Source
<complexType name="SpeedChangeType">
  <annotation>
    <documentation>Describes the new planned speed at the specified point at which the change to the new speed is planned to commence. (May also describe a point at which the speed change is planned to be attained).</documentation>
  </annotation>
  <complexContent>
    <extension base="fx:AbstractRouteChangeType">
      <sequence>
        <element name="speed" type="fb:TrueAirspeedType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Describes the new planned speed at the specified point at which the change to the new speed is planned to commence .Speed Change: Describes the new planned speed at the specified point at which the change to the new speed is planned to commence. (May also describe a point at which the speed change is planned to be attained).</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="activation" type="fx:ActivationType" use="optional">
        <annotation>
          <documentation>Qualifies the position associated with the speed constraint.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute fx:CruiseClimbStartType / @atOrAboveAltitude
Namespace No namespace
Annotations
Indicates the cruise climb start  level indicates a  level above which cruise climb
is planned.
Type fx:AtOrAboveAltitudeIndicatorType
Properties
use: optional
Facets
enumeration AT_OR_ABOVE_ALTITUDE
Used by
Source
<attribute name="atOrAboveAltitude" type="fx:AtOrAboveAltitudeIndicatorType" use="optional">
  <annotation>
    <documentation>Indicates the cruise climb start level indicates a level above which cruise climb is planned.</documentation>
  </annotation>
</attribute>
Attribute fx:LevelChangeType / @activation
Namespace No namespace
Annotations
The Condition relative to the associated point
Type fx:ActivationType
Properties
use: optional
Facets
enumeration PLAN_TO_COMMENCE
enumeration PLAN_TO_ATTAIN
Used by
Complex Type fx:LevelChangeType
Source
<attribute name="activation" type="fx:ActivationType" use="optional">
  <annotation>
    <documentation>The Condition relative to the associated point</documentation>
  </annotation>
</attribute>
Attribute fx:SpeedChangeType / @activation
Namespace No namespace
Annotations
Qualifies the position associated with the speed constraint.
Type fx:ActivationType
Properties
use: optional
Facets
enumeration PLAN_TO_COMMENCE
enumeration PLAN_TO_ATTAIN
Used by
Complex Type fx:SpeedChangeType
Source
<attribute name="activation" type="fx:ActivationType" use="optional">
  <annotation>
    <documentation>Qualifies the position associated with the speed constraint.</documentation>
  </annotation>
</attribute>
