This package defines the ranked trajectory information.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0
Element fx:RankedTrajectoryType / fx:routeTrajectory
Namespace http://www.fixm.aero/flight/4.0
Annotations

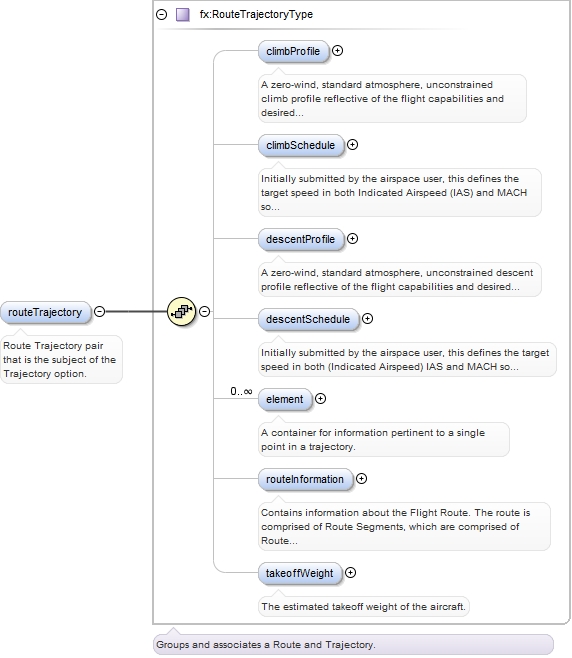

Route Trajectory pair that is the subject of the Trajectory option.
Diagram
Diagram RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_climbSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentProfile RouteTrajectory_xsd.tmp#RouteTrajectoryType_descentSchedule RouteTrajectory_xsd.tmp#RouteTrajectoryType_element RouteTrajectory_xsd.tmp#RouteTrajectoryType_routeInformation RouteTrajectory_xsd.tmp#RouteTrajectoryType_takeoffWeight RouteTrajectory_xsd.tmp#RouteTrajectoryType
Type fx:RouteTrajectoryType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:climbProfile{0,1} , fx:climbSchedule{0,1} , fx:descentProfile{0,1} , fx:descentSchedule{0,1} , fx:element* , fx:routeInformation{0,1} , fx:takeoffWeight{0,1}
Children fx:climbProfile, fx:climbSchedule, fx:descentProfile, fx:descentSchedule, fx:element, fx:routeInformation, fx:takeoffWeight
Instance
<fx:routeTrajectory>
  <fx:climbProfile>{0,1}</fx:climbProfile>
  <fx:climbSchedule>{0,1}</fx:climbSchedule>
  <fx:descentProfile>{0,1}</fx:descentProfile>
  <fx:descentSchedule>{0,1}</fx:descentSchedule>
  <fx:element flightRulesChange="" modified="" modifiedRouteItemReference="" routeTerminationIndicator="">{0,unbounded}</fx:element>
  <fx:routeInformation flightRulesCategory="" routeText="" totalEstimatedElapsedTime="">{0,1}</fx:routeInformation>
  <fx:takeoffWeight uom="">{0,1}</fx:takeoffWeight>
</fx:routeTrajectory>
Source
<element name="routeTrajectory" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Route Trajectory pair that is the subject of the Trajectory option.</documentation>
  </annotation>
</element>
Element fx:RankedTrajectory
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram RankedTrajectory_xsd.tmp#RankedTrajectoryType_identifier RankedTrajectory_xsd.tmp#RankedTrajectoryType_routeTrajectory RankedTrajectory_xsd.tmp#RankedTrajectoryType
Type fx:RankedTrajectoryType
Properties
content: complex
Model fx:routeTrajectory{0,1}
Children fx:routeTrajectory
Instance
<fx:RankedTrajectory identifier="">
  <fx:routeTrajectory>{0,1}</fx:routeTrajectory>
</fx:RankedTrajectory>
Attributes
QName Type Fixed Default Use Annotation
identifier restriction of fb:CharacterStringType optional
Unique Identifier used to differentiate the 4D trajectories.
Source
<element name="RankedTrajectory" type="fx:RankedTrajectoryType"/>
Complex Type fx:RankedTrajectoryType
Namespace http://www.fixm.aero/flight/4.0
Annotations

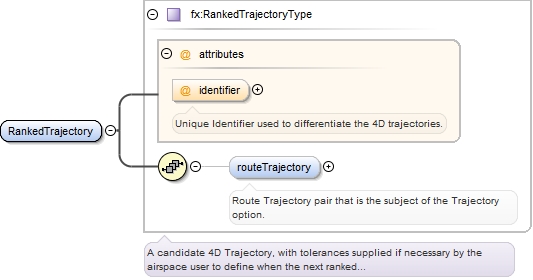

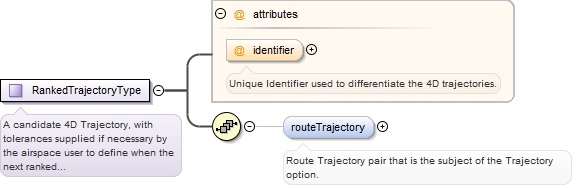

A candidate 4D Trajectory, with tolerances supplied if necessary by the airspace
user to define when the next ranked trajectory should be used.
This is the route associated with a single Ranked 4D trajectory for a flight.  It
indicates the intent of the flight and includes the path over the surface of the
earth, the altitude and the speed for the flight.
Diagram
Diagram RankedTrajectory_xsd.tmp#RankedTrajectoryType_identifier RankedTrajectory_xsd.tmp#RankedTrajectoryType_routeTrajectory
Used by
Model fx:routeTrajectory{0,1}
Children fx:routeTrajectory
Attributes
QName Type Fixed Default Use Annotation
identifier restriction of fb:CharacterStringType optional
Unique Identifier used to differentiate the 4D trajectories.
Source
<complexType name="RankedTrajectoryType">
  <annotation>
    <documentation>A candidate 4D Trajectory, with tolerances supplied if necessary by the airspace user to define when the next ranked trajectory should be used. This is the route associated with a single Ranked 4D trajectory for a flight. It indicates the intent of the flight and includes the path over the surface of the earth, the altitude and the speed for the flight.</documentation>
  </annotation>
  <sequence>
    <element name="routeTrajectory" type="fx:RouteTrajectoryType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Route Trajectory pair that is the subject of the Trajectory option.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="identifier" use="optional">
    <annotation>
      <documentation>Unique Identifier used to differentiate the 4D trajectories.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <pattern value="[0-9]{1,2}"/>
      </restriction>
    </simpleType>
  </attribute>
</complexType>
Attribute fx:RankedTrajectoryType / @identifier
Namespace No namespace
Annotations
Unique Identifier used to differentiate the 4D trajectories.
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern [0-9]{1,2}
Used by
Source
<attribute name="identifier" use="optional">
  <annotation>
    <documentation>Unique Identifier used to differentiate the 4D trajectories.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="[0-9]{1,2}"/>
    </restriction>
  </simpleType>
</attribute>
