Included schema RadioactiveMaterials.xsd
Namespace http://www.fixm.aero/fixm/4.0
Annotations

Copyright (c) 2016 Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited,
       NAV CANADA, SESAR Joint Undertaking & US FAA
       ===========================================
       All rights reserved.

       Redistribution and use in source and binary forms, with or without modification,
       are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the disclaimer
  in the documentation and/or other materials provided with the distribution.
* Neither the names of Airservices Australia, DSNA, EUROCONTROL, IATA, JCAB, NATS Limited, NavCanada, SESAR Joint Undertaking
  & US FAA nor the names of their contributors may be used to endorse or promote products derived from this specification
  without specific prior written permission.


       DISCLAIMER

       THIS SPECIFICATION IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
       AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
       WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
       IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
       INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
       TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
       BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
       CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
       ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
       DAMAGE.

       ==========================================
       Editorial note: this license is an instance of the BSD license template as provided
       by the Open Source Initiative:
       http://www.opensource.org/licenses/bsd-license.php

       The authoritative reference for FIXM is www.FIXM.aero.

       Details on Airservices Australia: http://www.airservicesaustralia.com/
       Details on DSNA: http://www.developpement-durable.gouv.fr/-Navigation-aerienne-.html

       Details on EUROCONTROL: http://www.eurocontrol.int/
       Details on IATA: http://www.iata.org/Pages/default.aspx
       Details on JCAB: http://www.mlit.go.jp/en/koku/index.html
       Details on NATS Limited: http://www.nats.co.uk/
       Details on NAV CANADA: http://www.navcanada.ca/
       Details on the SESAR JU and its members: http://www.sesarju.eu/discover-sesar/partnering-smarter-aviation/members

       Details on the US FAA: http://www.faa.gov/

The grouping element for goods that contain radioactive materials.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0
Element fx:RadioactiveMaterialType / fx:radionuclide
Namespace http://www.fixm.aero/flight/4.0
Annotations

The XML sub-grouping element for Radioactive Materials.

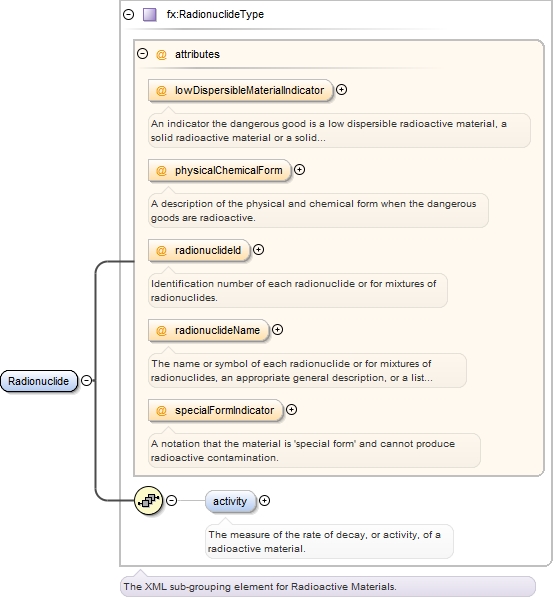

Diagram
Diagram RadioactiveMaterials_xsd.tmp#RadionuclideType_lowDispersibleMaterialIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_physicalChemicalForm RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideId RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideName RadioactiveMaterials_xsd.tmp#RadionuclideType_specialFormIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_activity RadioactiveMaterials_xsd.tmp#RadionuclideType
Type fx:RadionuclideType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:activity{0,1}
Children fx:activity
Instance

<fx:radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">
  <fx:activity uom="">{0,1}</fx:activity>
</fx:radionuclide>
Attributes
QName Type Fixed Default Use Annotation
lowDispersibleMaterialIndicator fx:MaterialDispersabilityType optional
An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.
physicalChemicalForm fb:CharacterStringType optional
A description of the physical and chemical form when the dangerous goods are radioactive.
radionuclideId restriction of fb:CharacterStringType optional
Identification number of each radionuclide or for mixtures of radionuclides.
radionuclideName fb:CharacterStringType optional
The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.
specialFormIndicator fx:SpecialFormType optional
A notation that the material is 'special form' and cannot produce radioactive contamination.
Source

<element name="radionuclide" type="fx:RadionuclideType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The XML sub-grouping element for Radioactive Materials.</documentation>
  </annotation>
</element>
Element fx:RadionuclideType / fx:activity
Namespace http://www.fixm.aero/flight/4.0
Annotations

The measure of the rate of decay, or activity, of a radioactive material.

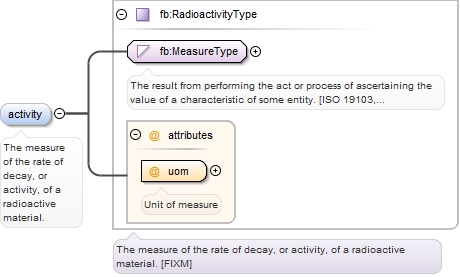

Diagram
Diagram Measures_xsd.tmp#MeasureType Measures_xsd.tmp#RadioactivityType_uom Measures_xsd.tmp#RadioactivityType
Type fb:RadioactivityType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom fb:UomRadioactivityType required
Unit of measure
Source

<element name="activity" type="fb:RadioactivityType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The measure of the rate of decay, or activity, of a radioactive material.</documentation>
  </annotation>
</element>
Element fx:RadioactiveMaterial
Namespace http://www.fixm.aero/flight/4.0

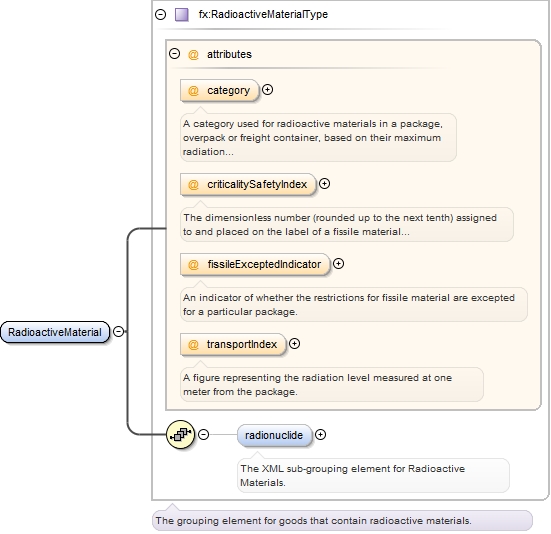

Diagram
Diagram RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_category RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_criticalitySafetyIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_fissileExceptedIndicator RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_transportIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_radionuclide RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType
Type fx:RadioactiveMaterialType
Properties
content: complex
Model fx:radionuclide{0,1}
Children fx:radionuclide
Instance

<fx:RadioactiveMaterial category="" criticalitySafetyIndex="" fissileExceptedIndicator="" transportIndex="">
  <fx:radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">{0,1}</fx:radionuclide>
</fx:RadioactiveMaterial>
Attributes
QName Type Fixed Default Use Annotation
category fx:RadioactiveMaterialCategoryType optional
A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
criticalitySafetyIndex restriction of fb:DecimalIndexType optional
The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
fissileExceptedIndicator fx:FissileExceptedType optional
An indicator of whether the restrictions for fissile material are excepted for a
particular package.
transportIndex restriction of fb:DecimalIndexType optional
A figure representing the radiation level measured at one meter from the package.
Source

<element name="RadioactiveMaterial" type="fx:RadioactiveMaterialType"/>
Element fx:Radionuclide
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram RadioactiveMaterials_xsd.tmp#RadionuclideType_lowDispersibleMaterialIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_physicalChemicalForm RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideId RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideName RadioactiveMaterials_xsd.tmp#RadionuclideType_specialFormIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_activity RadioactiveMaterials_xsd.tmp#RadionuclideType
Type fx:RadionuclideType
Properties
content: complex
Model fx:activity{0,1}
Children fx:activity
Instance

<fx:Radionuclide lowDispersibleMaterialIndicator="" physicalChemicalForm="" radionuclideId="" radionuclideName="" specialFormIndicator="">
  <fx:activity uom="">{0,1}</fx:activity>
</fx:Radionuclide>
Attributes
QName Type Fixed Default Use Annotation
lowDispersibleMaterialIndicator fx:MaterialDispersabilityType optional
An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.
physicalChemicalForm fb:CharacterStringType optional
A description of the physical and chemical form when the dangerous goods are radioactive.
radionuclideId restriction of fb:CharacterStringType optional
Identification number of each radionuclide or for mixtures of radionuclides.
radionuclideName fb:CharacterStringType optional
The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.
specialFormIndicator fx:SpecialFormType optional
A notation that the material is 'special form' and cannot produce radioactive contamination.
Source

<element name="Radionuclide" type="fx:RadionuclideType"/>
Complex Type fx:RadioactiveMaterialType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The  grouping element for goods that contain radioactive materials.

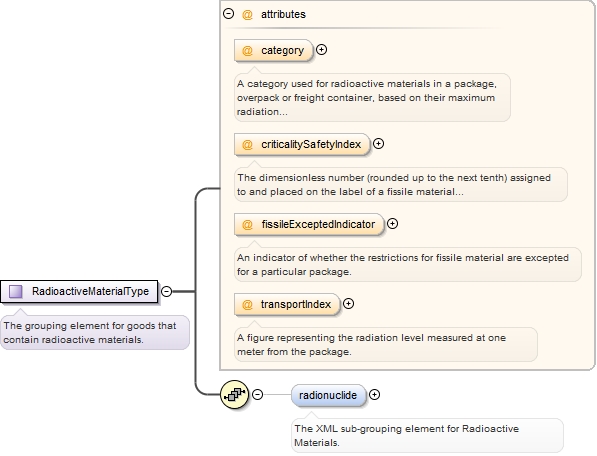

Diagram
Diagram RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_category RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_criticalitySafetyIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_fissileExceptedIndicator RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_transportIndex RadioactiveMaterials_xsd.tmp#RadioactiveMaterialType_radionuclide
Used by
Model fx:radionuclide{0,1}
Children fx:radionuclide
Attributes
QName Type Fixed Default Use Annotation
category fx:RadioactiveMaterialCategoryType optional
A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
criticalitySafetyIndex restriction of fb:DecimalIndexType optional
The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
fissileExceptedIndicator fx:FissileExceptedType optional
An indicator of whether the restrictions for fissile material are excepted for a
particular package.
transportIndex restriction of fb:DecimalIndexType optional
A figure representing the radiation level measured at one meter from the package.
Source

<complexType name="RadioactiveMaterialType">
  <annotation>
    <documentation>The grouping element for goods that contain radioactive materials.</documentation>
  </annotation>
  <sequence>
    <element name="radionuclide" type="fx:RadionuclideType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The XML sub-grouping element for Radioactive Materials.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="category" type="fx:RadioactiveMaterialCategoryType" use="optional">
    <annotation>
      <documentation>A category used for radioactive materials in a package, overpack or freight container, based on their maximum radiation level.</documentation>
    </annotation>
  </attribute>
  <attribute name="criticalitySafetyIndex" use="optional">
    <annotation>
      <documentation>The dimensionless number (rounded up to the next tenth) assigned to and placed on the label of a fissile material package to designate the degree of control of accumulation of packages containing fissile material during transportation.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:DecimalIndexType">
        <maxInclusive value="100.0"/>
        <minInclusive value="0.0"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="fissileExceptedIndicator" type="fx:FissileExceptedType" use="optional">
    <annotation>
      <documentation>An indicator of whether the restrictions for fissile material are excepted for a particular package.</documentation>
    </annotation>
  </attribute>
  <attribute name="transportIndex" use="optional">
    <annotation>
      <documentation>A figure representing the radiation level measured at one meter from the package.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:DecimalIndexType">
        <maxInclusive value="50.0"/>
        <minInclusive value="0.0"/>
      </restriction>
    </simpleType>
  </attribute>
</complexType>
Complex Type fx:RadionuclideType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The XML sub-grouping element for Radioactive Materials.

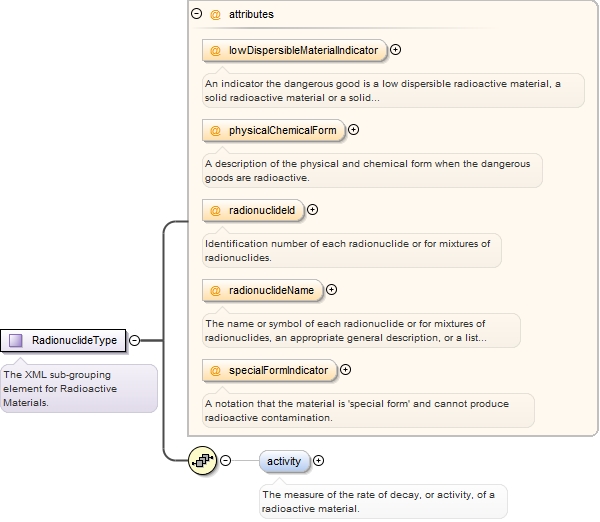

Diagram
Diagram RadioactiveMaterials_xsd.tmp#RadionuclideType_lowDispersibleMaterialIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_physicalChemicalForm RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideId RadioactiveMaterials_xsd.tmp#RadionuclideType_radionuclideName RadioactiveMaterials_xsd.tmp#RadionuclideType_specialFormIndicator RadioactiveMaterials_xsd.tmp#RadionuclideType_activity
Used by
Model fx:activity{0,1}
Children fx:activity
Attributes
QName Type Fixed Default Use Annotation
lowDispersibleMaterialIndicator fx:MaterialDispersabilityType optional
An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.
physicalChemicalForm fb:CharacterStringType optional
A description of the physical and chemical form when the dangerous goods are radioactive.
radionuclideId restriction of fb:CharacterStringType optional
Identification number of each radionuclide or for mixtures of radionuclides.
radionuclideName fb:CharacterStringType optional
The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.
specialFormIndicator fx:SpecialFormType optional
A notation that the material is 'special form' and cannot produce radioactive contamination.
Source

<complexType name="RadionuclideType">
  <annotation>
    <documentation>The XML sub-grouping element for Radioactive Materials.</documentation>
  </annotation>
  <sequence>
    <element name="activity" type="fb:RadioactivityType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The measure of the rate of decay, or activity, of a radioactive material.</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="lowDispersibleMaterialIndicator" type="fx:MaterialDispersabilityType" use="optional">
    <annotation>
      <documentation>An indicator the dangerous good is a low dispersible radioactive material, a solid radioactive material or a solid radioactive material in a sealed capsule, which has limited dispersibility and is not in powder form.</documentation>
    </annotation>
  </attribute>
  <attribute name="physicalChemicalForm" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>A description of the physical and chemical form when the dangerous goods are radioactive.</documentation>
    </annotation>
  </attribute>
  <attribute name="radionuclideId" use="optional">
    <annotation>
      <documentation>Identification number of each radionuclide or for mixtures of radionuclides.</documentation>
    </annotation>
    <simpleType>
      <restriction base="fb:CharacterStringType">
        <pattern value="(UN)|(ID)|(NA)?\d{4}"/>
      </restriction>
    </simpleType>
  </attribute>
  <attribute name="radionuclideName" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate general description, or a list of the most restrictive nuclides.</documentation>
    </annotation>
  </attribute>
  <attribute name="specialFormIndicator" type="fx:SpecialFormType" use="optional">
    <annotation>
      <documentation>A notation that the material is 'special form' and cannot produce radioactive contamination.</documentation>
    </annotation>
  </attribute>
</complexType>
Simple Type fx:MaterialDispersabilityType
Namespace http://www.fixm.aero/flight/4.0
Annotations

An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.
Diagram
Diagram
Type restriction of string
Facets
enumeration LOW_DISPERSIBLE
Indicates that the dangerous good is either (1) a low dispersible radioactive material,
(2) a solid radioactive material, or (3) a solid radioactive material in a sealed
capsule which has limited dispersibility and is not in powder form.
Used by
Source

<simpleType name="MaterialDispersabilityType">
  <annotation>
    <documentation>An indicator the dangerous good is a low dispersible radioactive material, a solid radioactive material or a solid radioactive material in a sealed capsule, which has limited dispersibility and is not in powder form.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="LOW_DISPERSIBLE">
      <annotation>
        <documentation>Indicates that the dangerous good is either (1) a low dispersible radioactive material, (2) a solid radioactive material, or (3) a solid radioactive material in a sealed capsule which has limited dispersibility and is not in powder form.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>

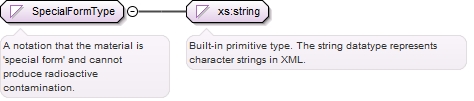

Simple Type fx:SpecialFormType
Namespace http://www.fixm.aero/flight/4.0
Annotations

A notation that the material is 'special form' and cannot produce radioactive contamination.
Diagram
Diagram
Type restriction of string
Facets
enumeration SPECIAL_FORM
Indicates that the material is 'special form' and cannot produce radioactive contamination.
Used by
Source

<simpleType name="SpecialFormType">
  <annotation>
    <documentation>A notation that the material is 'special form' and cannot produce radioactive contamination.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="SPECIAL_FORM">
      <annotation>
        <documentation>Indicates that the material is 'special form' and cannot produce radioactive contamination.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:RadioactiveMaterialCategoryType
Namespace http://www.fixm.aero/flight/4.0
Annotations

A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
Diagram
Diagram
Type restriction of string
Facets
enumeration I_WHITE
.Surface radiation &lt;0.5 millirem/hr, 1 meter radiation: N/A
enumeration II_YELLOW
.Surface radiation &lt;50 millirem/hr, 1 meter radiation &lt;1 millirem/hr
enumeration III_YELLOW
.Surface radiation &gt;50 millirem/hr, 1 meter radiation &gt;1 millirem/hr
Used by
Source

<simpleType name="RadioactiveMaterialCategoryType">
  <annotation>
    <documentation>A category used for radioactive materials in a package, overpack or freight container, based on their maximum radiation level.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="I_WHITE">
      <annotation>
        <documentation>.Surface radiation &lt;0.5 millirem/hr, 1 meter radiation: N/A</documentation>
      </annotation>
    </enumeration>
    <enumeration value="II_YELLOW">
      <annotation>
        <documentation>.Surface radiation &lt;50 millirem/hr, 1 meter radiation &lt;1 millirem/hr</documentation>
      </annotation>
    </enumeration>
    <enumeration value="III_YELLOW">
      <annotation>
        <documentation>.Surface radiation &gt;50 millirem/hr, 1 meter radiation &gt;1 millirem/hr</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Simple Type fx:FissileExceptedType
Namespace http://www.fixm.aero/flight/4.0
Annotations

An indicator of whether the restrictions for fissile material are excepted for a
particular package.
Diagram
Diagram
Type restriction of string
Facets
enumeration EXCEPTED
Indicates the restrictions for fissile material are excepted for a particular package.
Used by
Source

<simpleType name="FissileExceptedType">
  <annotation>
    <documentation>An indicator of whether the restrictions for fissile material are excepted for a particular package.</documentation>
  </annotation>
  <restriction base="xs:string">
    <enumeration value="EXCEPTED">
      <annotation>
        <documentation>Indicates the restrictions for fissile material are excepted for a particular package.</documentation>
      </annotation>
    </enumeration>
  </restriction>
</simpleType>
Attribute fx:RadionuclideType / @lowDispersibleMaterialIndicator
Namespace No namespace
Annotations

An indicator the dangerous good is a low dispersible radioactive material, a solid
radioactive material or a solid radioactive material in a sealed capsule, which has
limited dispersibility and is not in powder form.
Type fx:MaterialDispersabilityType
Properties
use: optional
Facets
enumeration LOW_DISPERSIBLE
Indicates that the dangerous good is either (1) a low dispersible radioactive material,
(2) a solid radioactive material, or (3) a solid radioactive material in a sealed
capsule which has limited dispersibility and is not in powder form.
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="lowDispersibleMaterialIndicator" type="fx:MaterialDispersabilityType" use="optional">
  <annotation>
    <documentation>An indicator the dangerous good is a low dispersible radioactive material, a solid radioactive material or a solid radioactive material in a sealed capsule, which has limited dispersibility and is not in powder form.</documentation>
  </annotation>
</attribute>
Attribute fx:RadionuclideType / @physicalChemicalForm
Namespace No namespace
Annotations

A description of the physical and chemical form when the dangerous goods are radioactive.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="physicalChemicalForm" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>A description of the physical and chemical form when the dangerous goods are radioactive.</documentation>
  </annotation>
</attribute>
Attribute fx:RadionuclideType / @radionuclideId
Namespace No namespace
Annotations

Identification number of each radionuclide or for mixtures of radionuclides.
Type restriction of fb:CharacterStringType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (UN)|(ID)|(NA)?\d{4}
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="radionuclideId" use="optional">
  <annotation>
    <documentation>Identification number of each radionuclide or for mixtures of radionuclides.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:CharacterStringType">
      <pattern value="(UN)|(ID)|(NA)?\d{4}"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:RadionuclideType / @radionuclideName
Namespace No namespace
Annotations

The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate
general description, or a list of the most restrictive nuclides.
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="radionuclideName" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>The name or symbol of each radionuclide or for mixtures of radionuclides, an appropriate general description, or a list of the most restrictive nuclides.</documentation>
  </annotation>
</attribute>
Attribute fx:RadionuclideType / @specialFormIndicator
Namespace No namespace
Annotations

A notation that the material is 'special form' and cannot produce radioactive contamination.
Type fx:SpecialFormType
Properties
use: optional
Facets
enumeration SPECIAL_FORM
Indicates that the material is 'special form' and cannot produce radioactive contamination.
Used by
Complex Type fx:RadionuclideType
Source

<attribute name="specialFormIndicator" type="fx:SpecialFormType" use="optional">
  <annotation>
    <documentation>A notation that the material is 'special form' and cannot produce radioactive contamination.</documentation>
  </annotation>
</attribute>
Attribute fx:RadioactiveMaterialType / @category
Namespace No namespace
Annotations

A category used for radioactive materials in a package, overpack or freight container,
based on their maximum radiation level.
Type fx:RadioactiveMaterialCategoryType
Properties
use: optional
Facets
enumeration I_WHITE
.Surface radiation &lt;0.5 millirem/hr, 1 meter radiation: N/A
enumeration II_YELLOW
.Surface radiation &lt;50 millirem/hr, 1 meter radiation &lt;1 millirem/hr
enumeration III_YELLOW
.Surface radiation &gt;50 millirem/hr, 1 meter radiation &gt;1 millirem/hr
Used by
Source

<attribute name="category" type="fx:RadioactiveMaterialCategoryType" use="optional">
  <annotation>
    <documentation>A category used for radioactive materials in a package, overpack or freight container, based on their maximum radiation level.</documentation>
  </annotation>
</attribute>
Attribute fx:RadioactiveMaterialType / @criticalitySafetyIndex
Namespace No namespace
Annotations

The dimensionless number (rounded up to the next tenth) assigned to and placed on
the label of a fissile material package to designate the degree of control of accumulation
of packages containing fissile material during transportation.
Type restriction of fb:DecimalIndexType
Type hierarchy
Properties
use: optional
Facets
totalDigits 4
fractionDigits 1
maxInclusive 100.0
minInclusive 0.0
Used by
Source

<attribute name="criticalitySafetyIndex" use="optional">
  <annotation>
    <documentation>The dimensionless number (rounded up to the next tenth) assigned to and placed on the label of a fissile material package to designate the degree of control of accumulation of packages containing fissile material during transportation.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:DecimalIndexType">
      <maxInclusive value="100.0"/>
      <minInclusive value="0.0"/>
    </restriction>
  </simpleType>
</attribute>
Attribute fx:RadioactiveMaterialType / @fissileExceptedIndicator
Namespace No namespace
Annotations

An indicator of whether the restrictions for fissile material are excepted for a
particular package.
Type fx:FissileExceptedType
Properties
use: optional
Facets
enumeration EXCEPTED
Indicates the restrictions for fissile material are excepted for a particular package.
Used by
Source

<attribute name="fissileExceptedIndicator" type="fx:FissileExceptedType" use="optional">
  <annotation>
    <documentation>An indicator of whether the restrictions for fissile material are excepted for a particular package.</documentation>
  </annotation>
</attribute>
Attribute fx:RadioactiveMaterialType / @transportIndex
Namespace No namespace
Annotations

A figure representing the radiation level measured at one meter from the package.
Type restriction of fb:DecimalIndexType
Type hierarchy
Properties
use: optional
Facets
totalDigits 4
fractionDigits 1
maxInclusive 50.0
minInclusive 0.0
Used by
Source

<attribute name="transportIndex" use="optional">
  <annotation>
    <documentation>A figure representing the radiation level measured at one meter from the package.</documentation>
  </annotation>
  <simpleType>
    <restriction base="fb:DecimalIndexType">
      <maxInclusive value="50.0"/>
      <minInclusive value="0.0"/>
    </restriction>
  </simpleType>
</attribute>
XML Schema documentation generated by ® XML Editor.
