The Arrival package contains al information about the actual arrival of the flight
at an airport, including approach, landing, and arrival at terminal.
Properties
attribute form default: unqualified
element form default: qualified
version: 4.0.0

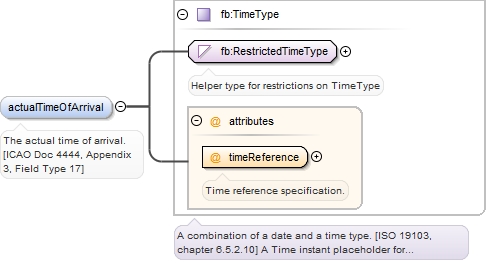

Element fx:ArrivalType / fx:actualTimeOfArrival
Namespace http://www.fixm.aero/flight/4.0
Annotations

The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]
Diagram
Diagram Types_xsd.tmp#RestrictedTimeType Types_xsd.tmp#TimeType_timeReference Types_xsd.tmp#TimeType
Type fb:TimeType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
timeReference string UTC required
Time reference specification.
Source

<element name="actualTimeOfArrival" type="fb:TimeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]</documentation>
  </annotation>
</element>

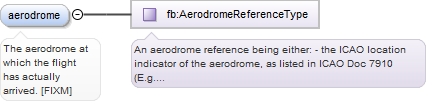

Element fx:ArrivalType / fx:aerodrome
Namespace http://www.fixm.aero/flight/4.0
Annotations

The aerodrome at which the flight has actually arrived. [FIXM]
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome at which the flight has actually arrived. [FIXM]</documentation>
  </annotation>
</element>

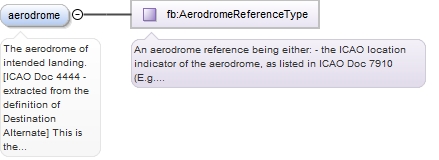

Element fx:DestinationType / fx:aerodrome
Namespace http://www.fixm.aero/flight/4.0
Annotations

The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition
of Destination Alternate]
This is the aerodrome at which the flight is scheduled to arrive. [FIXM]
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate] This is the aerodrome at which the flight is scheduled to arrive. [FIXM]</documentation>
  </annotation>
</element>

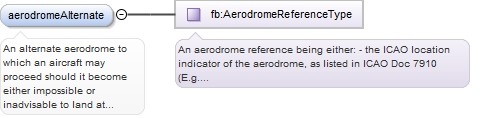

Element fx:DestinationType / fx:aerodromeAlternate
Namespace http://www.fixm.aero/flight/4.0
Annotations

An alternate aerodrome to which an aircraft may proceed should it become either impossible
or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Source

<element name="aerodromeAlternate" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]</documentation>
  </annotation>
</element>

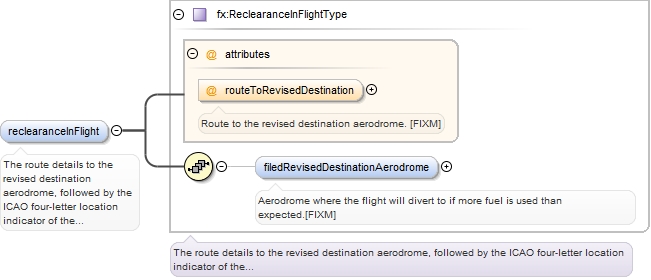

Element fx:DestinationType / fx:reclearanceInFlight
Namespace http://www.fixm.aero/flight/4.0
Annotations

The route details to the revised destination aerodrome, followed by the ICAO four-letter
location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
Diagram
Diagram Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome Arrival_xsd.tmp#ReclearanceInFlightType
Type fx:ReclearanceInFlightType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model fx:filedRevisedDestinationAerodrome{0,1}
Children fx:filedRevisedDestinationAerodrome
Instance

<fx:reclearanceInFlight routeToRevisedDestination="">
  <fx:filedRevisedDestinationAerodrome>{0,1}</fx:filedRevisedDestinationAerodrome>
</fx:reclearanceInFlight>
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
  </annotation>
</element>
Element fx:ReclearanceInFlightType / fx:filedRevisedDestinationAerodrome
Namespace http://www.fixm.aero/flight/4.0
Annotations

Aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]
Diagram
Diagram Aerodrome_xsd.tmp#AerodromeReferenceType
Type fb:AerodromeReferenceType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Source

<element name="filedRevisedDestinationAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]</documentation>
  </annotation>
</element>

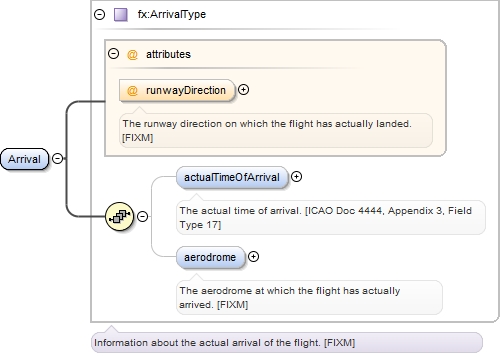

Element fx:Arrival
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Arrival_xsd.tmp#ArrivalType_runwayDirection Arrival_xsd.tmp#ArrivalType_actualTimeOfArrival Arrival_xsd.tmp#ArrivalType_aerodrome Arrival_xsd.tmp#ArrivalType
Type fx:ArrivalType
Properties
content: complex
Model fx:actualTimeOfArrival{0,1} , fx:aerodrome{0,1}
Children fx:actualTimeOfArrival, fx:aerodrome
Instance

<fx:Arrival runwayDirection="">
  <fx:actualTimeOfArrival timeReference="UTC">{0,1}</fx:actualTimeOfArrival>
  <fx:aerodrome>{0,1}</fx:aerodrome>
</fx:Arrival>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction on which the flight has actually landed. [FIXM]
Source

<element name="Arrival" type="fx:ArrivalType"/>

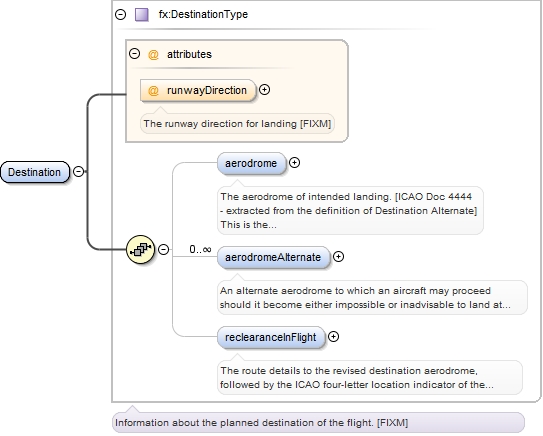

Element fx:Destination
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Arrival_xsd.tmp#DestinationType_runwayDirection Arrival_xsd.tmp#DestinationType_aerodrome Arrival_xsd.tmp#DestinationType_aerodromeAlternate Arrival_xsd.tmp#DestinationType_reclearanceInFlight Arrival_xsd.tmp#DestinationType
Type fx:DestinationType
Properties
content: complex
Model fx:aerodrome{0,1} , fx:aerodromeAlternate* , fx:reclearanceInFlight{0,1}
Children fx:aerodrome, fx:aerodromeAlternate, fx:reclearanceInFlight
Instance

<fx:Destination runwayDirection="">
  <fx:aerodrome>{0,1}</fx:aerodrome>
  <fx:aerodromeAlternate>{0,unbounded}</fx:aerodromeAlternate>
  <fx:reclearanceInFlight routeToRevisedDestination="">{0,1}</fx:reclearanceInFlight>
</fx:Destination>
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction for landing [FIXM]
Source

<element name="Destination" type="fx:DestinationType"/>
Element fx:ReclearanceInFlight
Namespace http://www.fixm.aero/flight/4.0
Diagram
Diagram Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome Arrival_xsd.tmp#ReclearanceInFlightType
Type fx:ReclearanceInFlightType
Properties
content: complex
Model fx:filedRevisedDestinationAerodrome{0,1}
Children fx:filedRevisedDestinationAerodrome
Instance

<fx:ReclearanceInFlight routeToRevisedDestination="">
  <fx:filedRevisedDestinationAerodrome>{0,1}</fx:filedRevisedDestinationAerodrome>
</fx:ReclearanceInFlight>
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<element name="ReclearanceInFlight" type="fx:ReclearanceInFlightType"/>

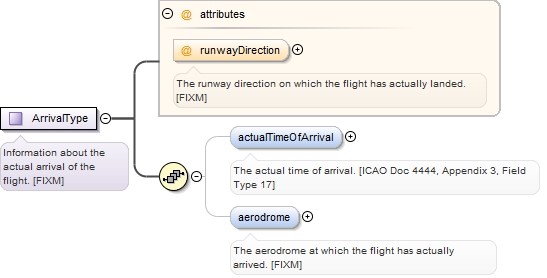

Complex Type fx:ArrivalType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Information about the actual arrival of the flight. [FIXM]
Diagram
Diagram Arrival_xsd.tmp#ArrivalType_runwayDirection Arrival_xsd.tmp#ArrivalType_actualTimeOfArrival Arrival_xsd.tmp#ArrivalType_aerodrome
Used by
Model fx:actualTimeOfArrival{0,1} , fx:aerodrome{0,1}
Children fx:actualTimeOfArrival, fx:aerodrome
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction on which the flight has actually landed. [FIXM]
Source

<complexType name="ArrivalType">
  <annotation>
    <documentation>Information about the actual arrival of the flight. [FIXM]</documentation>
  </annotation>
  <sequence>
    <element name="actualTimeOfArrival" type="fb:TimeType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The actual time of arrival. [ICAO Doc 4444, Appendix 3, Field Type 17]</documentation>
      </annotation>
    </element>
    <element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The aerodrome at which the flight has actually arrived. [FIXM]</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
    <annotation>
      <documentation>The runway direction on which the flight has actually landed. [FIXM]</documentation>
    </annotation>
  </attribute>
</complexType>

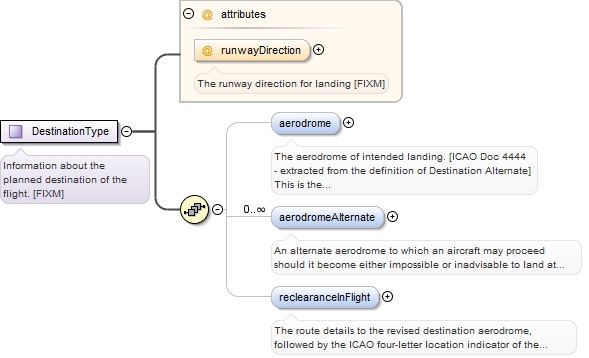

Complex Type fx:DestinationType
Namespace http://www.fixm.aero/flight/4.0
Annotations

Information about the planned destination of the flight. [FIXM]
Diagram
Diagram Arrival_xsd.tmp#DestinationType_runwayDirection Arrival_xsd.tmp#DestinationType_aerodrome Arrival_xsd.tmp#DestinationType_aerodromeAlternate Arrival_xsd.tmp#DestinationType_reclearanceInFlight
Used by
Model fx:aerodrome{0,1} , fx:aerodromeAlternate* , fx:reclearanceInFlight{0,1}
Children fx:aerodrome, fx:aerodromeAlternate, fx:reclearanceInFlight
Attributes
QName Type Fixed Default Use Annotation
runwayDirection fb:RunwayDirectionDesignatorType optional
The runway direction for landing [FIXM]
Source

<complexType name="DestinationType">
  <annotation>
    <documentation>Information about the planned destination of the flight. [FIXM]</documentation>
  </annotation>
  <sequence>
    <element name="aerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The aerodrome of intended landing. [ICAO Doc 4444 - extracted from the definition of Destination Alternate] This is the aerodrome at which the flight is scheduled to arrive. [FIXM]</documentation>
      </annotation>
    </element>
    <element name="aerodromeAlternate" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="unbounded">
      <annotation>
        <documentation>An alternate aerodrome to which an aircraft may proceed should it become either impossible or inadvisable to land at the aerodrome of intended landing. [ICAO Doc 4444]</documentation>
      </annotation>
    </element>
    <element name="reclearanceInFlight" type="fx:ReclearanceInFlightType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
    <annotation>
      <documentation>The runway direction for landing [FIXM]</documentation>
    </annotation>
  </attribute>
</complexType>
Complex Type fx:ReclearanceInFlightType
Namespace http://www.fixm.aero/flight/4.0
Annotations

The route details to the revised destination aerodrome, followed by the ICAO four-letter
location indicator of
the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"
Diagram
Diagram Arrival_xsd.tmp#ReclearanceInFlightType_routeToRevisedDestination Arrival_xsd.tmp#ReclearanceInFlightType_filedRevisedDestinationAerodrome
Used by
Model fx:filedRevisedDestinationAerodrome{0,1}
Children fx:filedRevisedDestinationAerodrome
Attributes
QName Type Fixed Default Use Annotation
routeToRevisedDestination fb:CharacterStringType optional
Route to the revised destination aerodrome. [FIXM]
Source

<complexType name="ReclearanceInFlightType">
  <annotation>
    <documentation>The route details to the revised destination aerodrome, followed by the ICAO four-letter location indicator of the aerodrome. The revised route is subject to reclearance in flight. [ICAO Doc 4444]"</documentation>
  </annotation>
  <sequence>
    <element name="filedRevisedDestinationAerodrome" type="fb:AerodromeReferenceType" minOccurs="0" maxOccurs="1">
      <annotation>
        <documentation>Aerodrome where the flight will divert to if more fuel is used than expected.[FIXM]</documentation>
      </annotation>
    </element>
  </sequence>
  <attribute name="routeToRevisedDestination" type="fb:CharacterStringType" use="optional">
    <annotation>
      <documentation>Route to the revised destination aerodrome. [FIXM]</documentation>
    </annotation>
  </attribute>
</complexType>
Attribute fx:ArrivalType / @runwayDirection
Namespace No namespace
Annotations

The runway direction on which the flight has actually landed. [FIXM]
Type fb:RunwayDirectionDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
Used by
Complex Type fx:ArrivalType
Source

<attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
  <annotation>
    <documentation>The runway direction on which the flight has actually landed. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:ReclearanceInFlightType / @routeToRevisedDestination
Namespace No namespace
Annotations

Route to the revised destination aerodrome. [FIXM]
Type fb:CharacterStringType
Properties
use: optional
Facets
minLength 0
maxLength 4096
Used by
Source

<attribute name="routeToRevisedDestination" type="fb:CharacterStringType" use="optional">
  <annotation>
    <documentation>Route to the revised destination aerodrome. [FIXM]</documentation>
  </annotation>
</attribute>
Attribute fx:DestinationType / @runwayDirection
Namespace No namespace
Annotations

The runway direction for landing [FIXM]
Type fb:RunwayDirectionDesignatorType
Type hierarchy
Properties
use: optional
Facets
minLength 0
maxLength 4096
pattern (0[1-9]|[12][0-9]|3[0-6])[LRC]{0,1}
Used by
Complex Type fx:DestinationType
Source

<attribute name="runwayDirection" type="fb:RunwayDirectionDesignatorType" use="optional">
  <annotation>
    <documentation>The runway direction for landing [FIXM]</documentation>
  </annotation>
</attribute>
XML Schema documentation generated by ® XML Editor.
