complexType RouteTrajectoryGroupContainerType

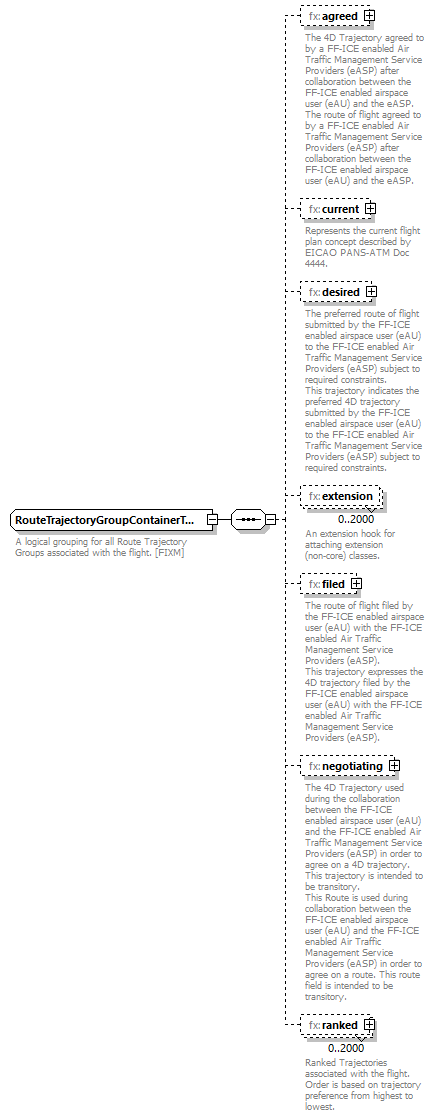

diagram BasicMessage_diagrams/BasicMessage_p360.png
namespace http://www.fixm.aero/flight/4.2
children fx:agreed fx:current fx:desired fx:extension fx:filed fx:negotiating fx:ranked
used by
element FlightType/routeTrajectoryGroup
annotation
documentation
A logical grouping for all Route Trajectory Groups associated with the flight. [FIXM]
source <xs:complexType name="RouteTrajectoryGroupContainerType">

<xs:annotation>

<xs:documentation>A logical grouping for all Route Trajectory Groups associated with the flight. [FIXM]</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="agreed" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The 4D Trajectory agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.
The route of flight agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="current" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Represents the current flight plan concept described by EICAO PANS-ATM Doc 4444.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="desired" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The preferred route of flight submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.
This trajectory indicates the preferred 4D trajectory submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="extension" type="fb:RouteTrajectoryGroupContainerExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="filed" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The route of flight filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
This trajectory expresses the 4D trajectory filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="negotiating" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The 4D Trajectory used during the collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a 4D trajectory. This trajectory is intended to be transitory.
This Route is used during collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a route. This route field is intended to be transitory.
</xs:documentation>

</xs:annotation>

</xs:element>

<xs:element name="ranked" type="fx:RankedTrajectoryType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>Ranked Trajectories associated with the flight. Order is based on trajectory preference from highest to lowest.</xs:documentation>

</xs:annotation>

</xs:element>

</xs:sequence>
</xs:complexType>

element RouteTrajectoryGroupContainerType/agreed

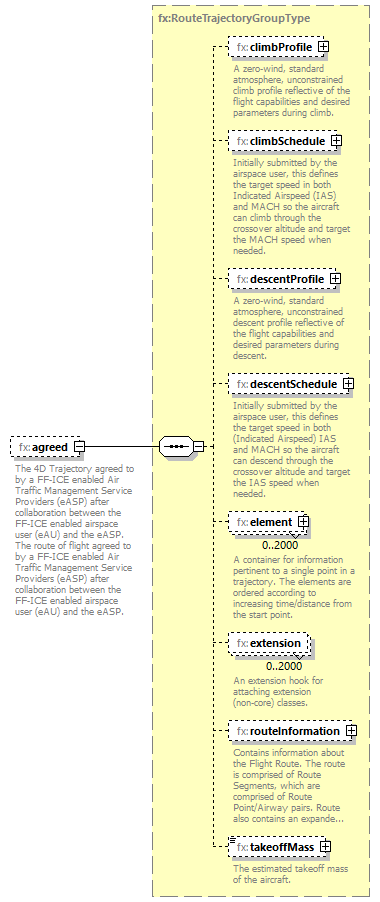

diagram BasicMessage_diagrams/BasicMessage_p361.png
namespace http://www.fixm.aero/flight/4.2
type fx:RouteTrajectoryGroupType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:climbProfile fx:climbSchedule fx:descentProfile fx:descentSchedule fx:element fx:extension fx:routeInformation fx:takeoffMass
annotation
documentation
The 4D Trajectory agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.
The route of flight agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.
source <xs:element name="agreed" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The 4D Trajectory agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.
The route of flight agreed to by a FF-ICE enabled Air Traffic Management Service Providers (eASP) after collaboration between the FF-ICE enabled airspace user (eAU) and the eASP.
</xs:documentation>

</xs:annotation>
</xs:element>

element RouteTrajectoryGroupContainerType/current

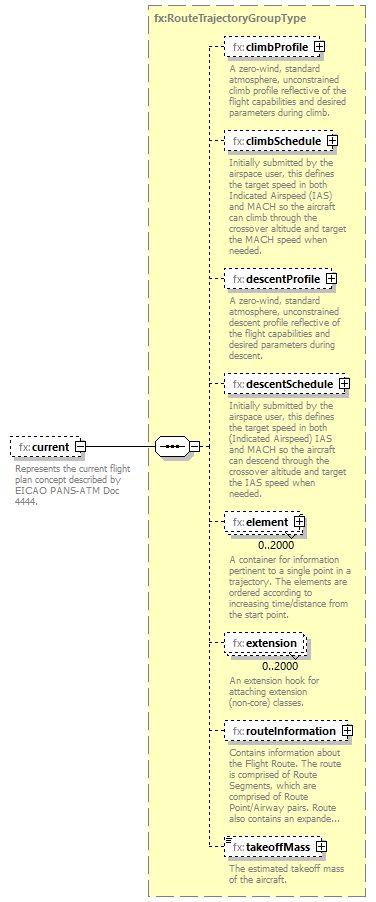

diagram BasicMessage_diagrams/BasicMessage_p362.png
namespace http://www.fixm.aero/flight/4.2
type fx:RouteTrajectoryGroupType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:climbProfile fx:climbSchedule fx:descentProfile fx:descentSchedule fx:element fx:extension fx:routeInformation fx:takeoffMass
annotation
documentation
Represents the current flight plan concept described by EICAO PANS-ATM Doc 4444.
source <xs:element name="current" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>Represents the current flight plan concept described by EICAO PANS-ATM Doc 4444.</xs:documentation>

</xs:annotation>
</xs:element>

element RouteTrajectoryGroupContainerType/desired
diagram BasicMessage_diagrams/BasicMessage_p363.png
namespace http://www.fixm.aero/flight/4.2
type fx:RouteTrajectoryGroupType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:climbProfile fx:climbSchedule fx:descentProfile fx:descentSchedule fx:element fx:extension fx:routeInformation fx:takeoffMass
annotation
documentation
The preferred route of flight submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.
This trajectory indicates the preferred 4D trajectory submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.
source <xs:element name="desired" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The preferred route of flight submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.
This trajectory indicates the preferred 4D trajectory submitted by the FF-ICE enabled airspace user (eAU) to the FF-ICE enabled Air Traffic Management Service Providers (eASP) subject to required constraints.
</xs:documentation>

</xs:annotation>
</xs:element>

element RouteTrajectoryGroupContainerType/extension
diagram BasicMessage_diagrams/BasicMessage_p364.png
namespace http://www.fixm.aero/flight/4.2
type fb:RouteTrajectoryGroupContainerExtensionType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
annotation
documentation
An extension hook for attaching extension (non-core) classes.
source <xs:element name="extension" type="fb:RouteTrajectoryGroupContainerExtensionType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>An extension hook for attaching extension (non-core) classes.</xs:documentation>

</xs:annotation>
</xs:element>

element RouteTrajectoryGroupContainerType/filed

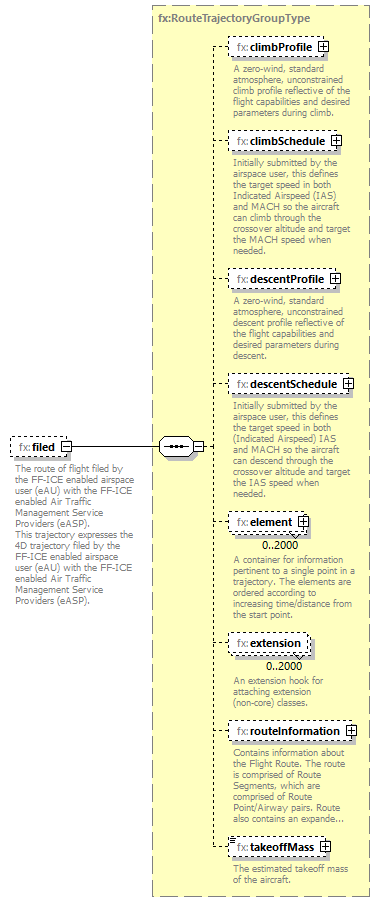

diagram BasicMessage_diagrams/BasicMessage_p365.png
namespace http://www.fixm.aero/flight/4.2
type fx:RouteTrajectoryGroupType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:climbProfile fx:climbSchedule fx:descentProfile fx:descentSchedule fx:element fx:extension fx:routeInformation fx:takeoffMass
annotation
documentation
The route of flight filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
This trajectory expresses the 4D trajectory filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
source <xs:element name="filed" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The route of flight filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
This trajectory expresses the 4D trajectory filed by the FF-ICE enabled airspace user (eAU) with the FF-ICE enabled Air Traffic Management Service Providers (eASP).
</xs:documentation>

</xs:annotation>
</xs:element>

element RouteTrajectoryGroupContainerType/negotiating

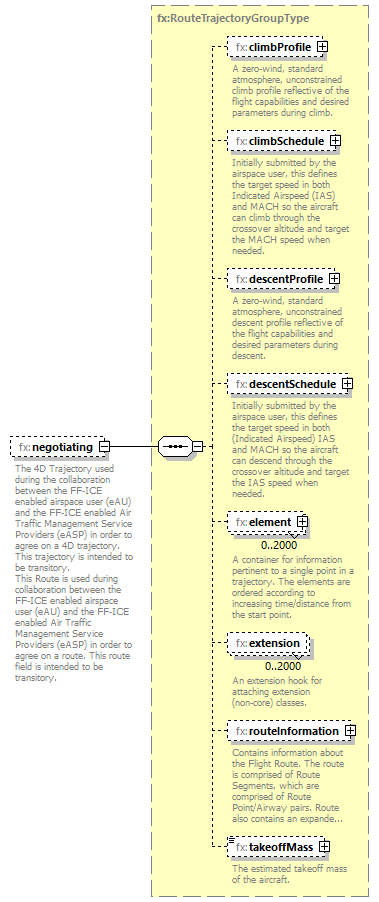

diagram BasicMessage_diagrams/BasicMessage_p366.png
namespace http://www.fixm.aero/flight/4.2
type fx:RouteTrajectoryGroupType
properties
minOcc 0
maxOcc 1
content complex
nillable true
children fx:climbProfile fx:climbSchedule fx:descentProfile fx:descentSchedule fx:element fx:extension fx:routeInformation fx:takeoffMass
annotation
documentation
The 4D Trajectory used during the collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a 4D trajectory. This trajectory is intended to be transitory.
This Route is used during collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a route. This route field is intended to be transitory.
source <xs:element name="negotiating" type="fx:RouteTrajectoryGroupType" nillable="true" minOccurs="0" maxOccurs="1">

<xs:annotation>

<xs:documentation>The 4D Trajectory used during the collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a 4D trajectory. This trajectory is intended to be transitory.
This Route is used during collaboration between the FF-ICE enabled airspace user (eAU) and the FF-ICE enabled Air Traffic Management Service Providers (eASP) in order to agree on a route. This route field is intended to be transitory.
</xs:documentation>

</xs:annotation>
</xs:element>

element RouteTrajectoryGroupContainerType/ranked

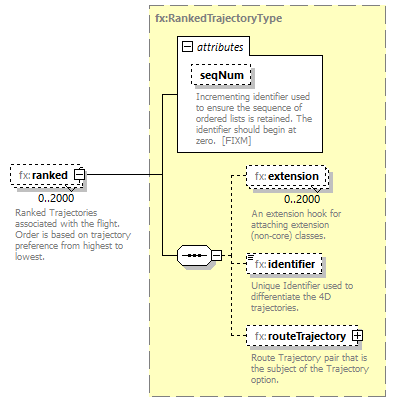

diagram BasicMessage_diagrams/BasicMessage_p367.png
namespace http://www.fixm.aero/flight/4.2
type fx:RankedTrajectoryType
properties
minOcc 0
maxOcc 2000
content complex
nillable true
children fx:extension fx:identifier fx:routeTrajectory
attributes
Name  Type  Use  Default  Fixed  Annotation
seqNum  fb:CountType  optional
documentation
Incrementing identifier used to ensure the sequence of ordered lists is retained. The identifier should begin at zero.  [FIXM]
annotation
documentation
Ranked Trajectories associated with the flight. Order is based on trajectory preference from highest to lowest.
source <xs:element name="ranked" type="fx:RankedTrajectoryType" nillable="true" minOccurs="0" maxOccurs="2000">

<xs:annotation>

<xs:documentation>Ranked Trajectories associated with the flight. Order is based on trajectory preference from highest to lowest.</xs:documentation>

</xs:annotation>
</xs:element>
